2020 Sany 75C-9

1/4

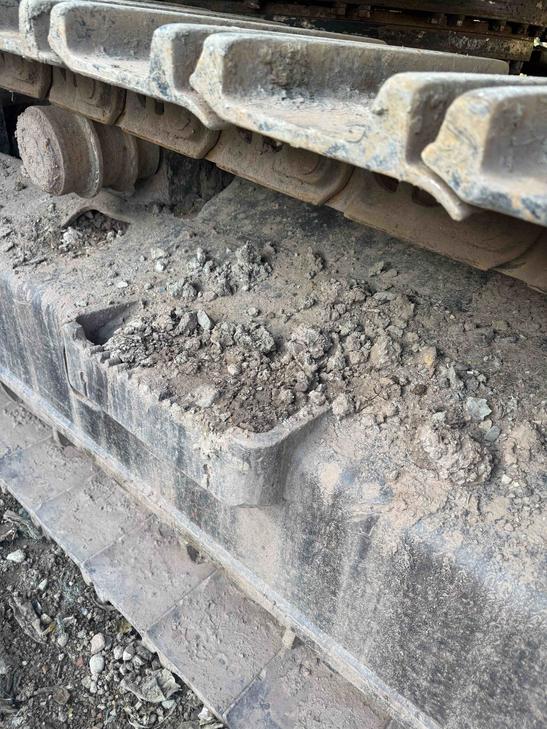

Buy Sany 75C-9 Used Excavator / 1
Buy Sany 75C-9 Used Excavator / 2
Buy Sany 75C-9 Used Excavator / 3
Buy Sany 75C-9 Used Excavator / 4

Product Description

This 2020 Sany 75C-9 excavator represents a well-maintained mid-size machine ready for immediate deployment. Currently located in Zhejiang, China, this unit comes with complete documentation and has been maintained to high standards throughout its operational life.

The 75C-9 combines Sany's proven hydraulic systems with reliable performance for a range of earthmoving and construction applications. At approximately 7.5 tonnes operating weight, this excavator delivers the balance of power and maneuverability needed for urban construction, utility work, and general excavation projects.

  • Year: 2020
  • Model: Sany 75C-9
  • Location: Zhejiang, China
  • Complete documentation provided
  • Quality-inspected and available for test operation

Ideal for contractors seeking dependable mid-range excavation equipment with established parts availability and service support across international markets.

SpecificationsValue
No.1144962
Tonnage (tons)7
Working weight (kg)7280
Bucket capacity (m³)0.28 (optional 0.16 ~ 0.32)
Country of originShanghai, China
powerTraditional power
manufacturerMade in China
bucketbackhoe
Engine typeCC-4JG1PAC
Rated power (kw/rpm)40.9/2100
Cooling modewater-cooling
Number of cylinders (PCS)four-cylinder
Working formFour-cylinder four-stroke direct injection diesel engine
Ground specific pressure (Kpa)33
Rotation speed (rpm)11.5
Climbing ability (%)70% / 35 °
Bucket digging force (kN)56
Rod digging force (kN)38
Travel speed (km/h)4.4/2.4
Maximum flow of main pump (l/min)149
Traveling Hydraulic Circuit (Mpa)26
Rotary Hydraulic Circuit (Mpa)21.6
Control Hydraulic Circuit (Mpa)3.6
Hydraulic crushing pipeline is standardno
Total transport length (mm)6120
Total transport width (mm)2220
Total transport height (mm)2720
Minimum ground clearance (mm)380
Back end turning radius (mm)1720
Onboard width (mm)2040
Total track length (mm)2820
Track gauge (mm)1750
Track plate width (mm)450
Total track width (mm)2220
Maximum digging radius (mm)6240
Maximum digging depth (mm)4020
Maximum excavation height (mm)7060
Maximum unloading height (mm)5155
Maximum vertical digging depth (mm)3290
Bulldozer lift or depth (mm)Lift 350/ depth 360
Dodging plate width × height (mm)Altitude 405
