HOME>>Sany>>Sany 75C-9

2021 Sany 75C-9

1/5
Buy Sany 75C-9 Used Excavator / 1
Buy Sany 75C-9 Used Excavator / 2
Buy Sany 75C-9 Used Excavator / 3
Buy Sany 75C-9 Used Excavator / 4
Buy Sany 75C-9 Used Excavator / 5

Product Description

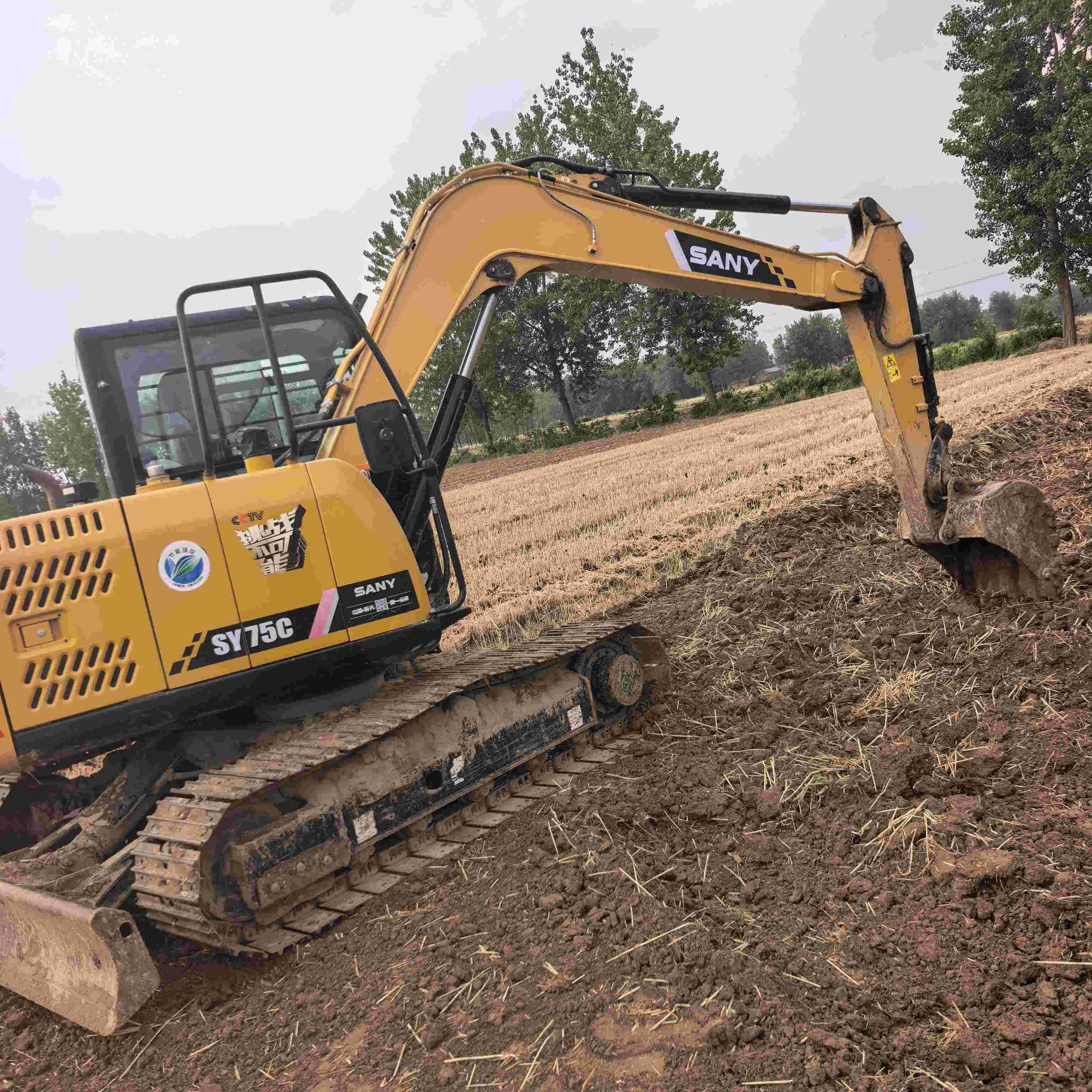

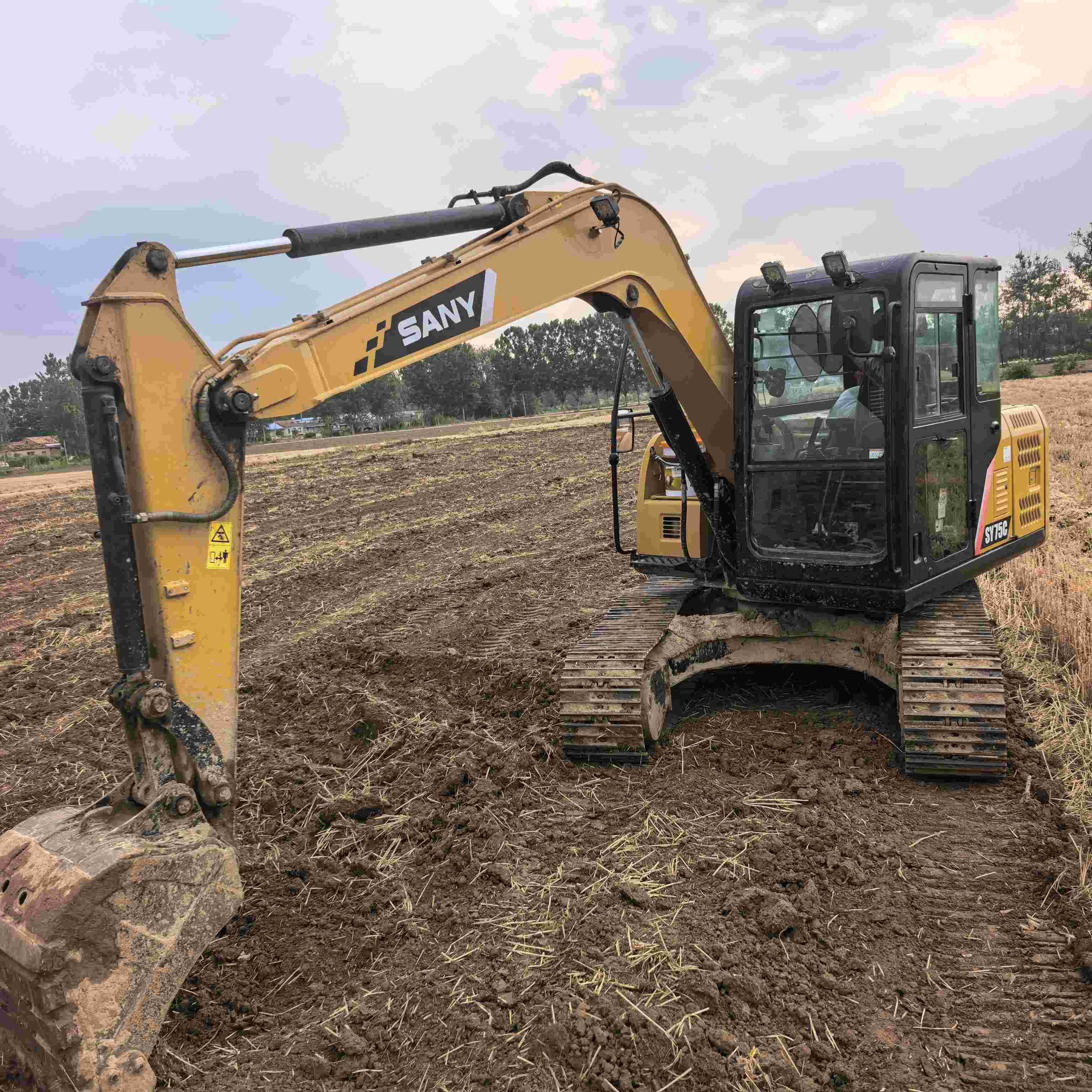

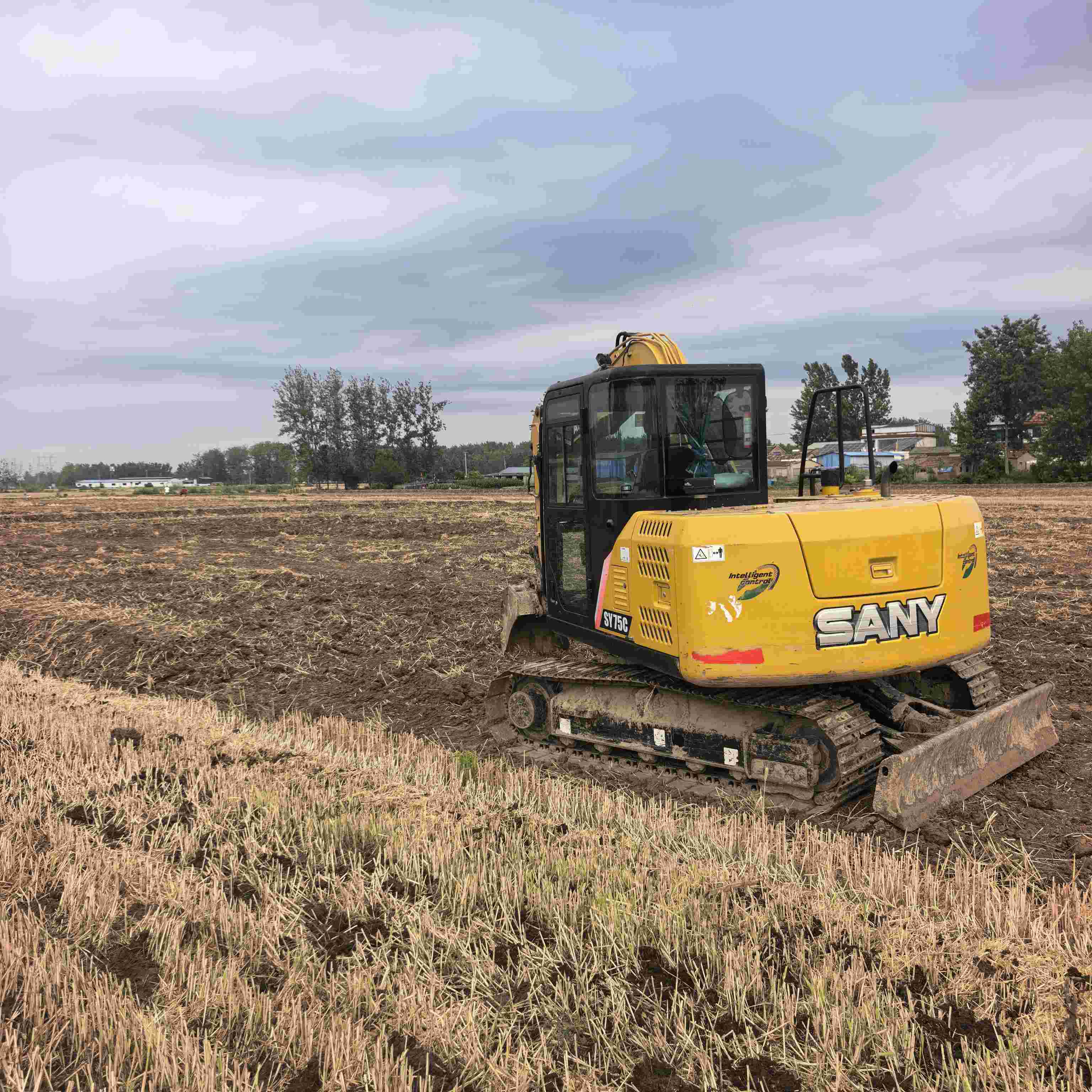

This 2021 Sany 75C-9 excavator, currently located in Jiangsu, China, represents a reliable mid-sized crawler excavator with approximately 7,200 operating hours. The machine has been maintained to inspection-ready standards, demonstrating consistent upkeep throughout its operational life.

The Sany 75C-9 is a 7.5-ton class excavator well-suited for construction, earthmoving, and utility applications. This unit offers a practical balance of digging power and maneuverability for contractors seeking dependable performance in confined work sites and general excavation projects.

Key features include:

  • Operating weight: Approximately 7.5 tonnes
  • Year of manufacture: 2021
  • Current hours: 7,200+
  • Condition: Inspection-ready
  • Location: Jiangsu Province, China

Price available upon request. Suitable for export or domestic deployment. Contact us for detailed specifications, additional imagery, and shipping arrangements.

SpecificationsValue
No.1088656
Tonnage (tons)7
Working weight (kg)7280
Bucket capacity (m³)0.28 (optional 0.16 ~ 0.32)
Country of originShanghai, China
powerTraditional power
manufacturerMade in China
bucketbackhoe

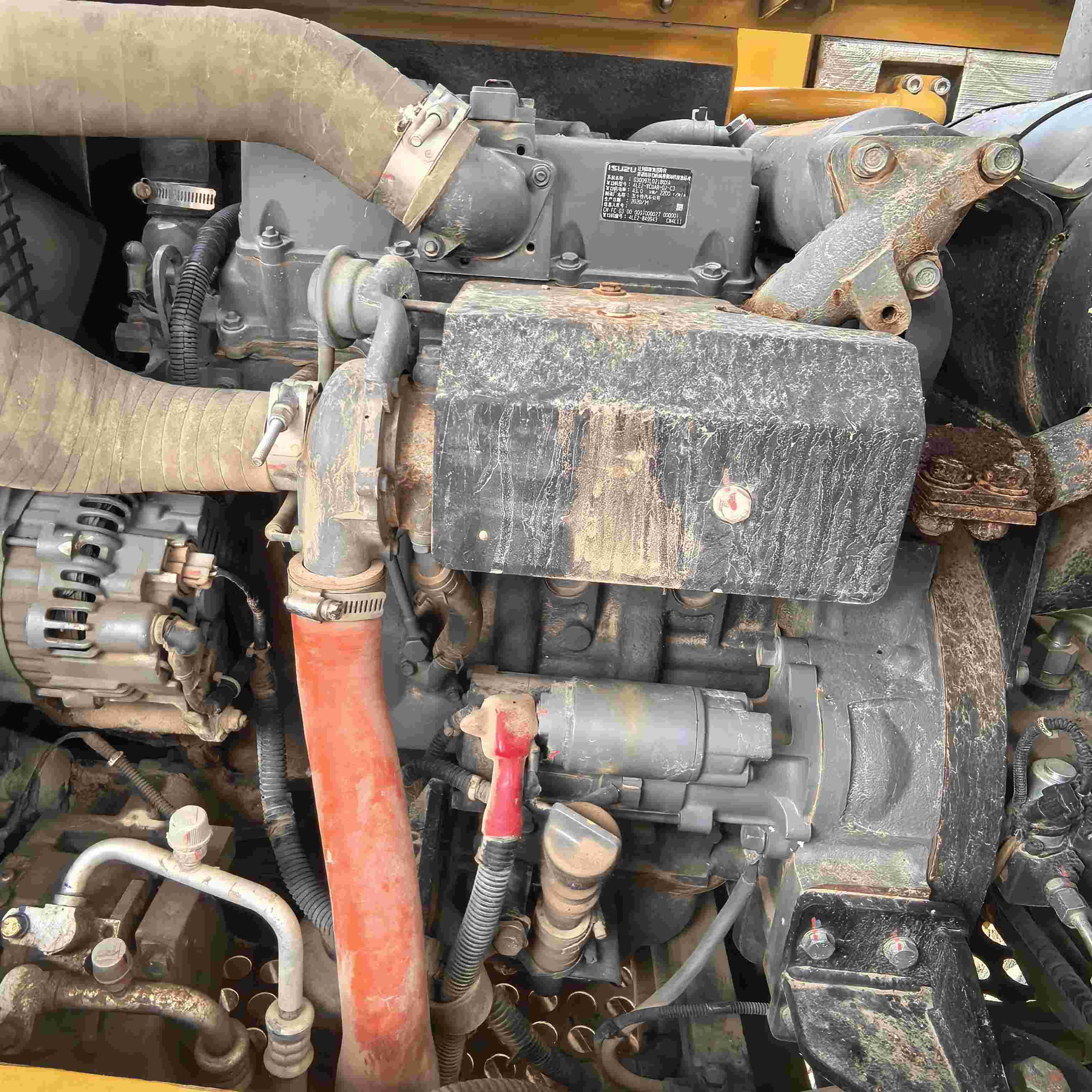

Engine typeCC-4JG1PAC
Rated power (kw/rpm)40.9/2100
Cooling modewater-cooling
Number of cylinders (PCS)four-cylinder
Working formFour-cylinder four-stroke direct injection diesel engine
Ground specific pressure (Kpa)33
Rotation speed (rpm)11.5
Climbing ability (%)70% / 35 °
Bucket digging force (kN)56
Rod digging force (kN)38
Travel speed (km/h)4.4/2.4
Maximum flow of main pump (l/min)149
Traveling Hydraulic Circuit (Mpa)26
Rotary Hydraulic Circuit (Mpa)21.6
Control Hydraulic Circuit (Mpa)3.6
Hydraulic crushing pipeline is standardno
Total transport length (mm)6120
Total transport width (mm)2220
Total transport height (mm)2720
Minimum ground clearance (mm)380
Back end turning radius (mm)1720
Onboard width (mm)2040
Total track length (mm)2820
Track gauge (mm)1750
Track plate width (mm)450
Total track width (mm)2220
Maximum digging radius (mm)6240
Maximum digging depth (mm)4020
Maximum excavation height (mm)7060
Maximum unloading height (mm)5155
Maximum vertical digging depth (mm)3290
Bulldozer lift or depth (mm)Lift 350/ depth 360
Dodging plate width × height (mm)Altitude 405
see more

Overview

No.1088656

Brand Name:

Sany

Model Number:

75C-9

Year:

2021

Location:

Jiangsu China

Pub Date

Are you interested in this machine?

Please contact us
