2020 Sany C135-10

1/9
Buy Sany C135-10 Used Excavator / 1

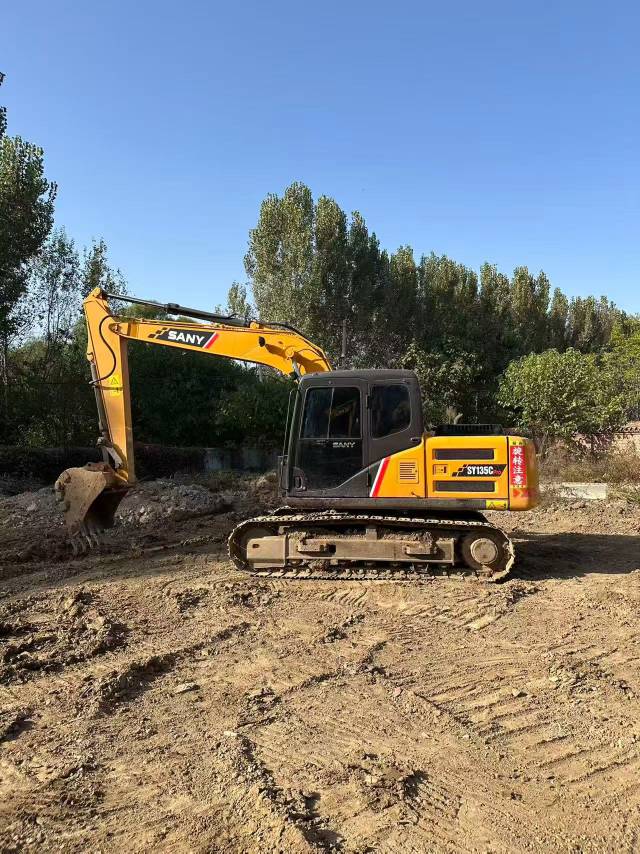

Buy Sany C135-10 Used Excavator / 2

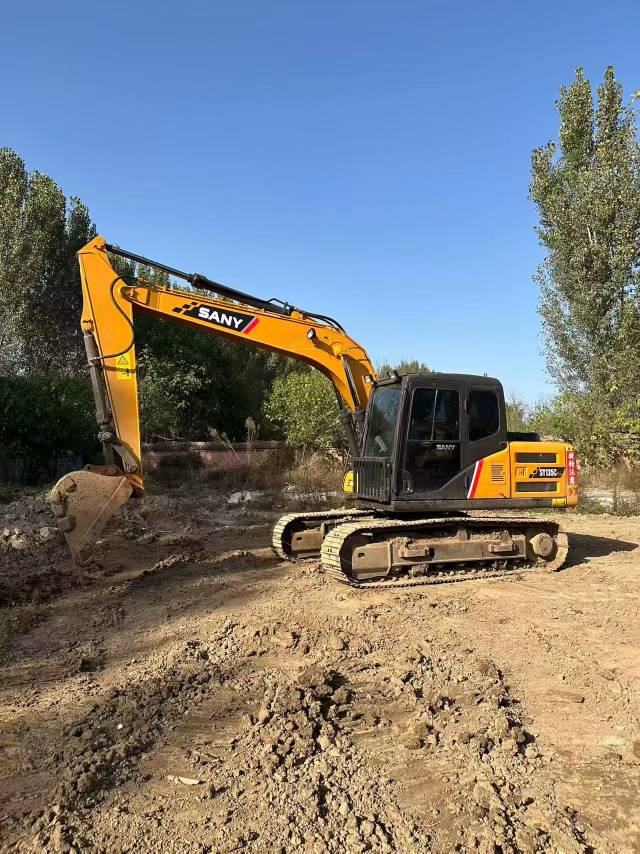

Buy Sany C135-10 Used Excavator / 3

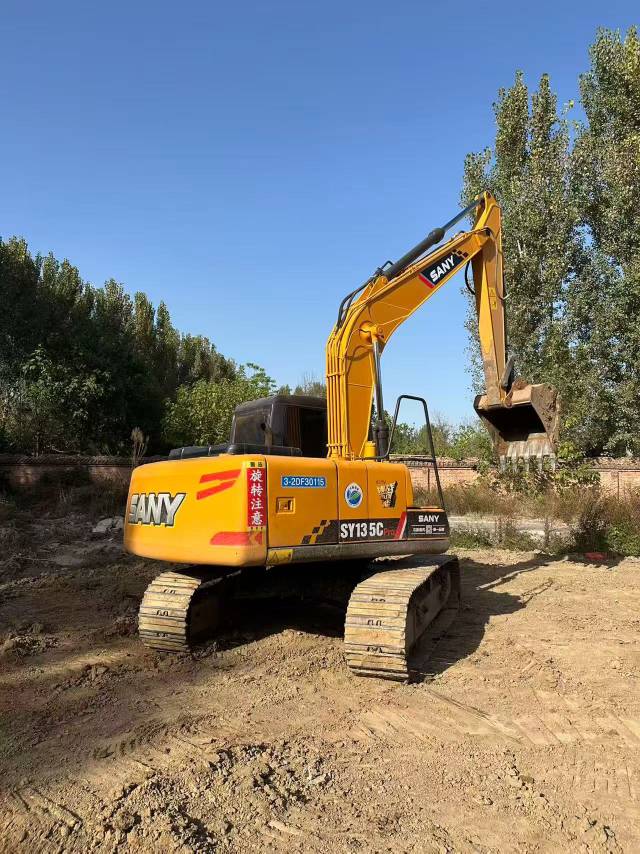

Buy Sany C135-10 Used Excavator / 4

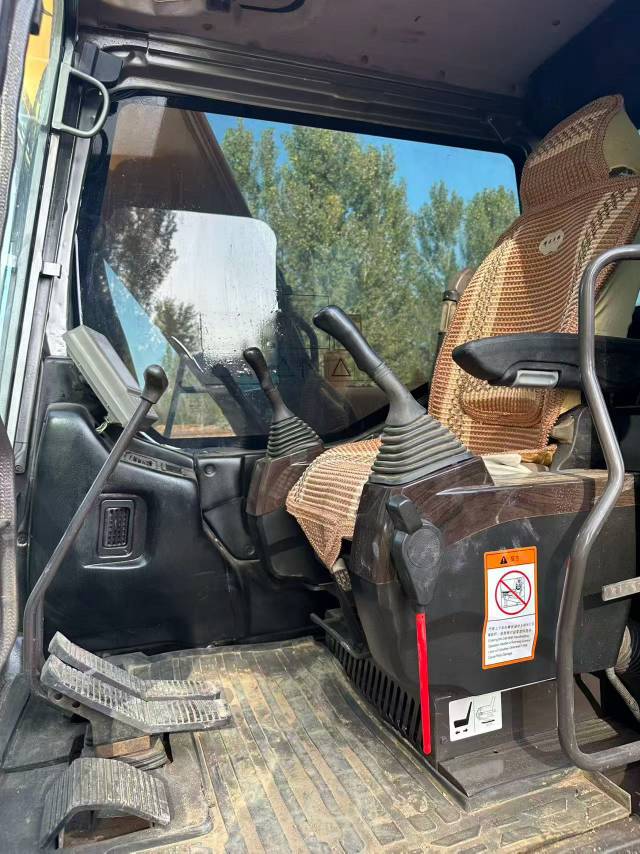

Buy Sany C135-10 Used Excavator / 5

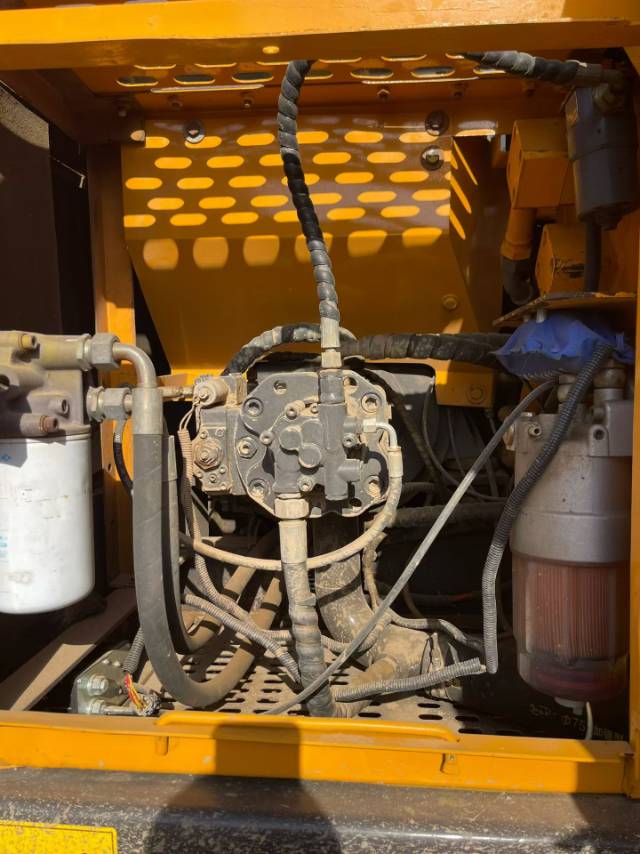

Buy Sany C135-10 Used Excavator / 6

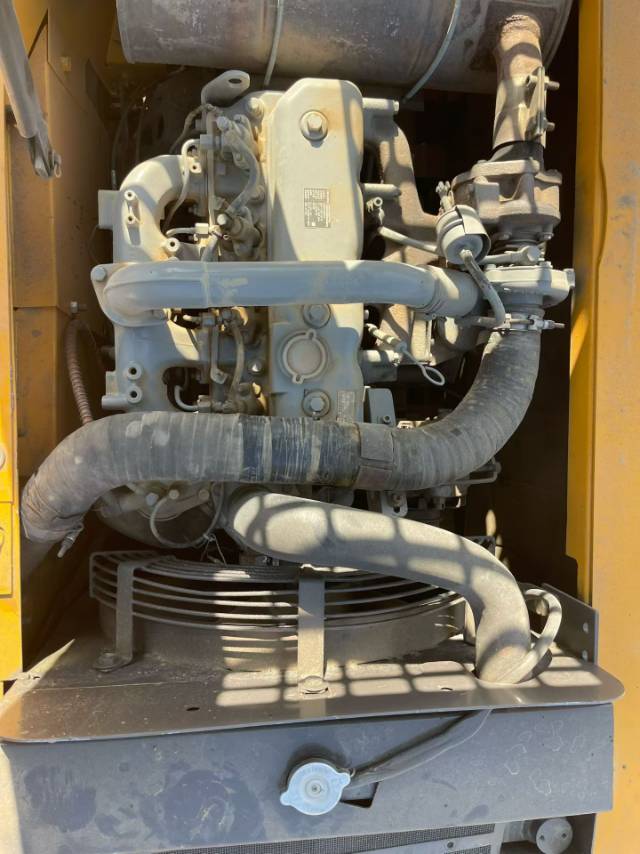

Buy Sany C135-10 Used Excavator / 7

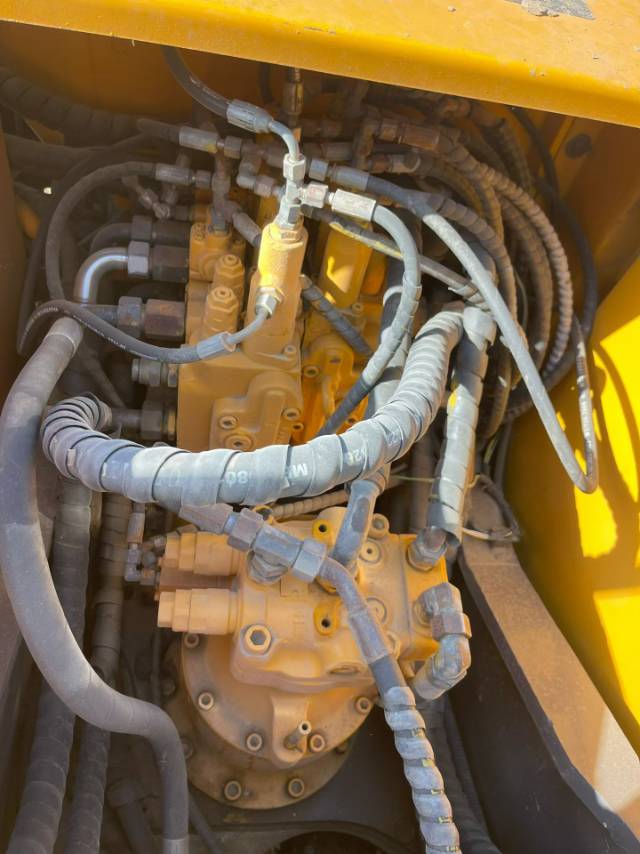

Buy Sany C135-10 Used Excavator / 8

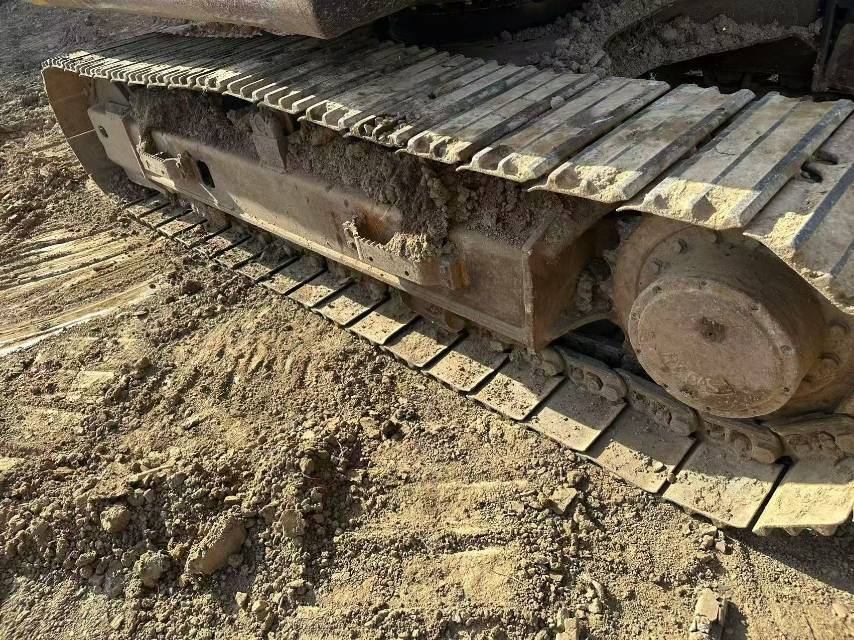

Buy Sany C135-10 Used Excavator / 9

Product Description

Discover the exceptional quality of the 2020 Sany C135-10, available in JiLin, China. This used heavy machine is in excellent condition, with an overall appearance and functionality that retains 90% of its original state. The chassis is in perfect condition, ensuring a robust foundation for your operations. Major components are clean and free from oil leaks, indicating meticulous maintenance and care. Regular servicing has been a priority, guaranteeing reliable performance and efficiency on the job. Ideal for demanding industrial applications, this Sany model is ready to meet your project needs.

  • Year: 2020
  • Brand: Sany
  • Model: C135-10
  • Location: JiLin, China
  • Condition: 90% new, well-maintained
  • Features: Perfect chassis, no oil leaks, regular service history
SpecificationsValue
No.1174701
Tonnage (tons)13
Working weight (kg)13500
Bucket capacity (m³)0.22-0.7 (0.6)
powerTraditional power
manufacturerMade in China
bucketbackhoe
Engine typeIsuzu 4JJ1-XDJAG-01-C3
Rated power (kw/rpm)73/2000
Cooling modewater-cooling
Maximum torque (N.m)365/1600
Displacement (L)2.999
Ground specific pressure (Kpa)41.7
Rotation speed (rpm)12
Climbing ability (%)70% (35°)
Bucket digging force (kN)92.7
Rod digging force (kN)66.13
Travel speed (km/h)5.5/3.5
Fuel Tank (L)240
Hydraulic Tank (L)150
Engine Oil changes (L)15
Total transport length (mm)7700
Total transport width (mm)2550
Total transport height (mm)2815
Full cab height (mm)2740
Minimum ground clearance (mm)425
Minimum turning radius of front working device (mm)2500
Back end turning radius (mm)2240
Onboard width (mm)2490
Total track length (mm)3665
Track gauge (mm)1990
Track plate width (mm)500
Track ground length (mm)2930
Maximum height at minimum turning radius (mm)6500
Number of sprockets (single side) (each)1
Number of wheels (single side) (each)7
Number of track plates (single side) (PCS)44
Maximum digging radius (mm)8290
Maximum digging depth (mm)5510
Maximum excavation height (mm)8685
Maximum unloading height (mm)6180
Maximum vertical digging depth (mm)4890
see more

Overview

No.1174701

Brand Name:

Sany

Model Number:

C135-10

Year:

2020

Location:

JiLin China

Pub Date:
