Product Description

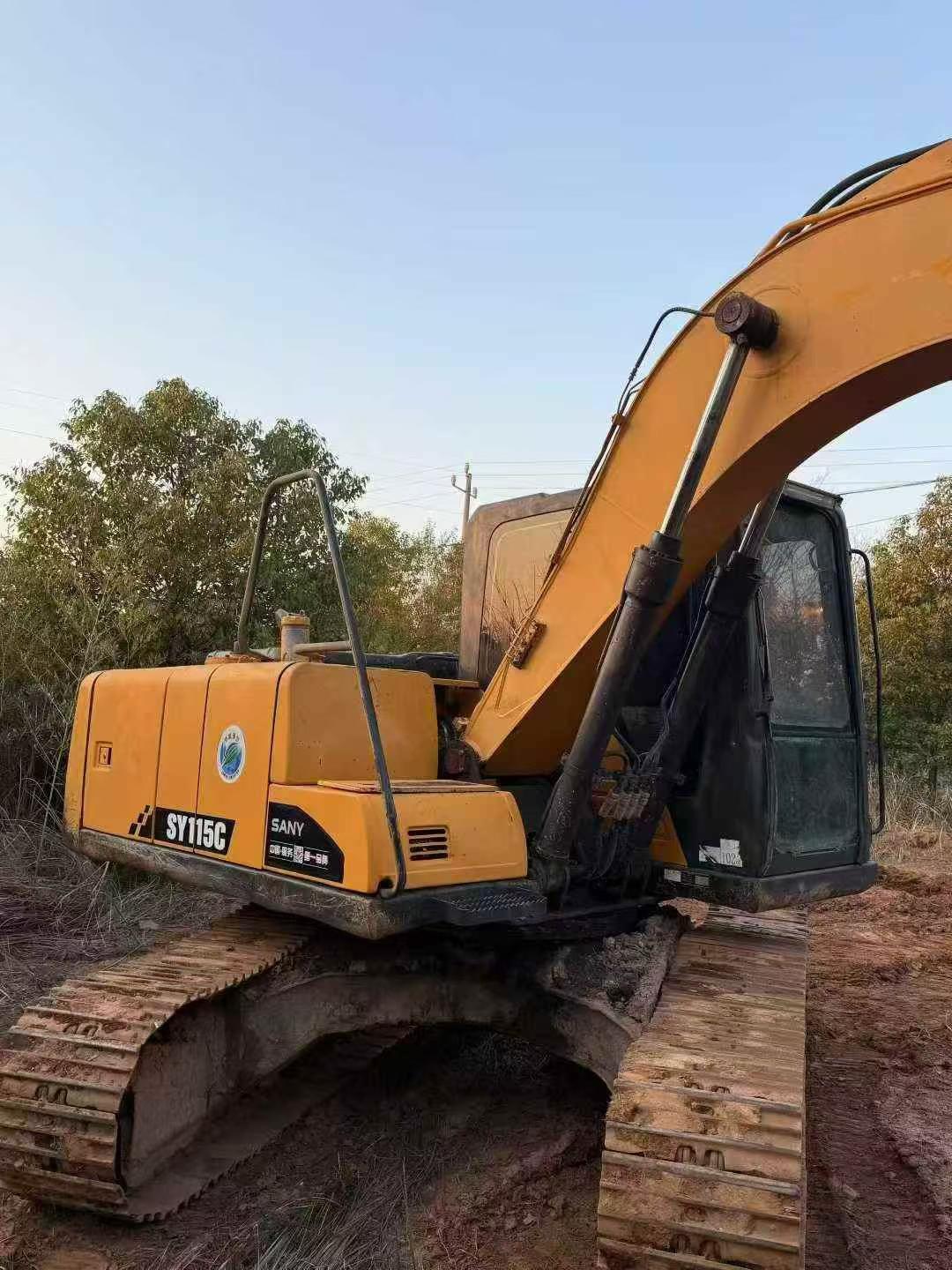

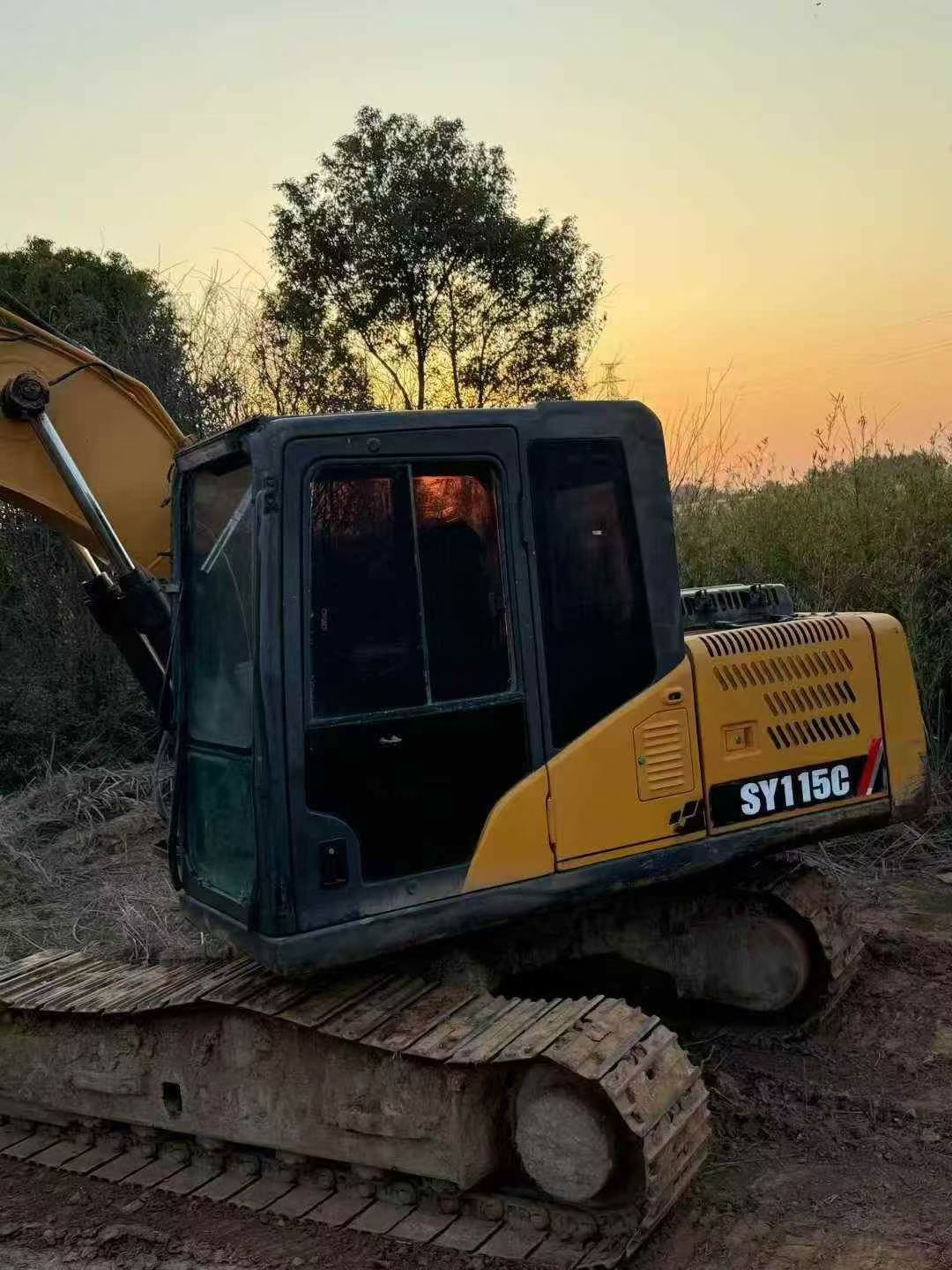

Engineered with precision, this 2015 Sany SY115C excavator delivers robust performance through its 4JJ1-XDJAG-01-C3 engine, generating 73 kW at 2000 rpm and 365 N·m maximum torque at 1600 rpm. Operating at 12 tons working weight with a 0.5 m³ backhoe bucket, this machine combines hydraulic power with operational efficiency for demanding excavation tasks.
- Hydraulic Performance: 90.6 kN bucket digging force and 57.2 kN rod digging force ensure consistent material handling

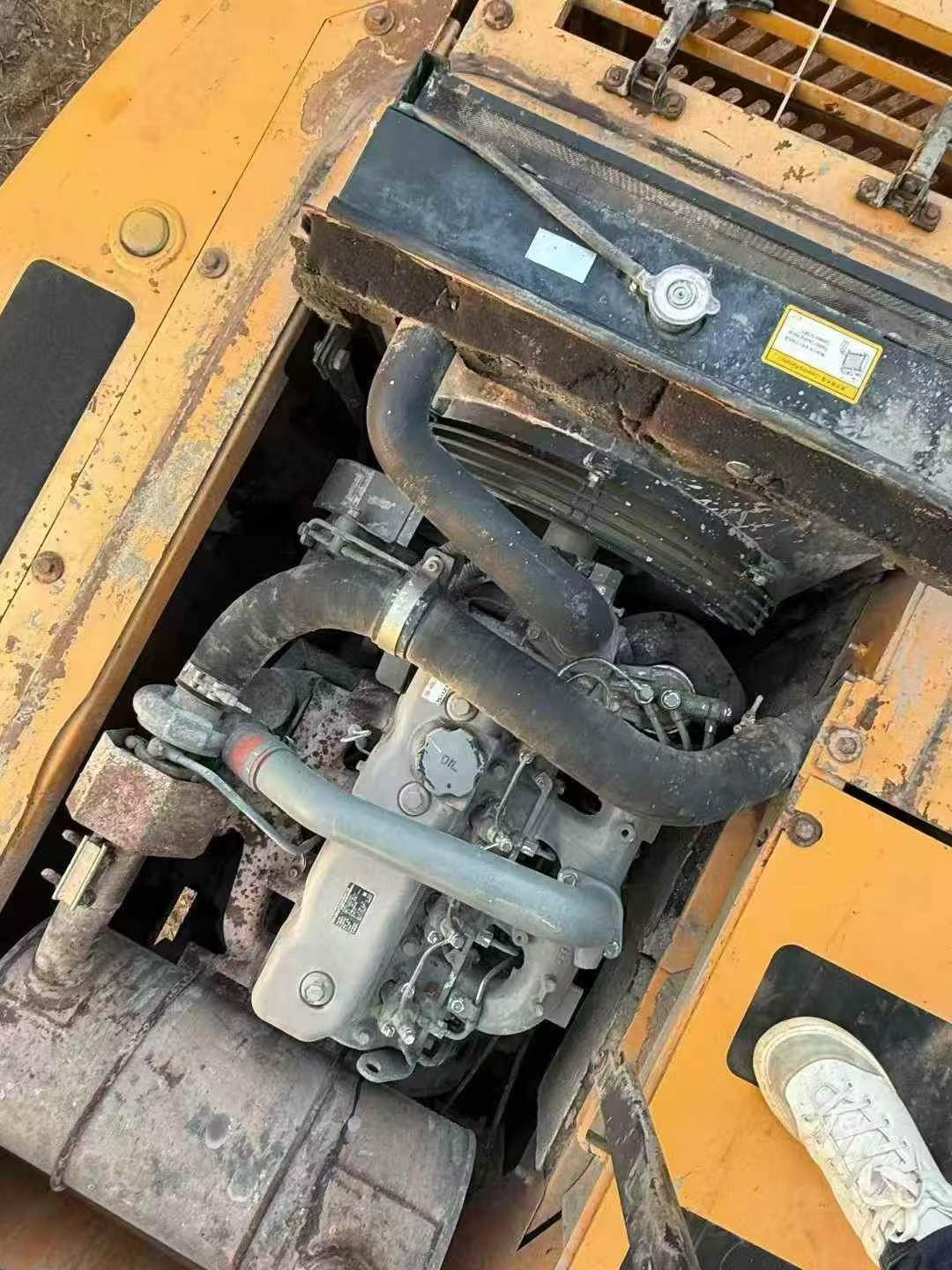

- Power Plant: 2.999 L displacement engine with proven reliability standards
- Terrain Capability: 70% (35°) climbing ability and 41.6 kPa ground pressure for stable operation
- Operational Capacity: 240 L fuel tank and 150 L hydraulic tank support extended work cycles

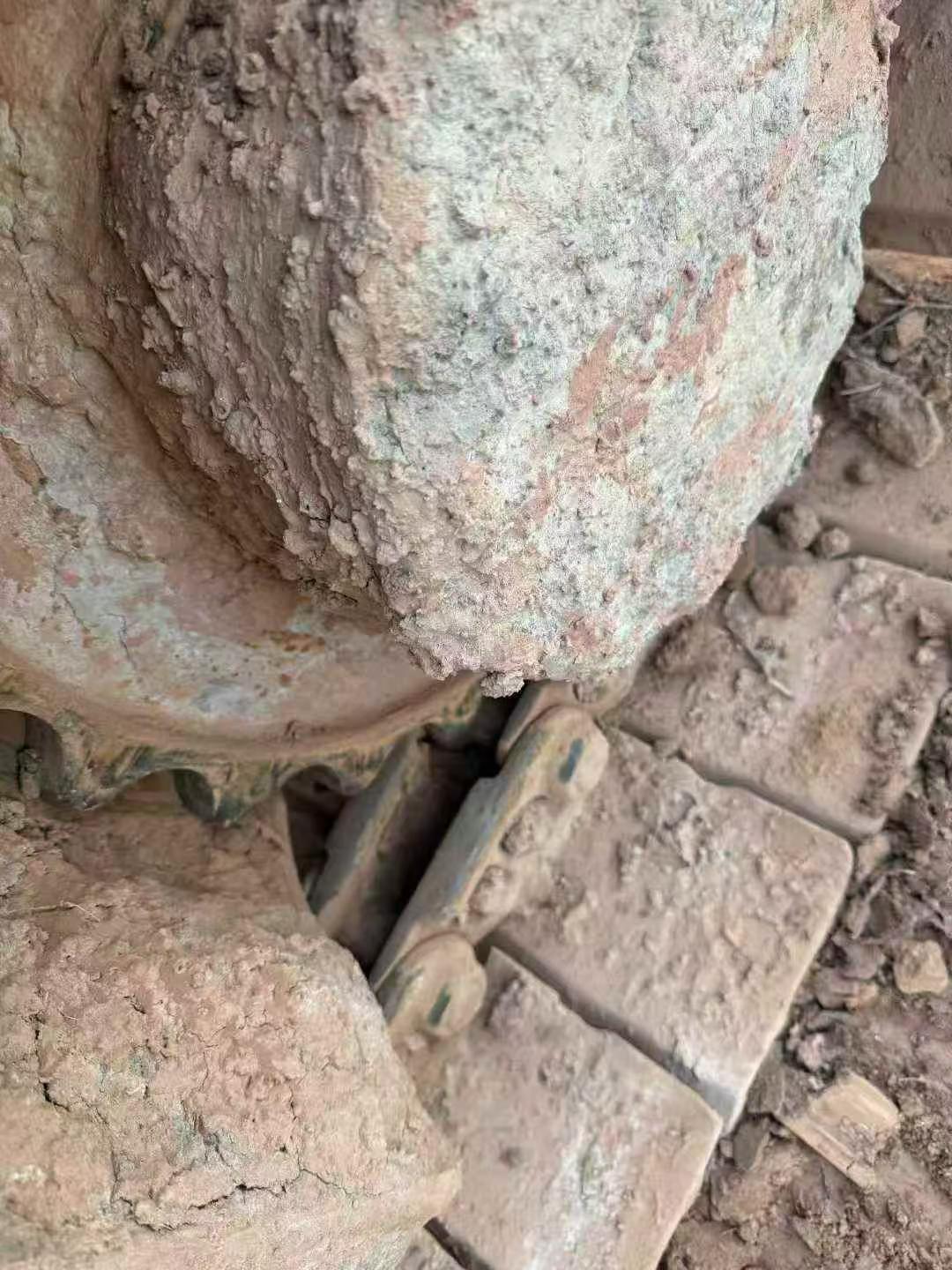

- Undercarriage: 500 mm track length with 41 plates per side delivers superior traction
Currently located in Jiangxi, China, this SY115C represents Sany's commitment to manufacturing reliable mid-size excavators. Factory-direct specifications and proven component integration make this unit suitable for construction, utility, and material handling applications req
| Specifications | Value |
|---|---|
| No. | 1032468 |
| Tonnage (tons) | 12 |
| Working weight (kg) | 12400 |
| Bucket capacity (m³) | 0.5 |
| power | Traditional power |
| manufacturer | Made in China |
| bucket | backhoe |
| Engine type | 4JJ1-XDJAG-01-C3 |
| Rated power (kw/rpm) | 73/2000 |
| Maximum torque (N.m) | 365/1600 |
| Displacement (L) | 2.999 |
| Ground specific pressure (Kpa) | 41.6 |
| Rotation speed (rpm) | 13.06 |
| Climbing ability (%) | 70% (35°) |
| Bucket digging force (kN) | 90.6 |
| Rod digging force (kN) | 57.2 |
| Travel speed (km/h) | 5.5/3.5 |
| Fuel Tank (L) | 240 |
| Hydraulic Tank (L) | 150 |
| Engine Oil changes (L) | 15 |
| Total track length (mm) | 500 |
| Number of sprockets (single side) (each) | 1 |
| Number of wheels (single side) (each) | 1 |
| Number of track plates (single side) (PCS) | 41 |
