Product Description

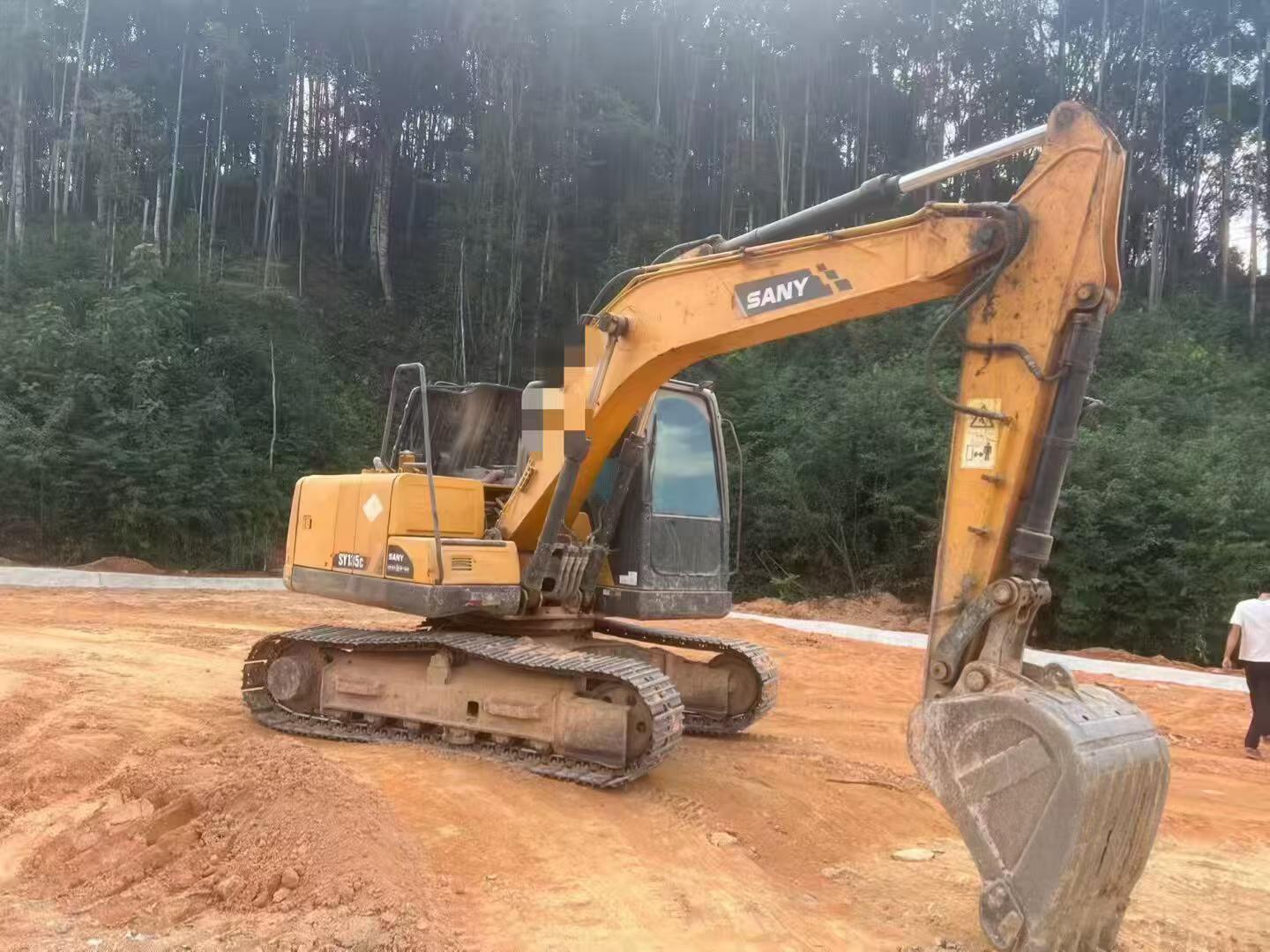

This 2020 Sany SY115C-9 hydraulic excavator is available from Hunan, China. The SY115C-9 is a mid-sized crawler excavator in Sany's reliable 11-ton class, designed for general earthmoving, trenching, and construction applications. This unit benefits from Sany's ninth-generation design improvements, including enhanced fuel efficiency and operator comfort features.
Key specifications include:
- Operating weight: approximately 11,500 kg
- Engine: turbocharged diesel meeting emission standards
- Bucket capacity: standard 0.5 m³
- Hydraulic system optimized for productivity and precision
- Reinforced undercarriage for extended component life
Suitable for contractors seeking dependable performance in excavation, site preparation, and utility work. Inspection reports and additional operational details available upon request.
| Specifications | Value |
|---|---|
| No. | 1173468 |
| Tonnage (tons) | 11 |
| Working weight (kg) | 12,400 |
| Bucket capacity (m³) | 0.50-0.65 |
| power | Traditional power |
| manufacturer | Made in China |
| bucket | backhoe |
| Rated power (kw/rpm) | 72.7/2200 |
| Ground specific pressure (Kpa) | 41.6 |
| Rotation speed (rpm) | 13.06 |
| Climbing ability (%) | 70% / 35 ° |
| Bucket digging force (kN) | 90.6 |
| Rod digging force (kN) | 57.2 |
| Travel speed (km/h) | 5.5/3.5 |
| Total transport length (mm) | 7280 |
| Total transport width (mm) | 2550 |
| Total transport height (mm) | 2890 |
| Full cab height (mm) | 2740 |
| Minimum ground clearance (mm) | 425 |
| Back end turning radius (mm) | 2205 |
| Onboard width (mm) | 2490 |
| Total track length (mm) | 3360 |
| Track gauge (mm) | 1990 |
| Track plate width (mm) | 500 |
| Track ground length (mm) | 2680 |
| Maximum digging radius (mm) | 7735 |
| Maximum digging depth (mm) | 5190 |
| Maximum excavation height (mm) | 7695 |
| Maximum unloading height (mm) | 5440 |
| Maximum vertical digging depth (mm) | 4720 |
