2017 Sany SY125C

1/4
Buy Sany SY125C Used Excavator / 1
Buy Sany SY125C Used Excavator / 2
Buy Sany SY125C Used Excavator / 3
Buy Sany SY125C Used Excavator / 4

Product Description

This 2017 Sany SY125C excavator is available from our Jiangxi, China location. With approximately 7 years of operational history, this mid-size crawler excavator offers reliable performance for construction, earthmoving, and general contracting applications.

The SY125C features Sany's proven hydraulic system and is designed for versatility across various job sites. This unit has been maintained in working condition and is competitively priced for immediate deployment.

  • Year of Manufacture: 2017
  • Operating Weight: Approximately 12.5 tonnes
  • Bucket Capacity: Standard configuration
  • Engine: Diesel power unit
  • Current Location: Jiangxi Province, China

Detailed photographs and operational videos are available upon request. Contact our sales team for pricing, inspection arrangements, and international shipping options.

SpecificationsValue
No.1092959
Tonnage (tons)12
Working weight (kg)12450
Bucket capacity (m³)0.22-0.7 (0.55)
powerTraditional power
manufacturerMade in China
bucketbackhoe

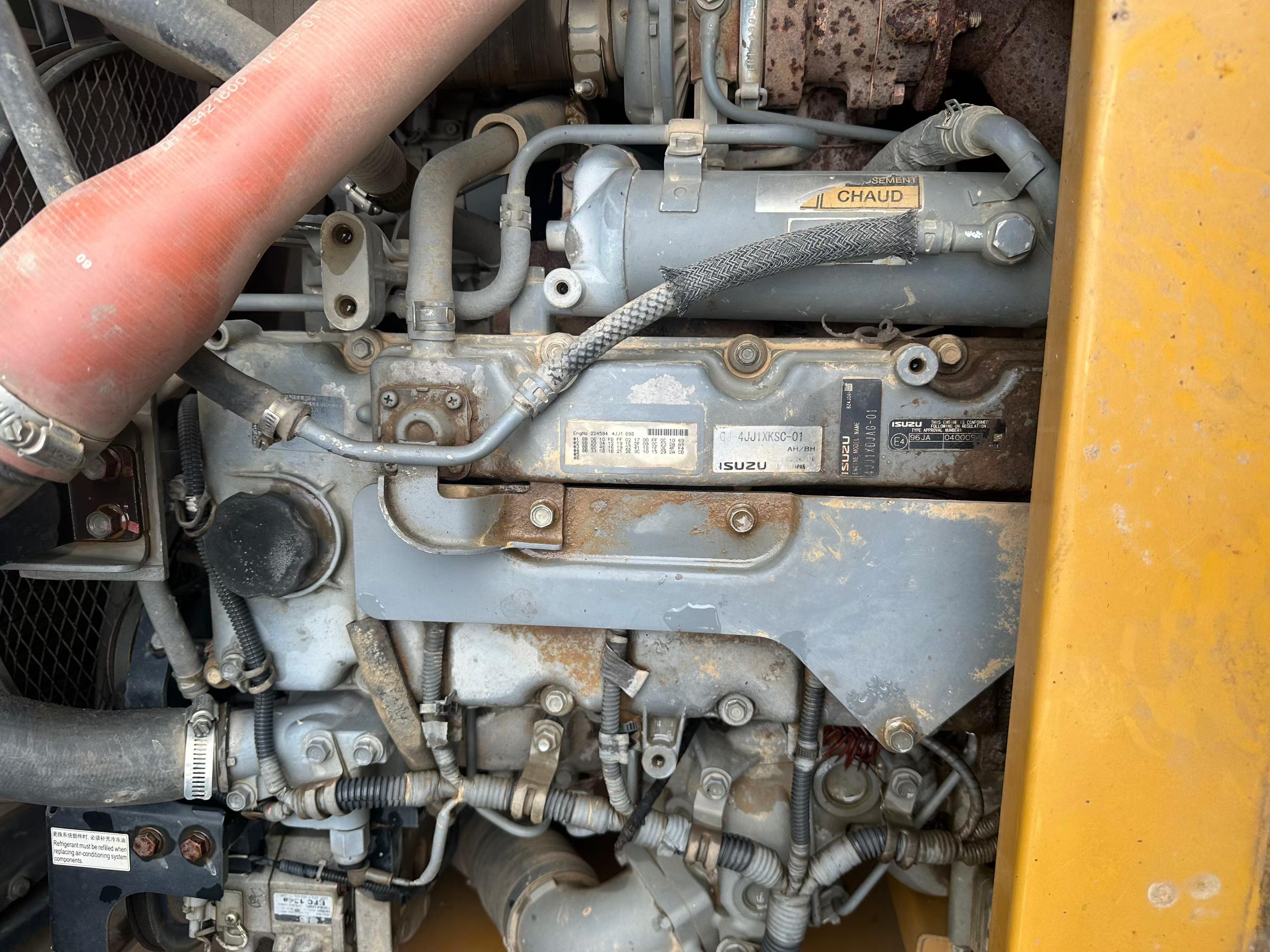

Engine typeIsuzu 4JJ1-XDJAG-01-C3
Rated power (kw/rpm)73/2000
Cooling modewater-cooling
Maximum torque (N.m)365/1600
Displacement (L)2.999
Ground specific pressure (Kpa)41.6
Rotation speed (rpm)13.06
Climbing ability (%)70
Bucket digging force (kN)90.6
Rod digging force (kN)57.2
Travel speed (km/h)5.5/3.5
Fuel Tank (L)240
Hydraulic Tank (L)150
Engine Oil changes (L)15
Total transport length (mm)7280
Total transport width (mm)2550
Total transport height (mm)2890
Full cab height (mm)2740
Minimum ground clearance (mm)425
Minimum turning radius of front working device (mm)2880
Back end turning radius (mm)2205
Onboard width (mm)2490
Total track length (mm)3360
Track gauge (mm)1990
Track plate width (mm)500
Track ground length (mm)2680
Maximum height at minimum turning radius (mm)5905
Number of sprockets (single side) (each)1
Number of wheels (single side) (each)6
Number of track plates (single side) (PCS)41
Maximum digging radius (mm)7735
Maximum digging depth (mm)5190
Maximum excavation height (mm)7695
Maximum unloading height (mm)5440
Maximum vertical digging depth (mm)4720
see more

Overview

No.1092959

Brand Name:

Sany

Model Number:

SY125C

Year:

2017

Location:

Jiangxi China

Pub Date
