2018 Sany SY125C

1/5

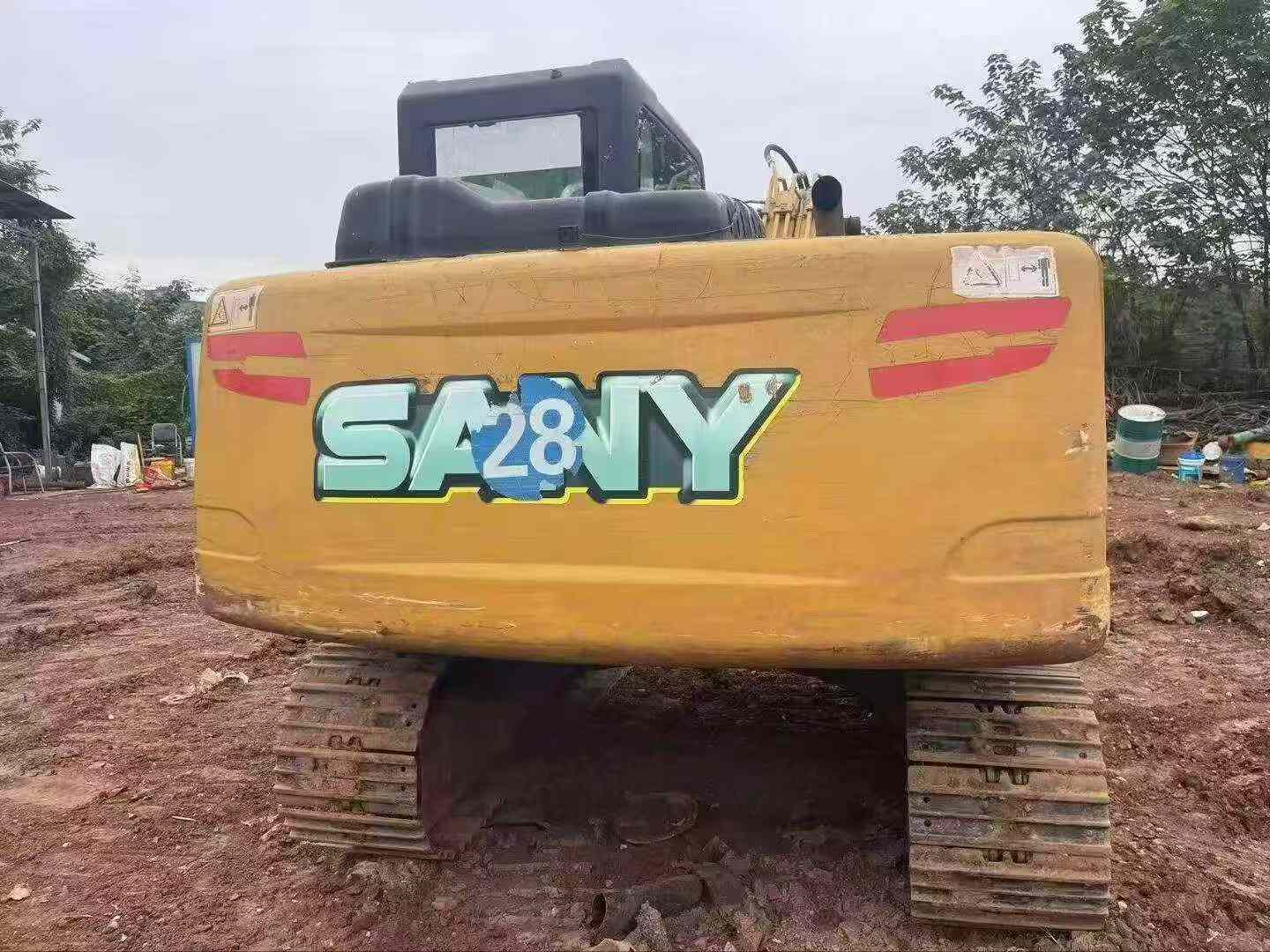

Buy Sany SY125C Used Excavator / 1

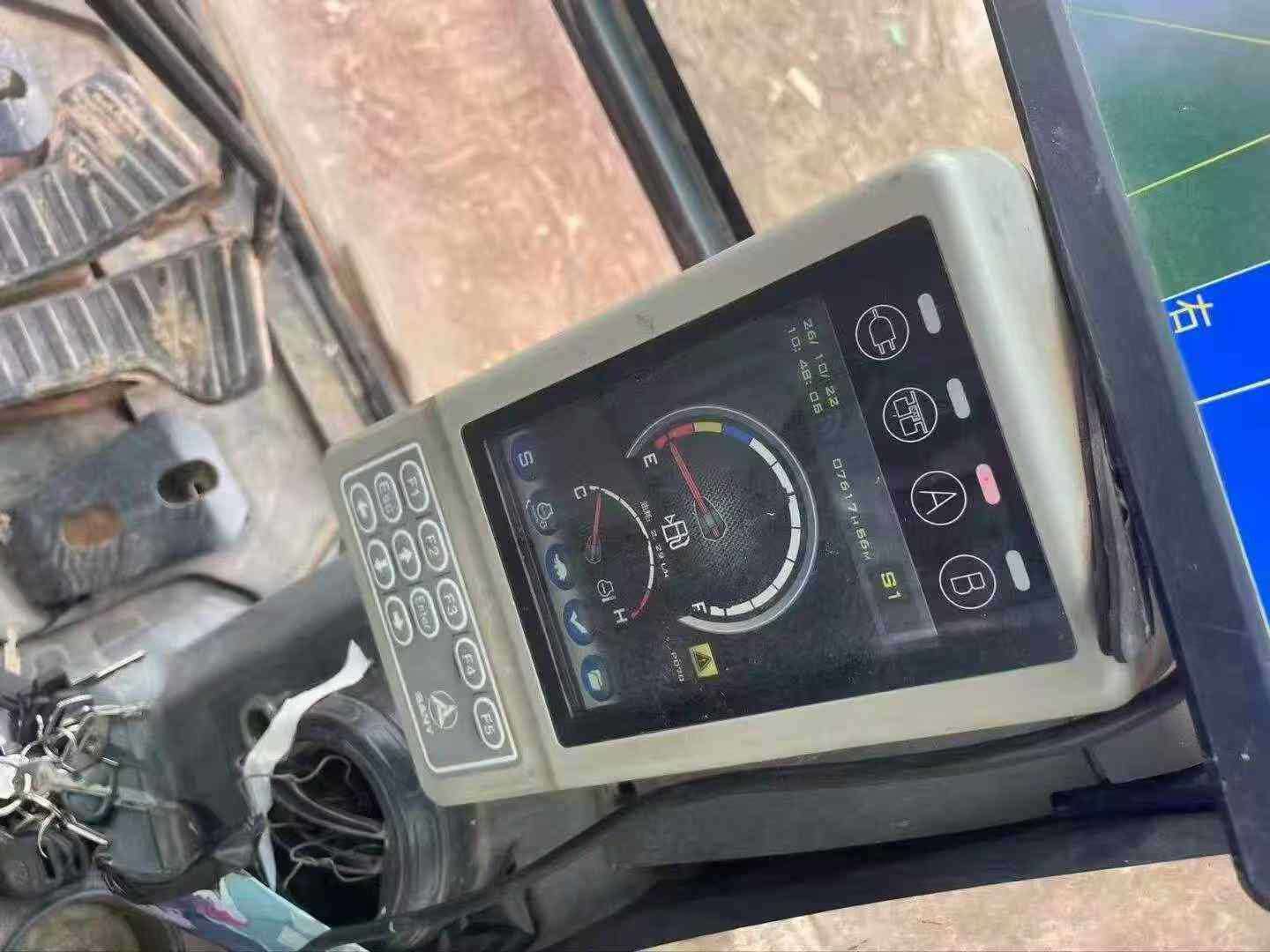

Buy Sany SY125C Used Excavator / 2

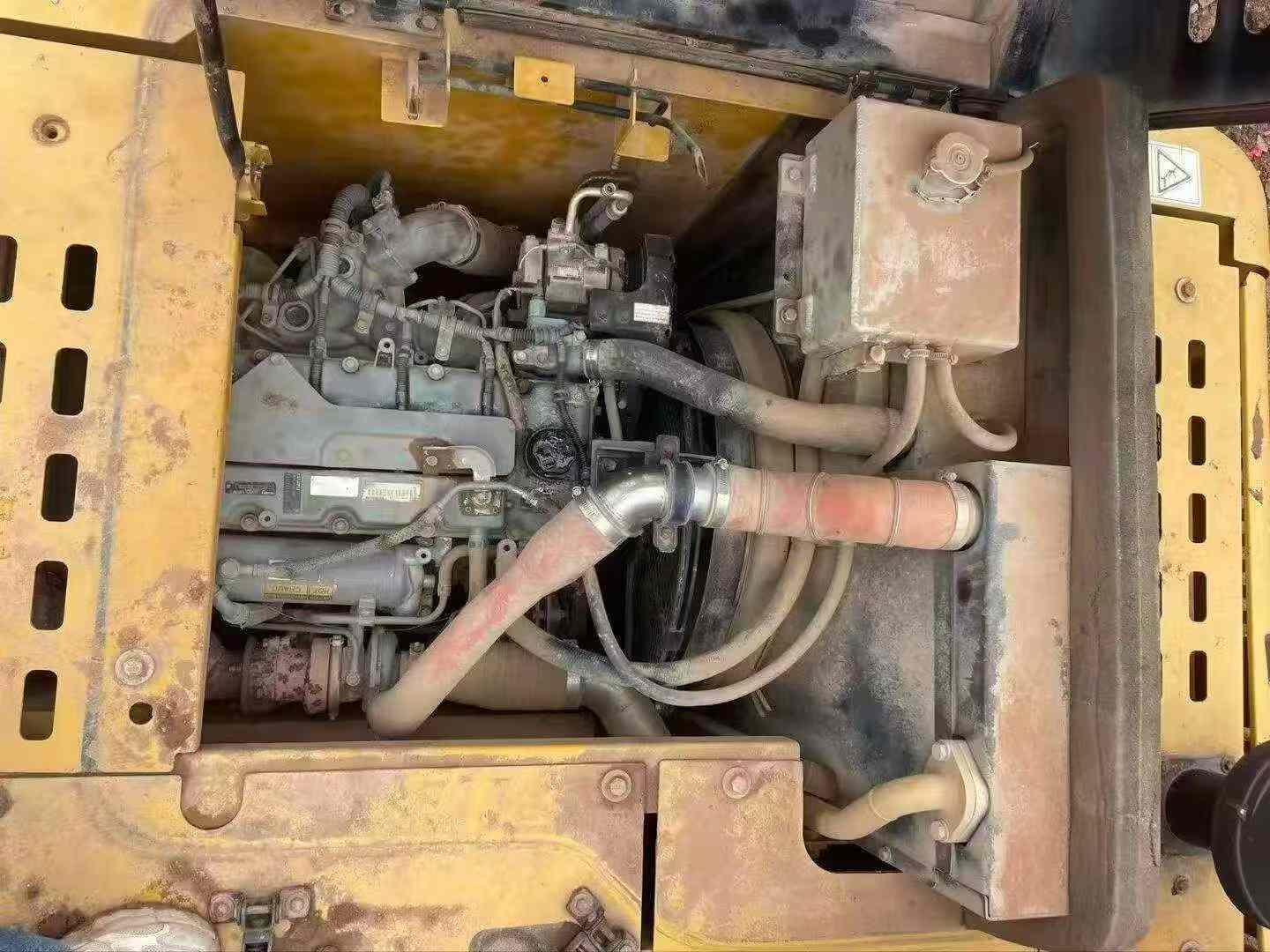

Buy Sany SY125C Used Excavator / 3
Buy Sany SY125C Used Excavator / 4

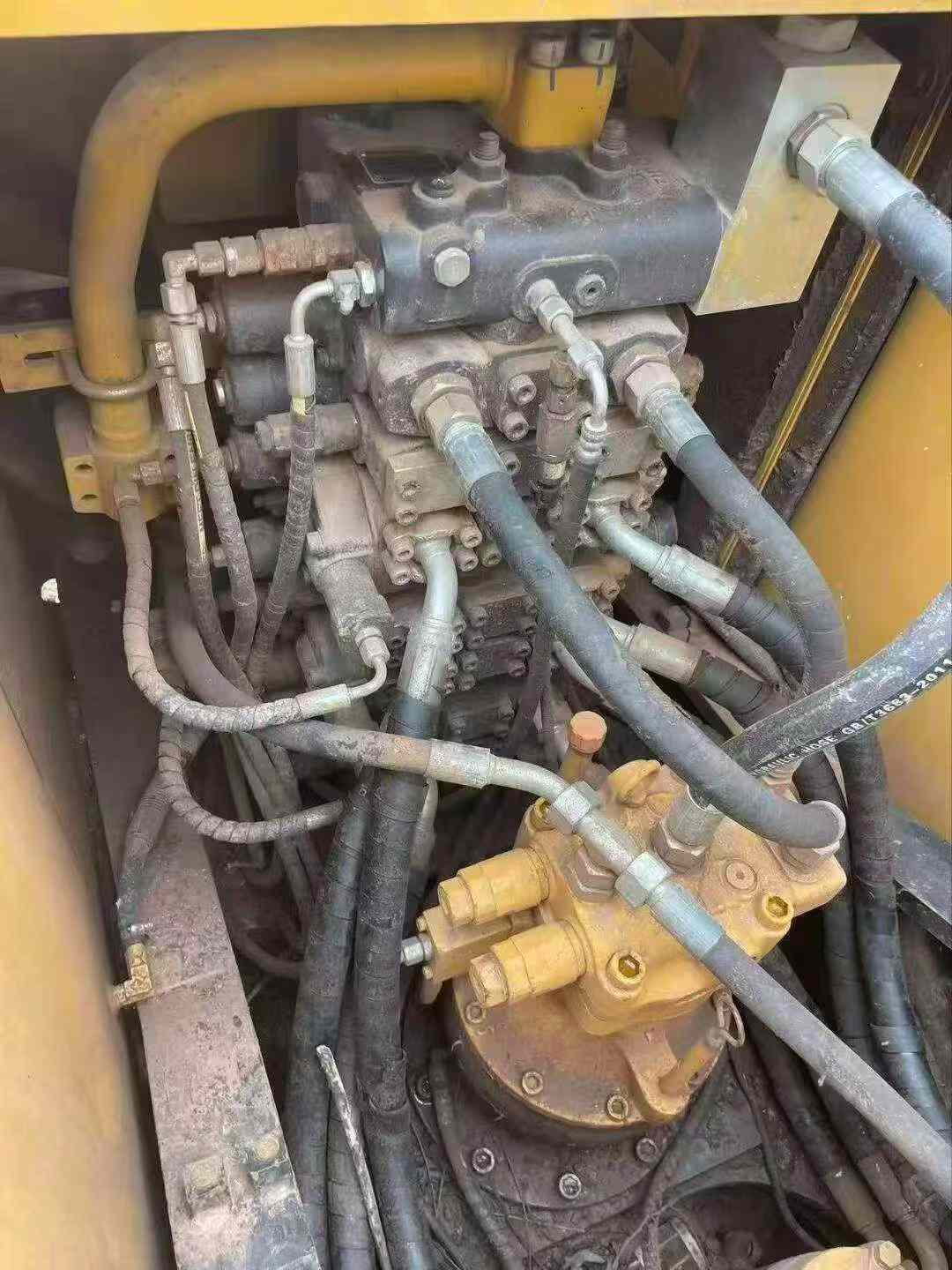

Buy Sany SY125C Used Excavator / 5

Product Description

This 2018 Sany SY125C excavator offers reliable performance for medium-duty construction and earthmoving applications. Manufactured by Sany Heavy Industry, a leading Chinese construction equipment producer, this 12.5-ton class machine features a robust design suited for demanding job sites. Currently located in Sichuan, China, this unit represents solid value in the used equipment market.

Key features include:

  • 12.5-ton operating weight class
  • Efficient diesel engine for fuel economy
  • Hydraulic system designed for smooth operation
  • Cabin with operator controls and visibility
  • Standard undercarriage and track configuration
  • Suitable for excavation, trenching, and material handling

The SY125C combines Sany's engineering expertise with practical functionality for contractors and fleet operators. Available for inspection in Sichuan province.

SpecificationsValue
No.1168264
Tonnage (tons)12
Working weight (kg)12450
Bucket capacity (m³)0.22-0.7 (0.55)
powerTraditional power
manufacturerMade in China
bucketbackhoe
Engine typeIsuzu 4JJ1-XDJAG-01-C3
Rated power (kw/rpm)73/2000
Cooling modewater-cooling
Maximum torque (N.m)365/1600
Displacement (L)2.999
Ground specific pressure (Kpa)41.6
Rotation speed (rpm)13.06
Climbing ability (%)70
Bucket digging force (kN)90.6
Rod digging force (kN)57.2
Travel speed (km/h)5.5/3.5
Fuel Tank (L)240
Hydraulic Tank (L)150
Engine Oil changes (L)15
Total transport length (mm)7280
Total transport width (mm)2550
Total transport height (mm)2890
Full cab height (mm)2740
Minimum ground clearance (mm)425
Minimum turning radius of front working device (mm)2880
Back end turning radius (mm)2205
Onboard width (mm)2490
Total track length (mm)3360
Track gauge (mm)1990
Track plate width (mm)500
Track ground length (mm)2680
Maximum height at minimum turning radius (mm)5905
Number of sprockets (single side) (each)1
Number of wheels (single side) (each)6
Number of track plates (single side) (PCS)41
Maximum digging radius (mm)7735
Maximum digging depth (mm)5190
Maximum excavation height (mm)7695
Maximum unloading height (mm)5440
Maximum vertical digging depth (mm)4720
see more

Overview

No.1168264

Brand Name:

Sany

Model Number:

SY125C

Year:

2018

Location:

Sichuan China

Pub Date:
