2020 Sany SY125C

1/3

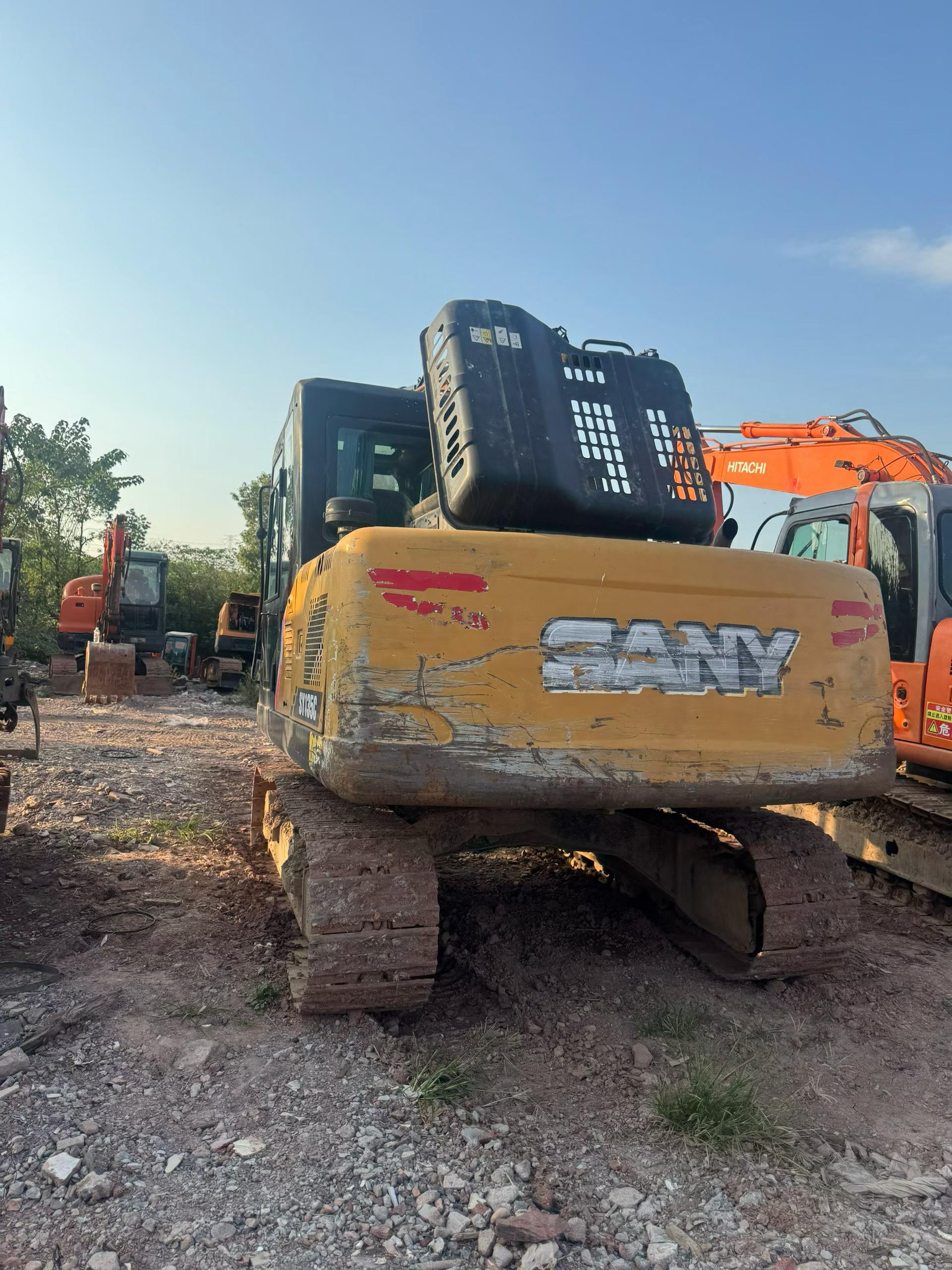

Buy Sany SY125C Used Excavator / 1
Buy Sany SY125C Used Excavator / 2
Buy Sany SY125C Used Excavator / 3

Product Description

This 2020 Sany SY125C excavator represents a practical option for mid-range earthmoving operations. The SY125C is part of Sany's established crawler excavator lineup, designed for construction sites, utility work, and general excavation tasks. With approximately four years of service, this machine is located in Zhejiang, China, and is currently marked as sold.

Key features of the SY125C model include:

  • 12.5-ton operating weight class suitable for diverse job sites
  • Reliable hydraulic system for efficient cycle times
  • Operator cabin with standard controls and visibility
  • Track undercarriage designed for stability on varied terrain
  • Compatible with multiple attachment types for versatility

This unit offers buyers an entry point into Sany's product range at mid-lifecycle pricing. Inspection and service history review recommended before purchase.

SpecificationsValue
No.1166395
Tonnage (tons)12
Working weight (kg)12450
Bucket capacity (m³)0.22-0.7 (0.55)
powerTraditional power
manufacturerMade in China
bucketbackhoe
Engine typeIsuzu 4JJ1-XDJAG-01-C3
Rated power (kw/rpm)73/2000
Cooling modewater-cooling
Maximum torque (N.m)365/1600
Displacement (L)2.999
Ground specific pressure (Kpa)41.6
Rotation speed (rpm)13.06
Climbing ability (%)70
Bucket digging force (kN)90.6
Rod digging force (kN)57.2
Travel speed (km/h)5.5/3.5
Fuel Tank (L)240
Hydraulic Tank (L)150
Engine Oil changes (L)15
Total transport length (mm)7280
Total transport width (mm)2550
Total transport height (mm)2890
Full cab height (mm)2740
Minimum ground clearance (mm)425
Minimum turning radius of front working device (mm)2880
Back end turning radius (mm)2205
Onboard width (mm)2490
Total track length (mm)3360
Track gauge (mm)1990
Track plate width (mm)500
Track ground length (mm)2680
Maximum height at minimum turning radius (mm)5905
Number of sprockets (single side) (each)1
Number of wheels (single side) (each)6
Number of track plates (single side) (PCS)41
Maximum digging radius (mm)7735
Maximum digging depth (mm)5190
Maximum excavation height (mm)7695
Maximum unloading height (mm)5440
Maximum vertical digging depth (mm)4720
see more

Overview

No.1166395

Brand Name:

Sany

Model Number:

SY125C

Year:

2020

Location:

Zhejiang China

Pub Date:
