2020 Sany SY125C

1/6

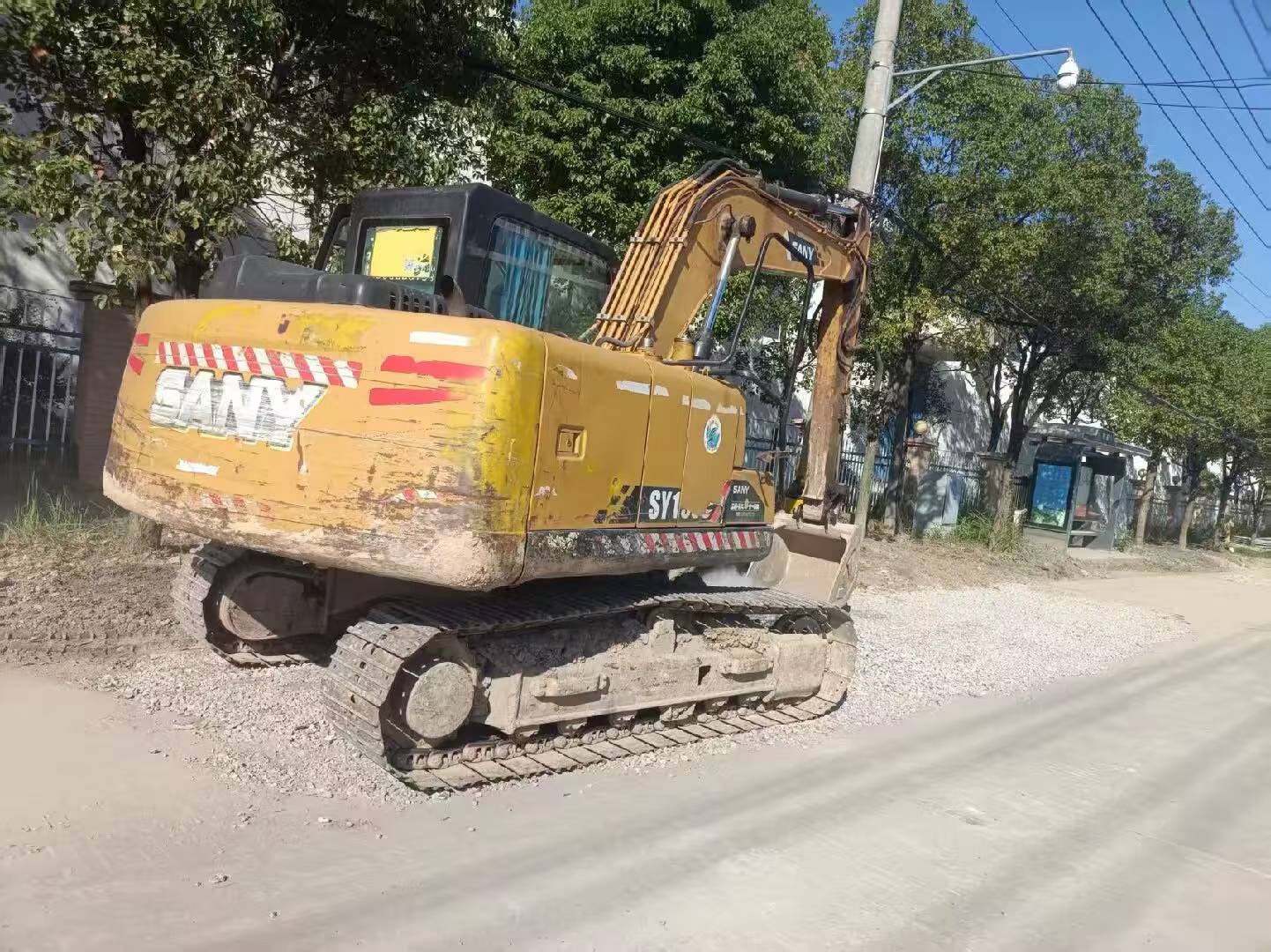

Buy Sany SY125C Used Excavator / 1

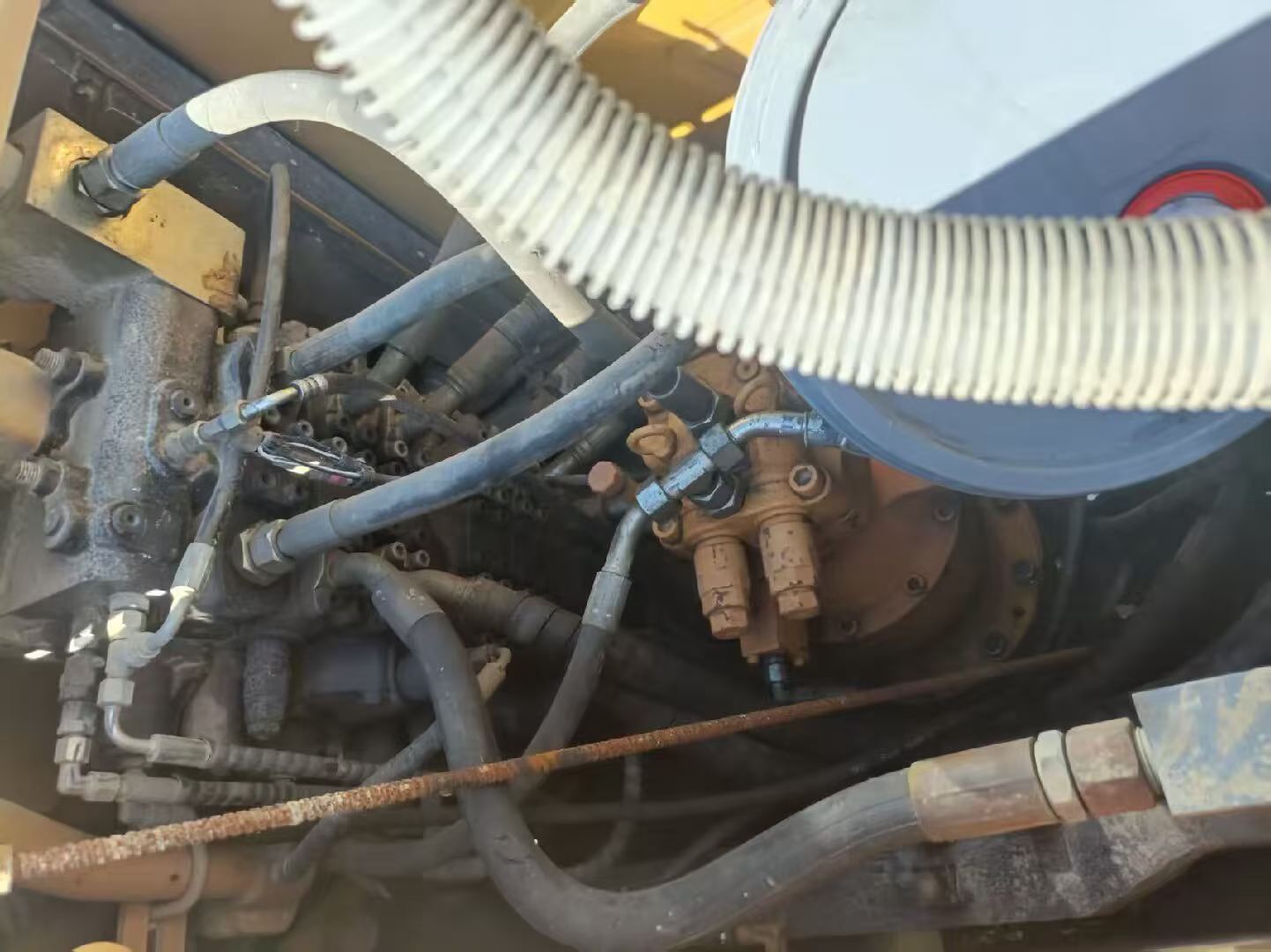

Buy Sany SY125C Used Excavator / 2

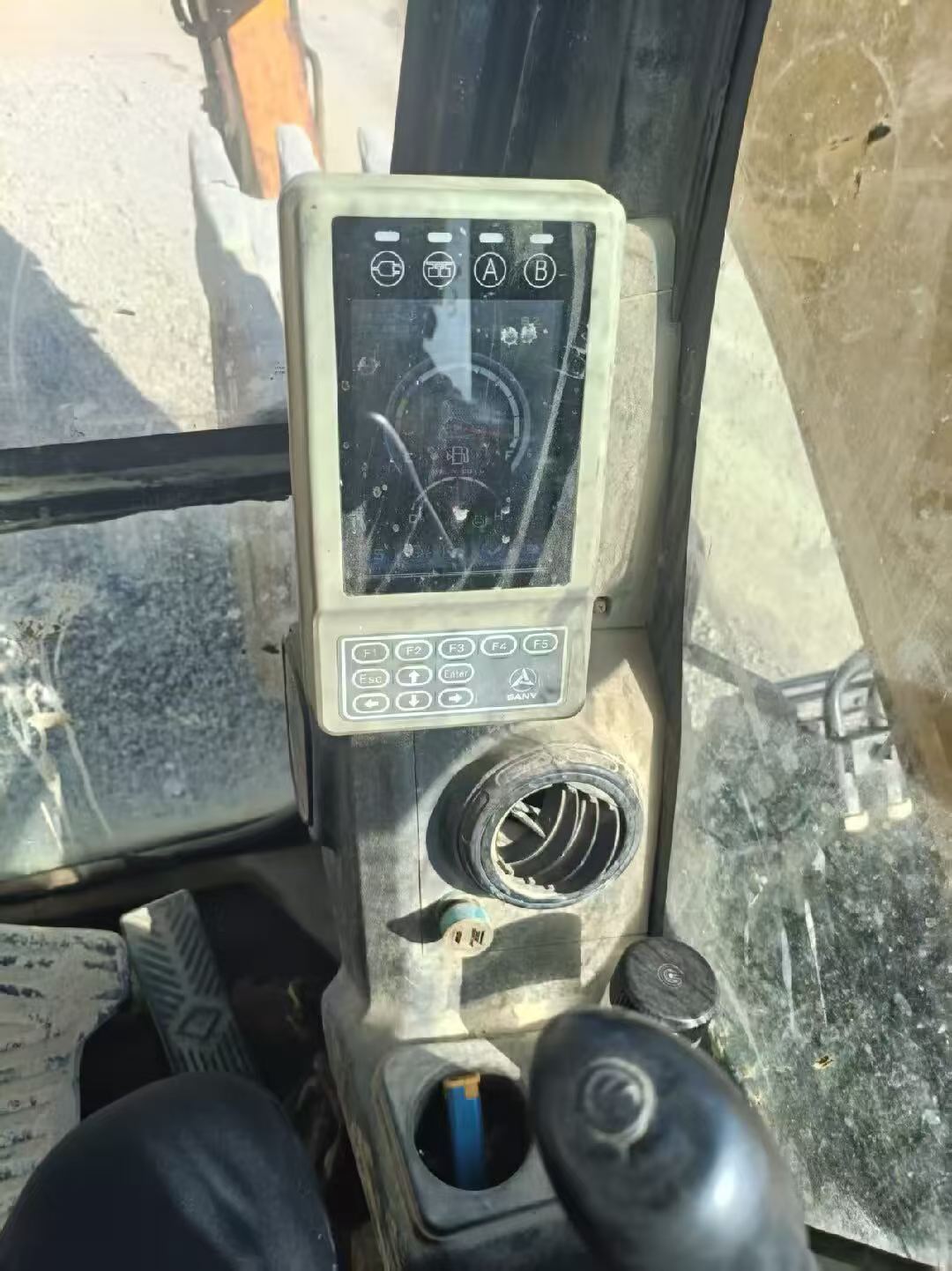

Buy Sany SY125C Used Excavator / 3

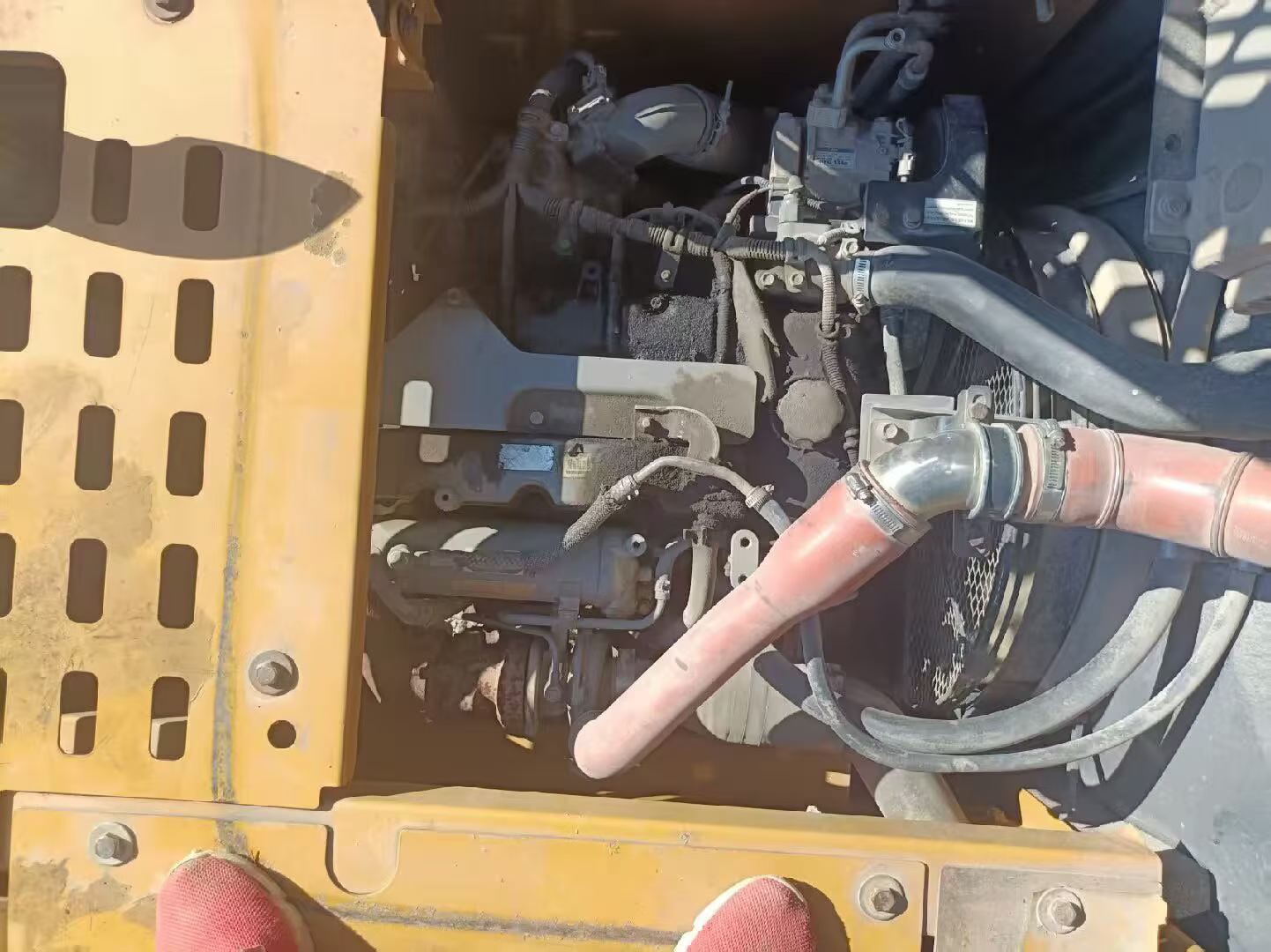

Buy Sany SY125C Used Excavator / 4

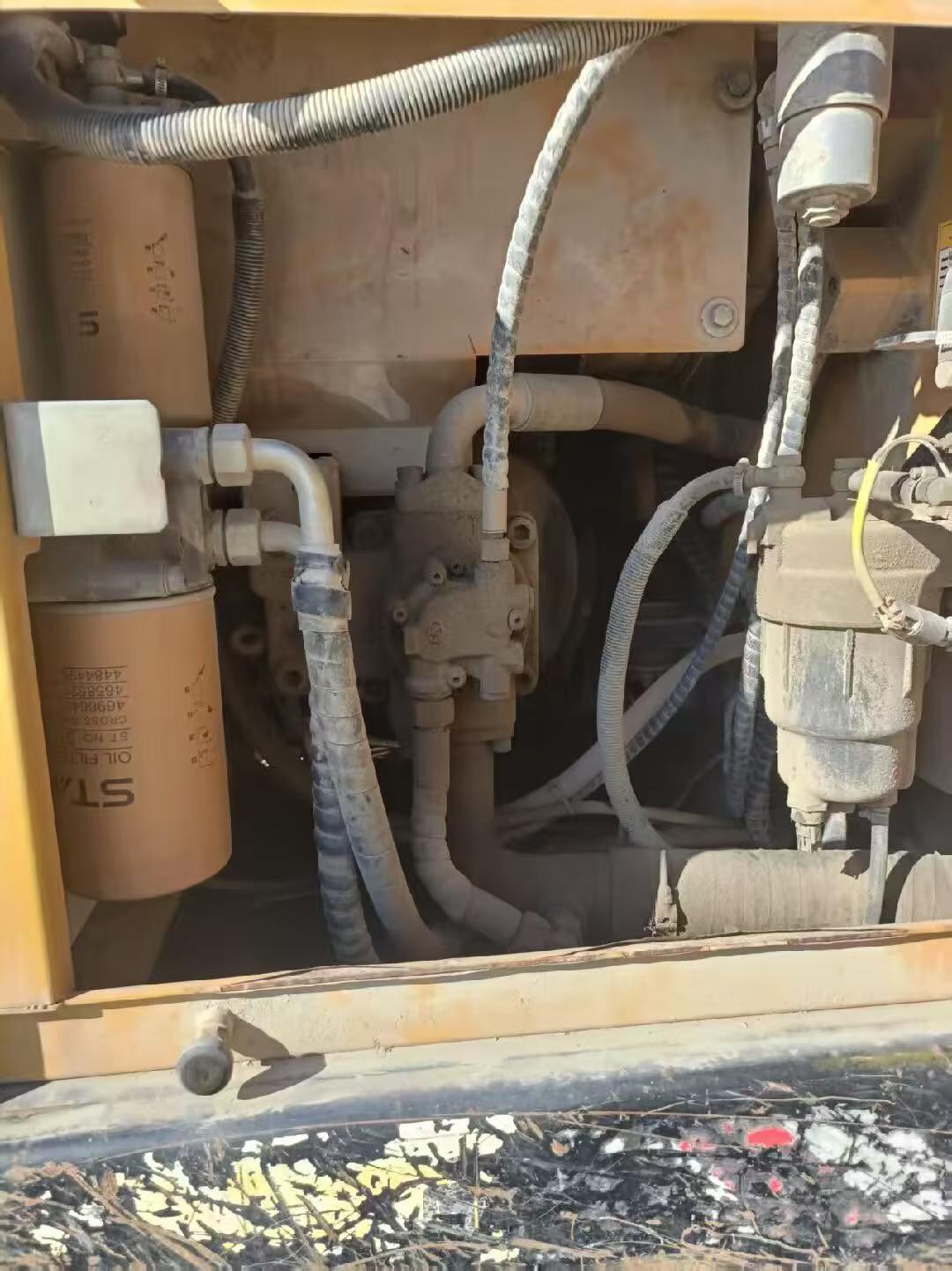

Buy Sany SY125C Used Excavator / 5

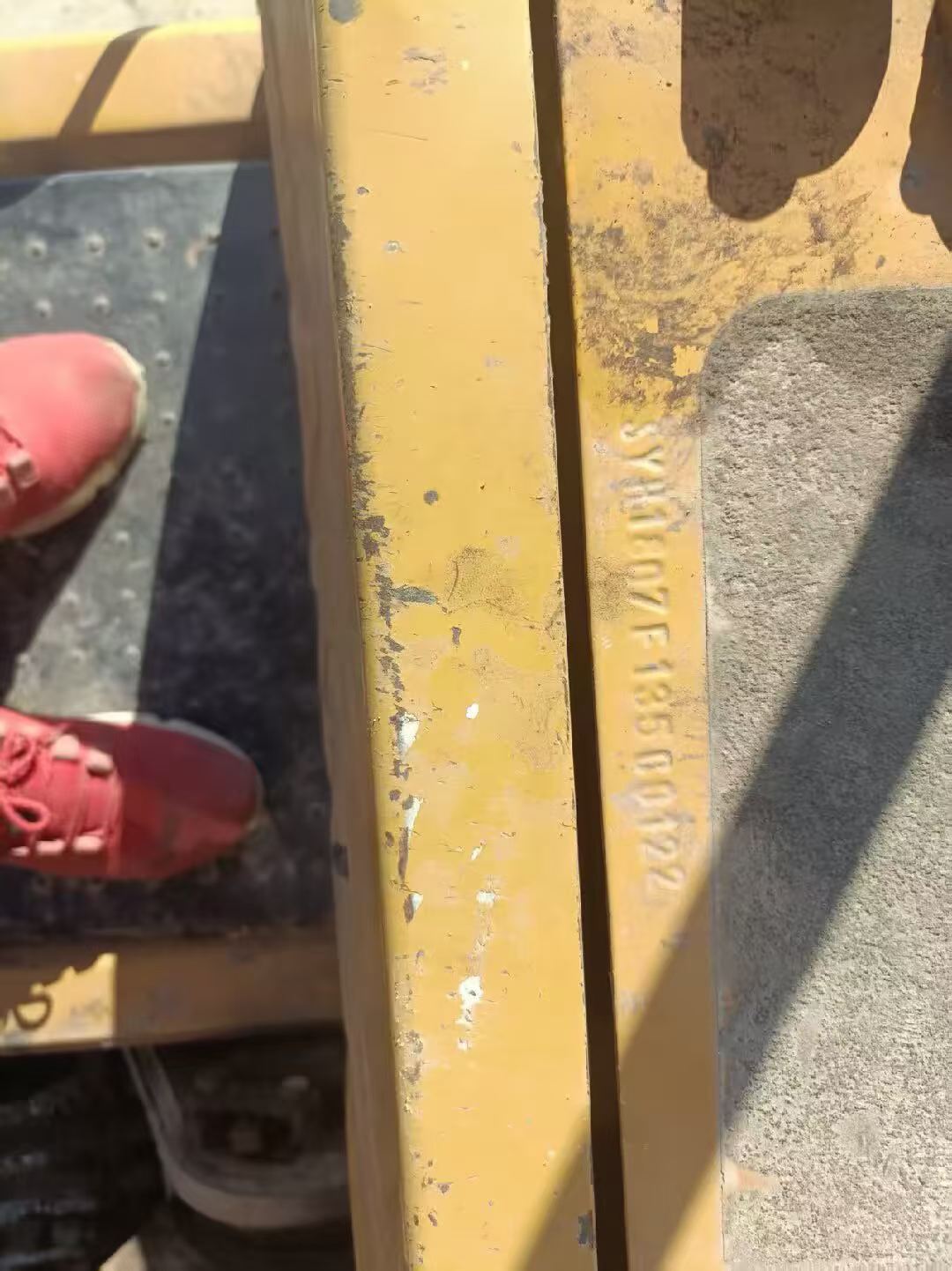

Buy Sany SY125C Used Excavator / 6

Product Description

This 2020 Sany SY125C excavator offers reliable performance for construction and earthmoving applications. With approximately 12.5-ton operating weight and robust hydraulic systems, this mid-size crawler excavator delivers efficient digging power and versatility on job sites. The machine features Sany's proven engineering with comfortable operator cab, responsive controls, and fuel-efficient engine design.

Currently located in Zhejiang, China, this unit represents solid value in the used equipment market. The SY125C is well-suited for general construction, utility work, landscaping projects, and material handling tasks.

Key features include:

  • Year of manufacture: 2020
  • 12.5-ton class excavator
  • Hydraulic crawler undercarriage
  • Versatile bucket and attachment compatibility
  • Established Sany reliability and parts availability

Contact us for detailed specifications, current machine condition report, and competitive export pricing to your destination.

SpecificationsValue
No.1173242
Tonnage (tons)12
Working weight (kg)12450
Bucket capacity (m³)0.22-0.7 (0.55)
powerTraditional power
manufacturerMade in China
bucketbackhoe
Engine typeIsuzu 4JJ1-XDJAG-01-C3
Rated power (kw/rpm)73/2000
Cooling modewater-cooling
Maximum torque (N.m)365/1600
Displacement (L)2.999
Ground specific pressure (Kpa)41.6
Rotation speed (rpm)13.06
Climbing ability (%)70
Bucket digging force (kN)90.6
Rod digging force (kN)57.2
Travel speed (km/h)5.5/3.5
Fuel Tank (L)240
Hydraulic Tank (L)150
Engine Oil changes (L)15
Total transport length (mm)7280
Total transport width (mm)2550
Total transport height (mm)2890
Full cab height (mm)2740
Minimum ground clearance (mm)425
Minimum turning radius of front working device (mm)2880
Back end turning radius (mm)2205
Onboard width (mm)2490
Total track length (mm)3360
Track gauge (mm)1990
Track plate width (mm)500
Track ground length (mm)2680
Maximum height at minimum turning radius (mm)5905
Number of sprockets (single side) (each)1
Number of wheels (single side) (each)6
Number of track plates (single side) (PCS)41
Maximum digging radius (mm)7735
Maximum digging depth (mm)5190
Maximum excavation height (mm)7695
Maximum unloading height (mm)5440
Maximum vertical digging depth (mm)4720
see more

Overview

No.1173242

Brand Name:

Sany

Model Number:

SY125C

Year:

2020

Location:

Zhejiang China

Pub Date:
