2021 Sany SY125C

1/9
Buy Sany SY125C Used Excavator / 1
Buy Sany SY125C Used Excavator / 2
Buy Sany SY125C Used Excavator / 3
Buy Sany SY125C Used Excavator / 4
Buy Sany SY125C Used Excavator / 5
Buy Sany SY125C Used Excavator / 6
Buy Sany SY125C Used Excavator / 7
Buy Sany SY125C Used Excavator / 8
Buy Sany SY125C Used Excavator / 9

Product Description

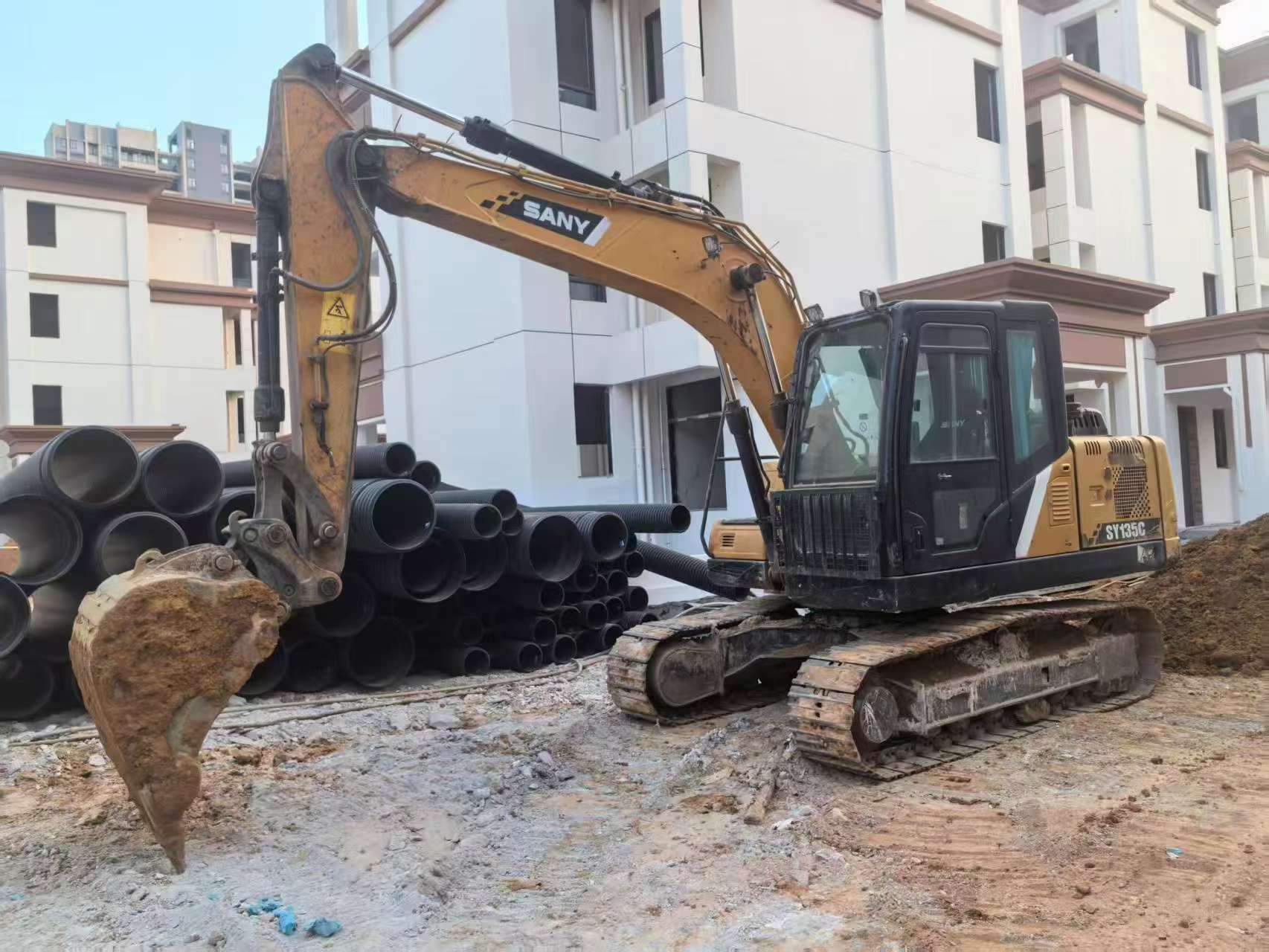

This 2021 Sany SY125C excavator offers reliable performance for mid-range construction and earthmoving applications. With approximately 12 tons of operating weight, this model delivers efficient digging capabilities suitable for urban development, road construction, and general excavation projects. The machine features Sany's proven hydraulic system and comfortable operator cabin designed for extended work cycles.

  • Year of Manufacture: 2021
  • Model: SY125C
  • Operating Weight Class: ~12.5 metric tons
  • Current Location: Fujian Province, China
  • Condition: Used, operational

The SY125C combines fuel efficiency with robust build quality, making it a practical choice for contractors seeking dependable equipment. This unit is available for inspection in Fujian and ready for deployment to your project site. Contact us for detailed technical specifications, current hour meter reading, and shipping arrangements.

SpecificationsValue
No.1170220
Tonnage (tons)12
Working weight (kg)12450
Bucket capacity (m³)0.22-0.7 (0.55)
powerTraditional power
manufacturerMade in China
bucketbackhoe

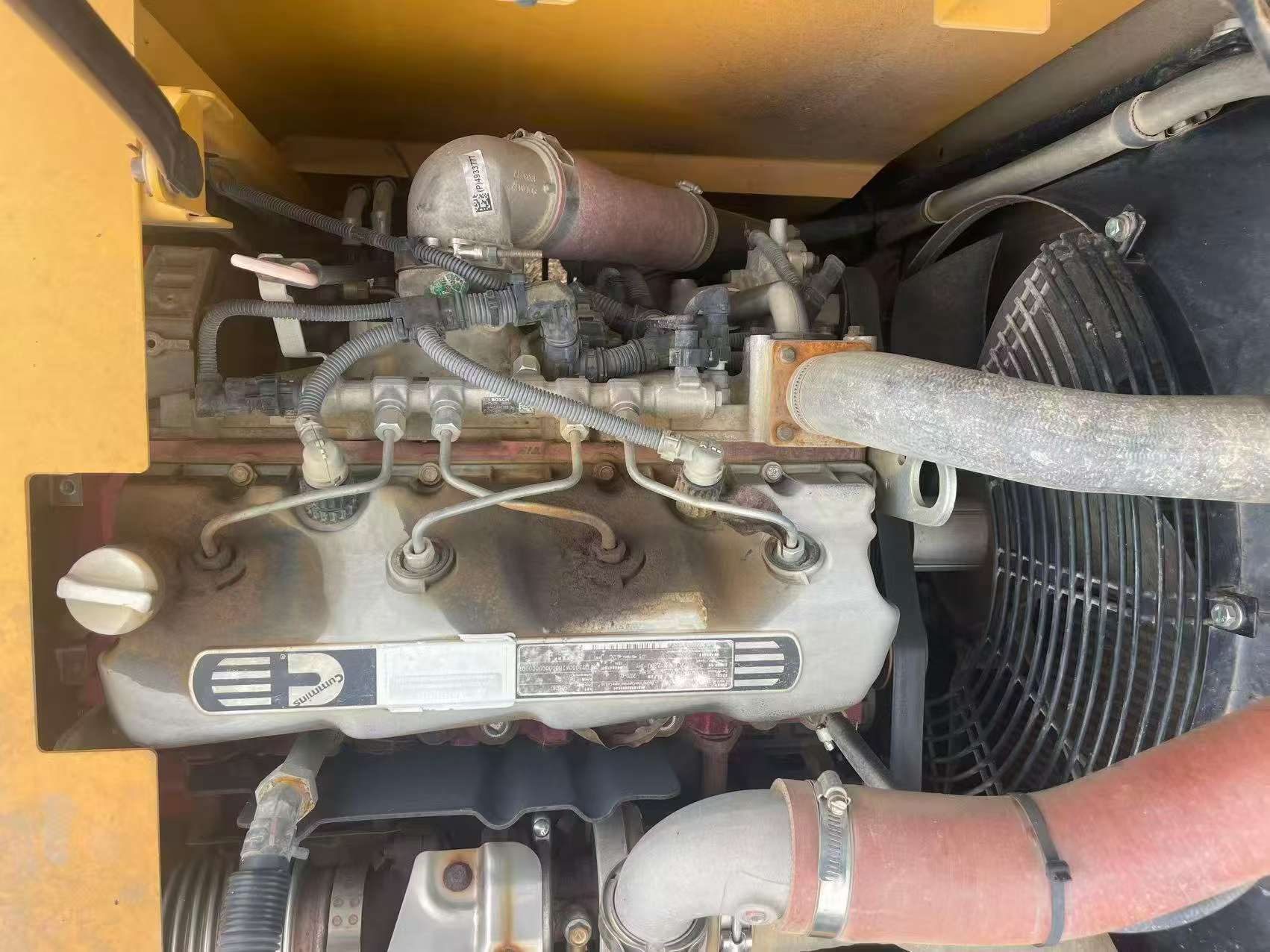

Engine typeIsuzu 4JJ1-XDJAG-01-C3
Rated power (kw/rpm)73/2000
Cooling modewater-cooling
Maximum torque (N.m)365/1600
Displacement (L)2.999
Ground specific pressure (Kpa)41.6
Rotation speed (rpm)13.06
Climbing ability (%)70
Bucket digging force (kN)90.6
Rod digging force (kN)57.2
Travel speed (km/h)5.5/3.5
Fuel Tank (L)240
Hydraulic Tank (L)150
Engine Oil changes (L)15
Total transport length (mm)7280
Total transport width (mm)2550
Total transport height (mm)2890
Full cab height (mm)2740
Minimum ground clearance (mm)425
Minimum turning radius of front working device (mm)2880
Back end turning radius (mm)2205
Onboard width (mm)2490
Total track length (mm)3360
Track gauge (mm)1990
Track plate width (mm)500
Track ground length (mm)2680
Maximum height at minimum turning radius (mm)5905
Number of sprockets (single side) (each)1
Number of wheels (single side) (each)6
Number of track plates (single side) (PCS)41
Maximum digging radius (mm)7735
Maximum digging depth (mm)5190
Maximum excavation height (mm)7695
Maximum unloading height (mm)5440
Maximum vertical digging depth (mm)4720
