2021 Sany SY125C

1/5

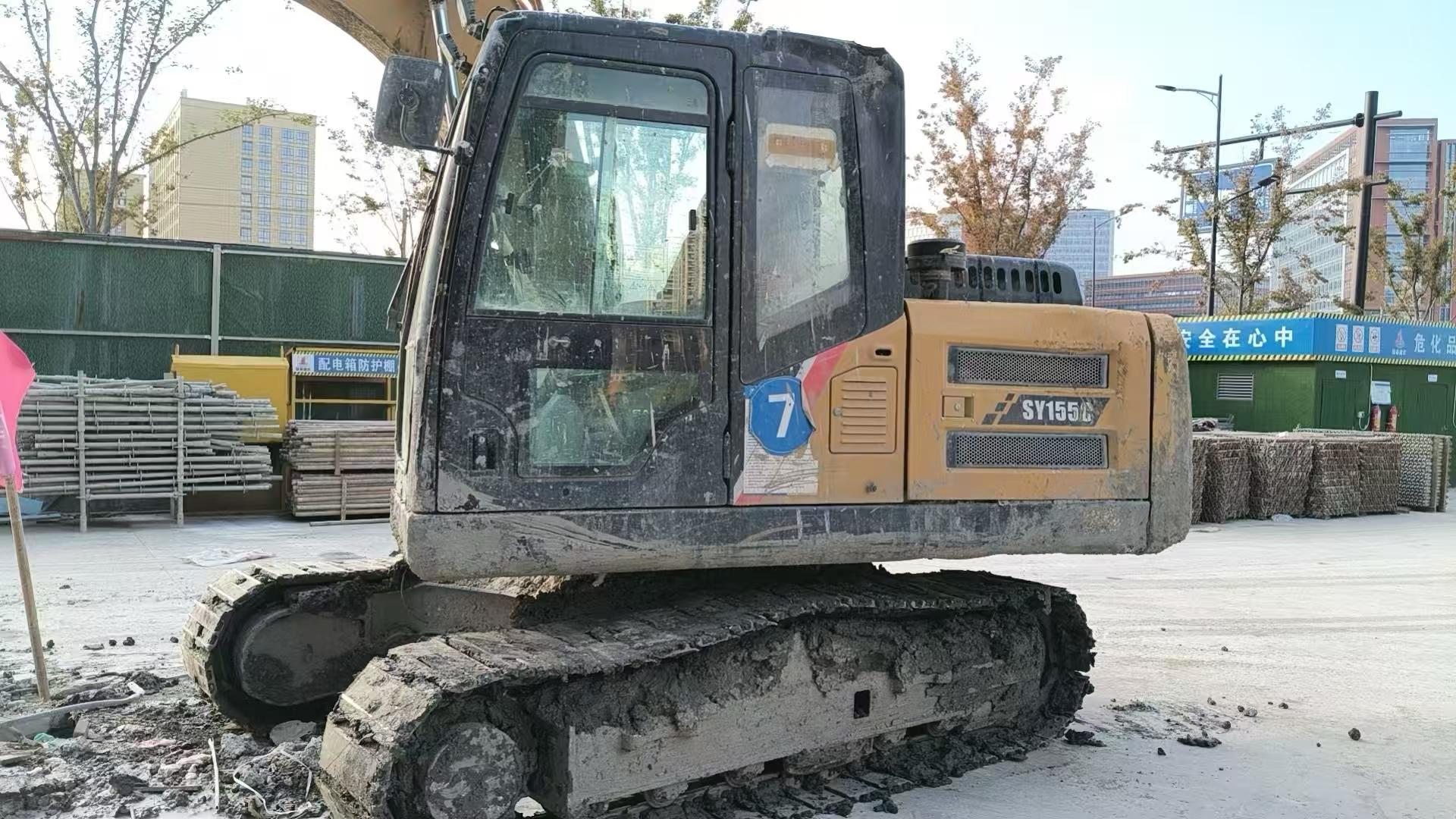

Buy Sany SY125C Used Excavator / 1

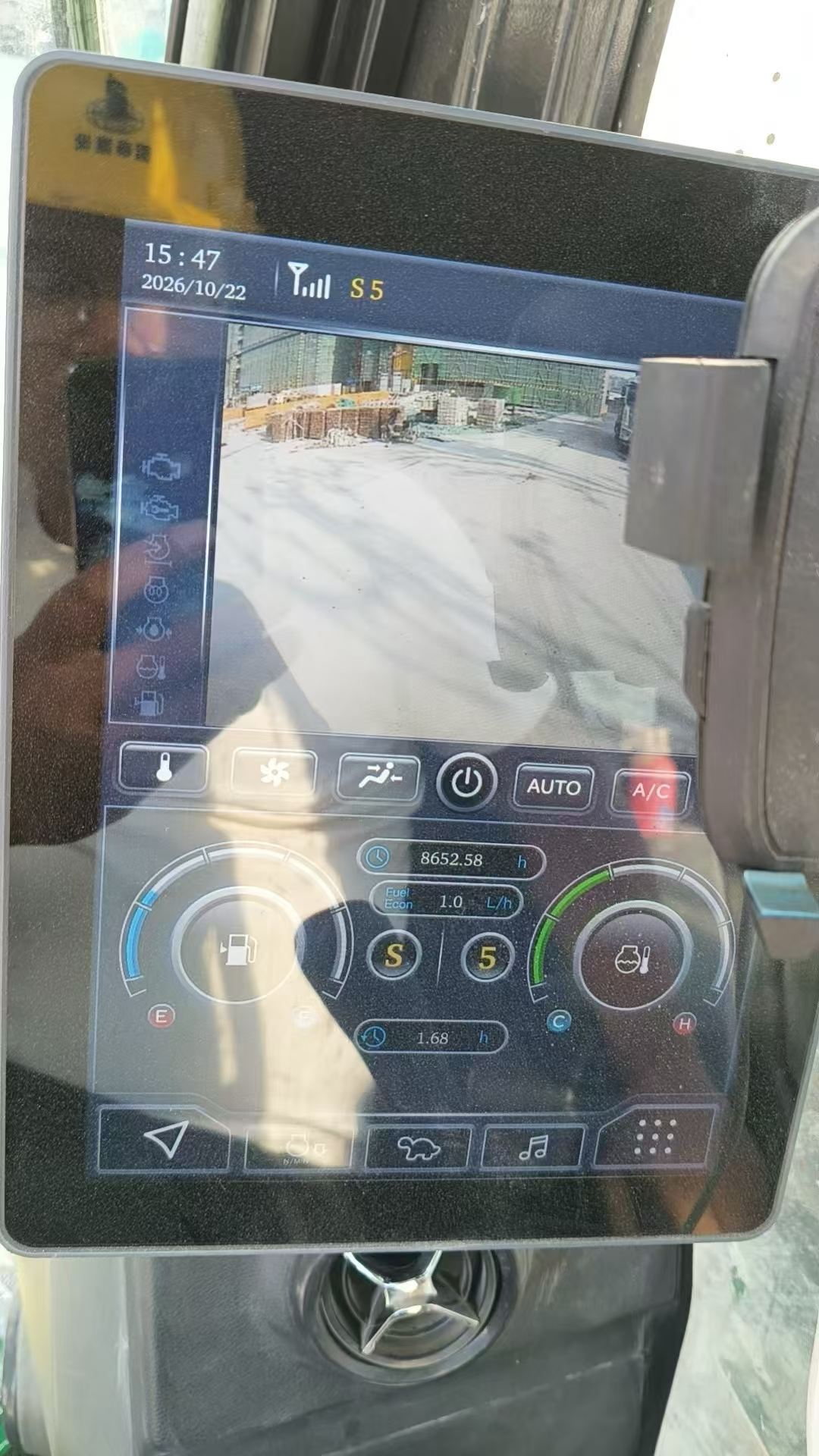

Buy Sany SY125C Used Excavator / 2

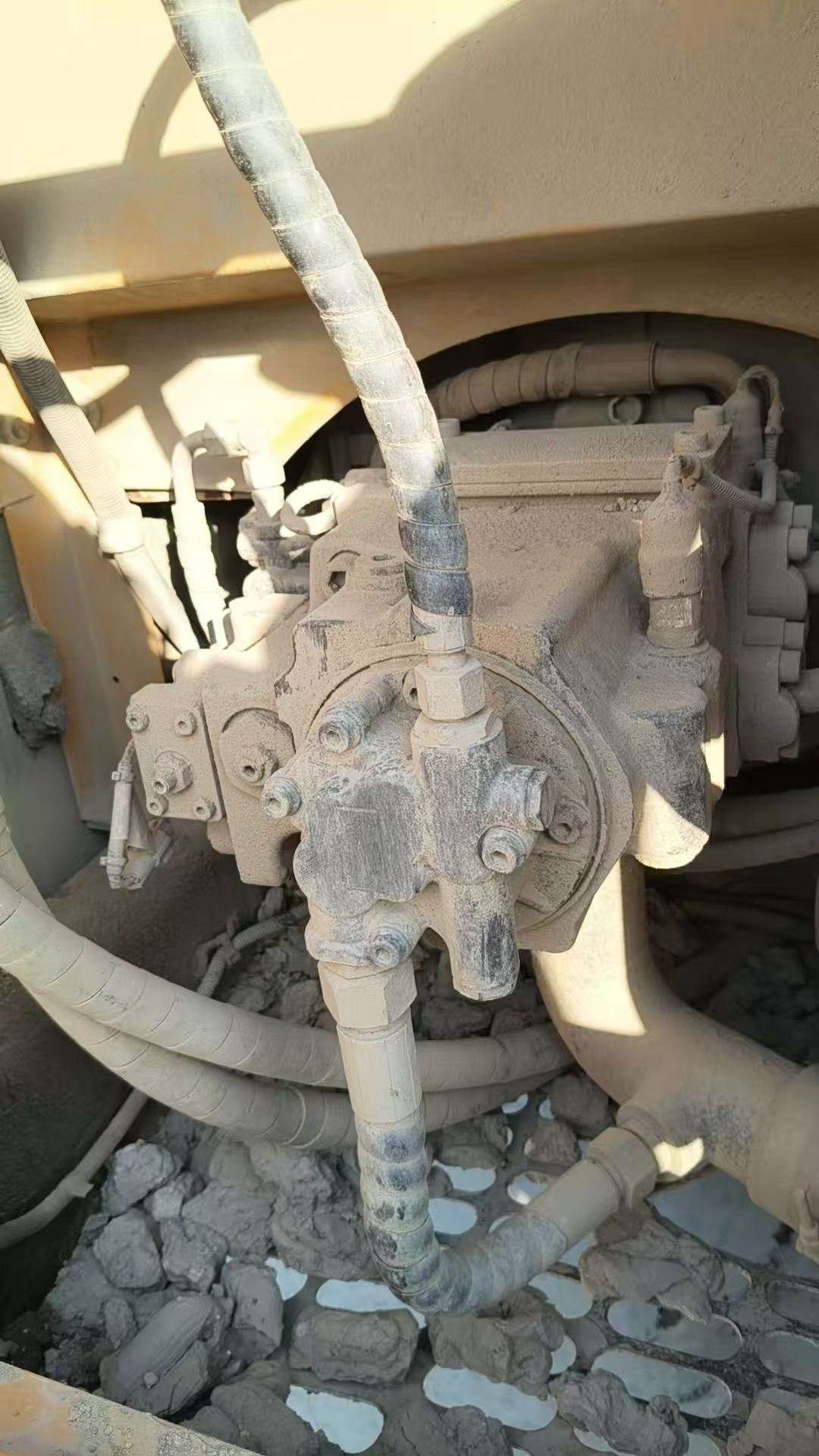

Buy Sany SY125C Used Excavator / 3
Buy Sany SY125C Used Excavator / 4

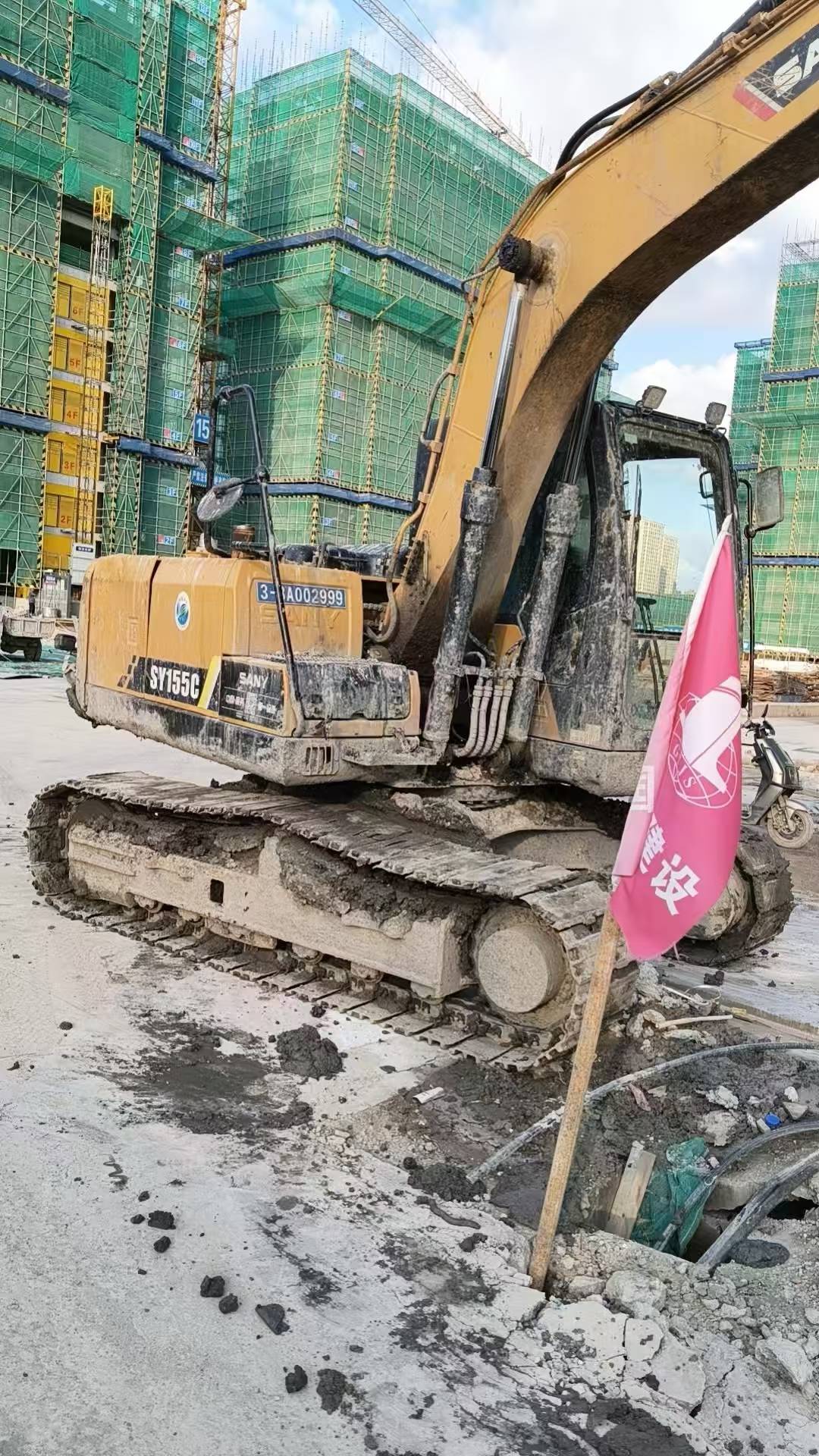

Buy Sany SY125C Used Excavator / 5

Product Description

This 2021 Sany SY125C excavator represents a well-maintained mid-size crawler excavator from one of China's leading construction equipment manufacturers. With an operating weight in the 12.5-ton class, this machine delivers reliable performance for earthmoving, trenching, and general construction applications. The SY125C features Sany's proven hydraulic system and fuel-efficient engine design, making it suitable for contractors seeking dependable equipment at competitive value.

Previously operated by a private owner for general excavation work, this unit shows typical wear consistent with its age and usage. Located in Zhejiang Province, China, the machine is available for inspection by qualified buyers.

  • Year of Manufacture: 2021
  • Operating Weight Class: ~12.5 tons
  • Configuration: Crawler-mounted hydraulic excavator
  • Previous Use: Private ownership, general construction
  • Current Location: Zhejiang, China
SpecificationsValue
No.1170633
Tonnage (tons)12
Working weight (kg)12450
Bucket capacity (m³)0.22-0.7 (0.55)
powerTraditional power
manufacturerMade in China
bucketbackhoe

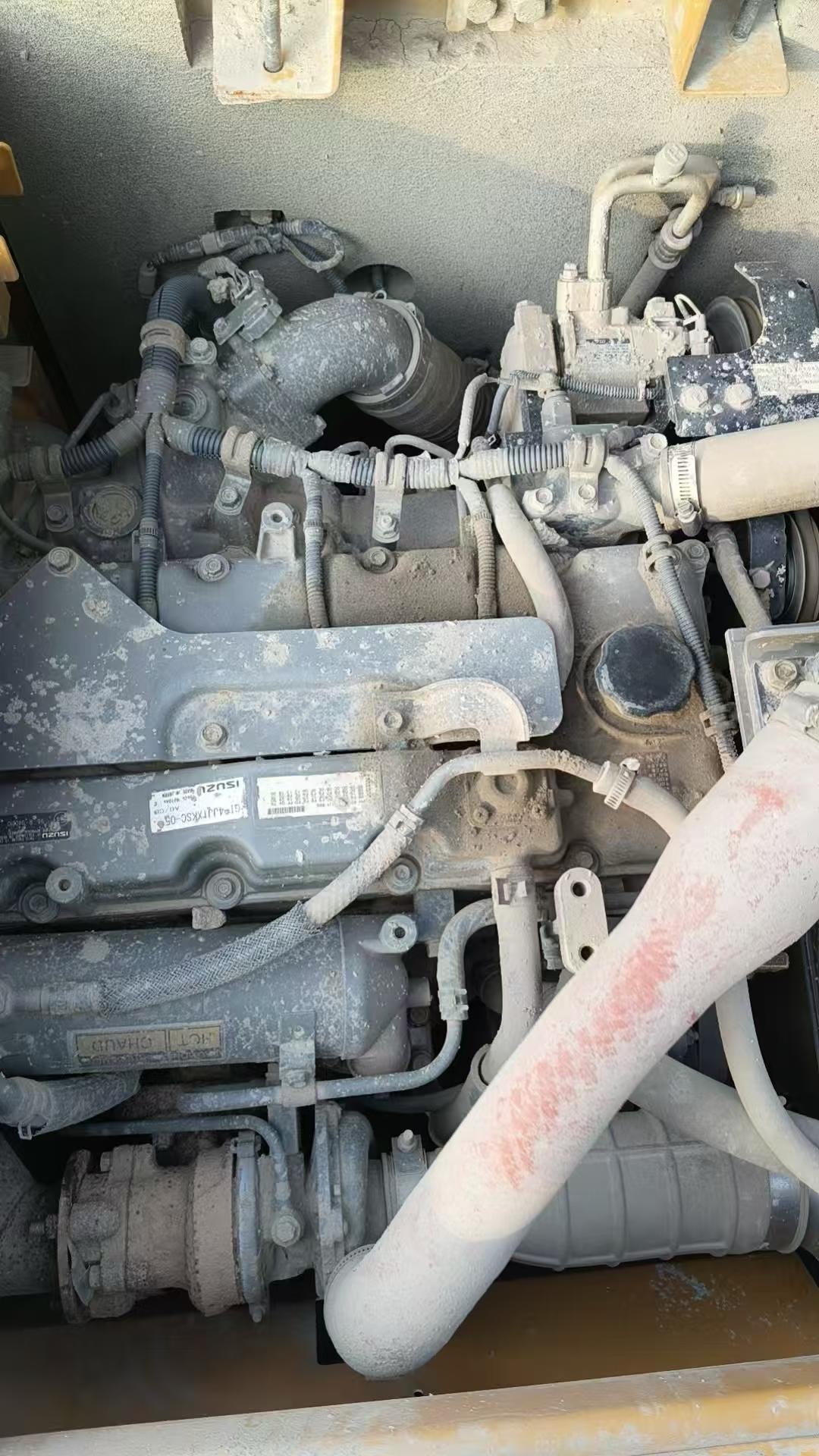

Engine typeIsuzu 4JJ1-XDJAG-01-C3
Rated power (kw/rpm)73/2000
Cooling modewater-cooling
Maximum torque (N.m)365/1600
Displacement (L)2.999
Ground specific pressure (Kpa)41.6
Rotation speed (rpm)13.06
Climbing ability (%)70
Bucket digging force (kN)90.6
Rod digging force (kN)57.2
Travel speed (km/h)5.5/3.5
Fuel Tank (L)240
Hydraulic Tank (L)150
Engine Oil changes (L)15
Total transport length (mm)7280
Total transport width (mm)2550
Total transport height (mm)2890
Full cab height (mm)2740
Minimum ground clearance (mm)425
Minimum turning radius of front working device (mm)2880
Back end turning radius (mm)2205
Onboard width (mm)2490
Total track length (mm)3360
Track gauge (mm)1990
Track plate width (mm)500
Track ground length (mm)2680
Maximum height at minimum turning radius (mm)5905
Number of sprockets (single side) (each)1
Number of wheels (single side) (each)6
Number of track plates (single side) (PCS)41
Maximum digging radius (mm)7735
Maximum digging depth (mm)5190
Maximum excavation height (mm)7695
Maximum unloading height (mm)5440
Maximum vertical digging depth (mm)4720
see more

Overview

No.1170633

Brand Name:

Sany

Model Number:

SY125C

Year:

2021

Location:

Zhejiang China

Pub Date:
