2022 Sany SY125C

1/5
Buy Sany SY125C Used Excavator / 1
Buy Sany SY125C Used Excavator / 2
Buy Sany SY125C Used Excavator / 3
Buy Sany SY125C Used Excavator / 4
Buy Sany SY125C Used Excavator / 5

Product Description

2022 Sany SY125C excavator available from Hunan, China. This mid-size crawler excavator shows approximately 5,000 hours on the meter, reflecting moderate use since manufacture. The SY125C is a proven workhorse in the 12-ton class, suitable for earthmoving, trenching, and general construction applications.

Key features of this unit:

  • Manufactured in 2022 by Sany Heavy Industry
  • Operating weight class: approximately 12.5 tonnes
  • Genuine meter reading: ~5,000 hours

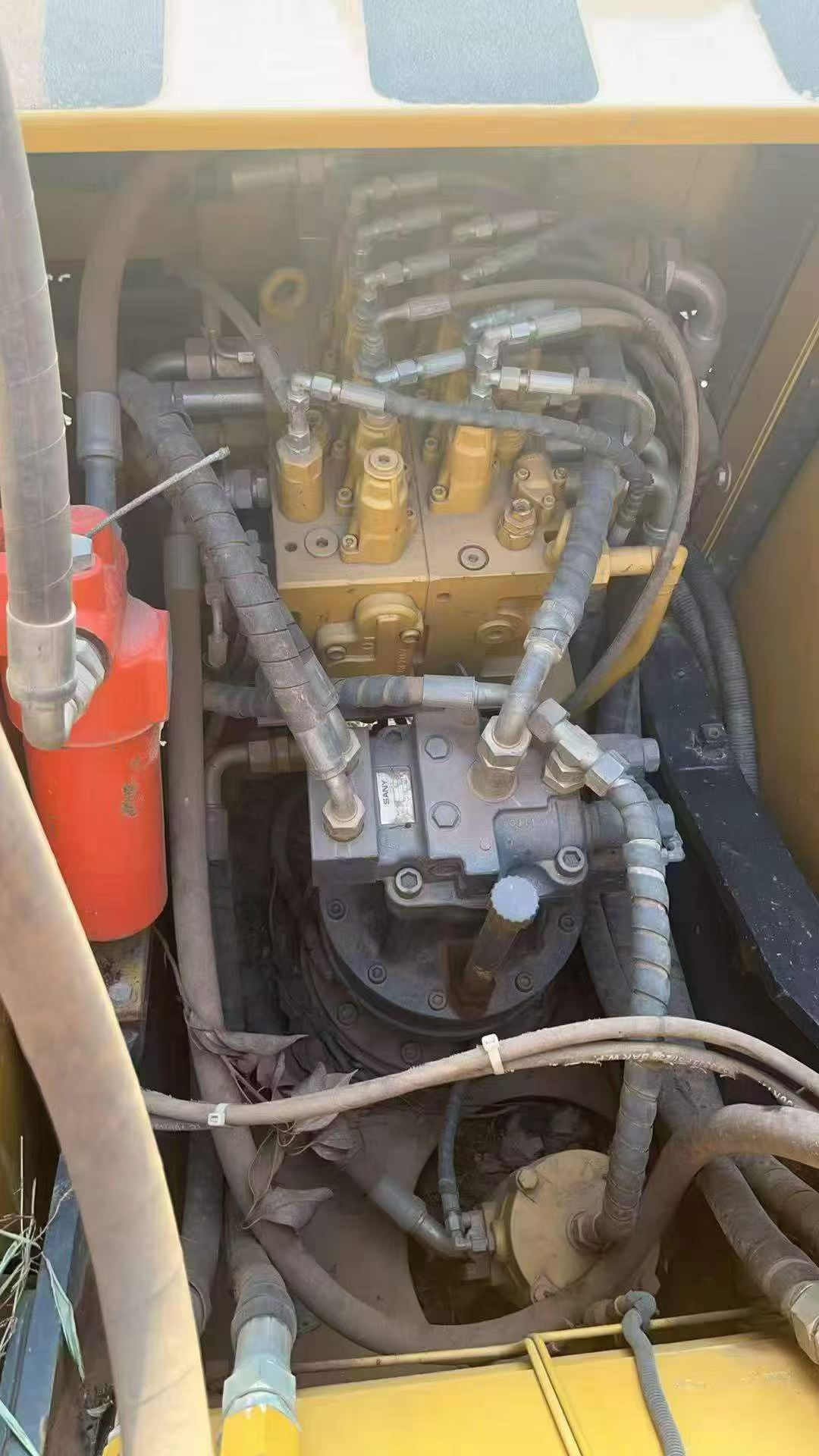

  • Standard hydraulic system with proportional controls

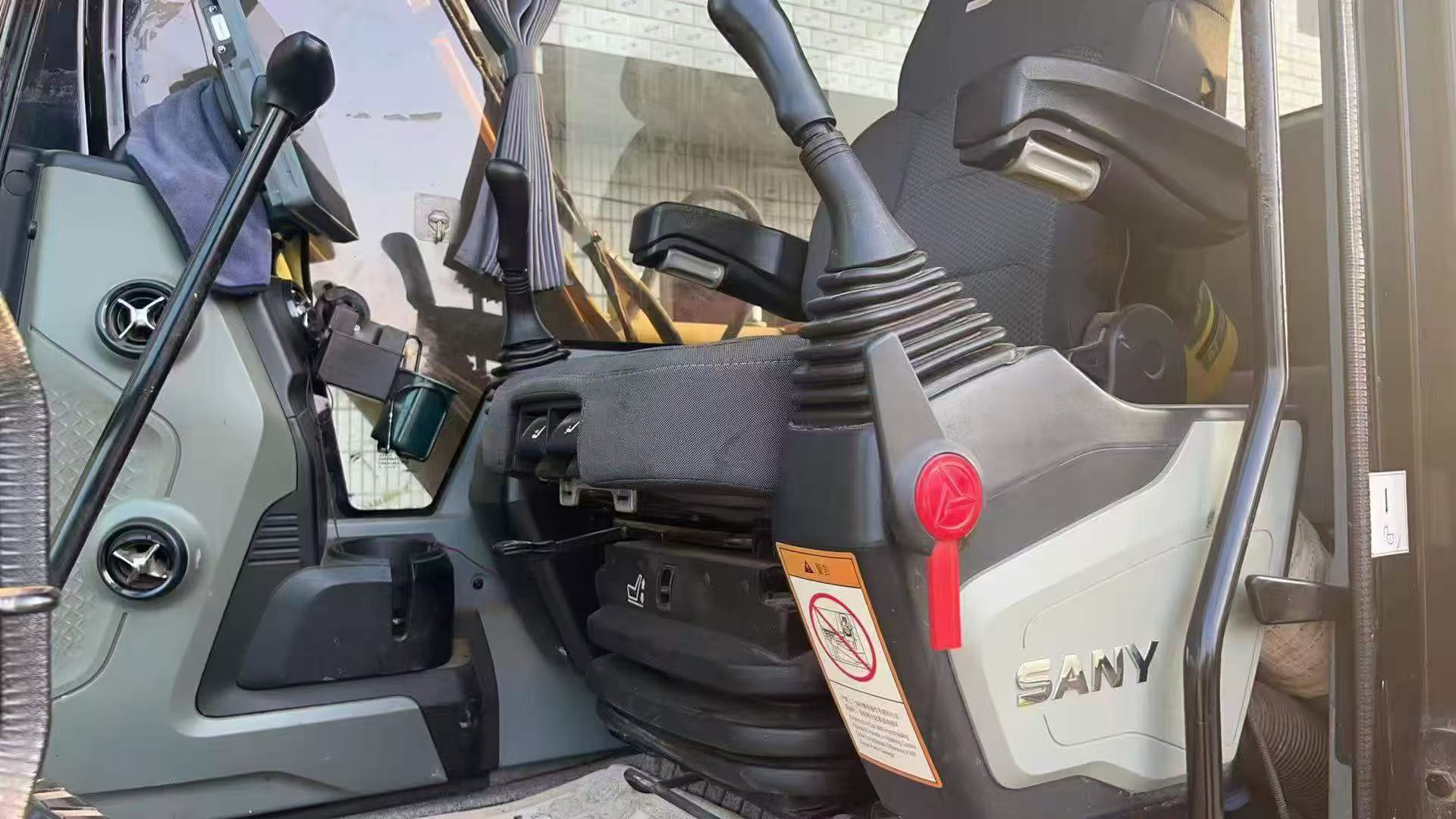

  • Enclosed operator cabin
  • Located in Hunan Province, China

This machine represents solid value for contractors seeking reliable performance at a competitive price point. Inspection welcome. Export assistance available for qualified buyers.

SpecificationsValue
No.1136639
Tonnage (tons)12
Working weight (kg)12450
Bucket capacity (m³)0.22-0.7 (0.55)
powerTraditional power
manufacturerMade in China
bucketbackhoe

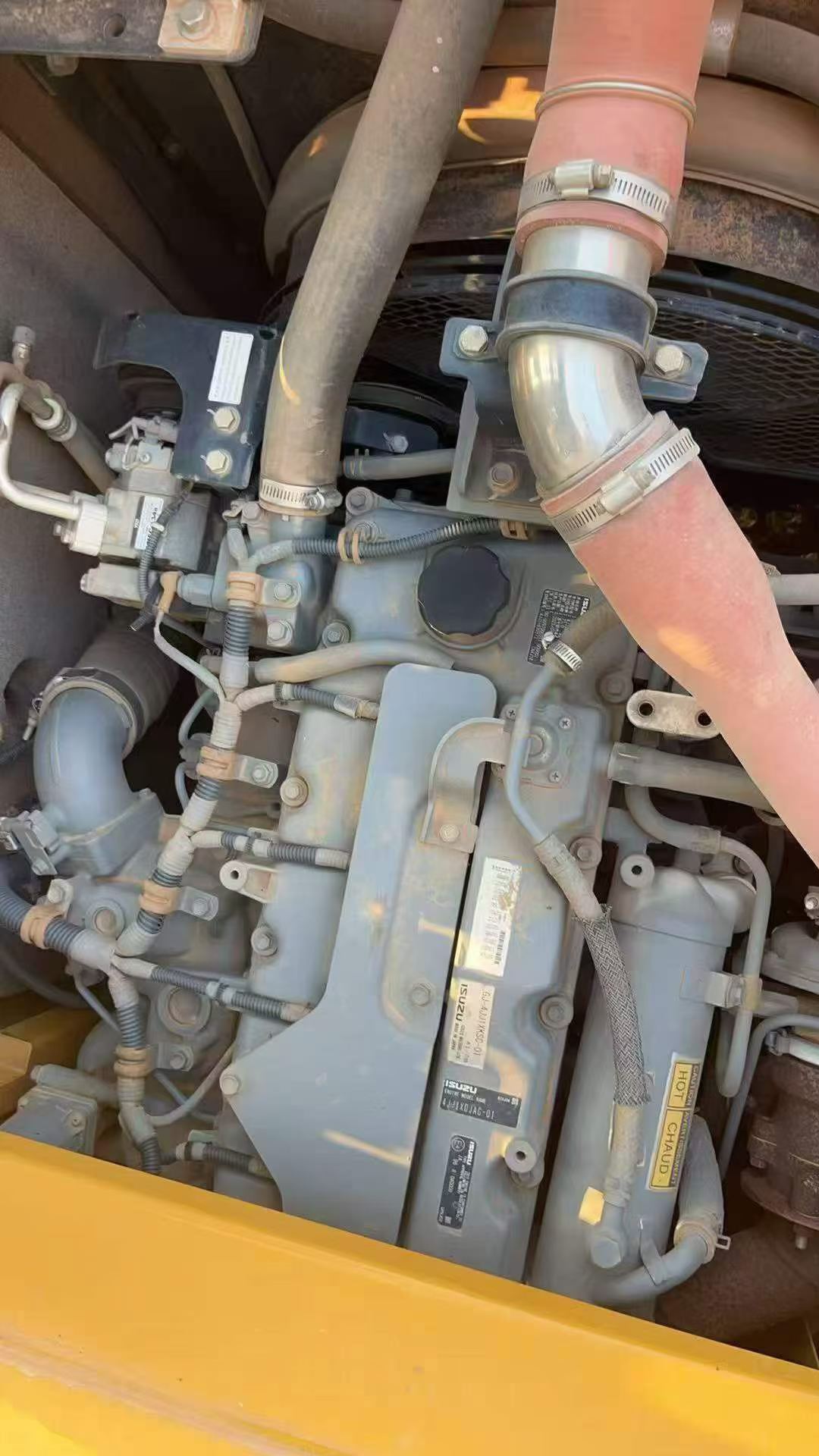

Engine typeIsuzu 4JJ1-XDJAG-01-C3
Rated power (kw/rpm)73/2000
Cooling modewater-cooling
Maximum torque (N.m)365/1600
Displacement (L)2.999
Ground specific pressure (Kpa)41.6
Rotation speed (rpm)13.06
Climbing ability (%)70
Bucket digging force (kN)90.6
Rod digging force (kN)57.2
Travel speed (km/h)5.5/3.5
Fuel Tank (L)240
Hydraulic Tank (L)150
Engine Oil changes (L)15
Total transport length (mm)7280
Total transport width (mm)2550
Total transport height (mm)2890
Full cab height (mm)2740
Minimum ground clearance (mm)425
Minimum turning radius of front working device (mm)2880
Back end turning radius (mm)2205
Onboard width (mm)2490

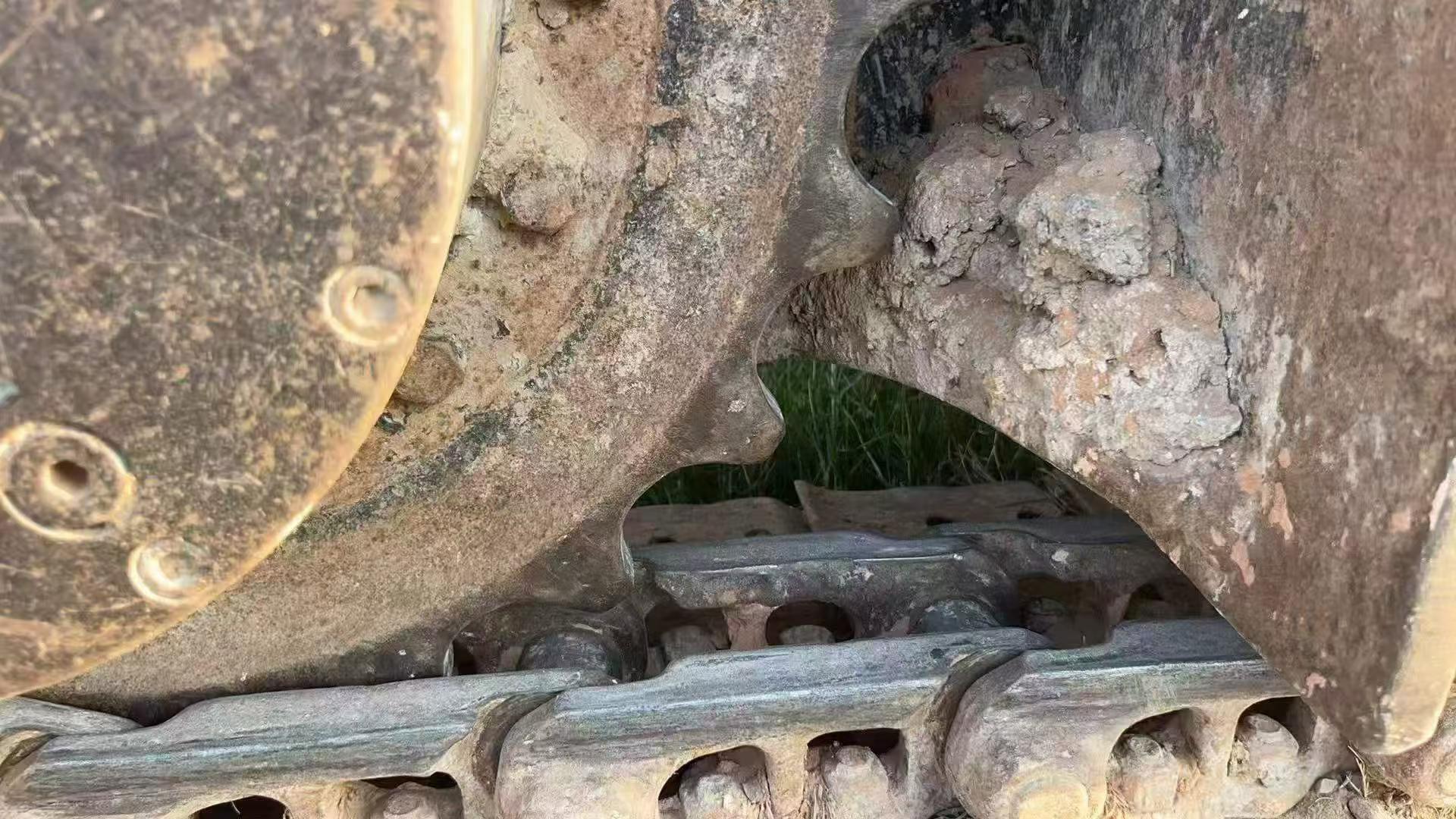

Total track length (mm)3360
Track gauge (mm)1990
Track plate width (mm)500
Track ground length (mm)2680
Maximum height at minimum turning radius (mm)5905
Number of sprockets (single side) (each)1
Number of wheels (single side) (each)6
Number of track plates (single side) (PCS)41
Maximum digging radius (mm)7735
Maximum digging depth (mm)5190
Maximum excavation height (mm)7695
Maximum unloading height (mm)5440
Maximum vertical digging depth (mm)4720
see more

Overview

No.1136639

Brand Name:

Sany

Model Number:

SY125C

Year:

2022

Location:

Hunan China

Pub Date
