Product Description

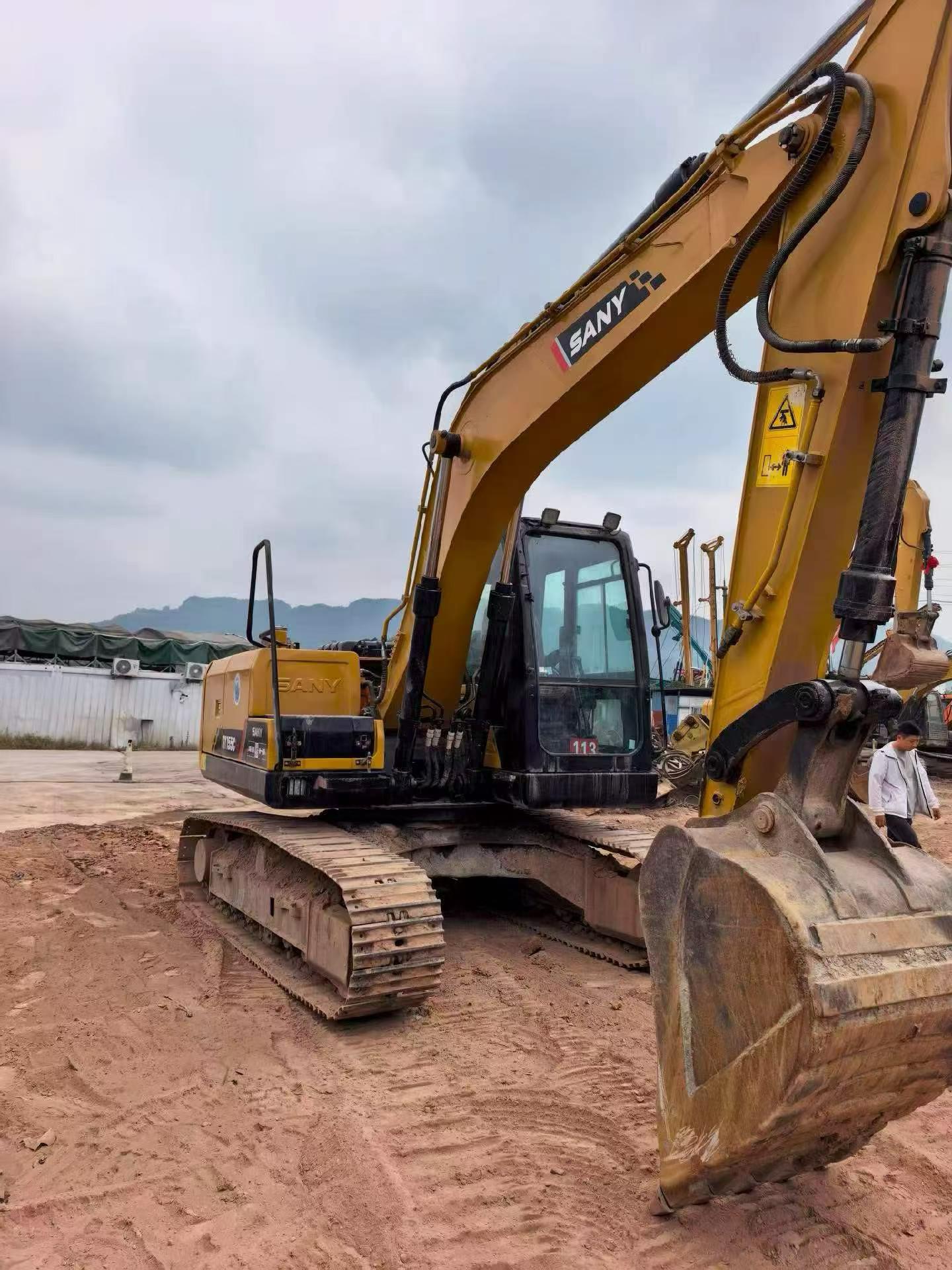

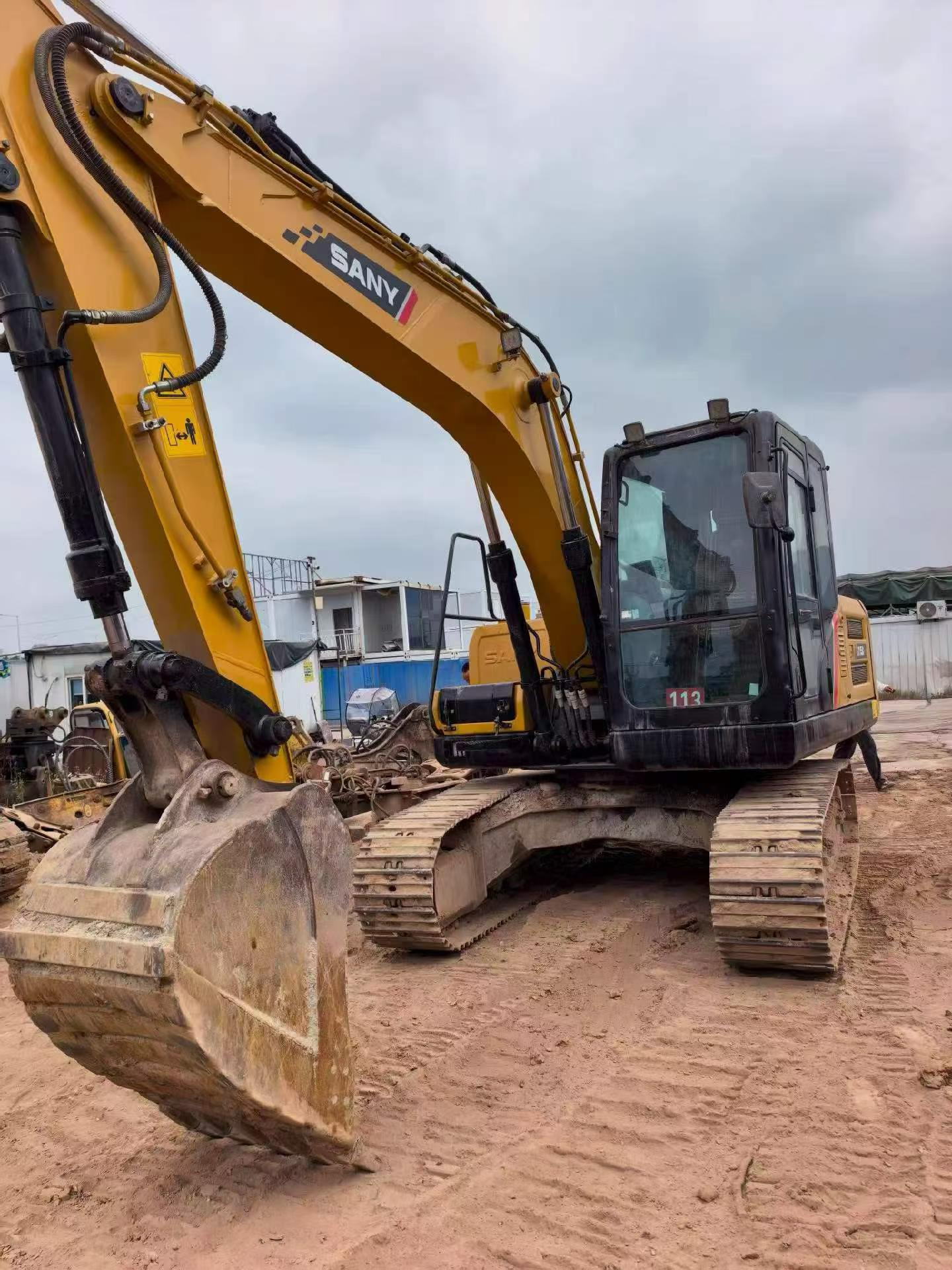

This 2023 Sany SY125C crawler excavator offers reliable performance with minimal operating hours. Currently located in Chongqing, China, this 12.5-ton class machine has logged just over 2,000 hours since purchase, indicating light use and strong remaining service life.
The SY125C is recognized for its fuel efficiency, robust hydraulic system, and operator comfort in demanding applications. With its compact footprint and versatile attachment compatibility, this excavator handles earthmoving, trenching, and material handling across construction and infrastructure projects.
Key attributes:
- Year of manufacture: 2023
- Low verified hours: 2,000+
- 12.5-ton operating weight class
- Ready for inspection in Chongqing
This unit represents an opportunity to acquire recent-model Sany equipment at used pricing. Suitable for contractors seeking proven mid-size excavation capacity without the premium of new machinery.
| Specifications | Value |
|---|---|
| No. | 1143780 |
| Tonnage (tons) | 12 |
| Working weight (kg) | 12450 |
| Bucket capacity (m³) | 0.22-0.7 (0.55) |
| power | Traditional power |
| manufacturer | Made in China |
| bucket | backhoe |

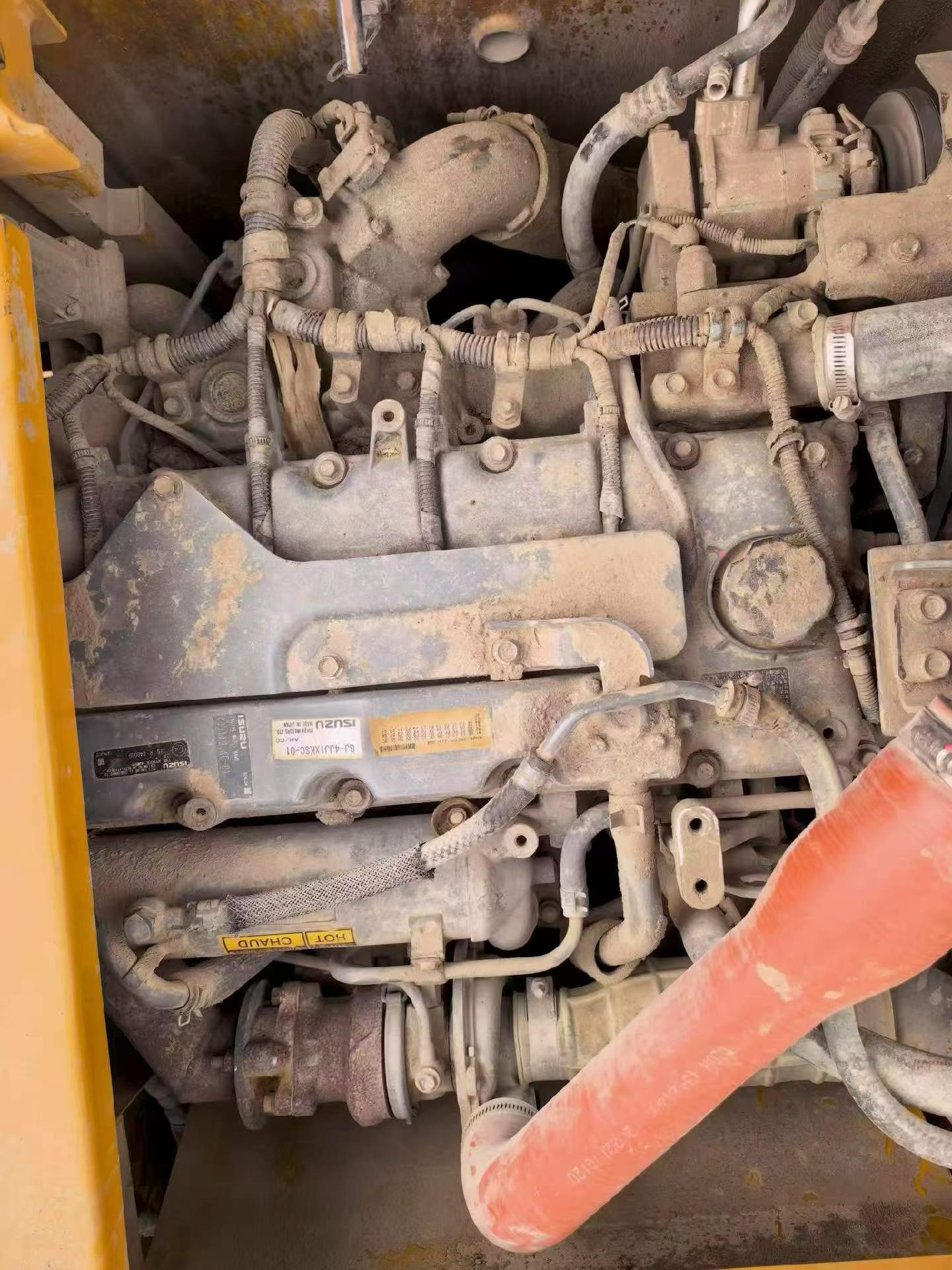

| Engine type | Isuzu 4JJ1-XDJAG-01-C3 |
| Rated power (kw/rpm) | 73/2000 |
| Cooling mode | water-cooling |
| Maximum torque (N.m) | 365/1600 |
| Displacement (L) | 2.999 |
| Ground specific pressure (Kpa) | 41.6 |
| Rotation speed (rpm) | 13.06 |
| Climbing ability (%) | 70 |
| Bucket digging force (kN) | 90.6 |
| Rod digging force (kN) | 57.2 |
| Travel speed (km/h) | 5.5/3.5 |
| Fuel Tank (L) | 240 |
| Hydraulic Tank (L) | 150 |
| Engine Oil changes (L) | 15 |
| Total transport length (mm) | 7280 |
| Total transport width (mm) | 2550 |
| Total transport height (mm) | 2890 |
| Full cab height (mm) | 2740 |
| Minimum ground clearance (mm) | 425 |
| Minimum turning radius of front working device (mm) | 2880 |
| Back end turning radius (mm) | 2205 |
| Onboard width (mm) | 2490 |
| Total track length (mm) | 3360 |
| Track gauge (mm) | 1990 |
| Track plate width (mm) | 500 |
| Track ground length (mm) | 2680 |
| Maximum height at minimum turning radius (mm) | 5905 |
| Number of sprockets (single side) (each) | 1 |
| Number of wheels (single side) (each) | 6 |
| Number of track plates (single side) (PCS) | 41 |
| Maximum digging radius (mm) | 7735 |
| Maximum digging depth (mm) | 5190 |
| Maximum excavation height (mm) | 7695 |
| Maximum unloading height (mm) | 5440 |
| Maximum vertical digging depth (mm) | 4720 |
