Product Description

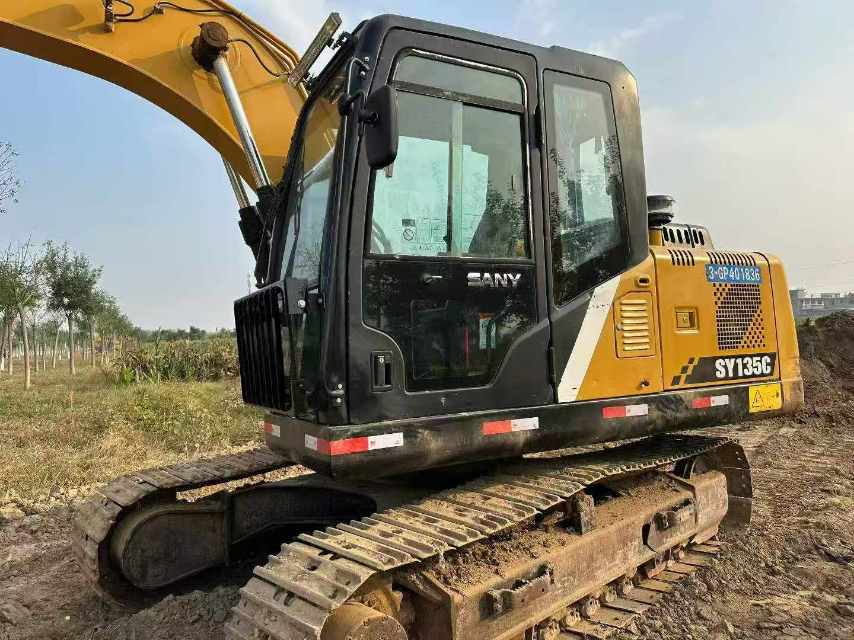

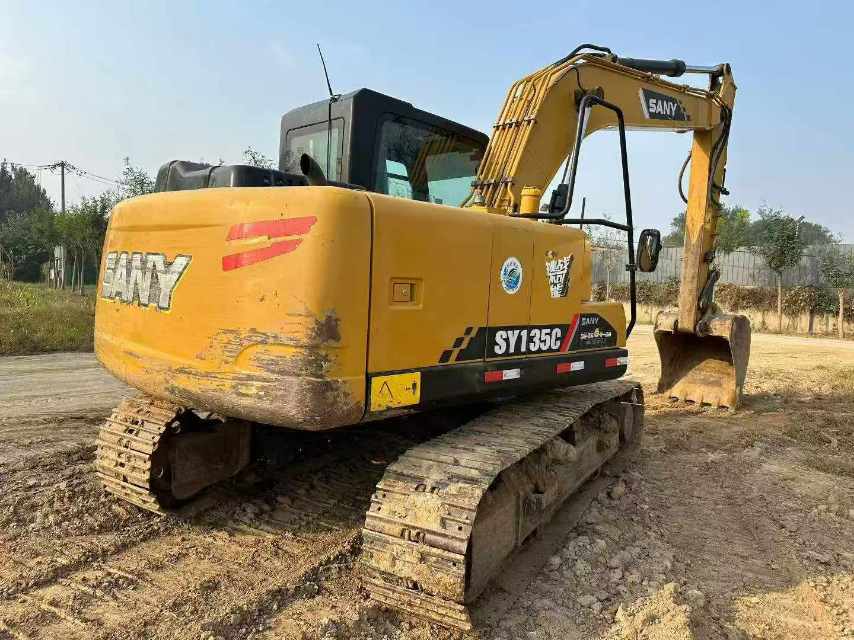

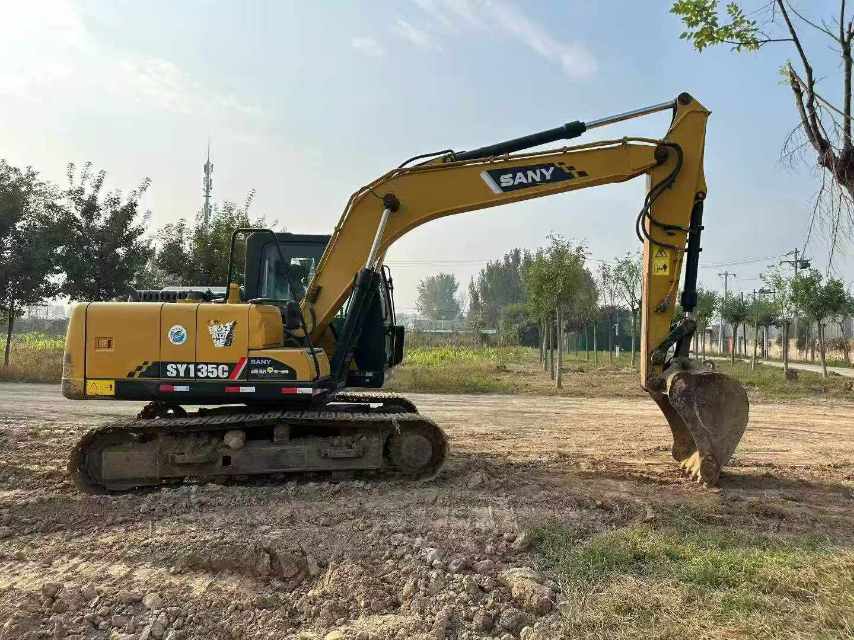

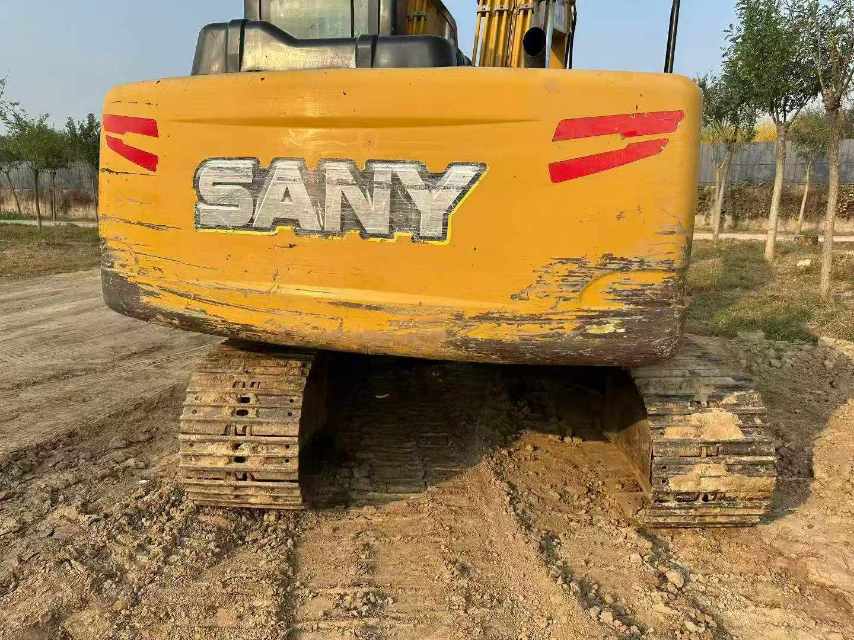

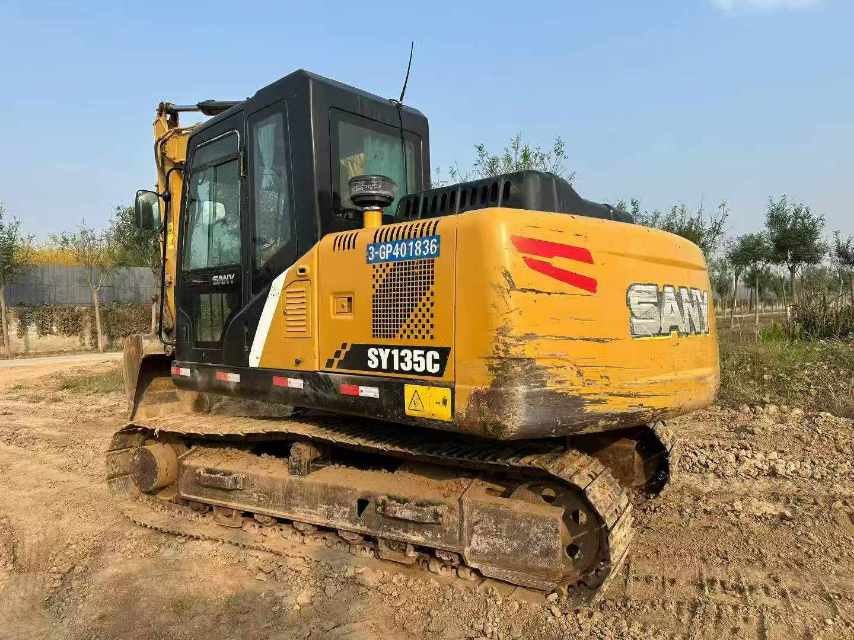

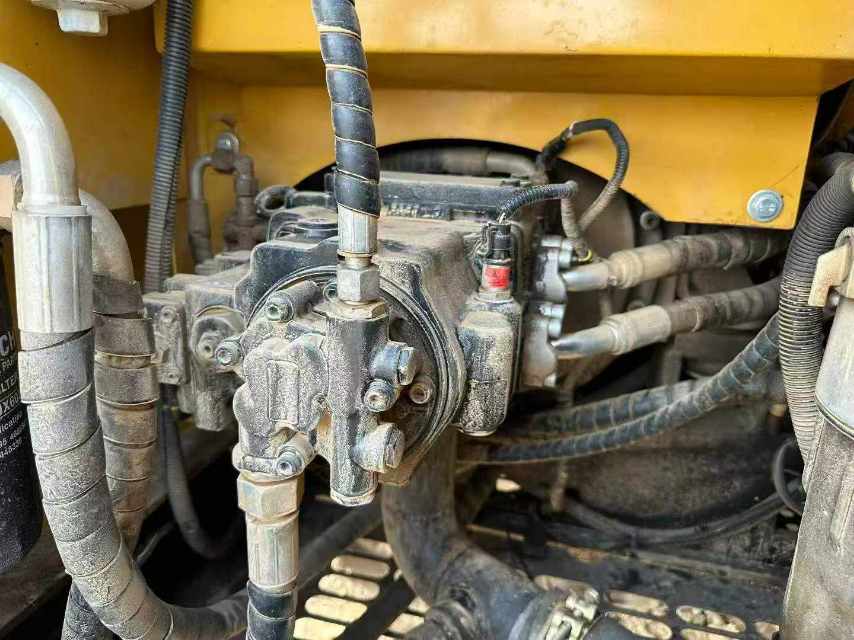

Discover the reliability and performance of the 2018 Sany SY135C, available in Peking, China. This excavator complies with National III emission standards, ensuring it meets environmental regulations while delivering robust operational efficiency. The core components of this machine remain untouched, a testament to its durable design and high-quality engineering. Regular maintenance, including addressing any minor oil leaks, has been meticulously performed, keeping the machine in excellent working condition. With its proven track record, this Sany SY135C is ready for immediate deployment, guaranteeing productivity from the moment it arrives at your site.
- Year: 2018
- Brand: Sany
- Model: SY135C
- Emission Standard: National III
- Location: Peking, China
| Specifications | Value |
|---|---|
| No. | 1165571 |
| Tonnage (tons) | 13 |
| Working weight (kg) | 13500 |
| Bucket capacity (m³) | 0.22-0.7 (0.6) |
| power | Traditional power |
| manufacturer | Made in China |
| bucket | backhoe |

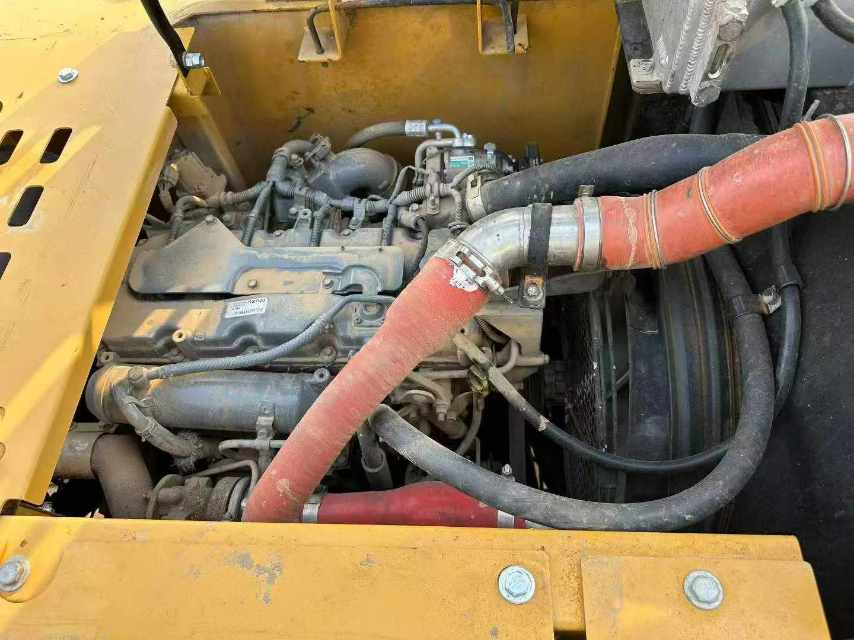

| Engine type | Isuzu 4JJ1-XDJAG-01-C3 |
| Rated power (kw/rpm) | 73/2000 |
| Cooling mode | water-cooling |
| Maximum torque (N.m) | 365/1600 |
| Displacement (L) | 2.999 |
| Ground specific pressure (Kpa) | 41.7 |
| Rotation speed (rpm) | 12 |
| Climbing ability (%) | 70% (35°) |
| Bucket digging force (kN) | 92.7 |
| Rod digging force (kN) | 66.13 |
| Travel speed (km/h) | 5.5/3.5 |
| Fuel Tank (L) | 240 |
| Hydraulic Tank (L) | 150 |
| Engine Oil changes (L) | 15 |
| Total transport length (mm) | 7700 |
| Total transport width (mm) | 2550 |
| Total transport height (mm) | 2815 |
| Full cab height (mm) | 2740 |
| Minimum ground clearance (mm) | 425 |
| Minimum turning radius of front working device (mm) | 2500 |
| Back end turning radius (mm) | 2240 |
| Onboard width (mm) | 2490 |
| Total track length (mm) | 3665 |
| Track gauge (mm) | 1990 |
| Track plate width (mm) | 500 |
| Track ground length (mm) | 2930 |
| Maximum height at minimum turning radius (mm) | 6500 |
| Number of sprockets (single side) (each) | 1 |
| Number of wheels (single side) (each) | 7 |
| Number of track plates (single side) (PCS) | 44 |
| Maximum digging radius (mm) | 8290 |
| Maximum digging depth (mm) | 5510 |
| Maximum excavation height (mm) | 8685 |
| Maximum unloading height (mm) | 6180 |
| Maximum vertical digging depth (mm) | 4890 |
