2020 Sany SY135C

1/8

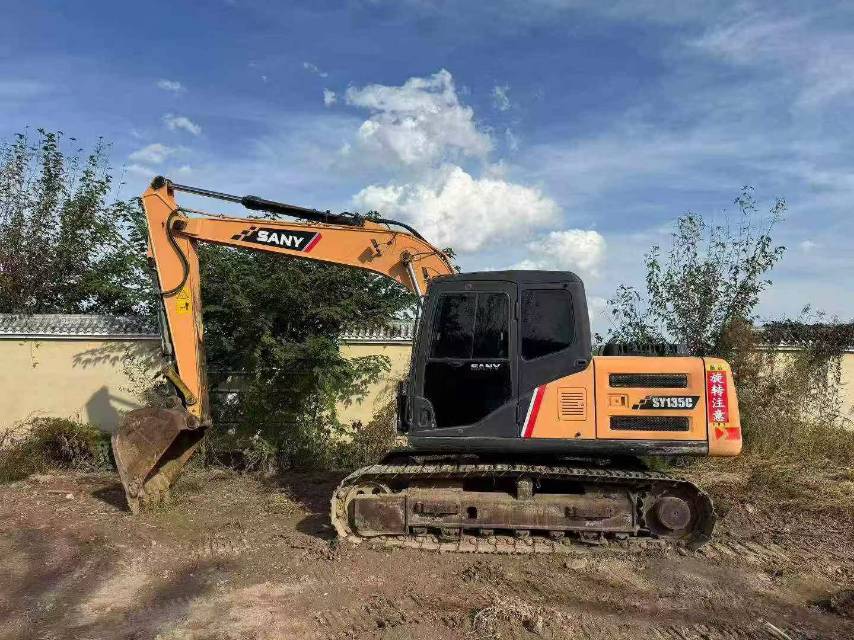

Buy Sany SY135C Used Excavator / 1

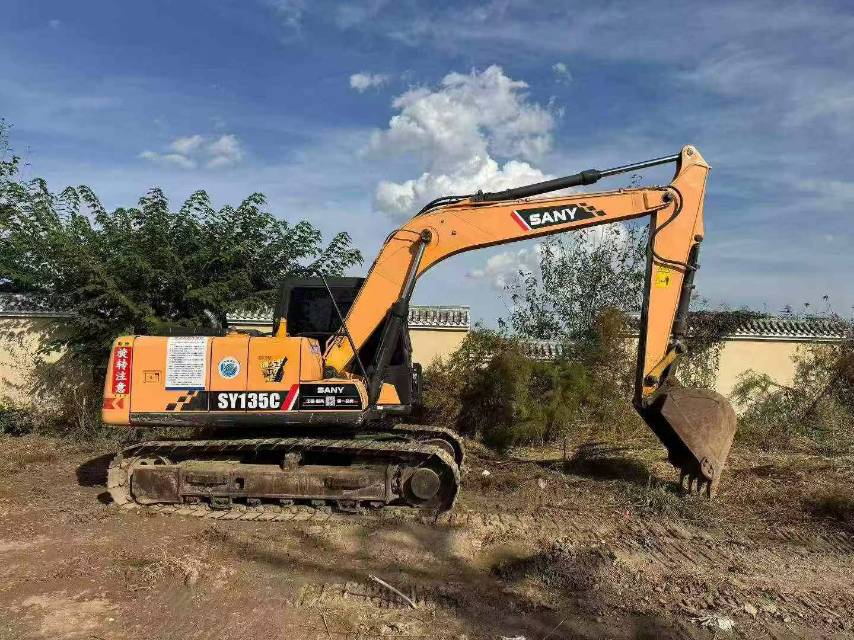

Buy Sany SY135C Used Excavator / 2

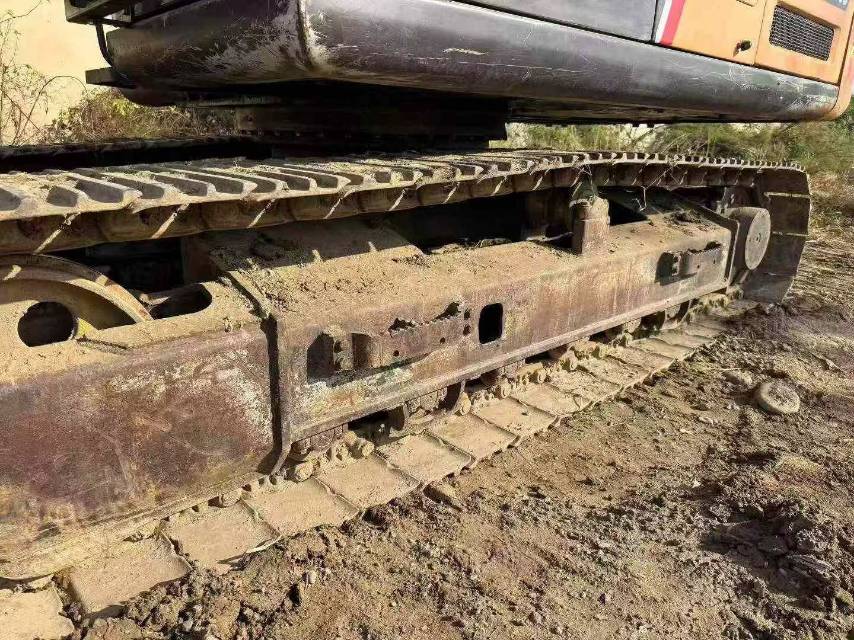

Buy Sany SY135C Used Excavator / 3

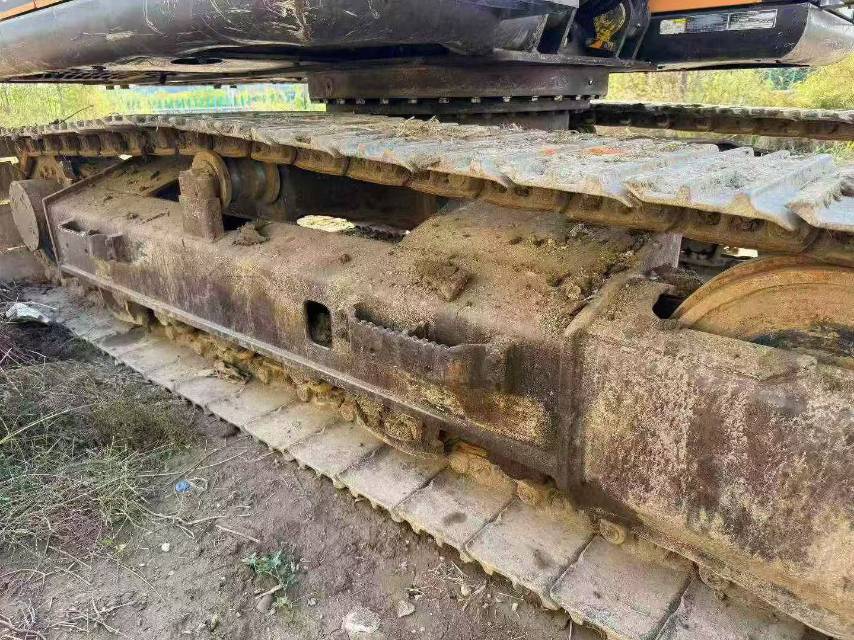

Buy Sany SY135C Used Excavator / 4

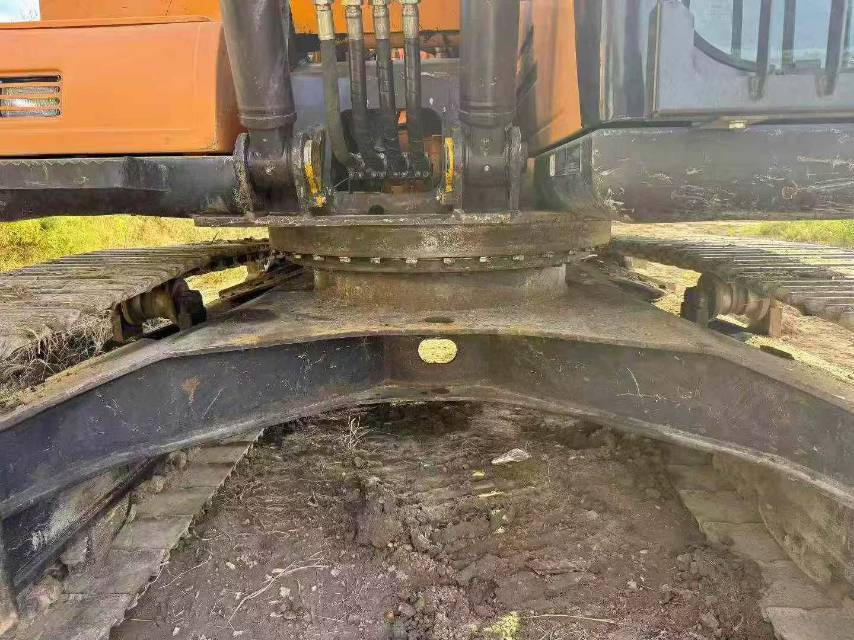

Buy Sany SY135C Used Excavator / 5
Buy Sany SY135C Used Excavator / 6

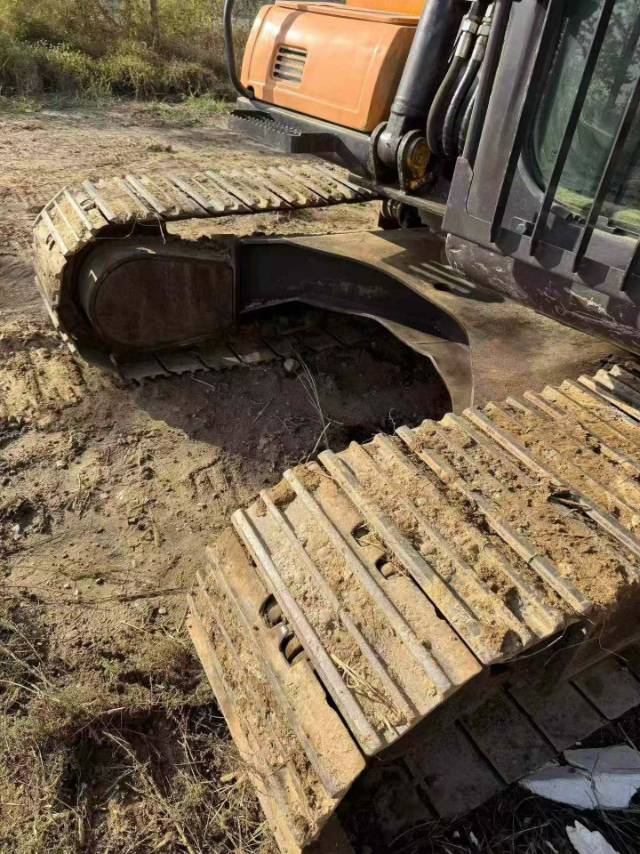

Buy Sany SY135C Used Excavator / 7

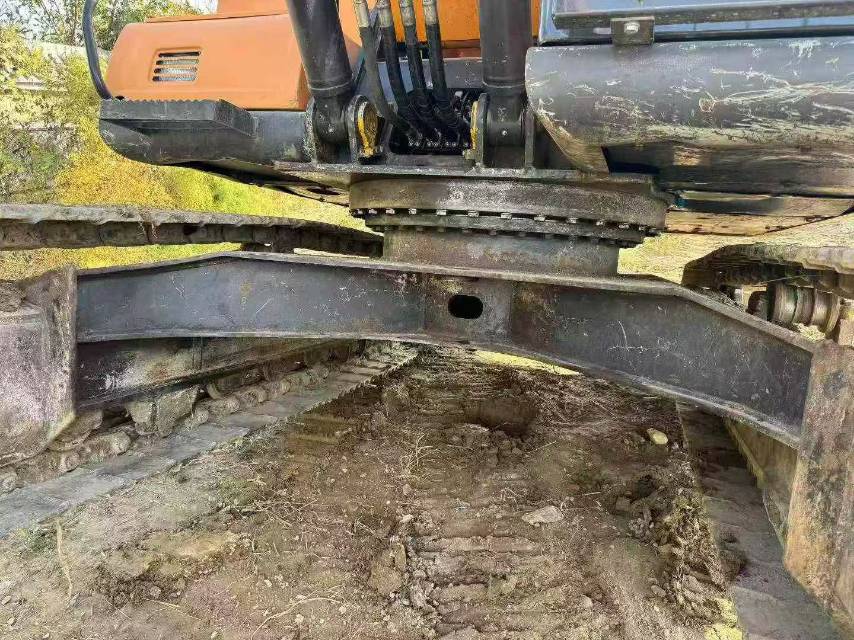

Buy Sany SY135C Used Excavator / 8

Product Description

This 2020 Sany SY135C excavator is available from Hebei, China, offering reliable performance for your operation. Recently released from a completed project site, the machine presents in excellent condition with conscientious owner maintenance throughout its service life.

Key highlights include:

  • Major components (engine, hydraulics, undercarriage) remain unrepaired and original
  • Consistent preventive maintenance program documented
  • Ready for immediate deployment to active jobsites
  • Well-maintained by professional operator in controlled environment

The SY135C is a proven 13.5-ton class excavator known for fuel efficiency and durability in demanding applications. This unit's careful operational history makes it suitable for contractors seeking dependable mid-size equipment without the premium of new machinery. Current location in Hebei province facilitates regional logistics throughout northern China and international export.

SpecificationsValue
No.1157661
Tonnage (tons)13
Working weight (kg)13500
Bucket capacity (m³)0.22-0.7 (0.6)
powerTraditional power
manufacturerMade in China
bucketbackhoe
Engine typeIsuzu 4JJ1-XDJAG-01-C3
Rated power (kw/rpm)73/2000
Cooling modewater-cooling
Maximum torque (N.m)365/1600
Displacement (L)2.999
Ground specific pressure (Kpa)41.7
Rotation speed (rpm)12
Climbing ability (%)70% (35°)
Bucket digging force (kN)92.7
Rod digging force (kN)66.13
Travel speed (km/h)5.5/3.5
Fuel Tank (L)240
Hydraulic Tank (L)150
Engine Oil changes (L)15
Total transport length (mm)7700
Total transport width (mm)2550
Total transport height (mm)2815
Full cab height (mm)2740
Minimum ground clearance (mm)425
Minimum turning radius of front working device (mm)2500
Back end turning radius (mm)2240
Onboard width (mm)2490
Total track length (mm)3665
Track gauge (mm)1990
Track plate width (mm)500
Track ground length (mm)2930
Maximum height at minimum turning radius (mm)6500
Number of sprockets (single side) (each)1
Number of wheels (single side) (each)7
Number of track plates (single side) (PCS)44
Maximum digging radius (mm)8290
Maximum digging depth (mm)5510
Maximum excavation height (mm)8685
Maximum unloading height (mm)6180
Maximum vertical digging depth (mm)4890
see more

Overview

No.1157661

Brand Name:

Sany

Model Number:

SY135C

Year:

2020

Location:

Hebei China

Pub Date:
