Product Description

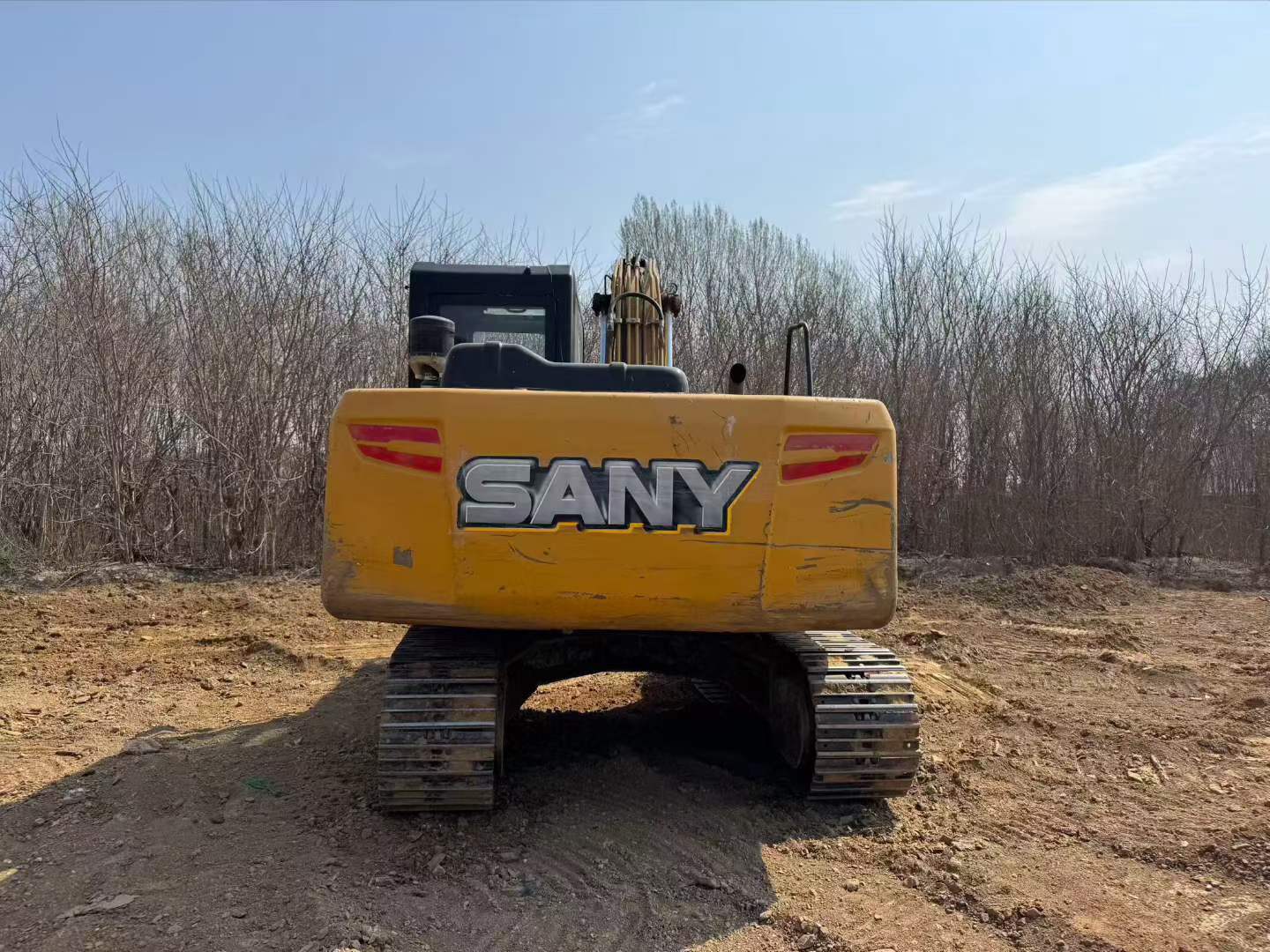

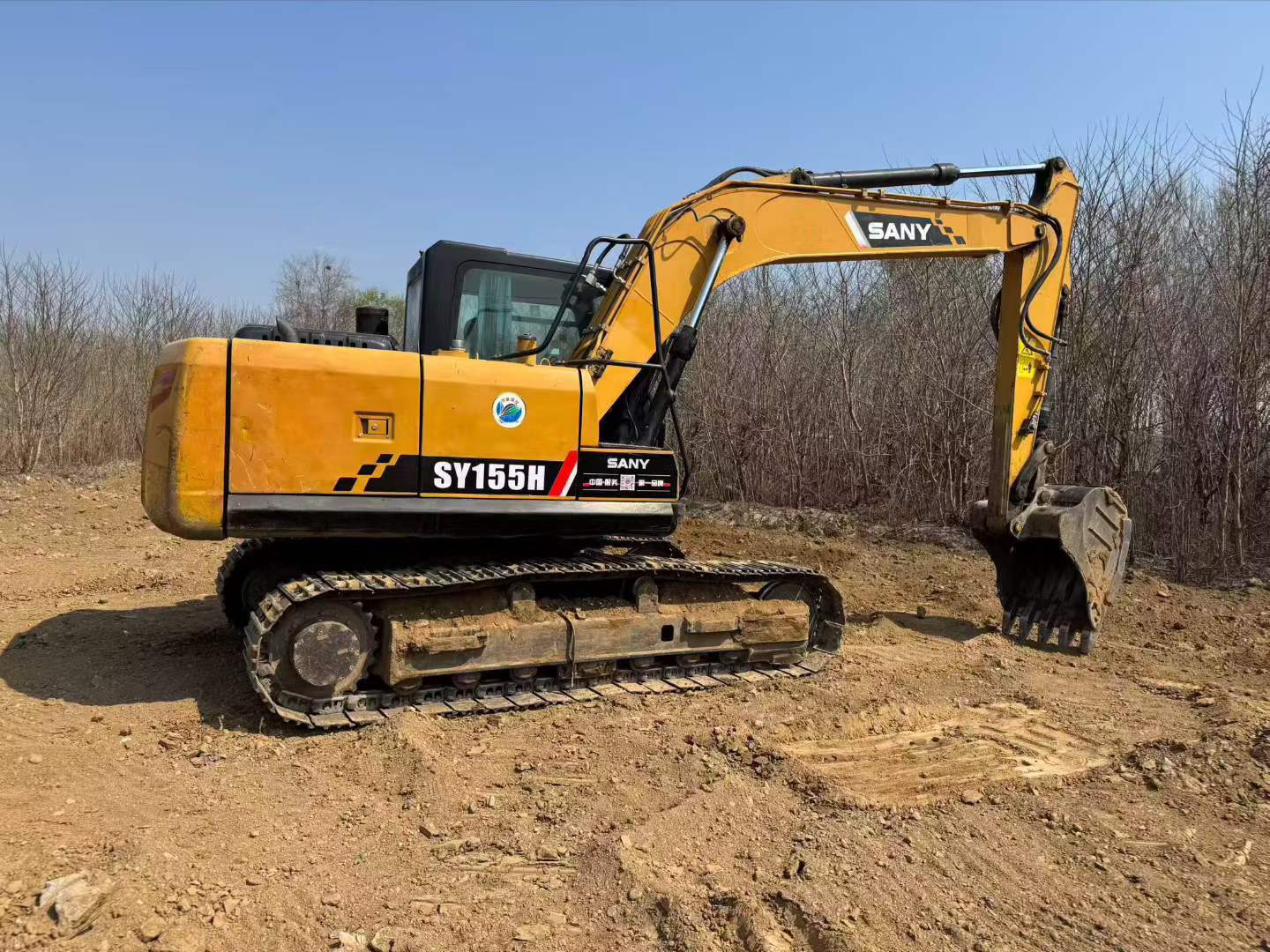

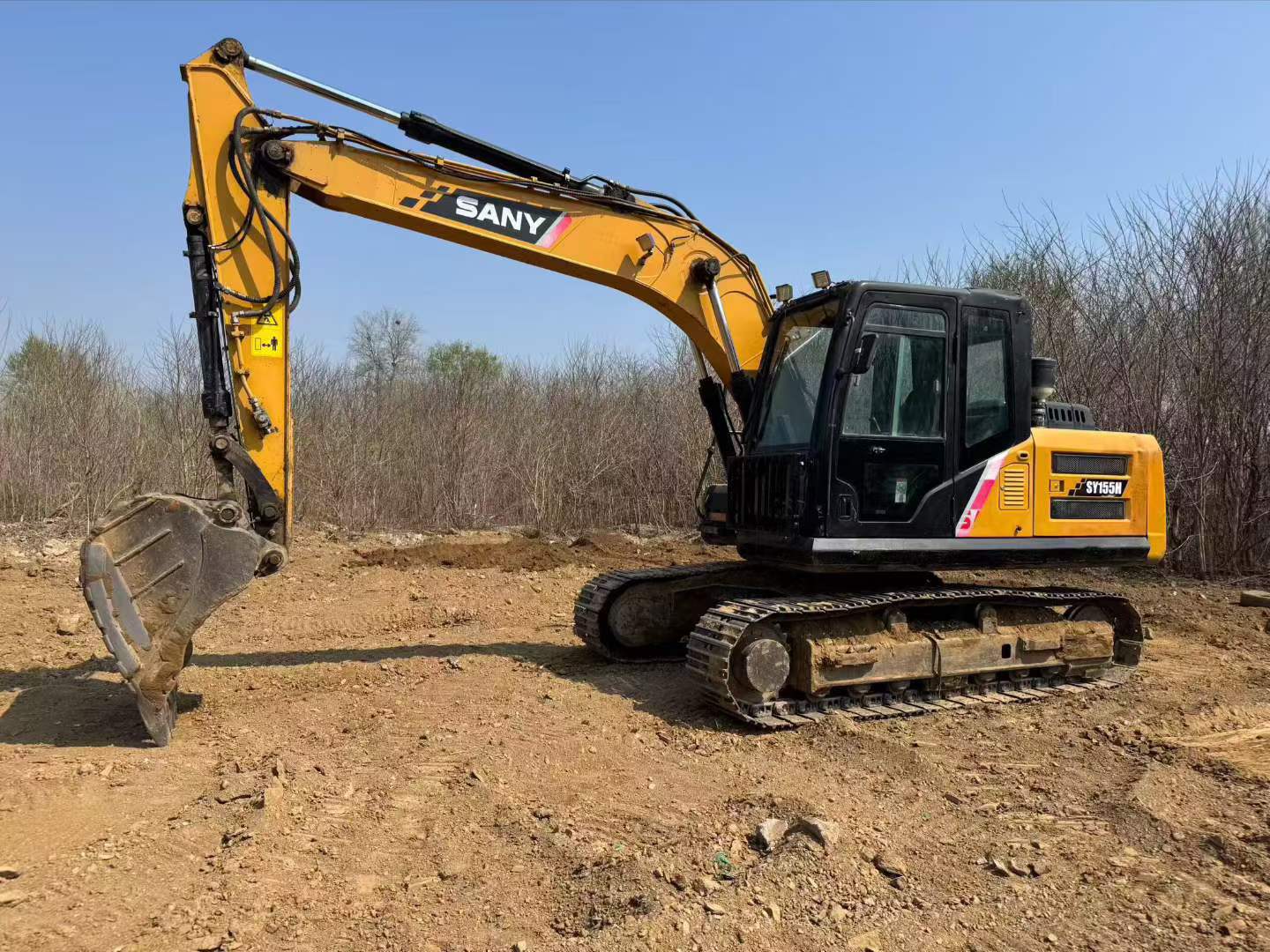

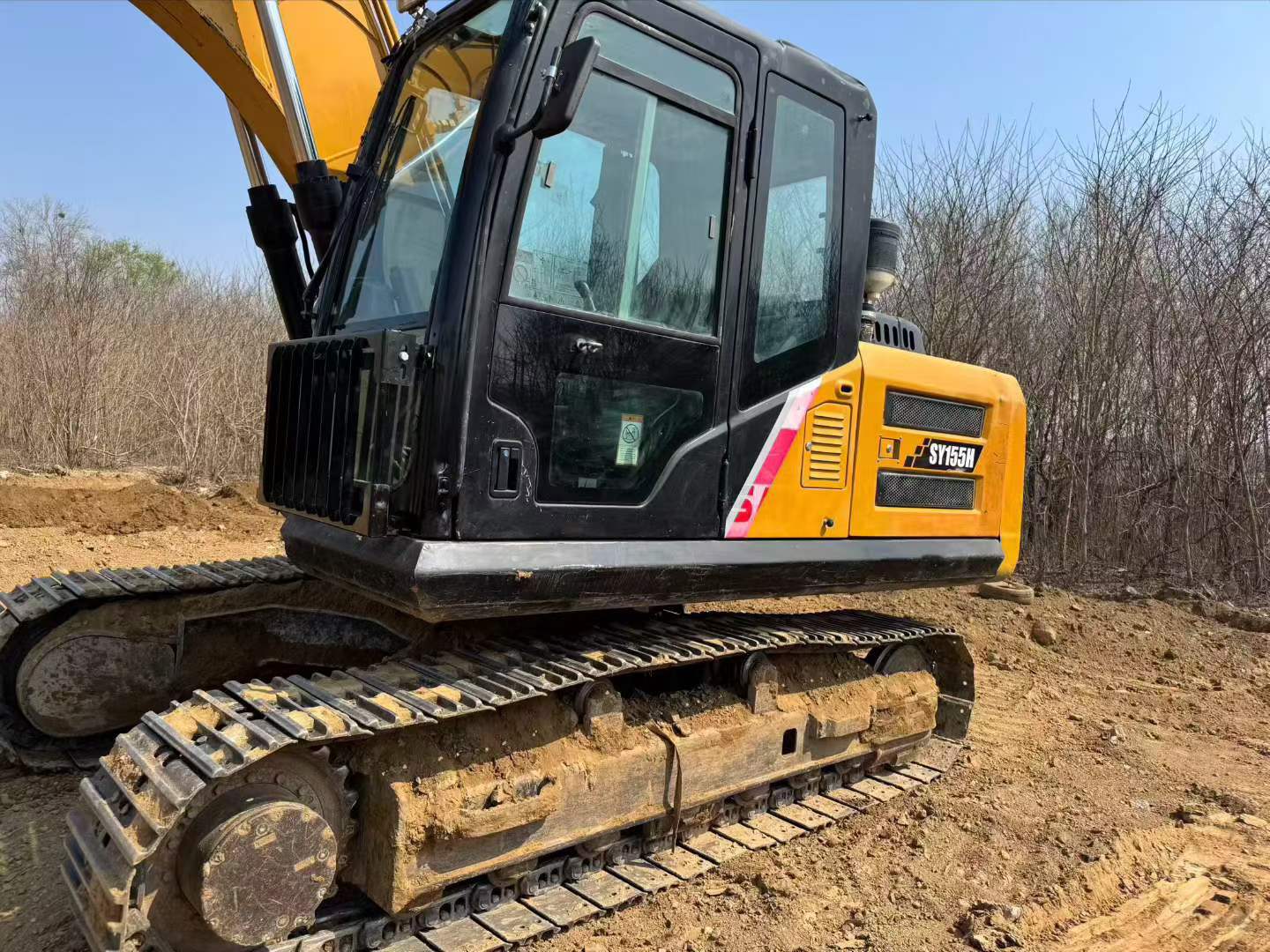

This 2019 Sany SY155H excavator represents a solid opportunity for contractors seeking proven performance. As a single-owner machine used exclusively for operational work, this unit demonstrates the careful maintenance typical of owner-operated equipment. The undercarriage retains its original components, indicating consistent usage without major stress or damage.
Key features include:
- Year of Manufacture: 2019
- Model: Sany SY155H
- Engine: National III emission standards compliant
- Equipped with Easy View monitoring system
- Verified genuine hour meter reading

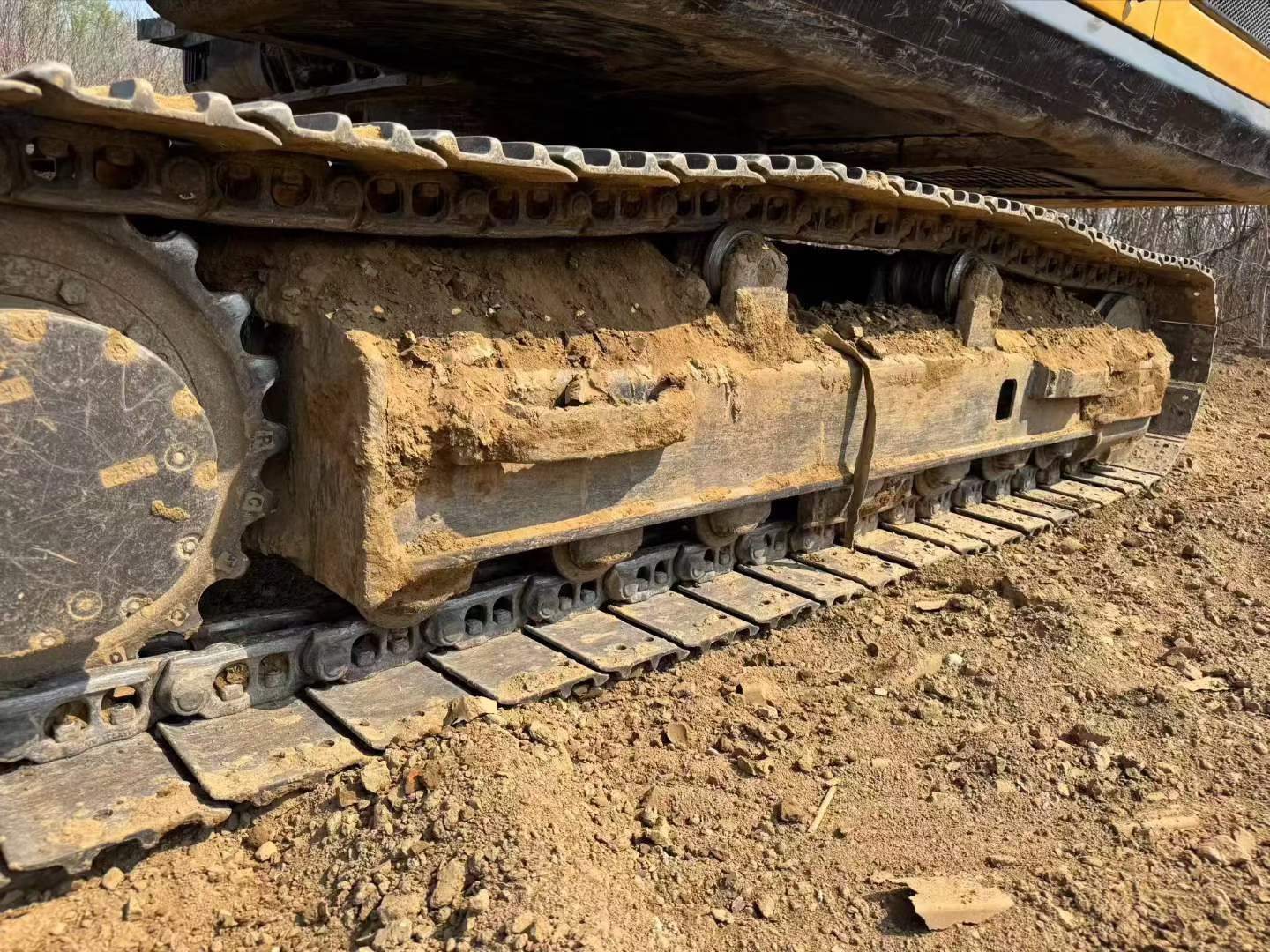

- Original undercarriage in serviceable condition
- Current Location: Beijing, China
This excavator offers reliable performance for earthmoving, excavation, and general construction applications. The machine is competitively priced and available for immediate inspection in Beijing. Contact us for detailed specifications and current pricing.
| Specifications | Value |
|---|---|
| No. | 1076370 |
| Tonnage (tons) | 15 |
| Working weight (kg) | 14100 |
| Bucket capacity (m³) | 0.22-0.7 (0.65) |
| Country of origin | Kunshan in Jiangsu Province |
| power | Traditional power |
| manufacturer | Made in China |
| bucket | backhoe |

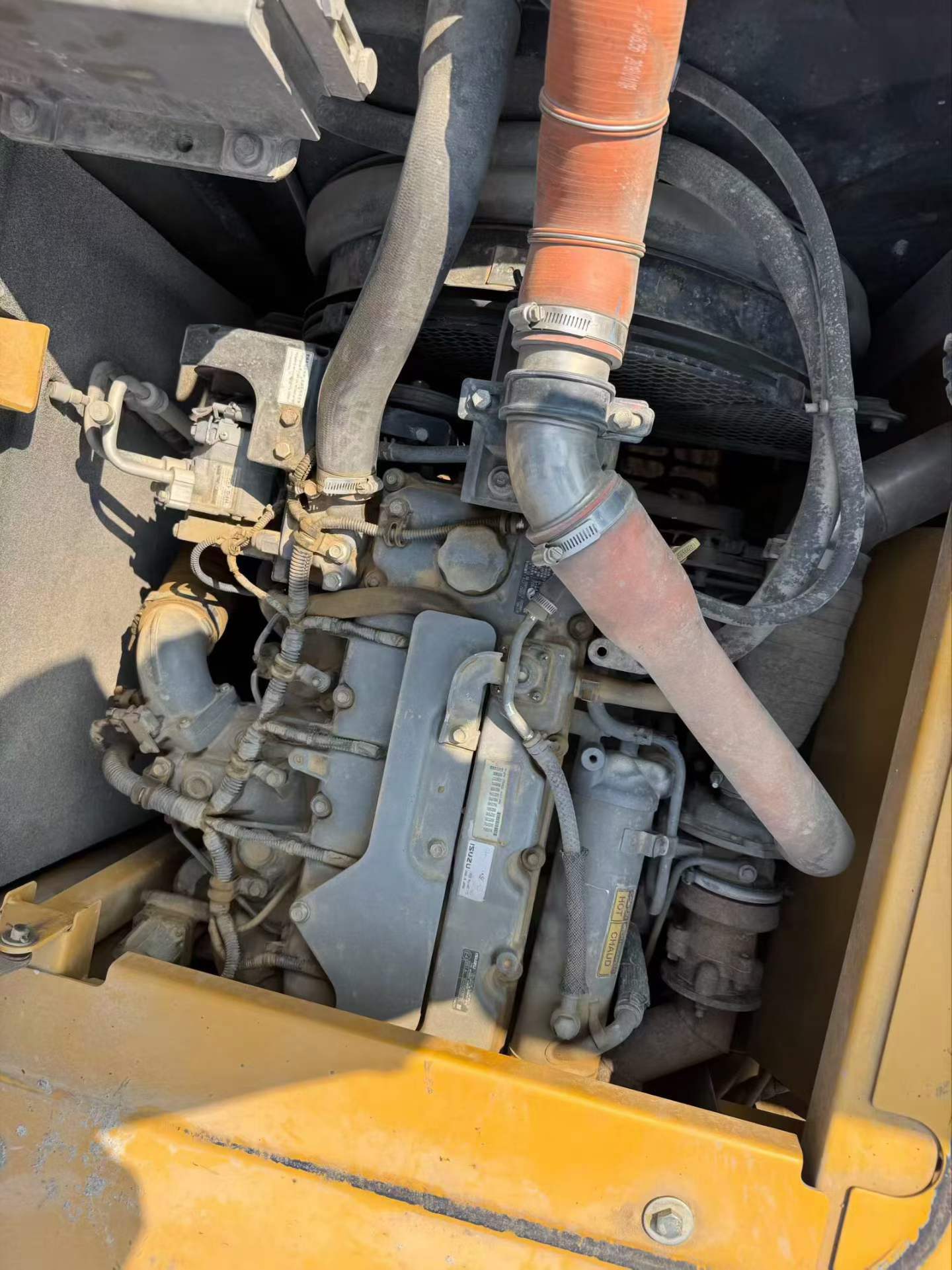

| Engine type | ISUZU BB-4BG1TRP |
| Rated power (kw/rpm) | 84/2200 |
| Cooling mode | water-cooling |
| Maximum torque (N.m) | 375/1800 |
| Displacement (L) | 2.999 |
| Ground specific pressure (Kpa) | 41.7 |
| Rotation speed (rpm) | 12 |
| Climbing ability (%) | 70 |
| Bucket digging force (kN) | 92.7 |
| Rod digging force (kN) | 66.1 |
| Travel speed (km/h) | 5.5/3.5 |
| Hydraulic crushing pipeline is standard | no |
| Fuel Tank (L) | 240 |
| Hydraulic Tank (L) | 150 |
| Engine Oil changes (L) | 15 |
| Total transport length (mm) | 7870 |
| Total transport width (mm) | 2570 |
| Total transport height (mm) | 2880 |
| Full cab height (mm) | 2740 |
| Minimum ground clearance (mm) | 425 |
| Minimum turning radius of front working device (mm) | 2490 |
| Back end turning radius (mm) | 2210 |
| Onboard width (mm) | 2490 |
| Total track length (mm) | 3730 |
| Track gauge (mm) | 1990 |
| Track plate width (mm) | 500 |
| Total track width (mm) | 2550 |
| Track ground length (mm) | 3010 |
| Maximum height at minimum turning radius (mm) | 6495 |
| Number of sprockets (single side) (each) | 2 |
| Number of wheels (single side) (each) | 7 |
| Number of track plates (single side) (PCS) | 45 |
| Maximum digging radius (mm) | 8330 |
| Maximum digging depth (mm) | 5500 |
| Maximum excavation height (mm) | 8685 |
| Maximum unloading height (mm) | 6115 |
| Maximum vertical digging depth (mm) | 5085 |
| Bulldozer lift or depth (mm) | There is no |
| Dodging plate width × height (mm) | There is no |
