Product Description

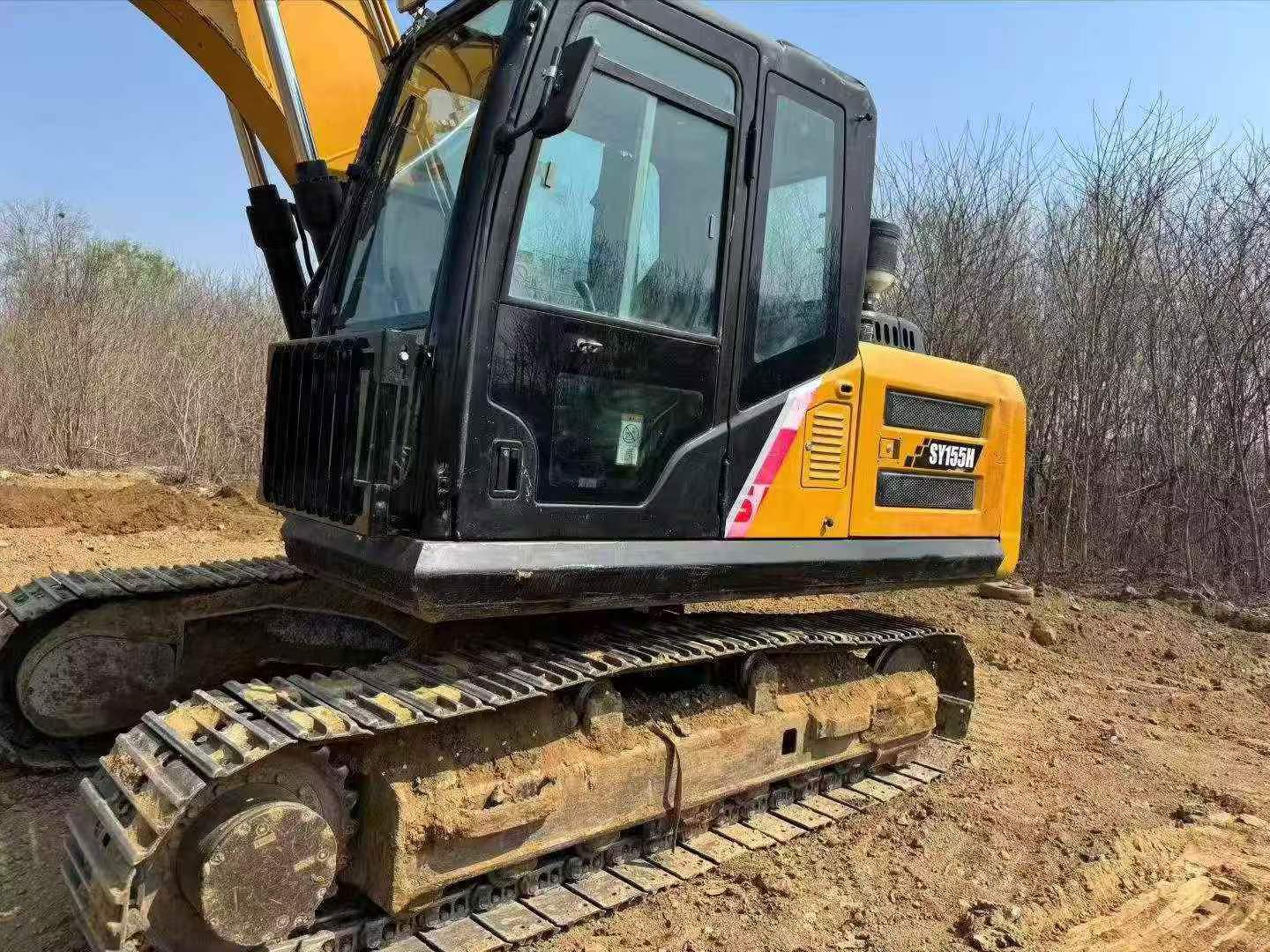

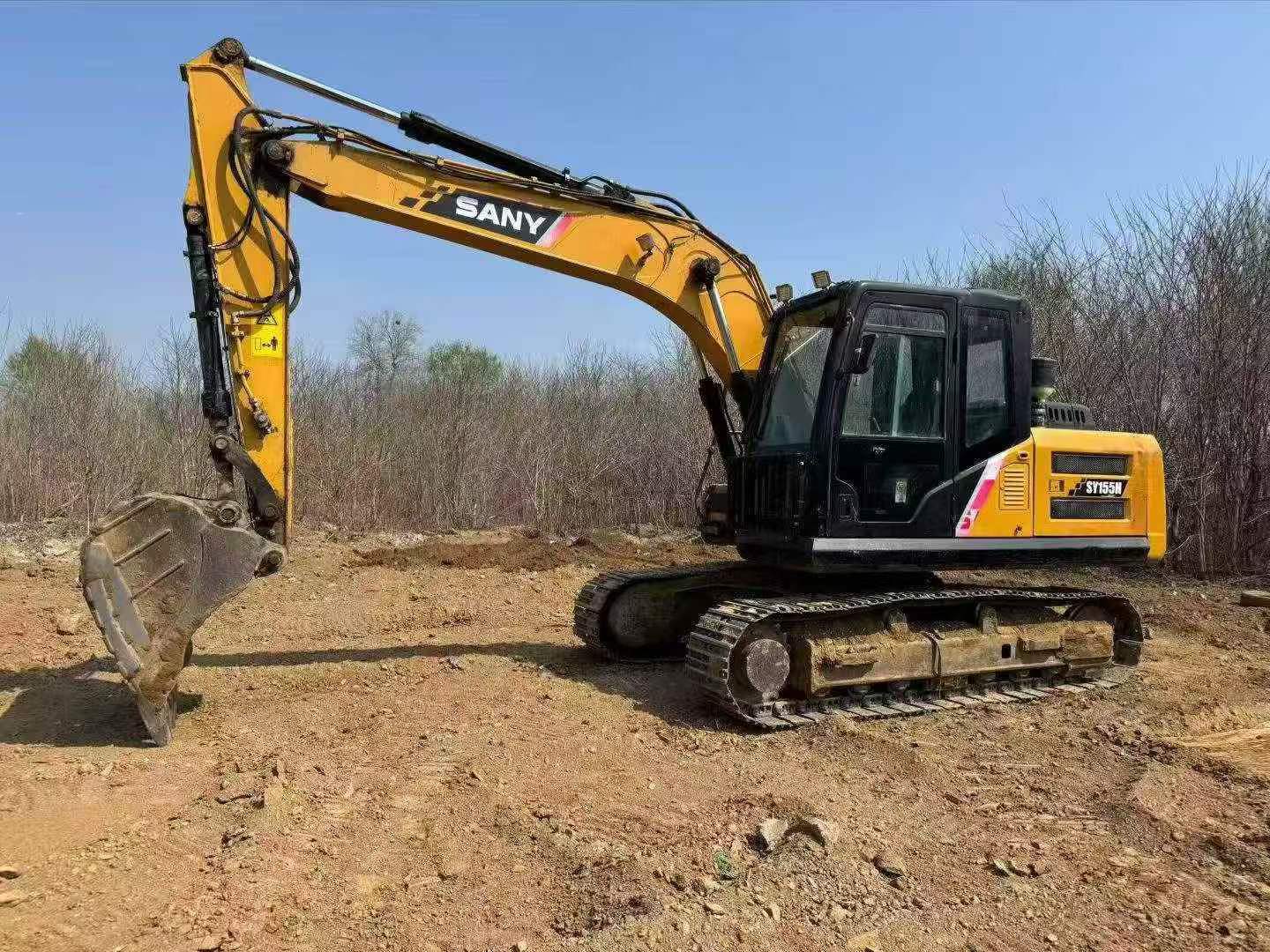

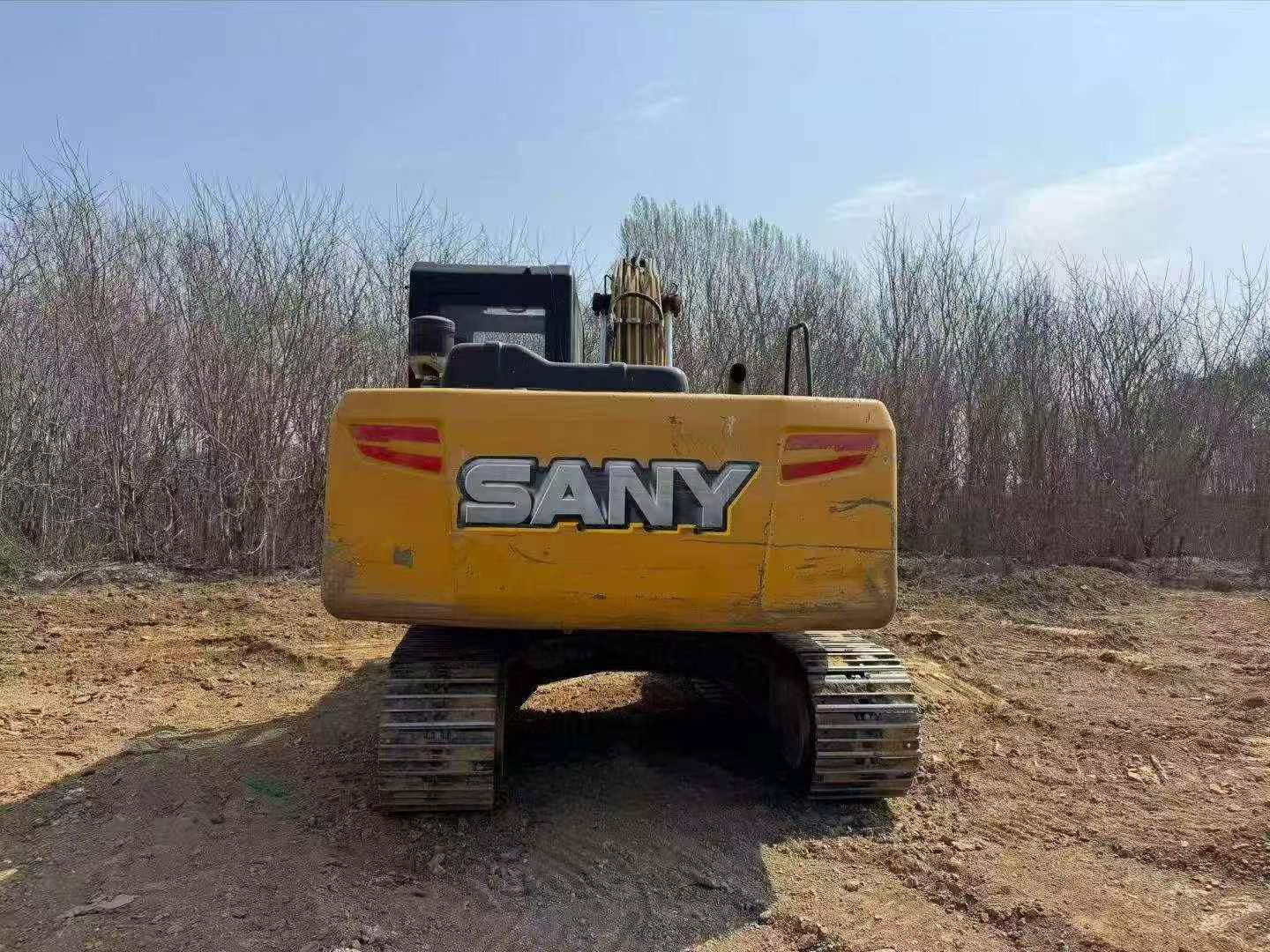

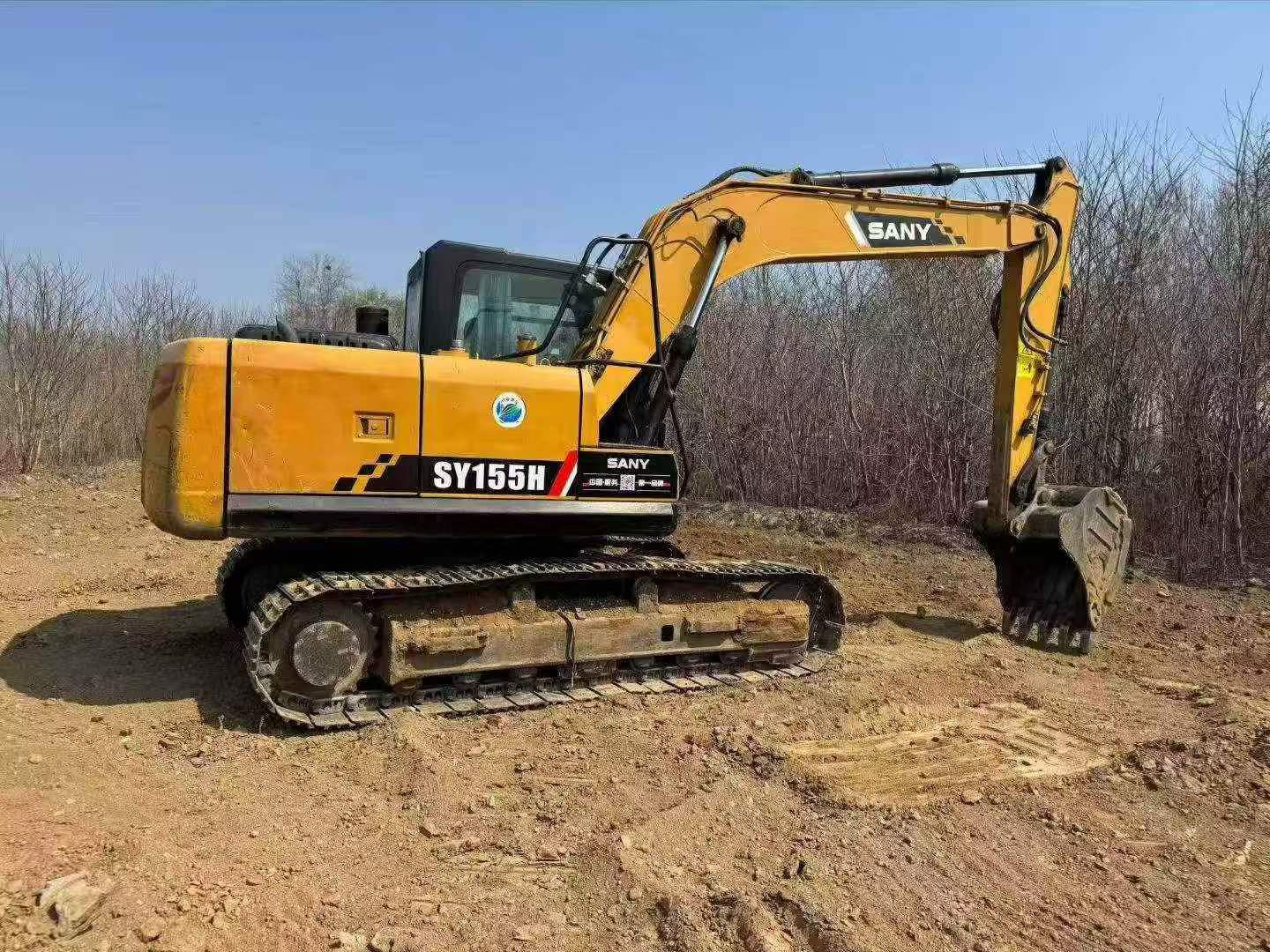

Discover the 2019 Sany SY155H, a robust and reliable excavator, now available in Hebei, China. This machine has been meticulously maintained by its single owner, ensuring it remains in excellent working condition. Equipped with an original chassis and compliant with Tier 3 emission standards, this excavator is both environmentally friendly and durable. The inclusion of the Yiwei Xun system enhances operational efficiency and monitoring. Priced competitively, the Sany SY155H is an ideal choice for any construction or excavation project.
- Year: 2019
- Brand: Sany
- Model: SY155H
- Location: Hebei, China
- Emission Standard: Tier 3
- Original Chassis
- Equipped with Yiwei Xun System
| Specifications | Value |
|---|---|
| No. | 1093702 |
| Tonnage (tons) | 15 |
| Working weight (kg) | 14100 |
| Bucket capacity (m³) | 0.22-0.7 (0.65) |
| Country of origin | Kunshan in Jiangsu Province |
| power | Traditional power |
| manufacturer | Made in China |
| bucket | backhoe |

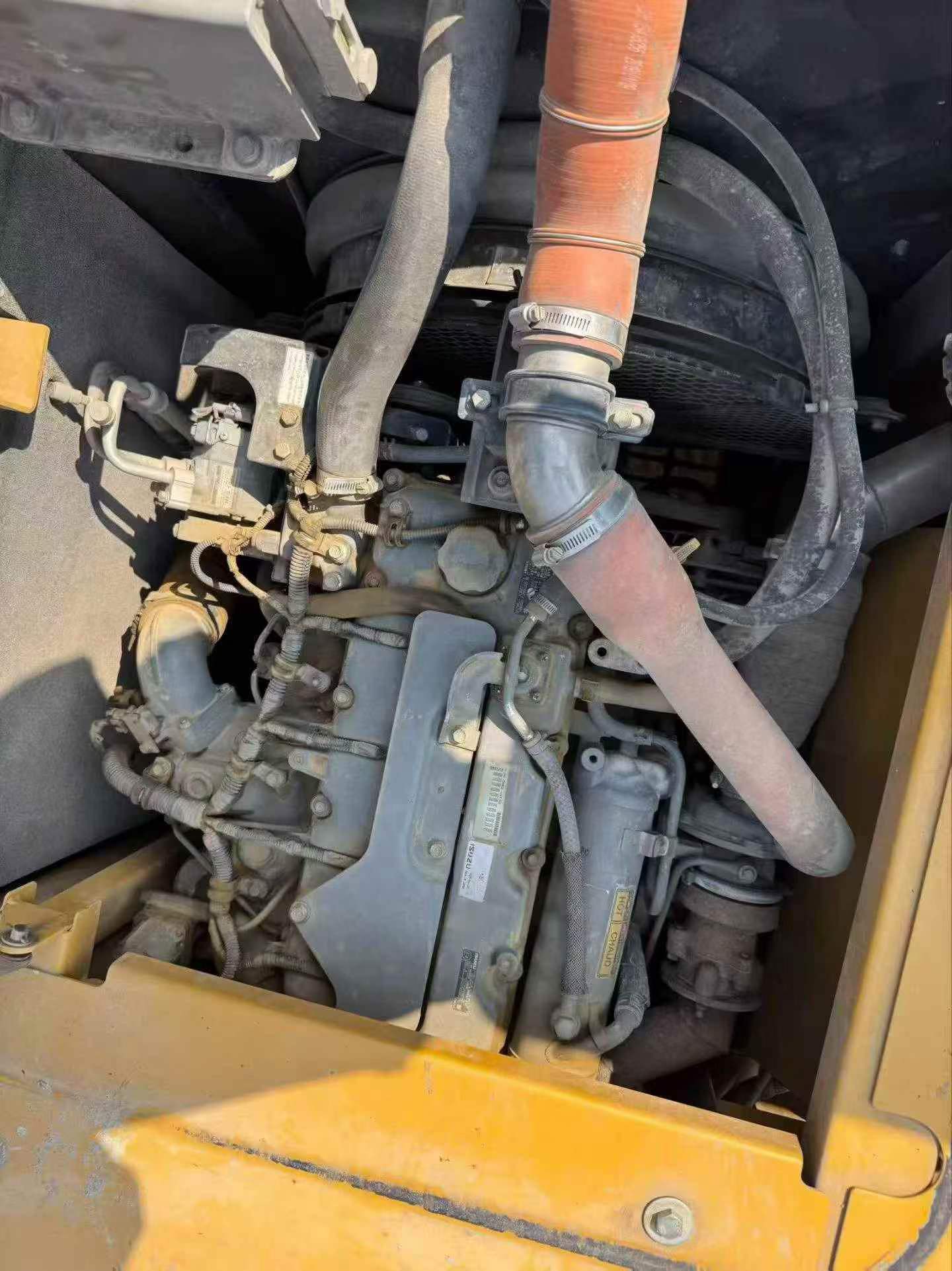

| Engine type | ISUZU BB-4BG1TRP |
| Rated power (kw/rpm) | 84/2200 |
| Cooling mode | water-cooling |
| Maximum torque (N.m) | 375/1800 |
| Displacement (L) | 2.999 |
| Ground specific pressure (Kpa) | 41.7 |
| Rotation speed (rpm) | 12 |
| Climbing ability (%) | 70 |
| Bucket digging force (kN) | 92.7 |
| Rod digging force (kN) | 66.1 |
| Travel speed (km/h) | 5.5/3.5 |
| Hydraulic crushing pipeline is standard | no |
| Fuel Tank (L) | 240 |
| Hydraulic Tank (L) | 150 |
| Engine Oil changes (L) | 15 |
| Total transport length (mm) | 7870 |
| Total transport width (mm) | 2570 |
| Total transport height (mm) | 2880 |
| Full cab height (mm) | 2740 |
| Minimum ground clearance (mm) | 425 |
| Minimum turning radius of front working device (mm) | 2490 |
| Back end turning radius (mm) | 2210 |
| Onboard width (mm) | 2490 |

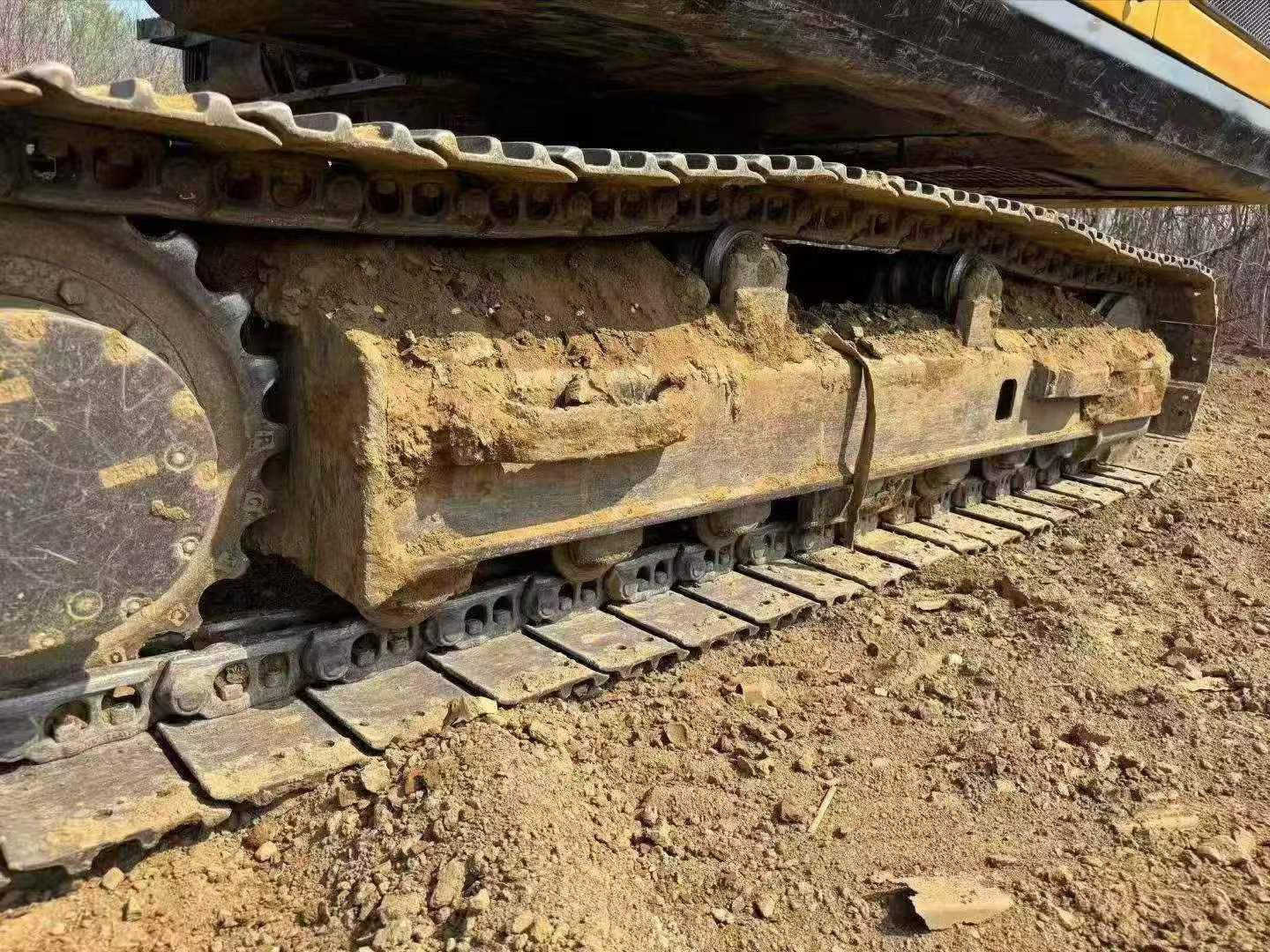

| Total track length (mm) | 3730 |
| Track gauge (mm) | 1990 |
| Track plate width (mm) | 500 |
| Total track width (mm) | 2550 |
| Track ground length (mm) | 3010 |
| Maximum height at minimum turning radius (mm) | 6495 |
| Number of sprockets (single side) (each) | 2 |
| Number of wheels (single side) (each) | 7 |
| Number of track plates (single side) (PCS) | 45 |
| Maximum digging radius (mm) | 8330 |
| Maximum digging depth (mm) | 5500 |
| Maximum excavation height (mm) | 8685 |
| Maximum unloading height (mm) | 6115 |
| Maximum vertical digging depth (mm) | 5085 |
| Bulldozer lift or depth (mm) | There is no |
| Dodging plate width × height (mm) | There is no |
