2024 Sany SY155H

1/9
Buy Sany SY155H Used Excavator / 1

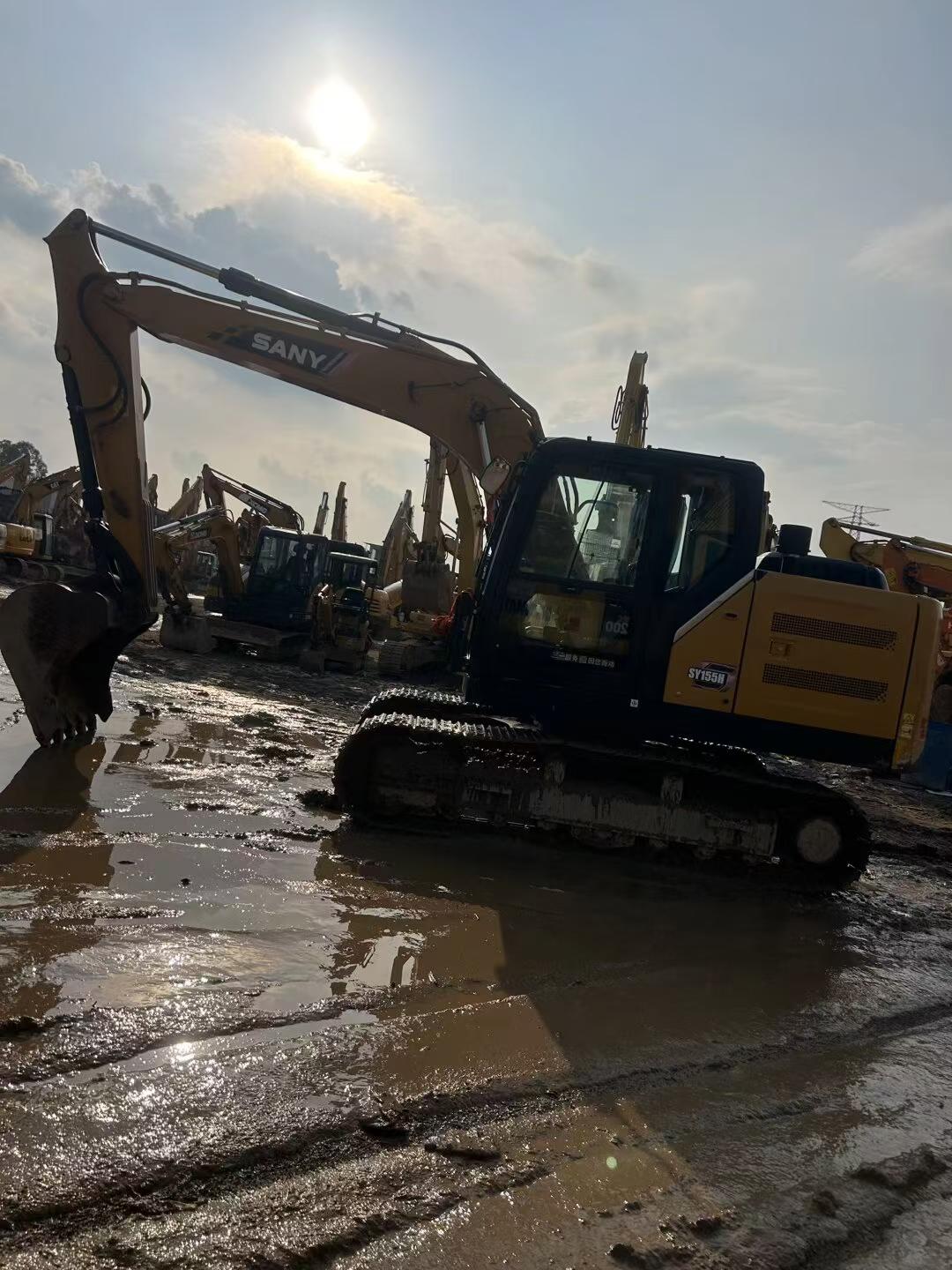

Buy Sany SY155H Used Excavator / 2

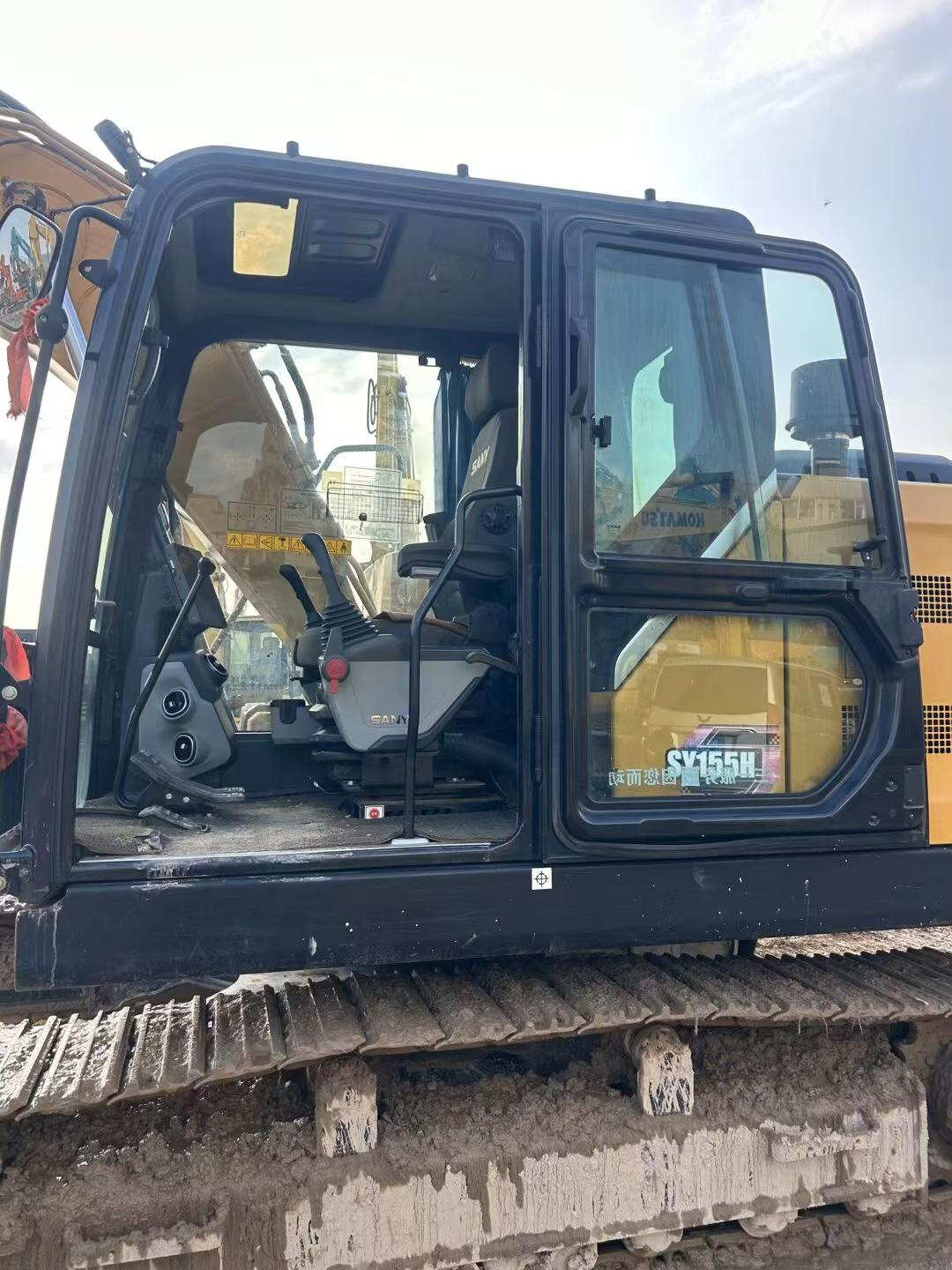

Buy Sany SY155H Used Excavator / 3

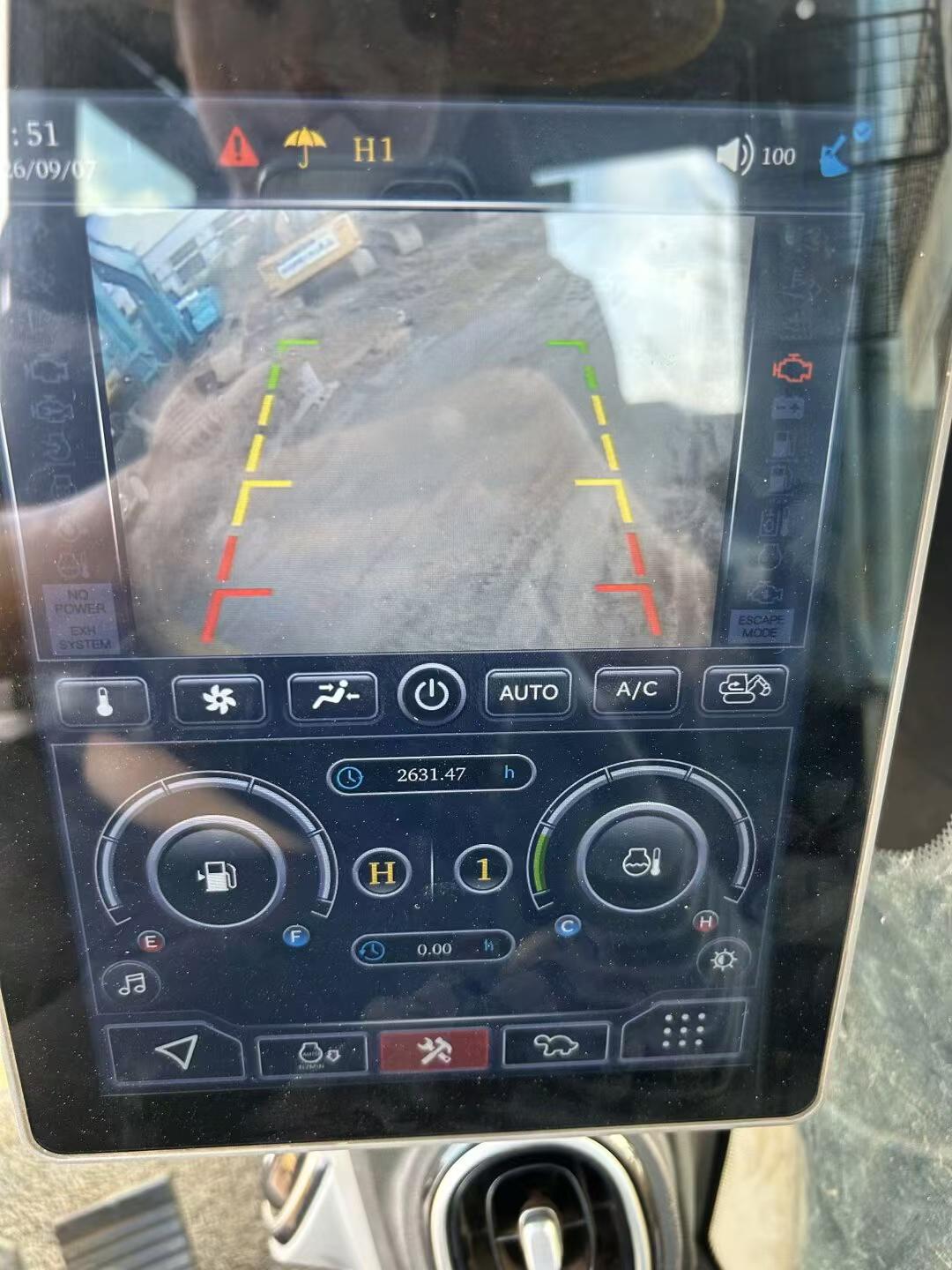

Buy Sany SY155H Used Excavator / 4

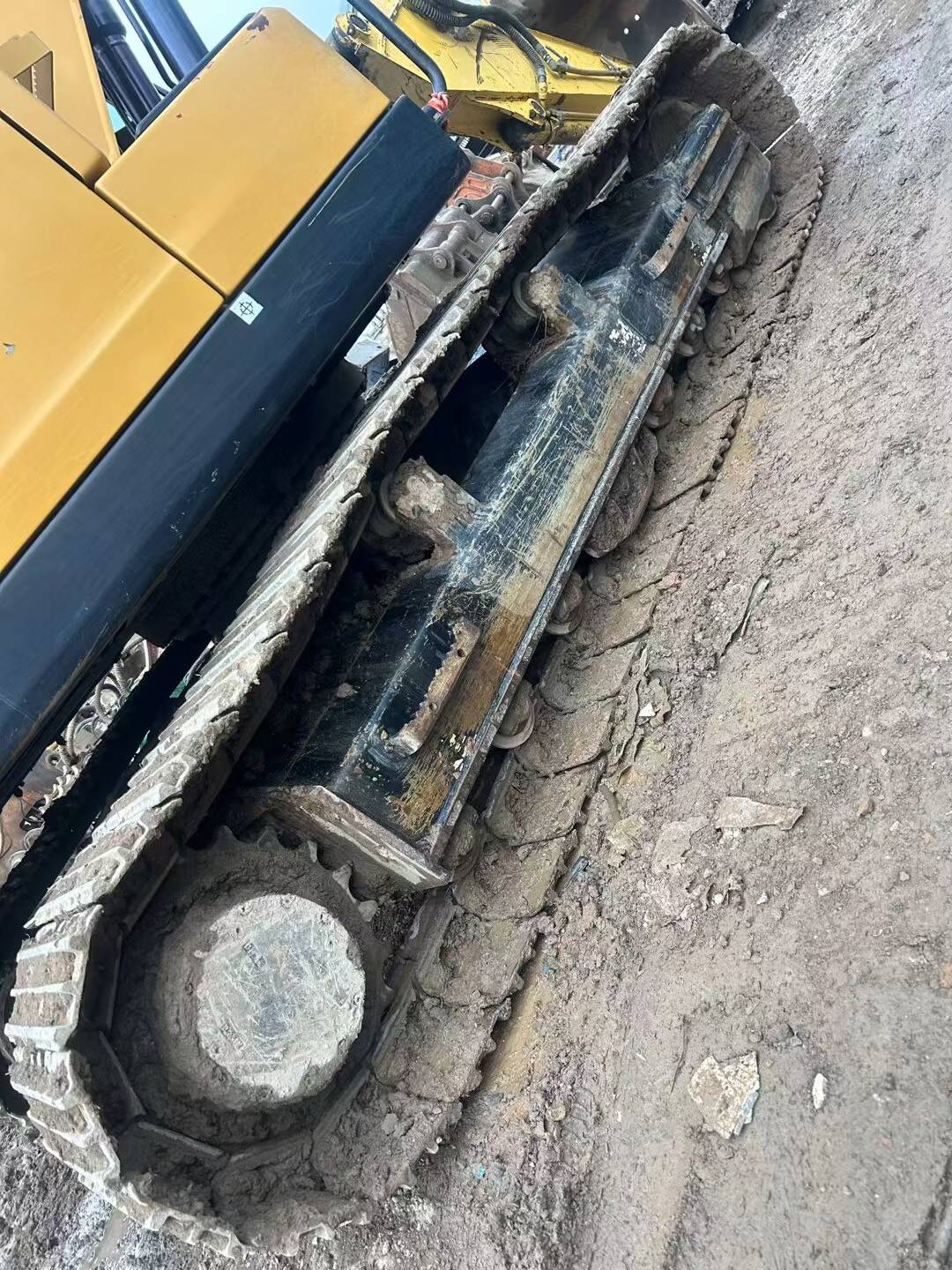

Buy Sany SY155H Used Excavator / 5

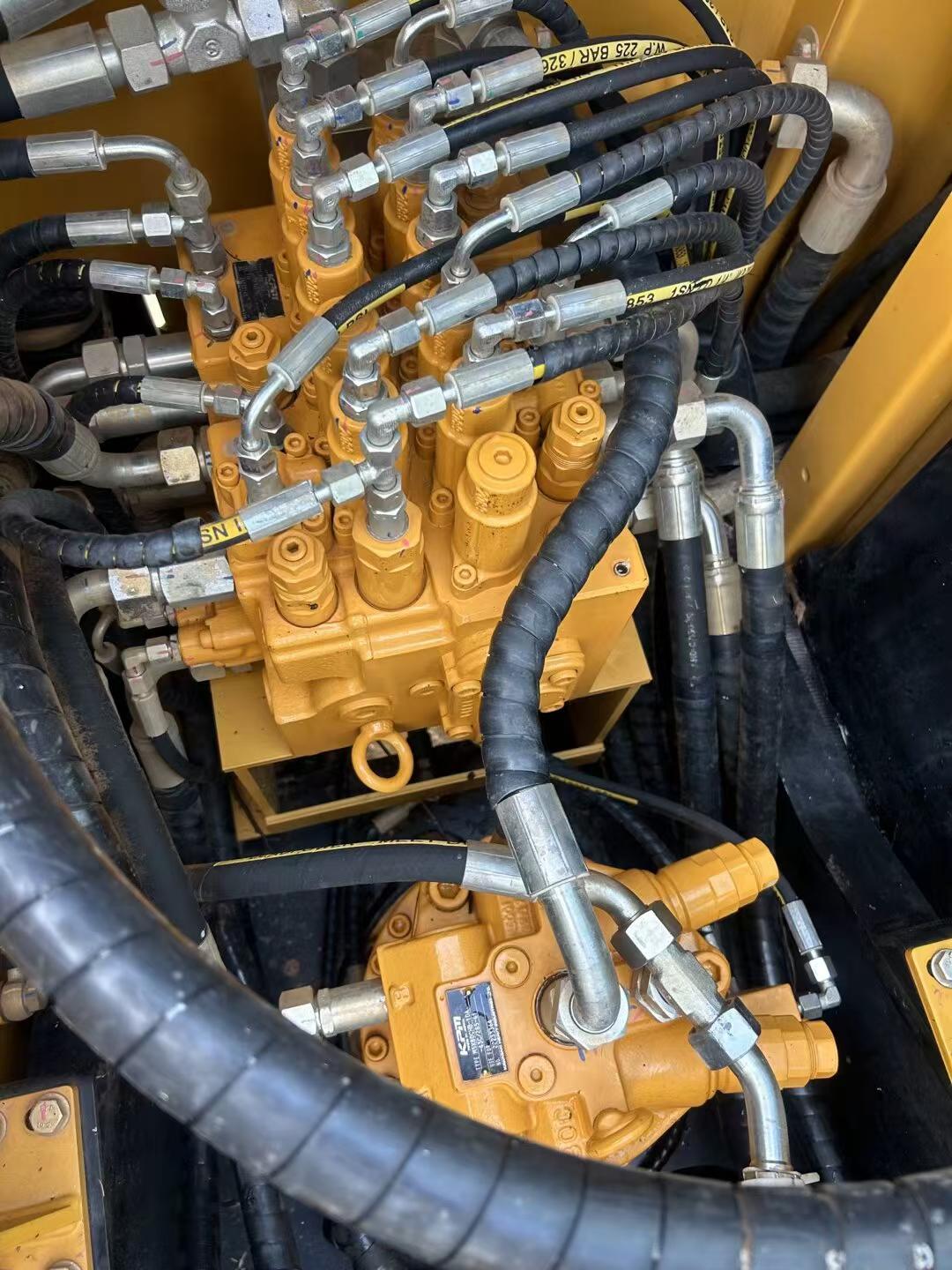

Buy Sany SY155H Used Excavator / 6

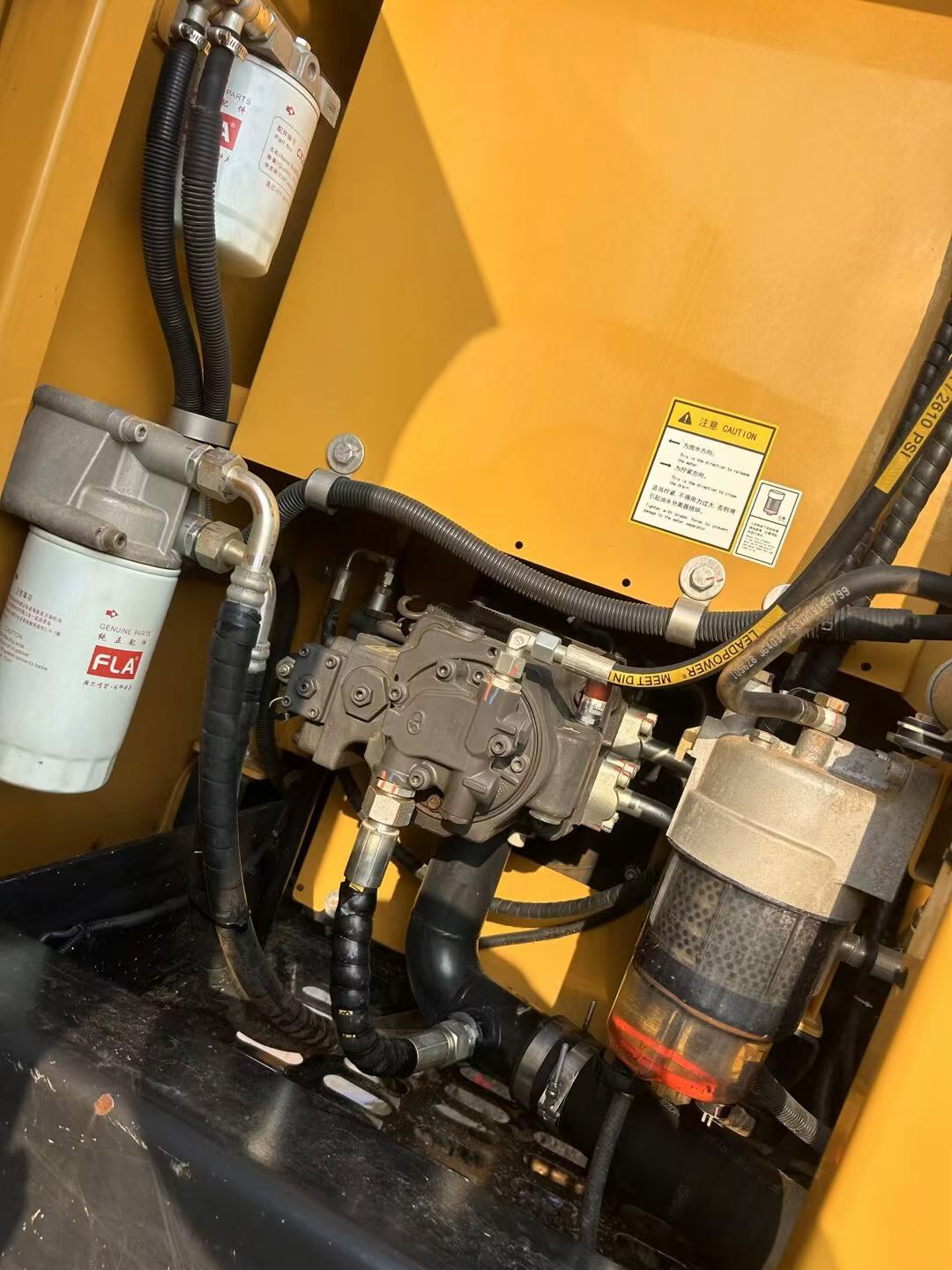

Buy Sany SY155H Used Excavator / 7
Buy Sany SY155H Used Excavator / 8

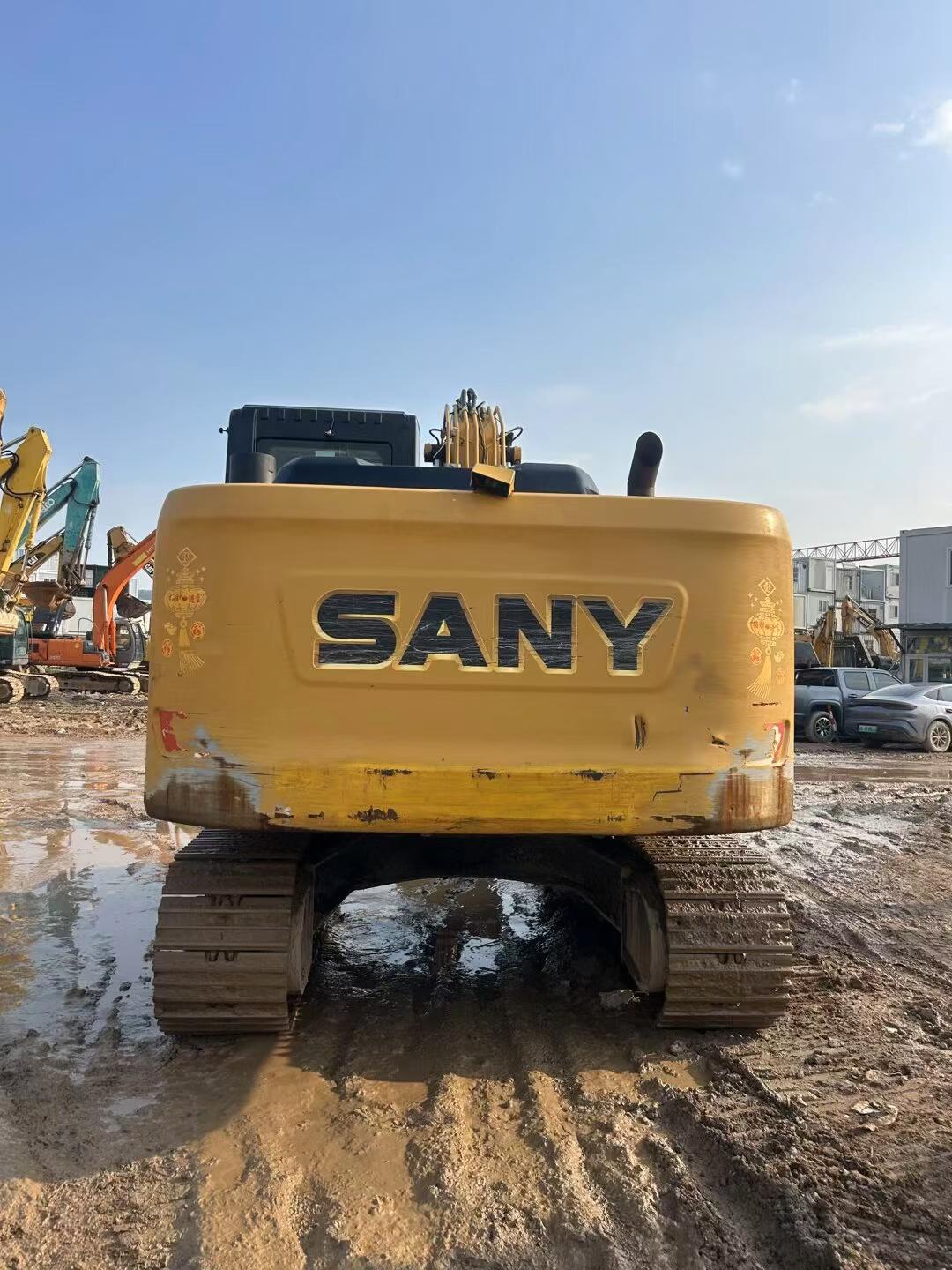

Buy Sany SY155H Used Excavator / 9

Product Description

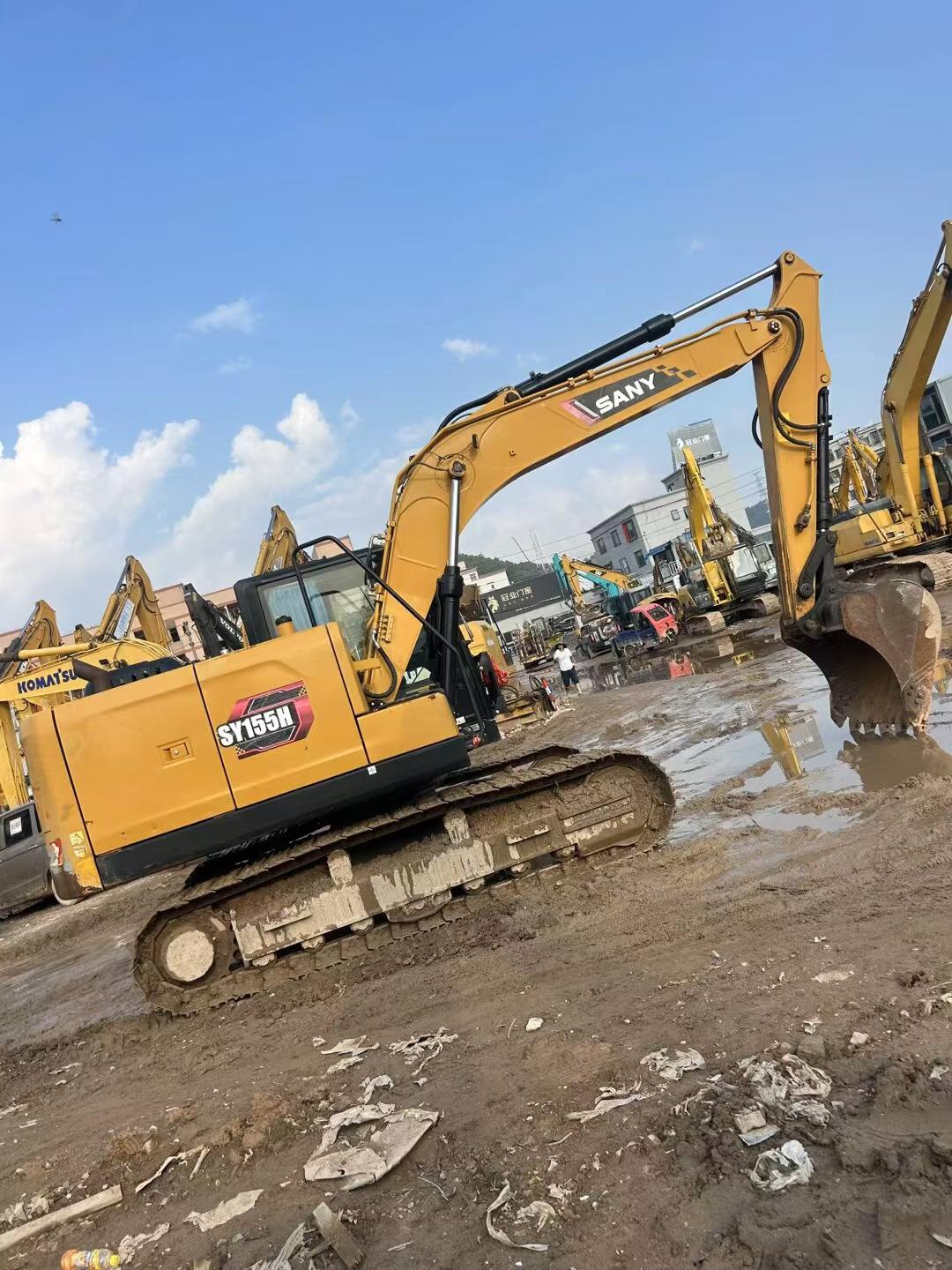

This 2024 Sany SY155H excavator, currently located in Guangdong, China, offers proven performance with 2,600 operational hours. The machine has been responsibly operated and maintained, requiring no immediate inspection or service work before deployment to your next project site.

The SY155H is a mid-size crawler excavator known for reliable hydraulic systems and fuel efficiency in demanding construction and earthmoving applications. With its 2024 manufacture date and low hour count, this unit represents a cost-effective alternative to new equipment while delivering the performance standards expected from Sany's engineering.

  • Year: 2024
  • Model: Sany SY155H
  • Hours: 2,600
  • Location: Guangdong, China
  • Condition: Work-ready, no inspection required

Ideal for contractors seeking dependable excavation capacity with minimal downtime. Available for immediate purchase and deployment.

SpecificationsValue
No.1140927
Tonnage (tons)15
Working weight (kg)14100
Bucket capacity (m³)0.22-0.7 (0.65)
Country of originKunshan in Jiangsu Province
powerTraditional power
manufacturerMade in China
bucketbackhoe

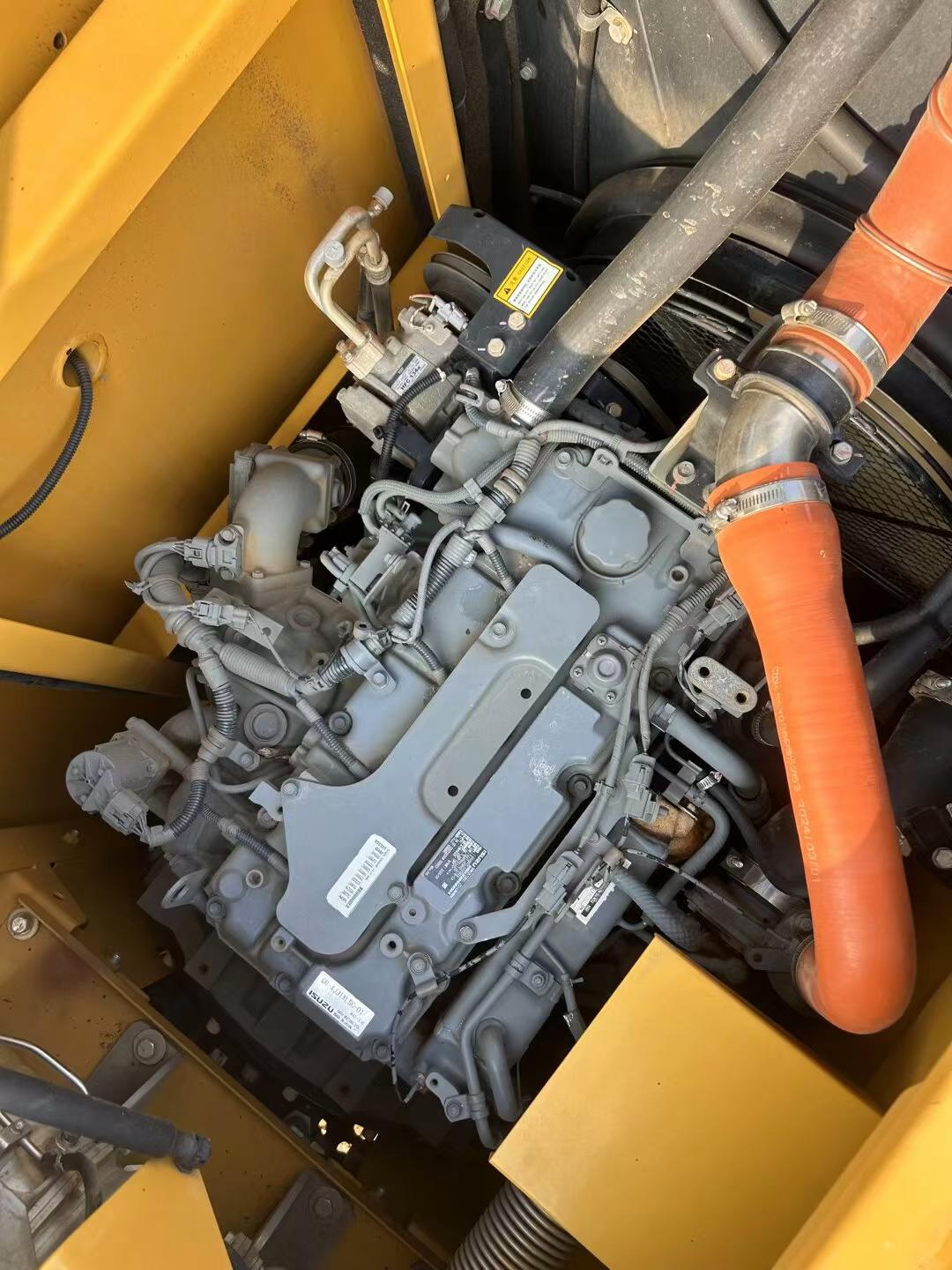

Engine typeISUZU BB-4BG1TRP
Rated power (kw/rpm)84/2200
Cooling modewater-cooling
Maximum torque (N.m)375/1800
Displacement (L)2.999
Ground specific pressure (Kpa)41.7
Rotation speed (rpm)12
Climbing ability (%)70
Bucket digging force (kN)92.7
Rod digging force (kN)66.1
Travel speed (km/h)5.5/3.5
Hydraulic crushing pipeline is standardno
Fuel Tank (L)240
Hydraulic Tank (L)150
Engine Oil changes (L)15
Total transport length (mm)7870
Total transport width (mm)2570
Total transport height (mm)2880
Full cab height (mm)2740
Minimum ground clearance (mm)425
Minimum turning radius of front working device (mm)2490
Back end turning radius (mm)2210
Onboard width (mm)2490
Total track length (mm)3730
Track gauge (mm)1990
Track plate width (mm)500
Total track width (mm)2550
Track ground length (mm)3010
Maximum height at minimum turning radius (mm)6495
Number of sprockets (single side) (each)2
Number of wheels (single side) (each)7
Number of track plates (single side) (PCS)45
Maximum digging radius (mm)8330
Maximum digging depth (mm)5500
Maximum excavation height (mm)8685
Maximum unloading height (mm)6115
Maximum vertical digging depth (mm)5085
Bulldozer lift or depth (mm)There is no
Dodging plate width × height (mm)There is no
see more

Overview

No.1140927

Brand Name:

Sany

Model Number:

SY155H

Year:

2024

Location:

Guangdong China

Pub Date
