Product Description

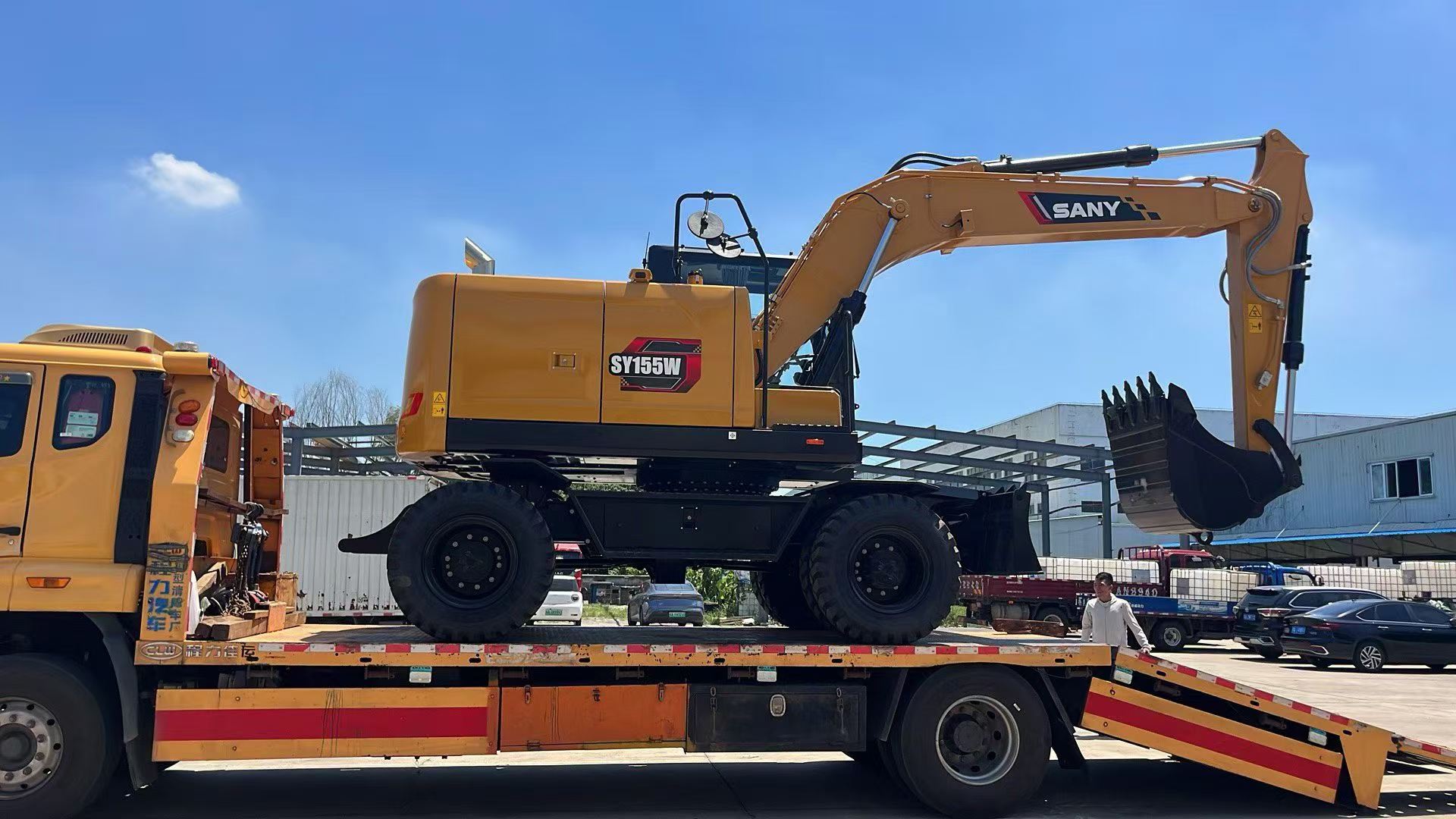

This 2020 Sany SY155W wheeled excavator offers reliable performance for international buyers. Located in Jiangsu, China, this machine meets China IV emission standards and is available with emission downgrade options for export compliance. The SY155W combines the mobility of wheeled undercarriage with the digging power of a 15-ton class excavator, ideal for urban construction, road maintenance, and municipal projects requiring frequent site relocation.
- Wheeled configuration for superior road travel capability
- China IV emission standard with downgrade available
- 15-ton operating weight class
- Competitive export pricing
- Part of Sany's proven W-series wheeled excavator lineup
Sany equipment is known for durability and serviceability in demanding applications. This unit is ready for international shipment with favorable export terms available.
| Specifications | Value |
|---|---|
| No. | 1141897 |
| Tonnage (tons) | 15 |
| Working weight (kg) | 13500 |
| Bucket capacity (m³) | 0.22-0.7(0.58) |
| power | Traditional power |
| manufacturer | Made in China |
| bucket | backhoe |
| Engine type | 4HK1X |
| Rated power (kw/rpm) | 120/2000 |
| Total displacement (L) | 5.193 |
| Cooling mode | water-cooling |
| Maximum torque (N.m) | 657/1500 |
| Forward speed (Km/h) | 37/10 |
| Rotation speed (rpm) | 12.3 |
| Climbing ability (%) | 70% (35°) |
| Bucket digging force (kN) | 102.3 |
| Rod digging force (kN) | 75.2 |
| Maximum tractive force (kN) | 80 |
| Fuel Tank (L) | 240 |
| Hydraulic Tank (L) | 150 |
| Engine Oil changes (L) | 18 |
| Total transport length (mm) | 7690 |
| Total transport width (mm) | 2490 |
| Total transport height (mm) | 3200 |
| Counterweight ground clearance (mm) | 1230 |
| Wheelbase (mm) | 2800 |
| Wheel base (mm) | 1944 |
| Minimum ground clearance (mm) | 360 |
| Back end turning radius (mm) | 2310 |
| Maximum digging radius (mm) | 7960 |
| Maximum excavation radius (mm) | 7750 |
| Maximum digging depth (mm) | 4800 |
| Maximum excavation height (mm) | 8600 |
| Maximum unloading height (mm) | 6200 |
| Maximum vertical digging depth (mm) | 4390 |
