HOME>>Sany>>Sany SY16C

2019 Sany SY16C

1/9
Buy Sany SY16C Used Excavator / 1
Buy Sany SY16C Used Excavator / 2
Buy Sany SY16C Used Excavator / 3
Buy Sany SY16C Used Excavator / 4
Buy Sany SY16C Used Excavator / 5
Buy Sany SY16C Used Excavator / 6
Buy Sany SY16C Used Excavator / 7
Buy Sany SY16C Used Excavator / 8
Buy Sany SY16C Used Excavator / 9

Product Description

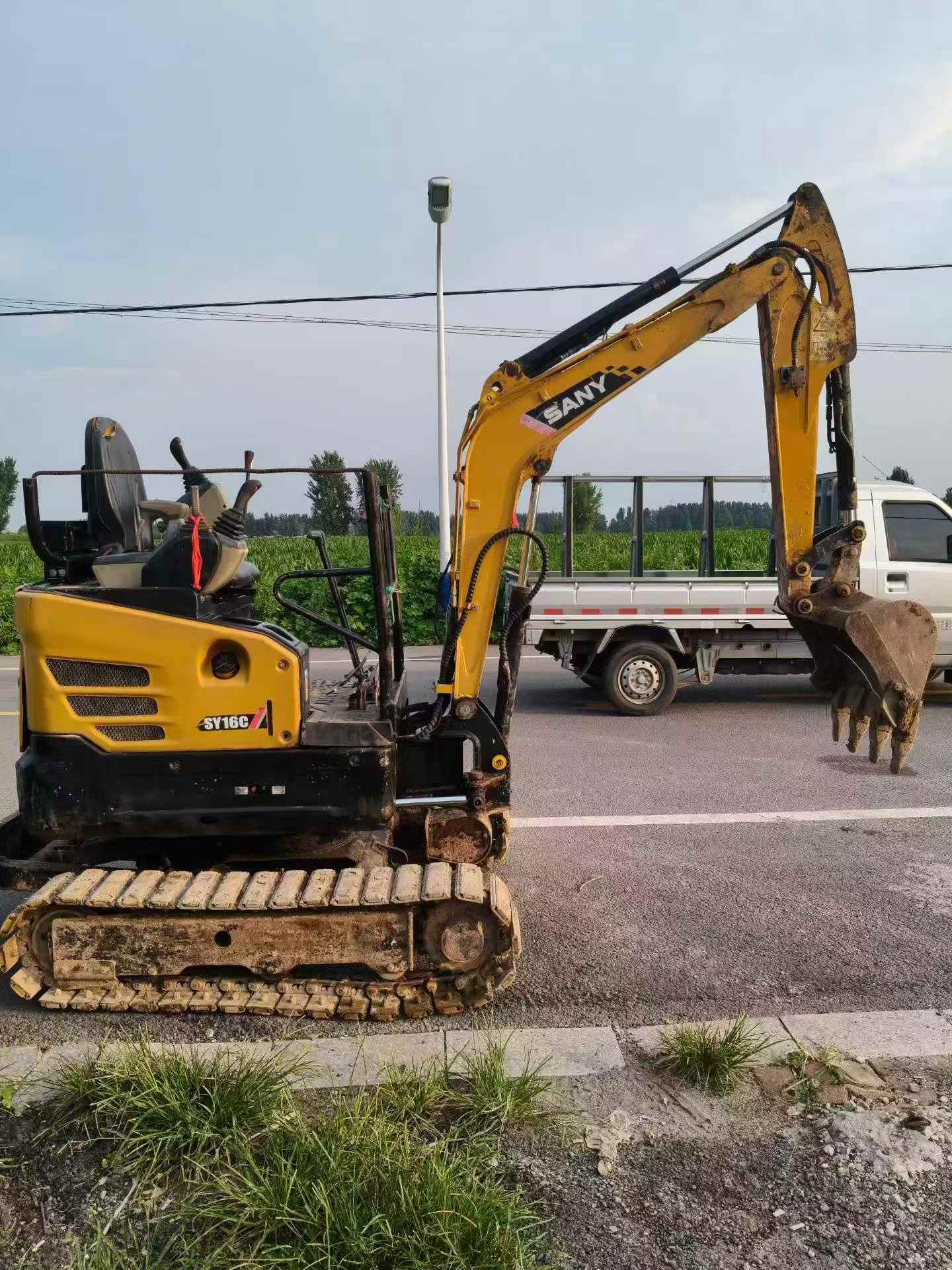

Discover the 2019 Sany SY16C, a reliable and robust mini excavator, now available in Hebei, China. With a verified operational history of 5,600 hours, this machine is in excellent working condition, ensuring top-notch performance for your construction projects. The SY16C comes with all necessary documentation, making it ready for immediate use. This model is known for its durability and efficiency, making it a trusted choice for professionals in the industry. Ideal for various applications, from landscaping to small-scale excavation, the Sany SY16C delivers consistent and dependable service.

  • Year: 2019
  • Brand: Sany
  • Model: SY16C
  • Location: Hebei, China

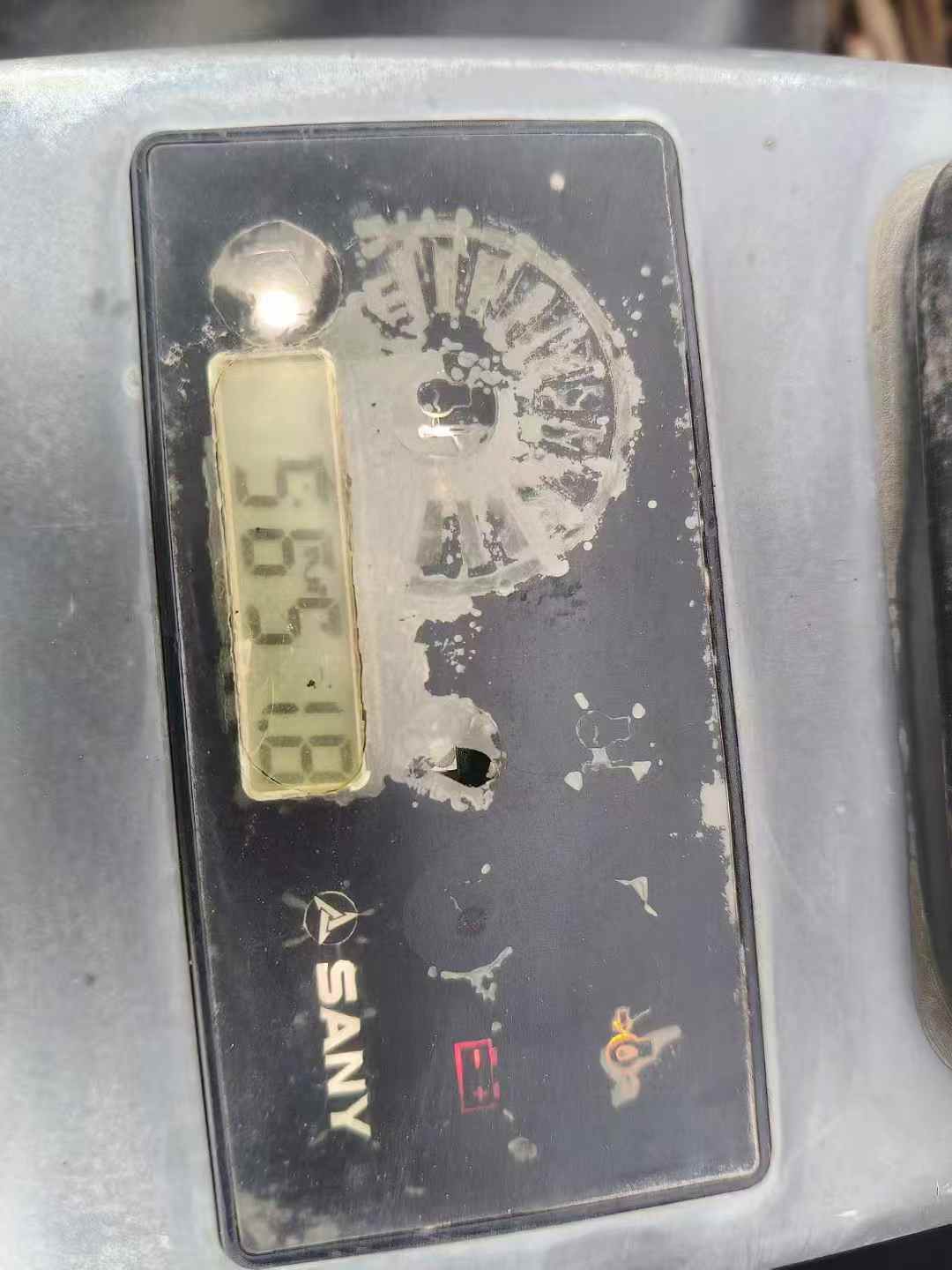

  • Operational Hours: 5,600
  • All documentation included
SpecificationsValue
No.1113835
Tonnage (tons)1
Working weight (kg)1850
Bucket capacity (m³)0.02-0.06(0.04)
Country of originChina
powerTraditional power
manufacturerMade in China
bucketbackhoe
Engine typeYanmar 3TNV70
Rated power (kw/rpm)10.3/2200
Maximum torque (N.m)48.5~52.4
Displacement (L)0.854
Ground specific pressure (Kpa)29.1
Rotation speed (rpm)10
Climbing ability (%)58
Bucket digging force (kN)15.2
Rod digging force (kN)9.2
Maximum tractive force (kN)15.5
Travel speed (km/h)2.1~3.7
Fuel Tank (L)23
Hydraulic Tank (L)21
Engine Oil changes (L)2
Coolant (L)4.5
Total transport length (mm)3575
Total transport width (mm)980/1350
Total transport height (mm)2420
Counterweight ground clearance (mm)470
Minimum ground clearance (mm)180
Minimum turning radius of front working device (mm)1655
Back end turning radius (mm)920
Onboard width (mm)980
Total track length (mm)1585
Track gauge (mm)750/1220
Track plate width (mm)230
Total track width (mm)3575
Track ground length (mm)1225
Maximum height at minimum turning radius (mm)2745
Number of wheels (single side) (each)3
Maximum digging radius (mm)4000
Maximum digging depth (mm)2360
Maximum excavation height (mm)3665
Maximum unloading height (mm)2635
Maximum vertical digging depth (mm)2215
Bulldozer lift or depth (mm)310/320
Dodging plate width × height (mm)3575 x 270
Maximum excavation radius of stop surface (mm)3900
see more

Overview

No.1113835

Brand Name:

Sany

Model Number:

SY16C

Year:

2019

Location:

Hebei China

Pub Date
