Product Description

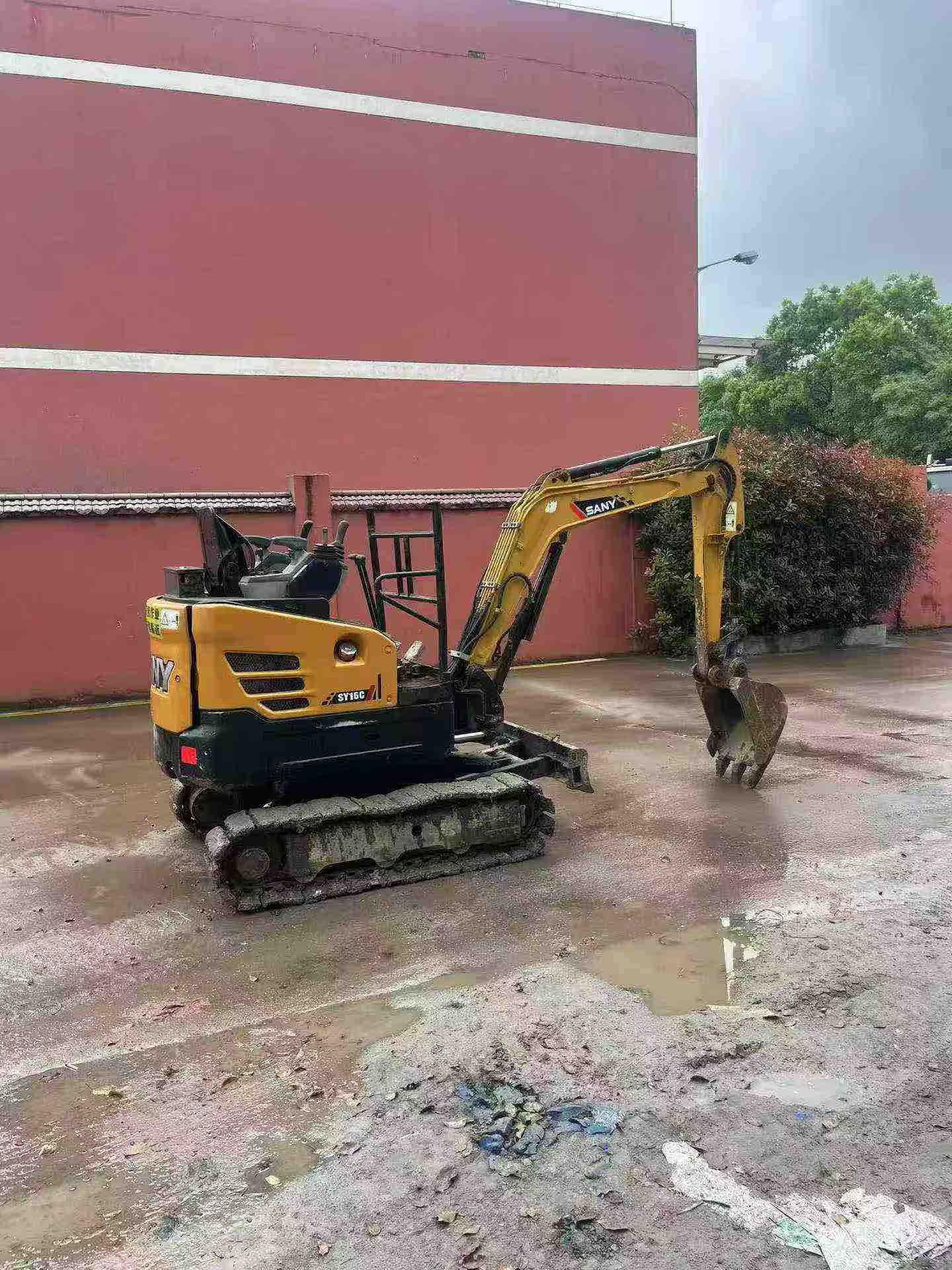

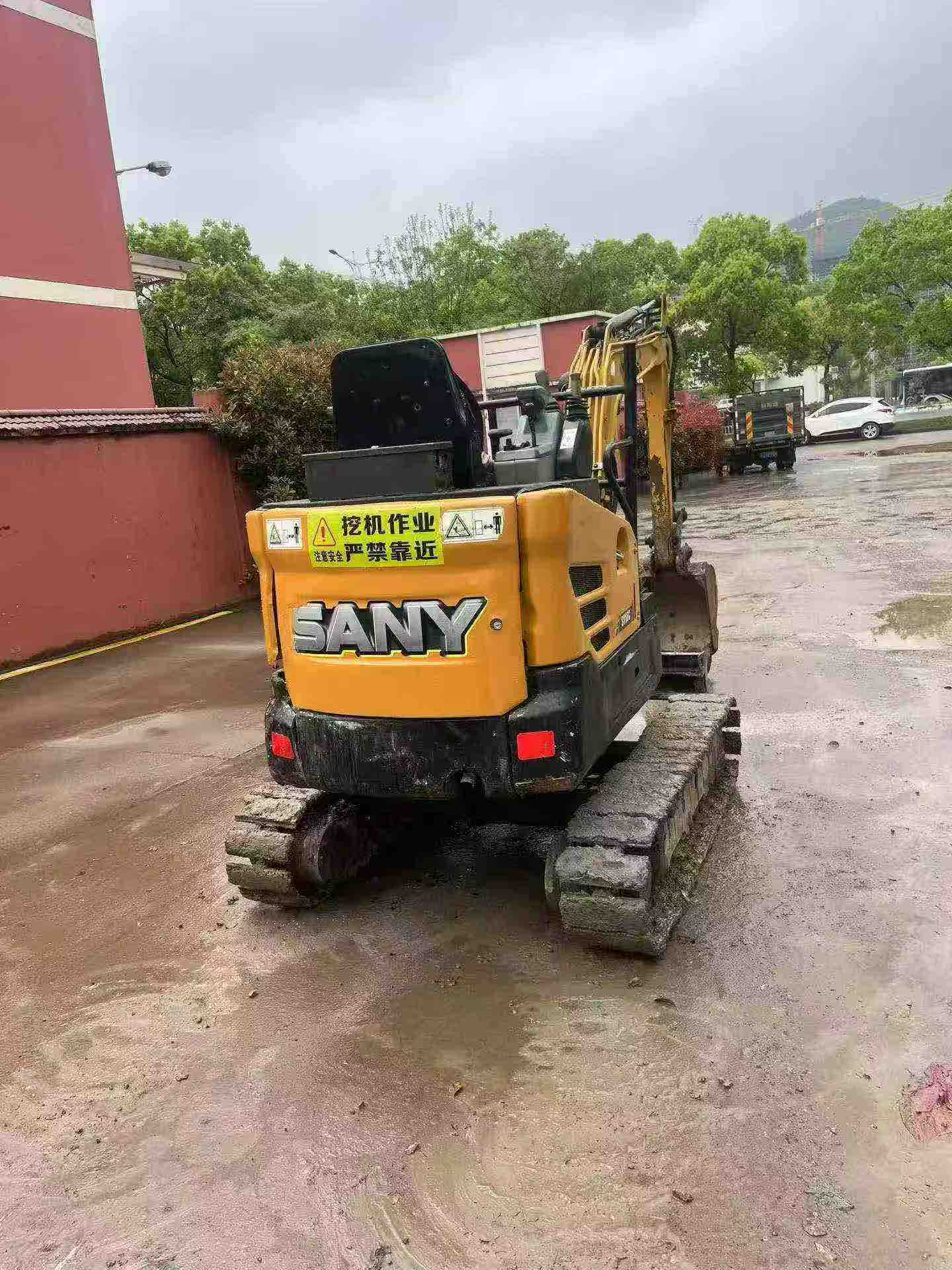

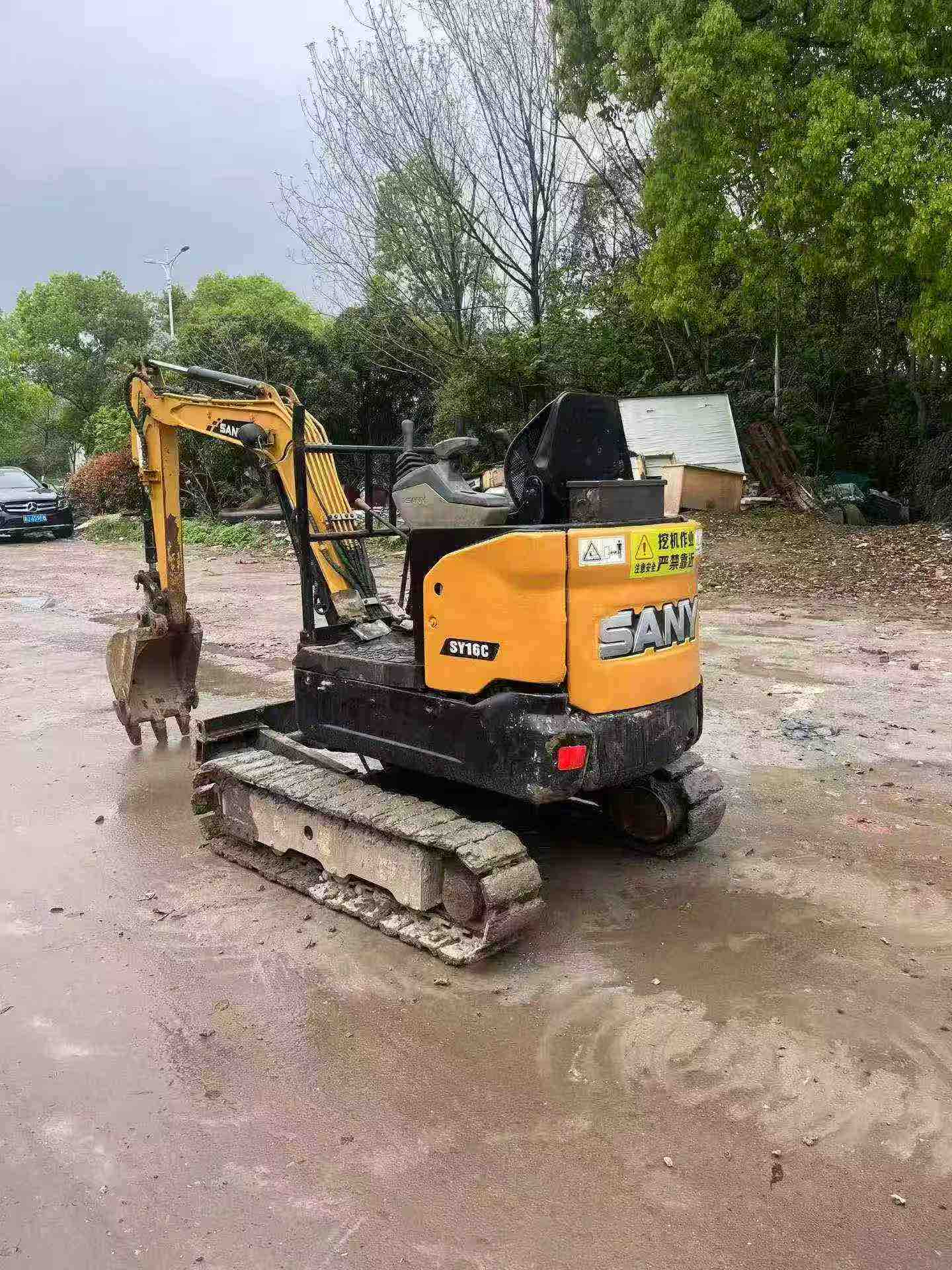

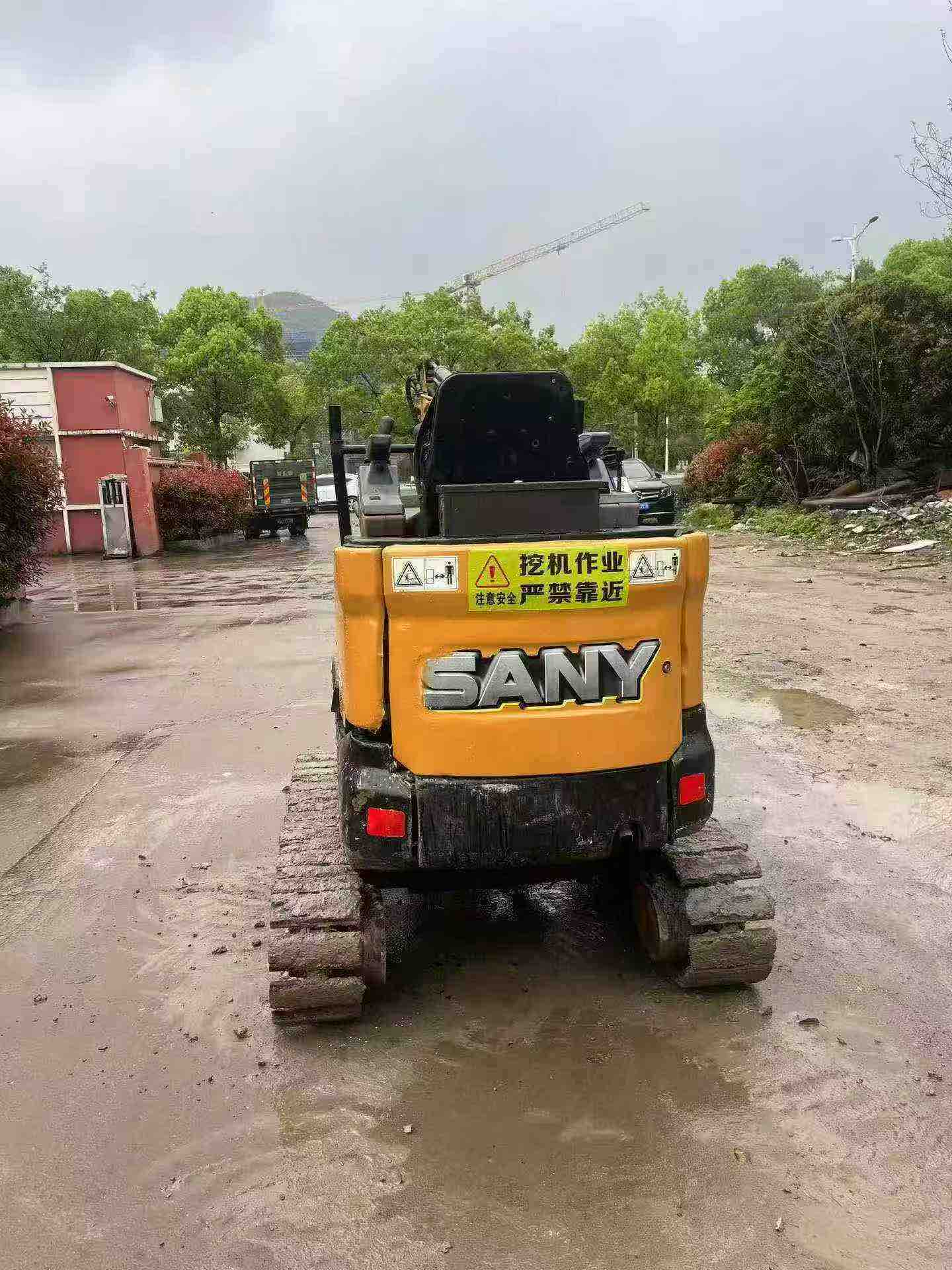

This 2021 Sany SY16C mini excavator is a versatile compact machine currently located in Zhejiang, China. Factory-equipped with an extendable arm and articulating boom for enhanced reach and flexibility in confined spaces, this unit delivers exceptional maneuverability for urban construction and landscaping projects. The operator cabin features an integrated canopy for sun and weather protection, ensuring comfortable operation in various conditions.
This well-maintained excavator comes complete with a hydraulic breaker attachment, significantly expanding its utility for demolition and light breaking work. The seller reports strong operational performance across all systems. Comprehensive photographic documentation and operational videos are available for prospective buyers to assess the machine's current condition remotely.
- Year of Manufacture: 2021
- Model: Sany SY16C
- Extendable arm and articulating boom configuration
- Includes hydraulic hammer attachment

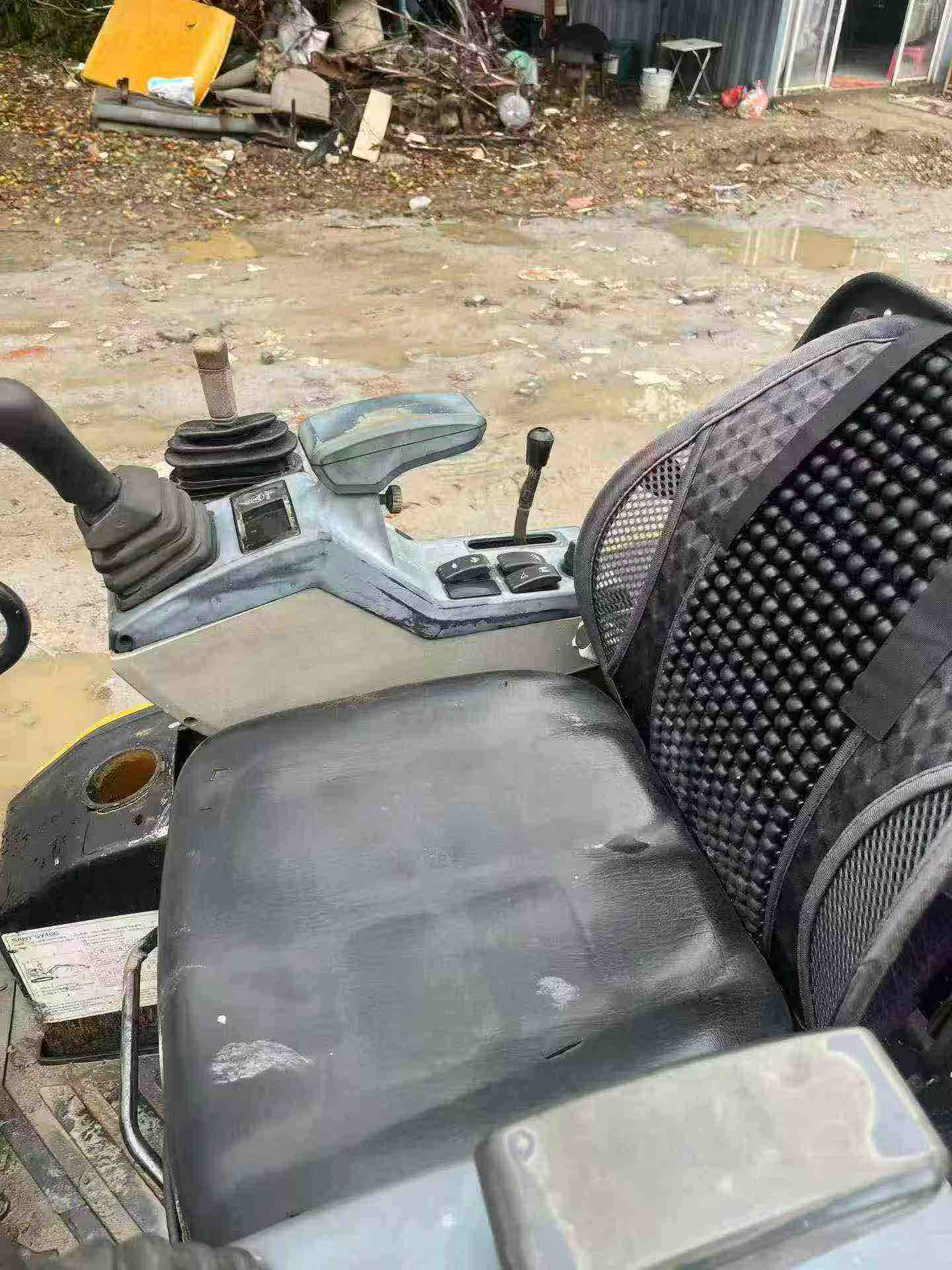

- Operator canopy installed
- Currently situated in Zhejiang Province, China
| Specifications | Value |
|---|---|
| No. | 1095566 |
| Tonnage (tons) | 1 |
| Working weight (kg) | 1850 |
| Bucket capacity (m³) | 0.02-0.06(0.04) |
| Country of origin | China |
| power | Traditional power |
| manufacturer | Made in China |
| bucket | backhoe |

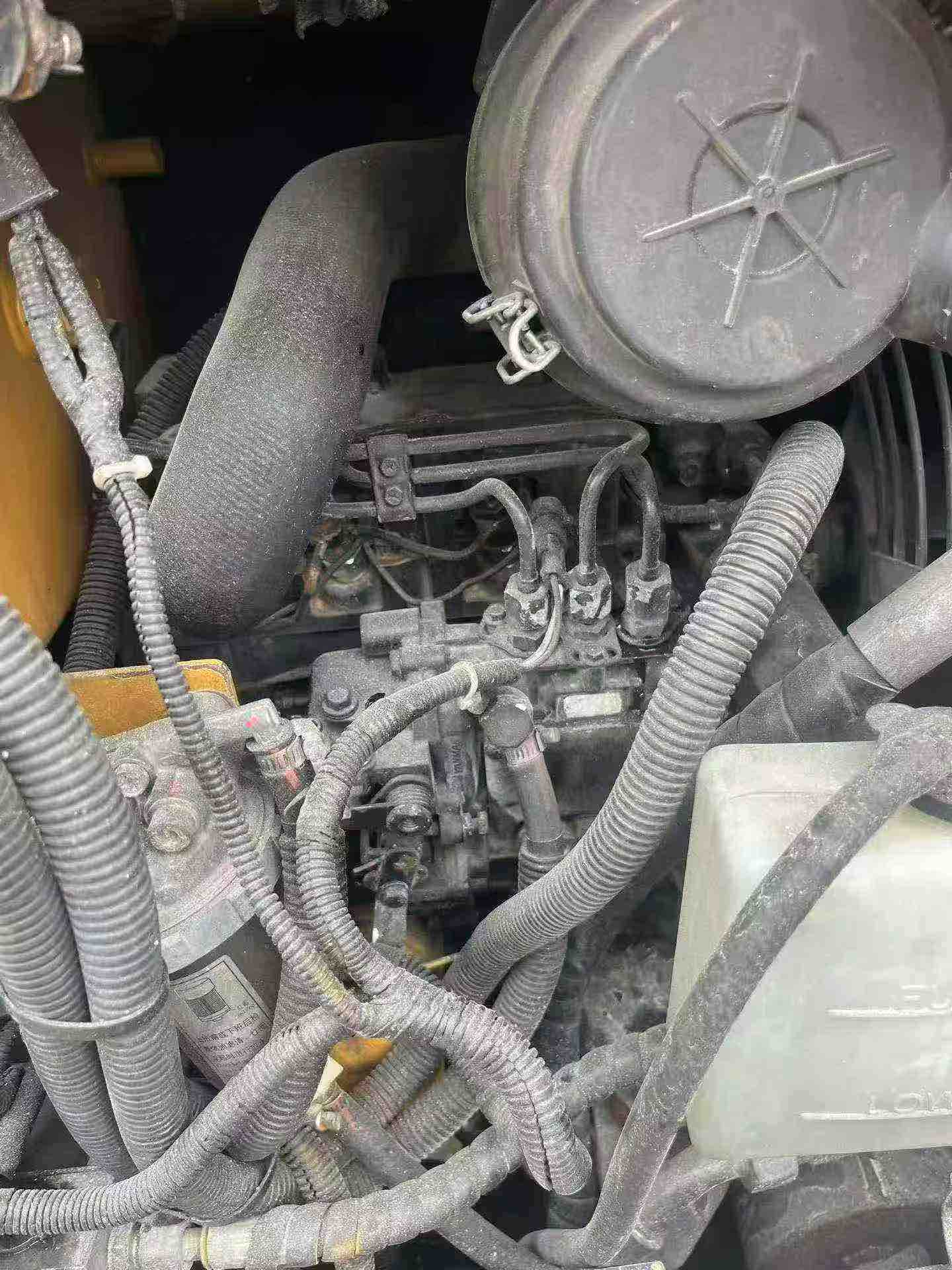

| Engine type | Yanmar 3TNV70 |
| Rated power (kw/rpm) | 10.3/2200 |
| Maximum torque (N.m) | 48.5~52.4 |
| Displacement (L) | 0.854 |
| Ground specific pressure (Kpa) | 29.1 |
| Rotation speed (rpm) | 10 |
| Climbing ability (%) | 58 |
| Bucket digging force (kN) | 15.2 |
| Rod digging force (kN) | 9.2 |
| Maximum tractive force (kN) | 15.5 |
| Travel speed (km/h) | 2.1~3.7 |
| Fuel Tank (L) | 23 |
| Hydraulic Tank (L) | 21 |
| Engine Oil changes (L) | 2 |
| Coolant (L) | 4.5 |
| Total transport length (mm) | 3575 |
| Total transport width (mm) | 980/1350 |
| Total transport height (mm) | 2420 |
| Counterweight ground clearance (mm) | 470 |
| Minimum ground clearance (mm) | 180 |
| Minimum turning radius of front working device (mm) | 1655 |
| Back end turning radius (mm) | 920 |
| Onboard width (mm) | 980 |
| Total track length (mm) | 1585 |
| Track gauge (mm) | 750/1220 |
| Track plate width (mm) | 230 |
| Total track width (mm) | 3575 |
| Track ground length (mm) | 1225 |
| Maximum height at minimum turning radius (mm) | 2745 |
| Number of wheels (single side) (each) | 3 |
| Maximum digging radius (mm) | 4000 |
| Maximum digging depth (mm) | 2360 |
| Maximum excavation height (mm) | 3665 |
| Maximum unloading height (mm) | 2635 |
| Maximum vertical digging depth (mm) | 2215 |
| Bulldozer lift or depth (mm) | 310/320 |
| Dodging plate width × height (mm) | 3575 x 270 |
| Maximum excavation radius of stop surface (mm) | 3900 |
