2023 Sany SY16C

1/9
Buy Sany SY16C Used Excavator / 1

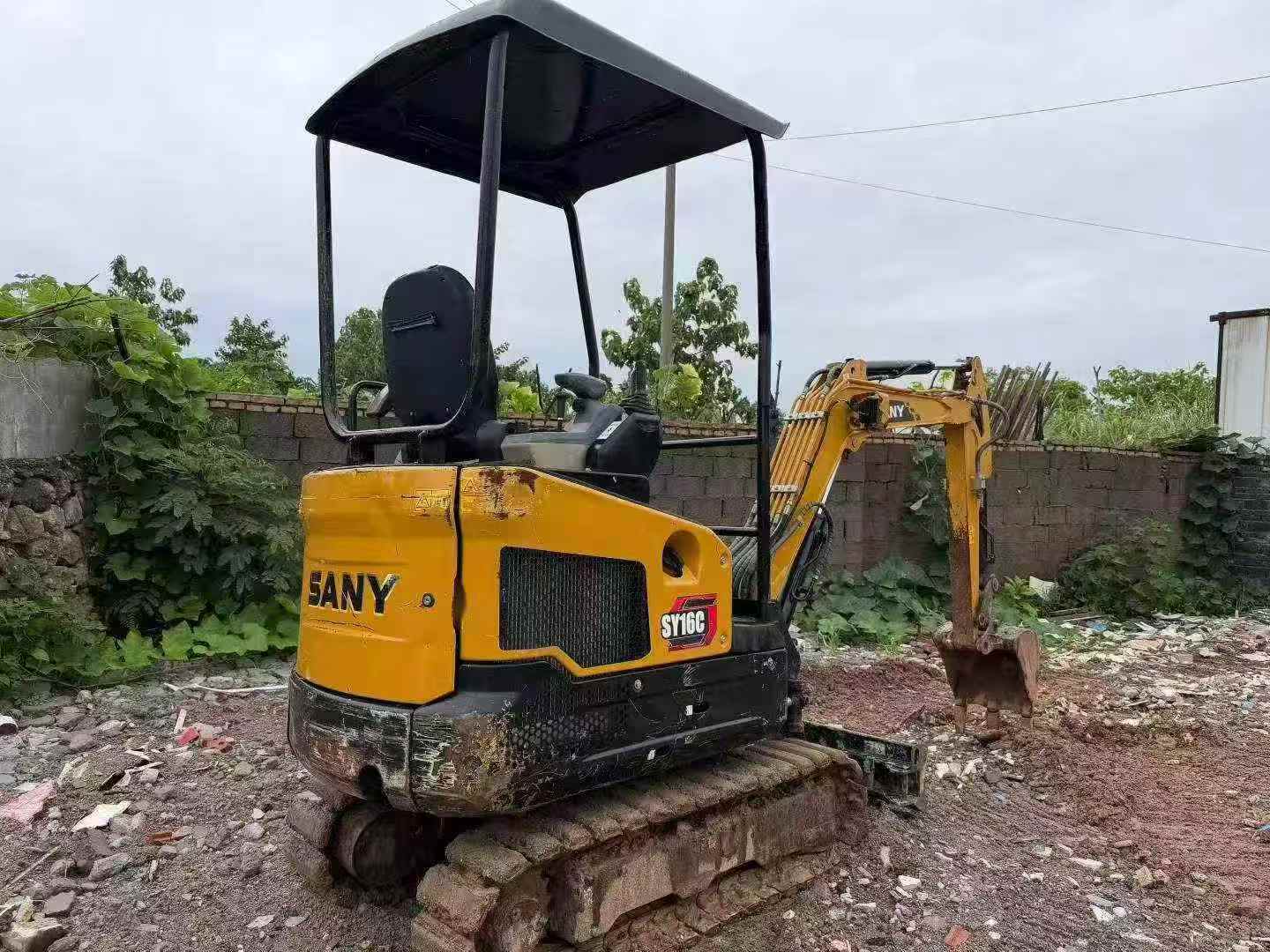

Buy Sany SY16C Used Excavator / 2

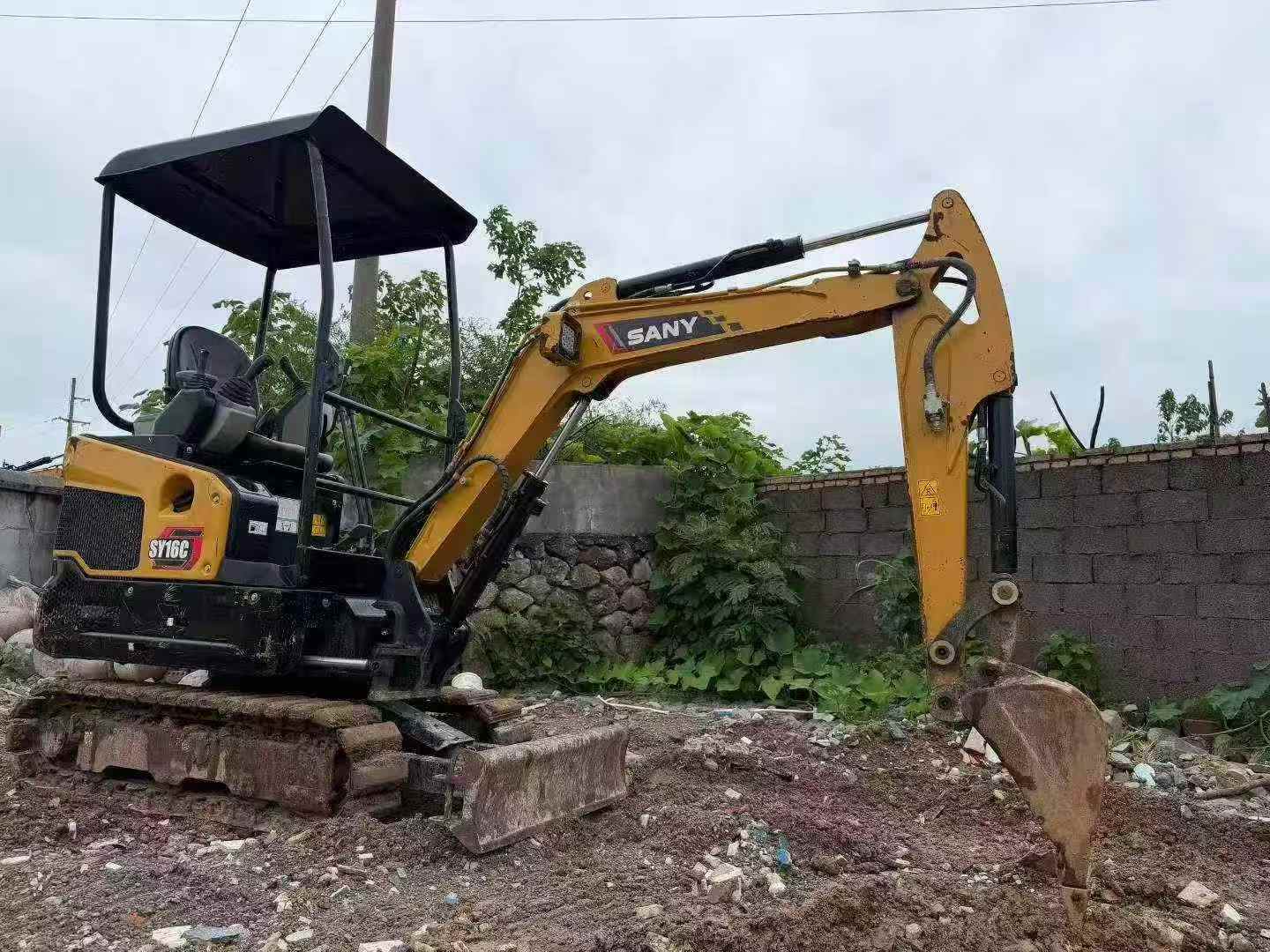

Buy Sany SY16C Used Excavator / 3
Buy Sany SY16C Used Excavator / 4

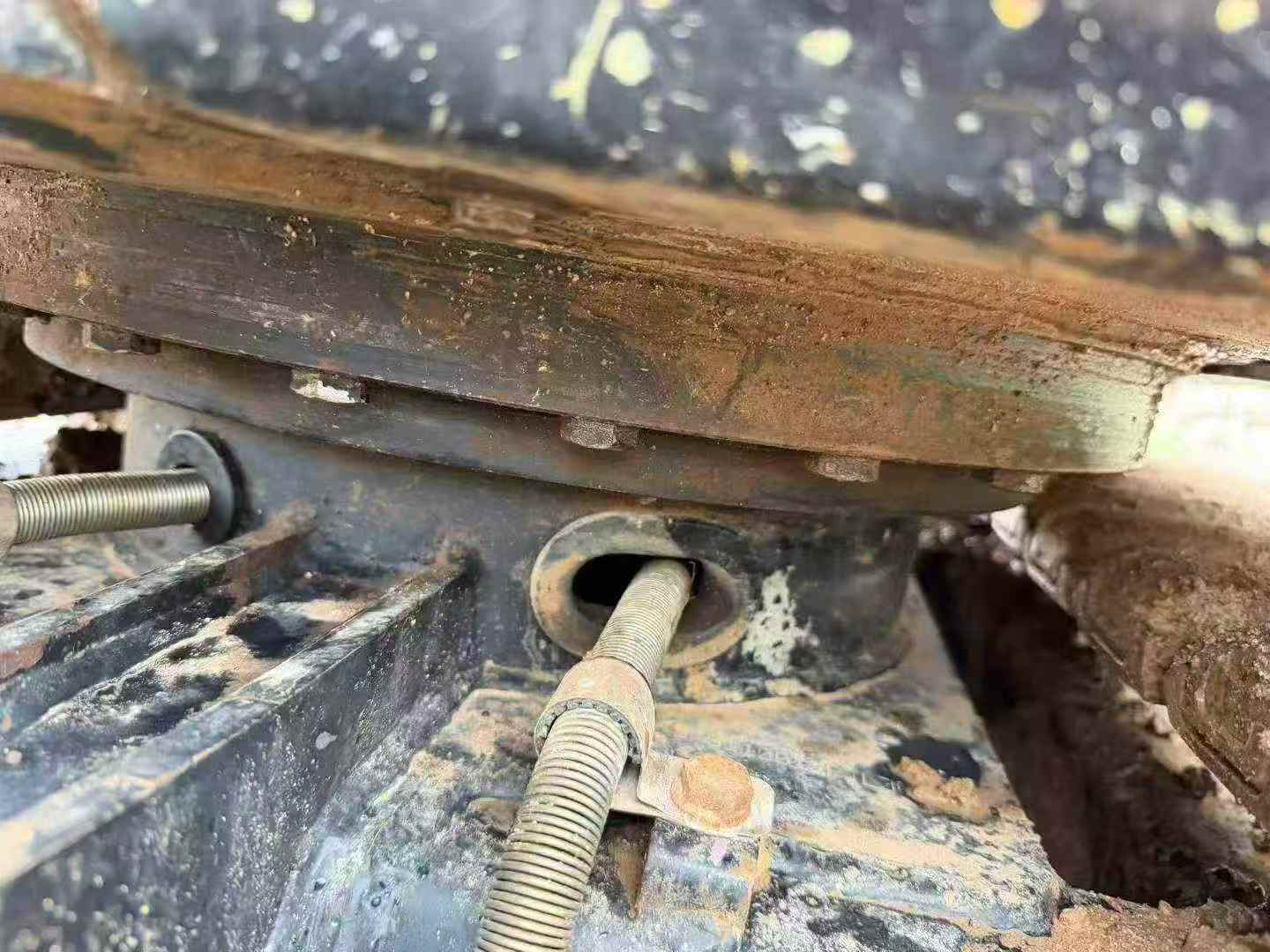

Buy Sany SY16C Used Excavator / 5

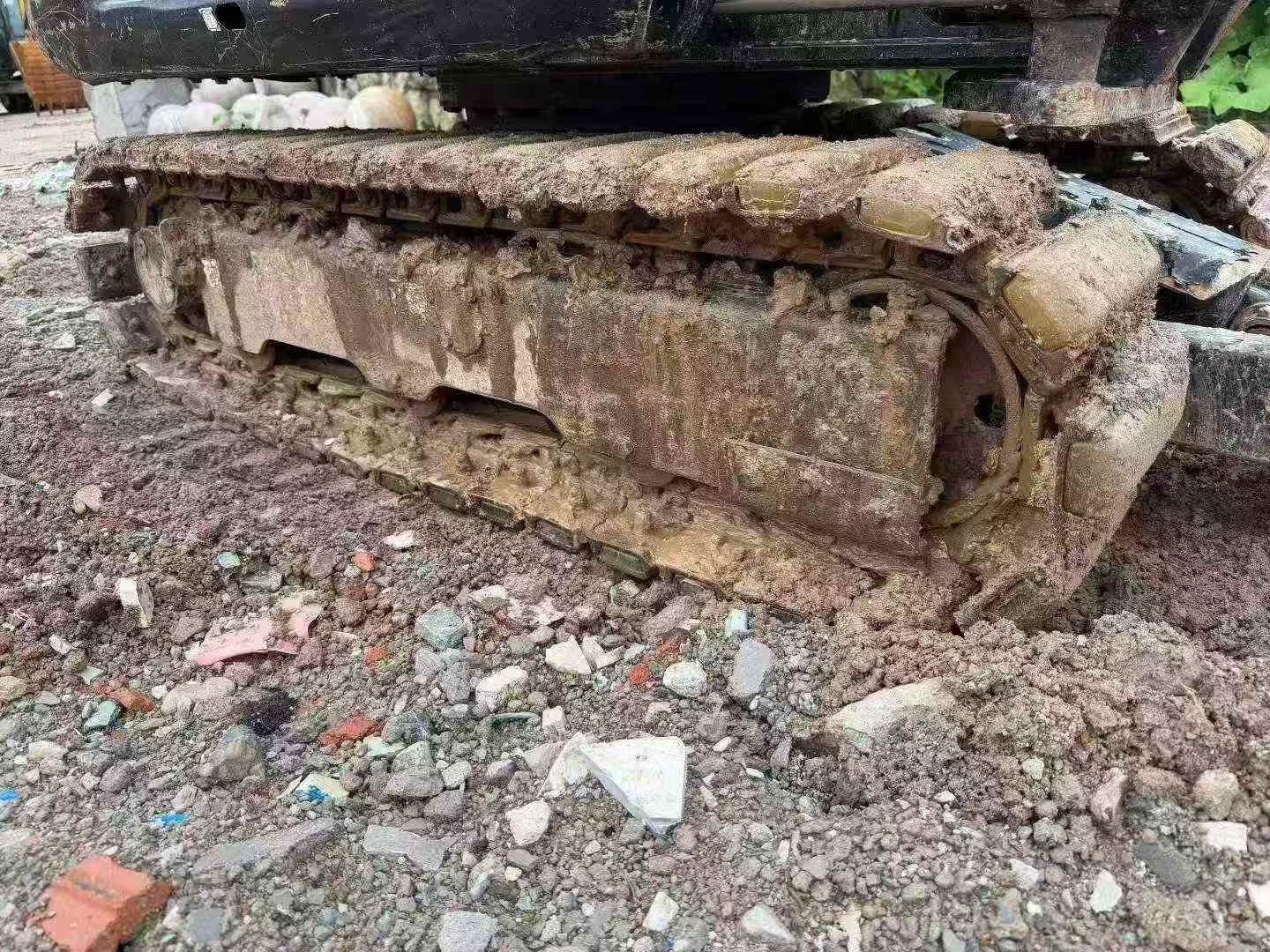

Buy Sany SY16C Used Excavator / 6

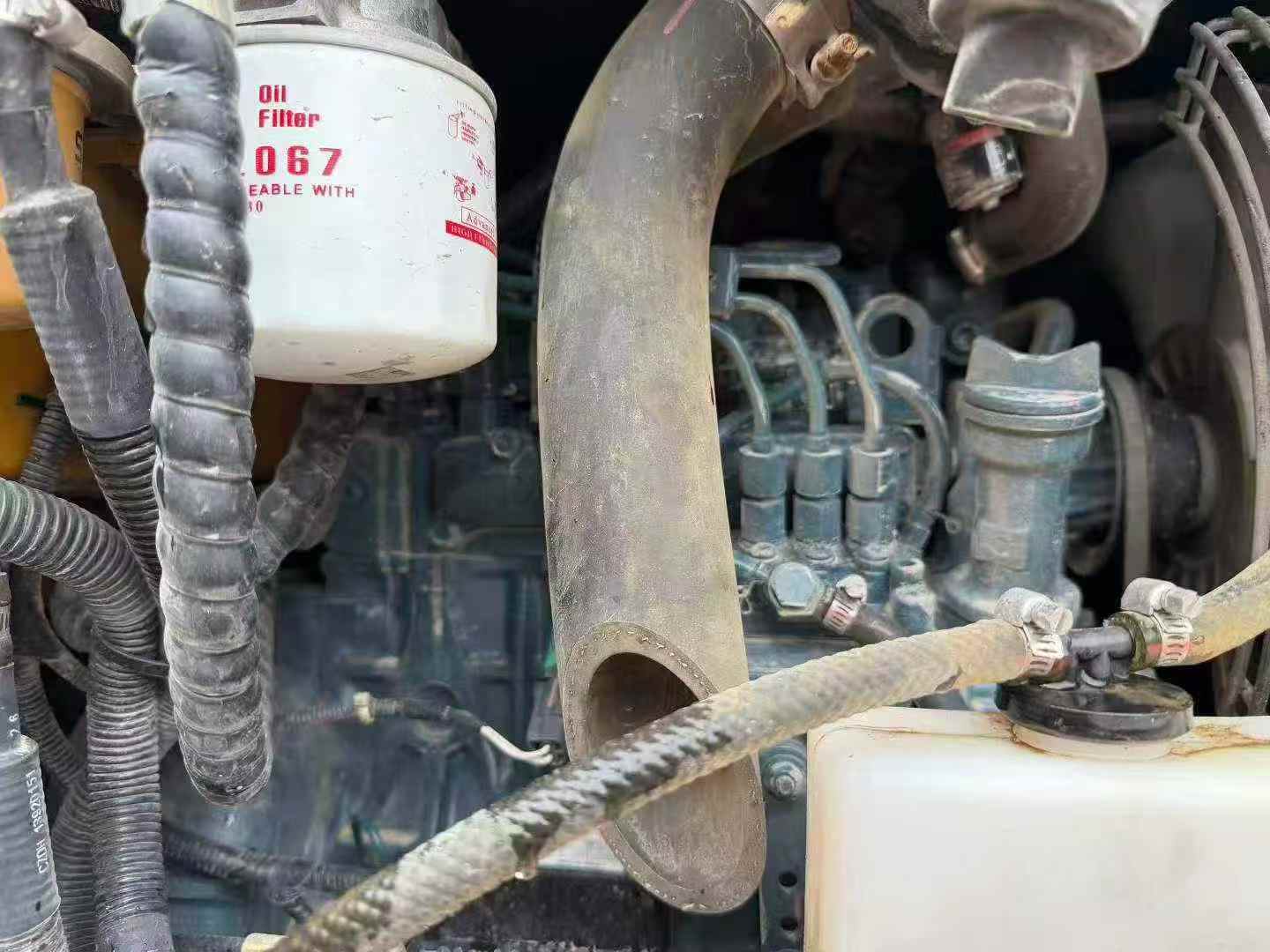

Buy Sany SY16C Used Excavator / 7

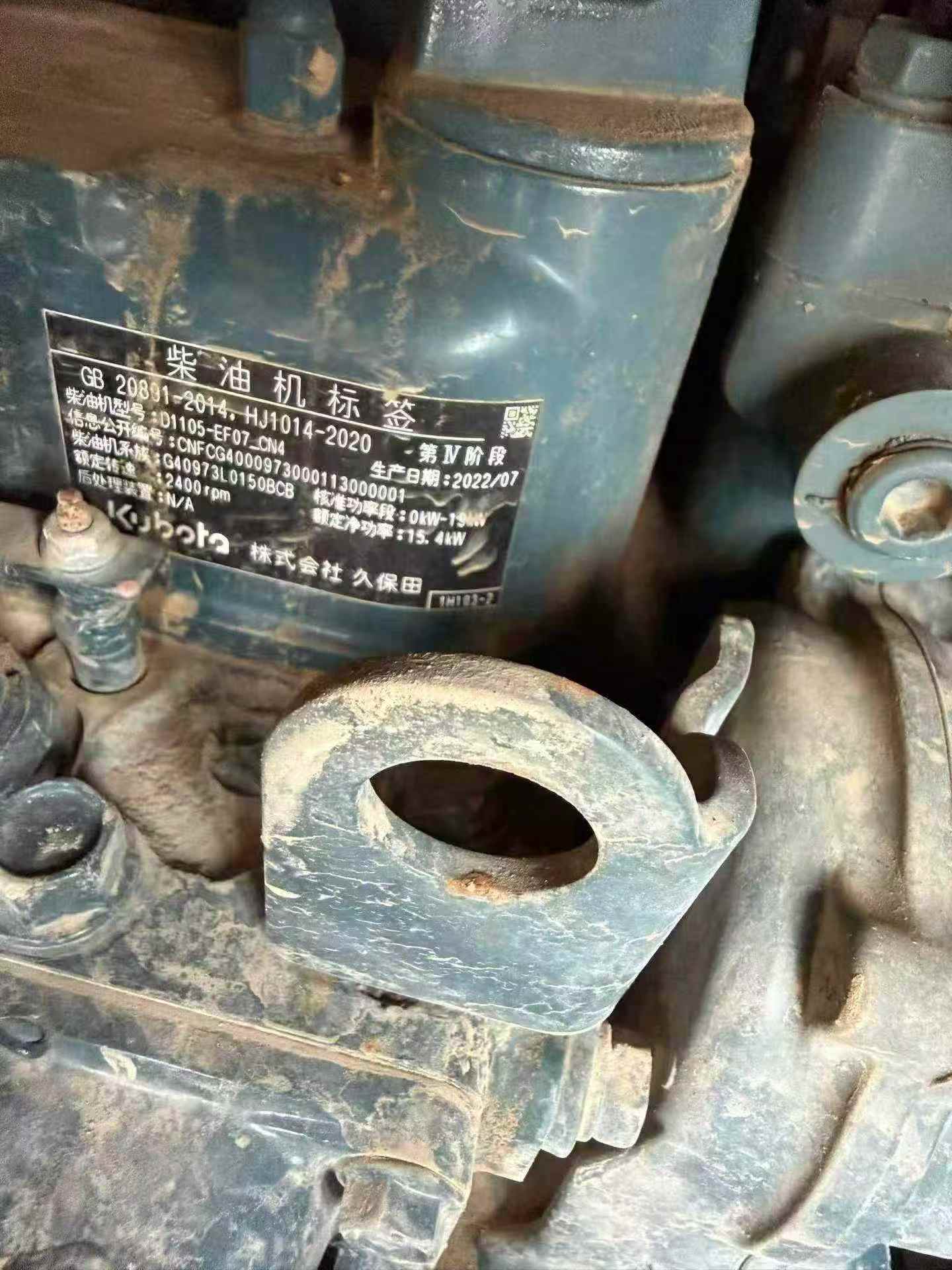

Buy Sany SY16C Used Excavator / 8

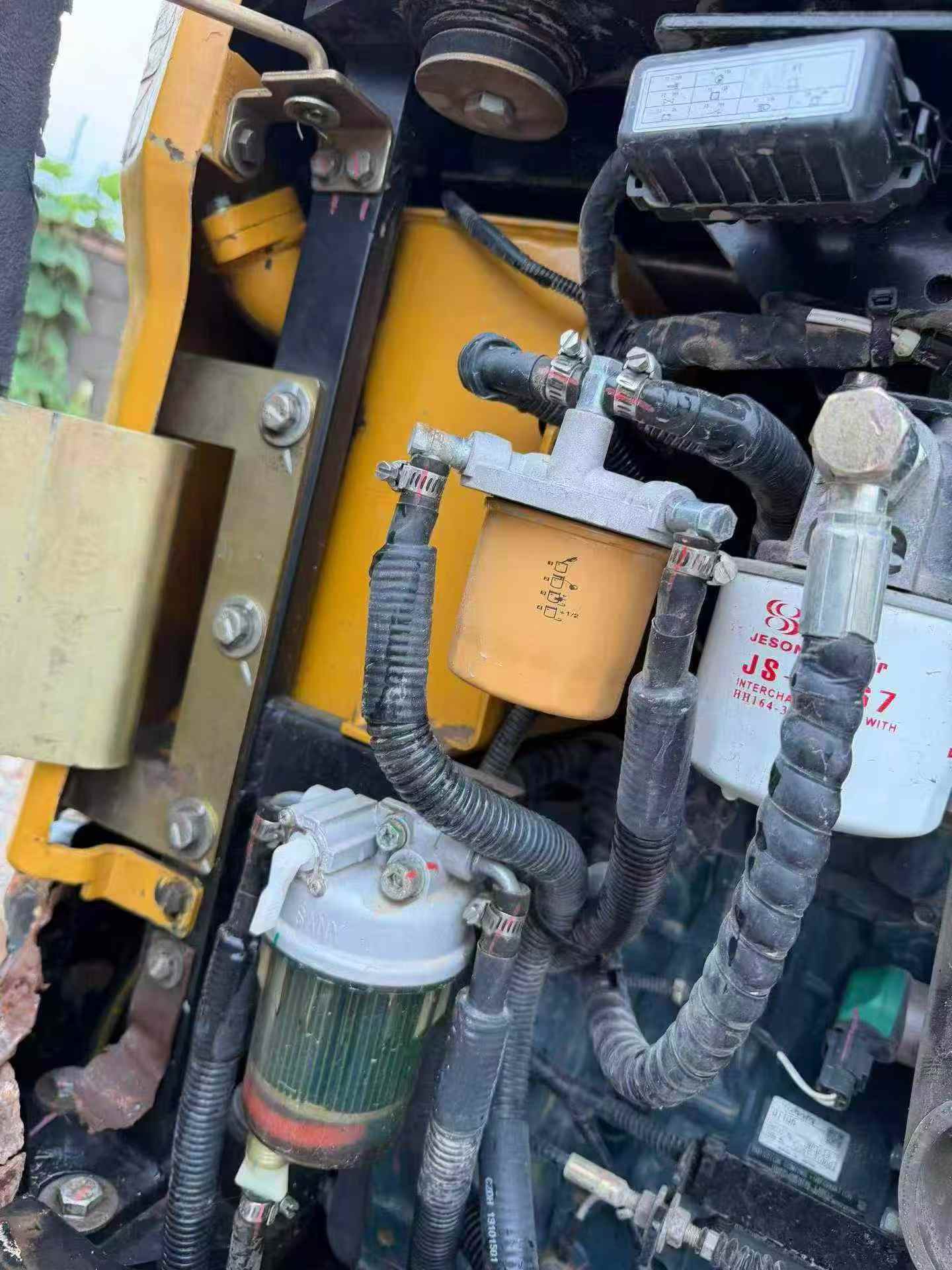

Buy Sany SY16C Used Excavator / 9

Product Description

This 2023 Sany SY16C mini excavator represents an excellent opportunity for contractors seeking reliable compact equipment. Manufactured in March 2023, this single-owner machine has been meticulously maintained and demonstrates smooth, responsive hydraulic operation throughout its working range.

Key highlights include:

  • Single ownership history with complete documentation
  • Excellent mechanical condition requiring no immediate service
  • Smooth hydraulic performance across all functions
  • Currently located in Zhejiang, China
  • Competitively priced for immediate acquisition

The SY16C's compact design makes it ideal for urban construction, landscaping, and utility projects where maneuverability is essential. This machine is available for inspection and ready for deployment. Contact us for pricing and shipping arrangements to your location.

SpecificationsValue
No.1106624
Tonnage (tons)1
Working weight (kg)1850
Bucket capacity (m³)0.02-0.06(0.04)
Country of originChina
powerTraditional power
manufacturerMade in China
bucketbackhoe
Engine typeYanmar 3TNV70
Rated power (kw/rpm)10.3/2200
Maximum torque (N.m)48.5~52.4
Displacement (L)0.854
Ground specific pressure (Kpa)29.1
Rotation speed (rpm)10
Climbing ability (%)58
Bucket digging force (kN)15.2
Rod digging force (kN)9.2
Maximum tractive force (kN)15.5
Travel speed (km/h)2.1~3.7
Fuel Tank (L)23
Hydraulic Tank (L)21
Engine Oil changes (L)2
Coolant (L)4.5
Total transport length (mm)3575
Total transport width (mm)980/1350
Total transport height (mm)2420
Counterweight ground clearance (mm)470
Minimum ground clearance (mm)180
Minimum turning radius of front working device (mm)1655
Back end turning radius (mm)920
Onboard width (mm)980
Total track length (mm)1585
Track gauge (mm)750/1220
Track plate width (mm)230
Total track width (mm)3575
Track ground length (mm)1225
Maximum height at minimum turning radius (mm)2745
Number of wheels (single side) (each)3
Maximum digging radius (mm)4000
Maximum digging depth (mm)2360
Maximum excavation height (mm)3665
Maximum unloading height (mm)2635
Maximum vertical digging depth (mm)2215
Bulldozer lift or depth (mm)310/320
Dodging plate width × height (mm)3575 x 270
Maximum excavation radius of stop surface (mm)3900
see more

Overview

No.1106624

Brand Name:

Sany

Model Number:

SY16C

Year:

2023

Location:

Zhejiang China
