2013 Sany SY195C

1/9

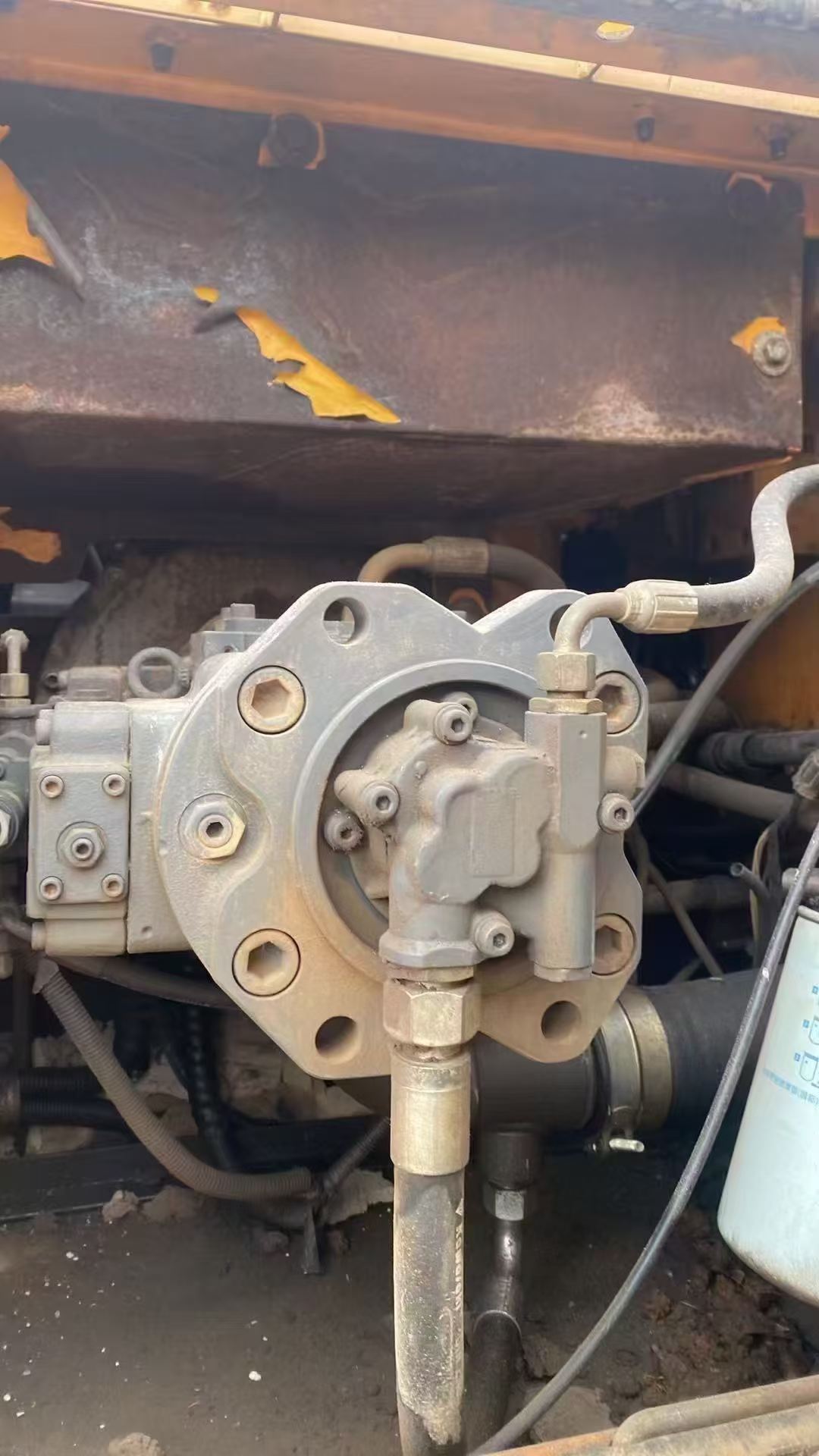

Buy Sany SY195C Used Excavator / 1

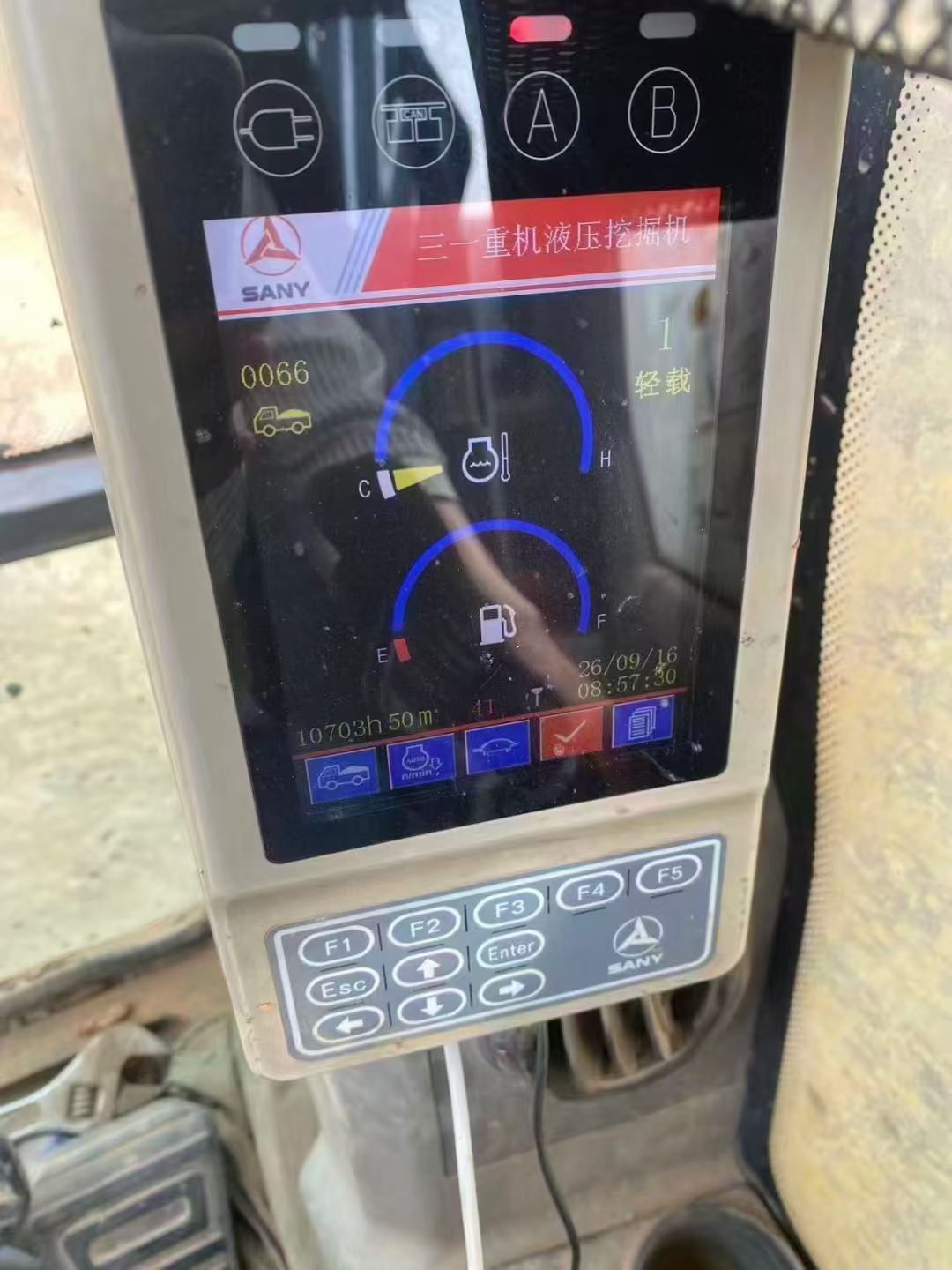

Buy Sany SY195C Used Excavator / 2

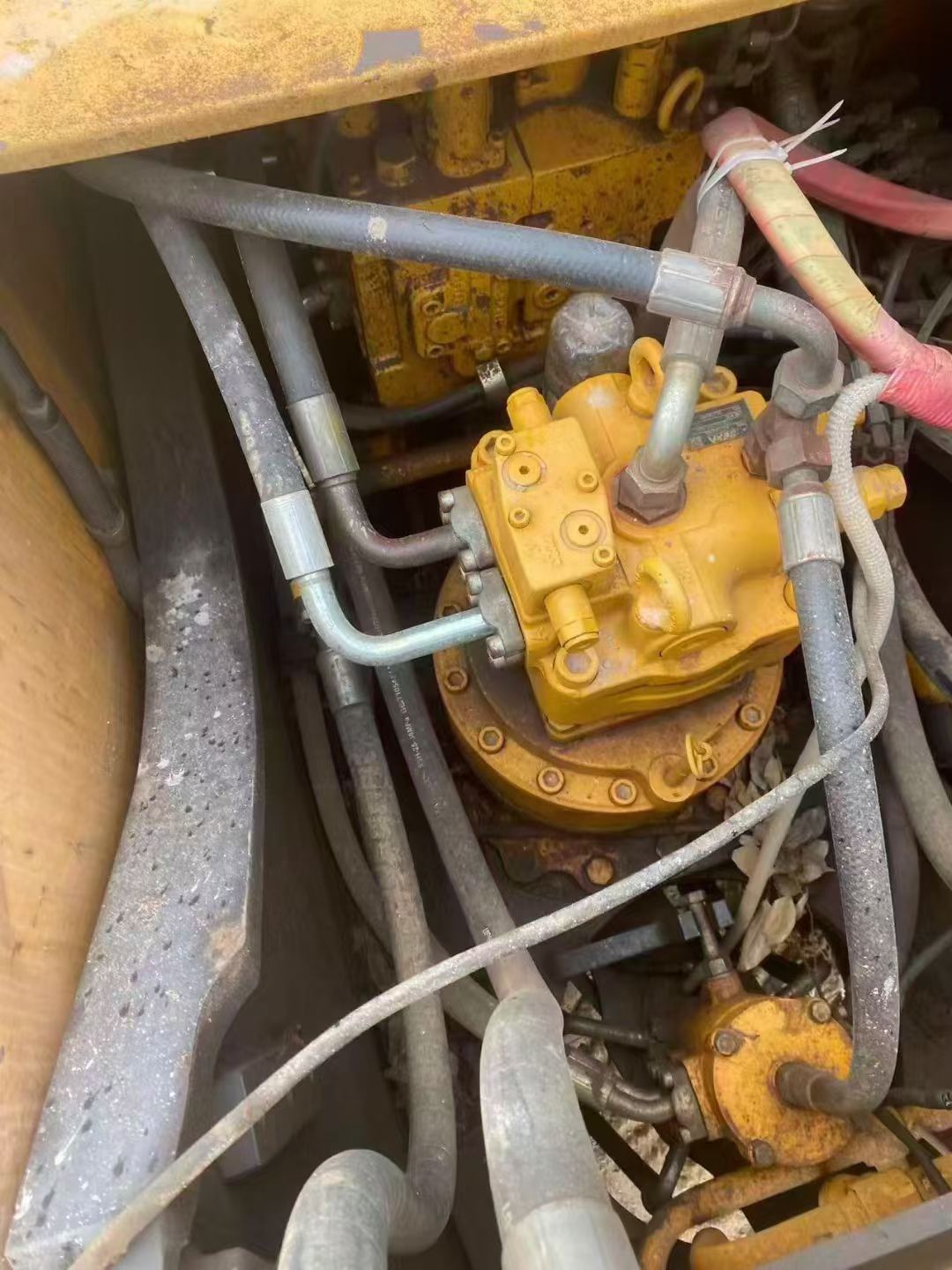

Buy Sany SY195C Used Excavator / 3

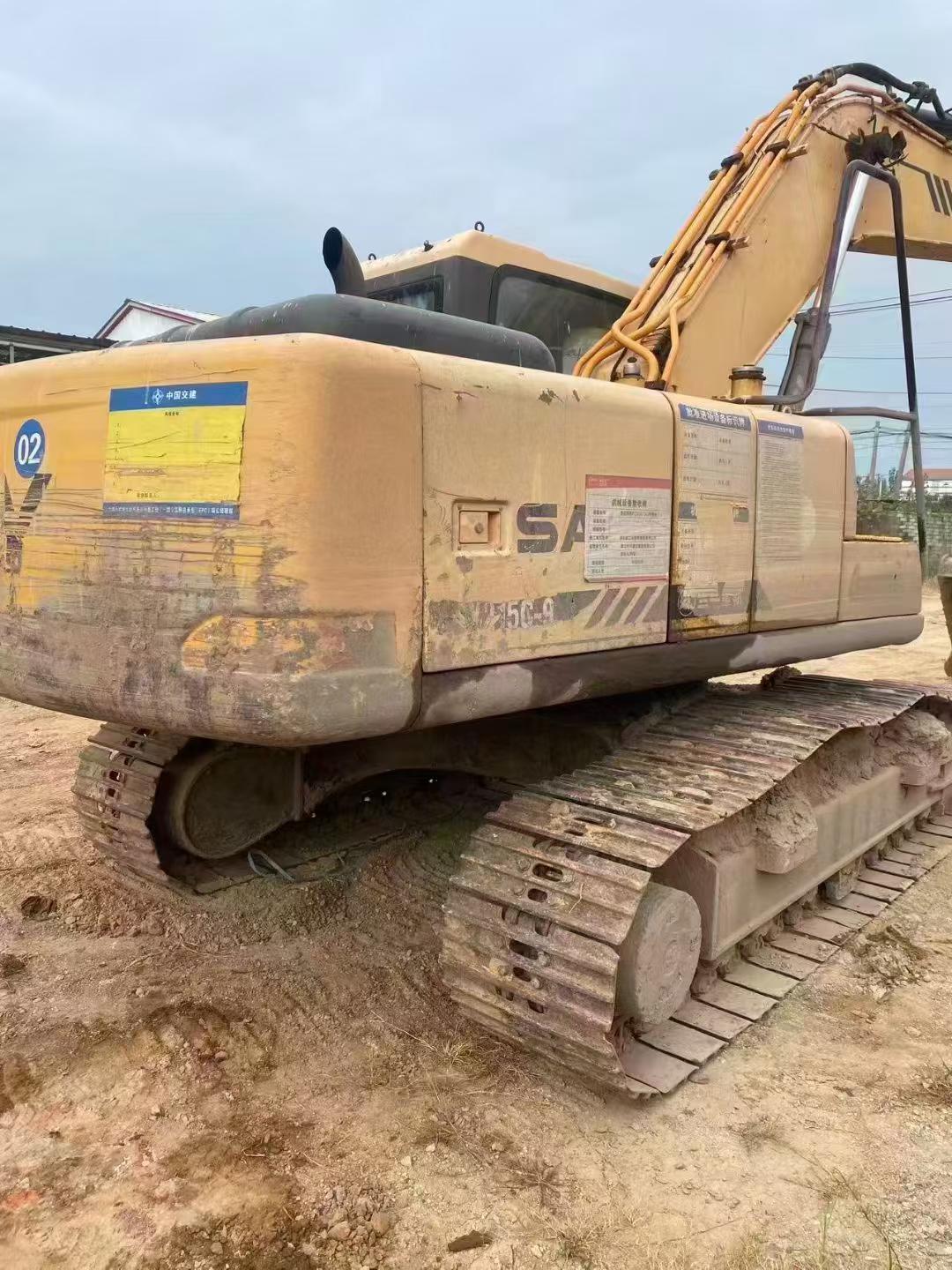

Buy Sany SY195C Used Excavator / 4

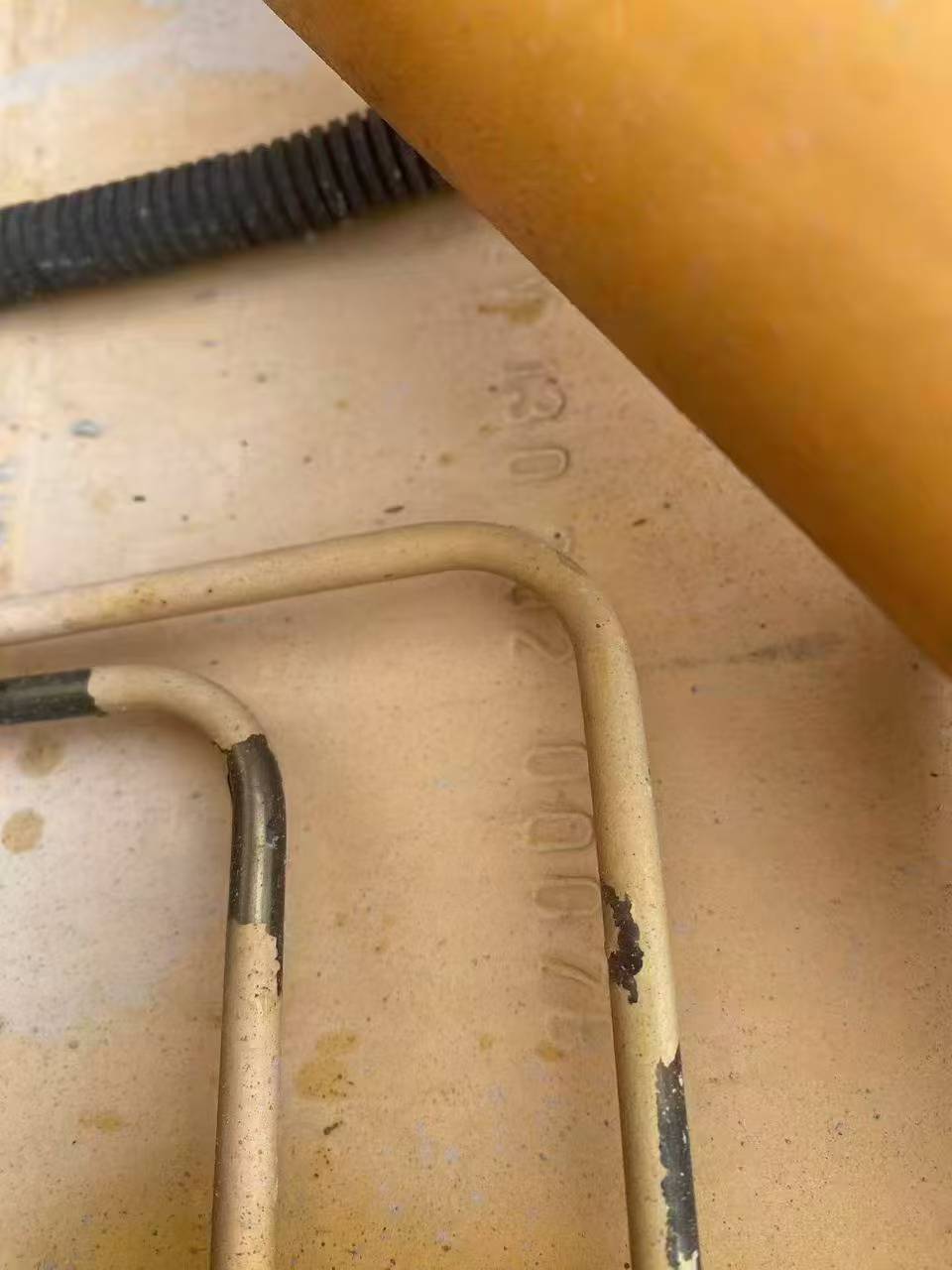

Buy Sany SY195C Used Excavator / 5

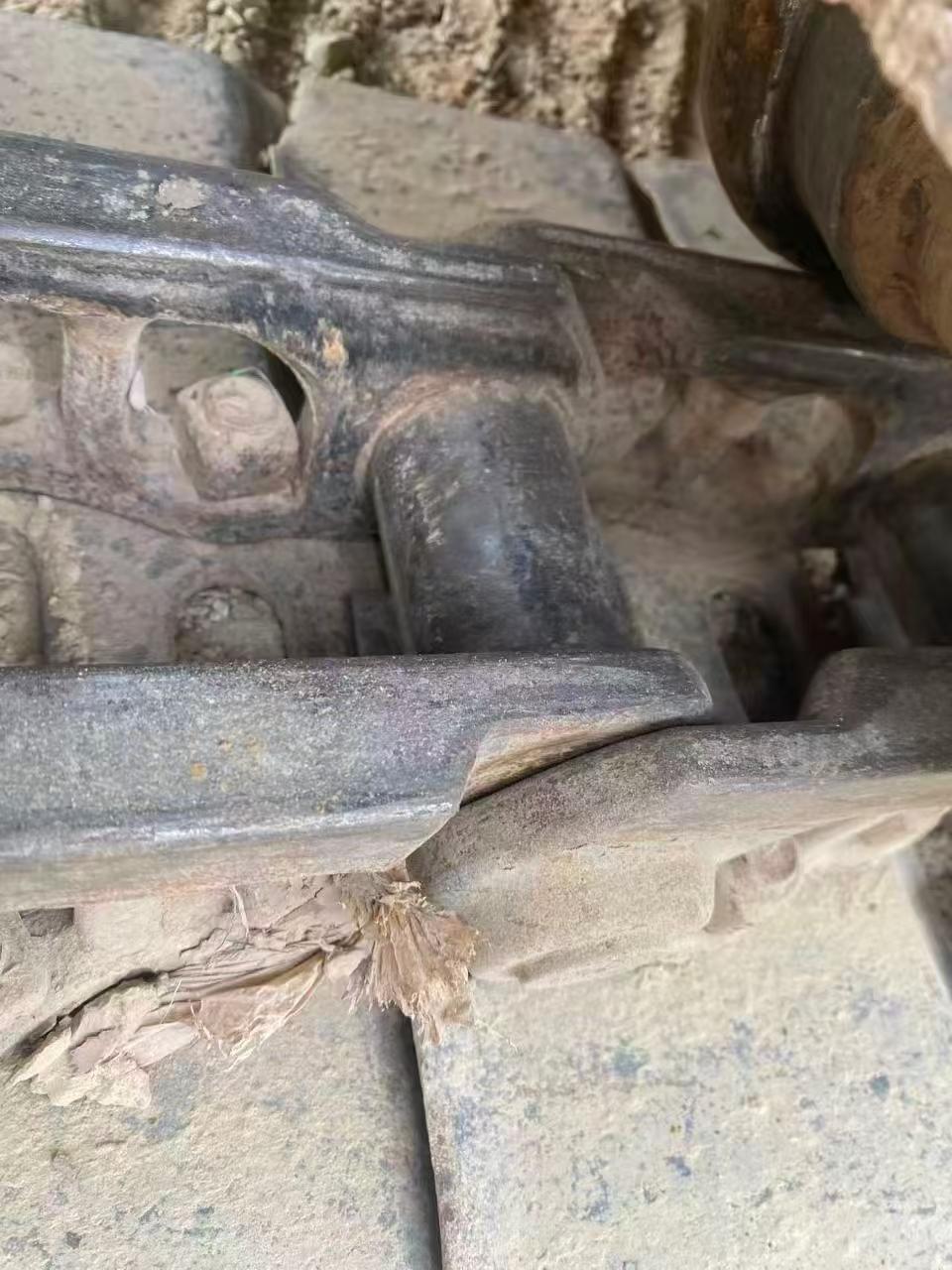

Buy Sany SY195C Used Excavator / 6

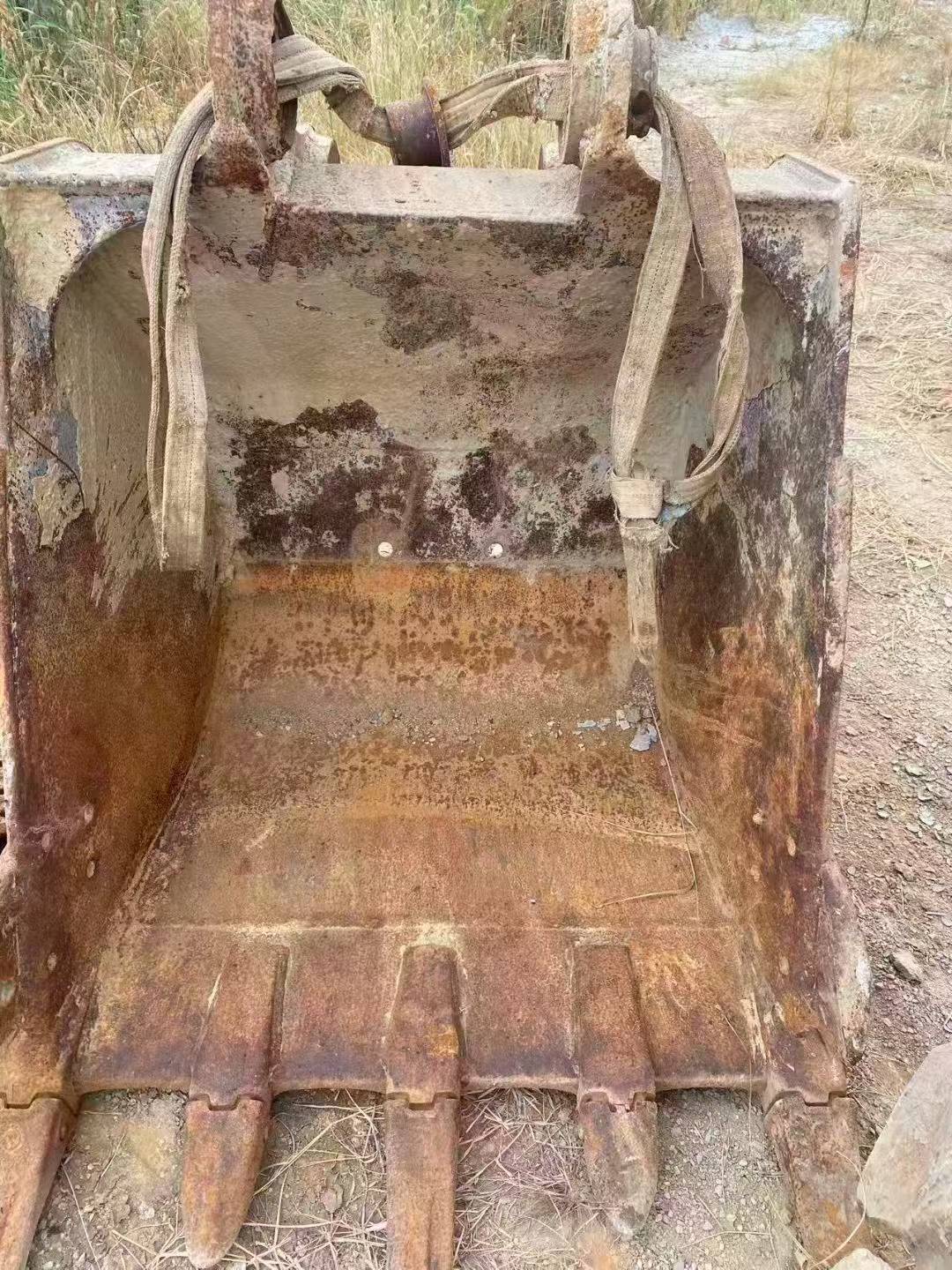

Buy Sany SY195C Used Excavator / 7

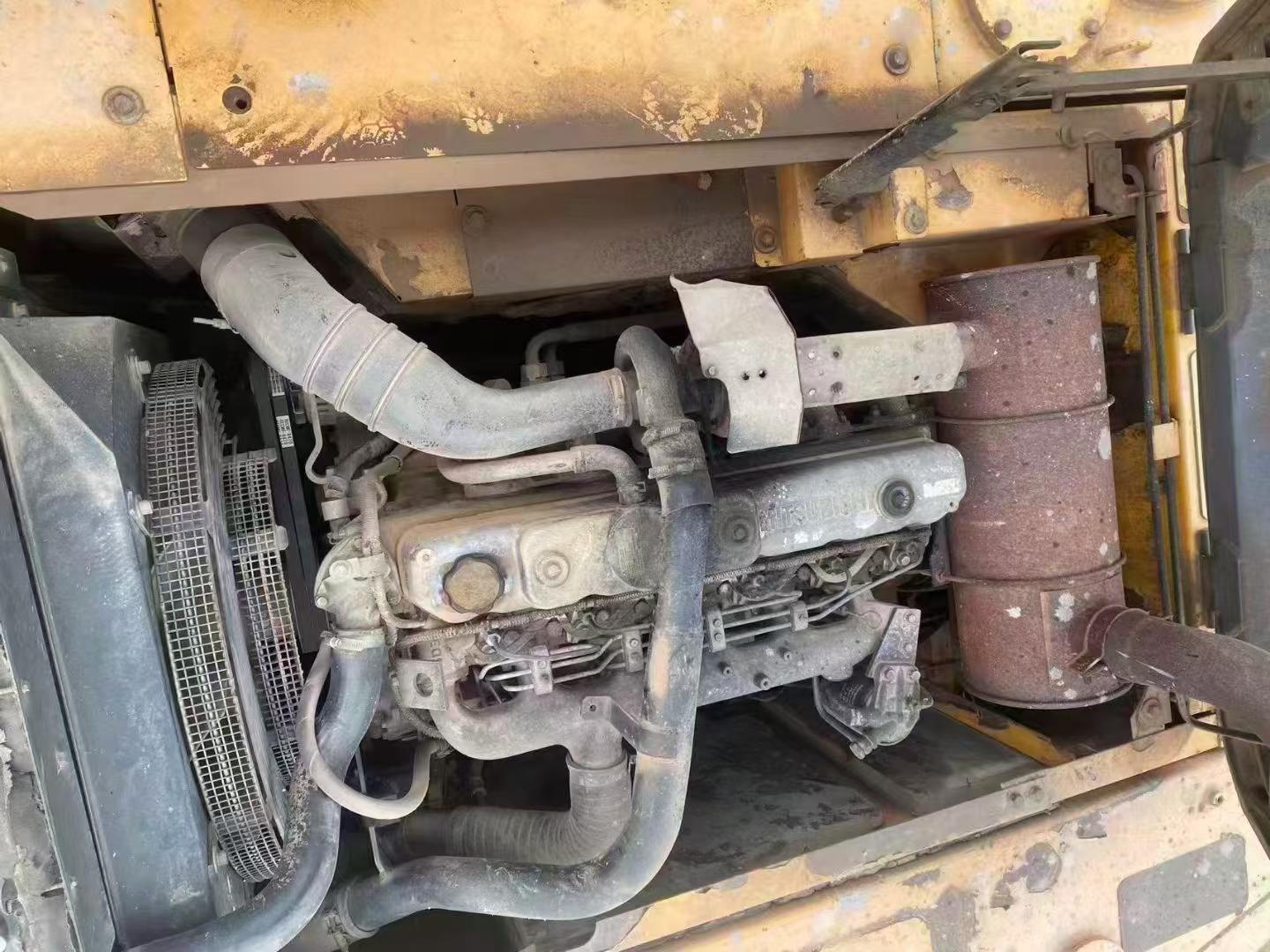

Buy Sany SY195C Used Excavator / 8

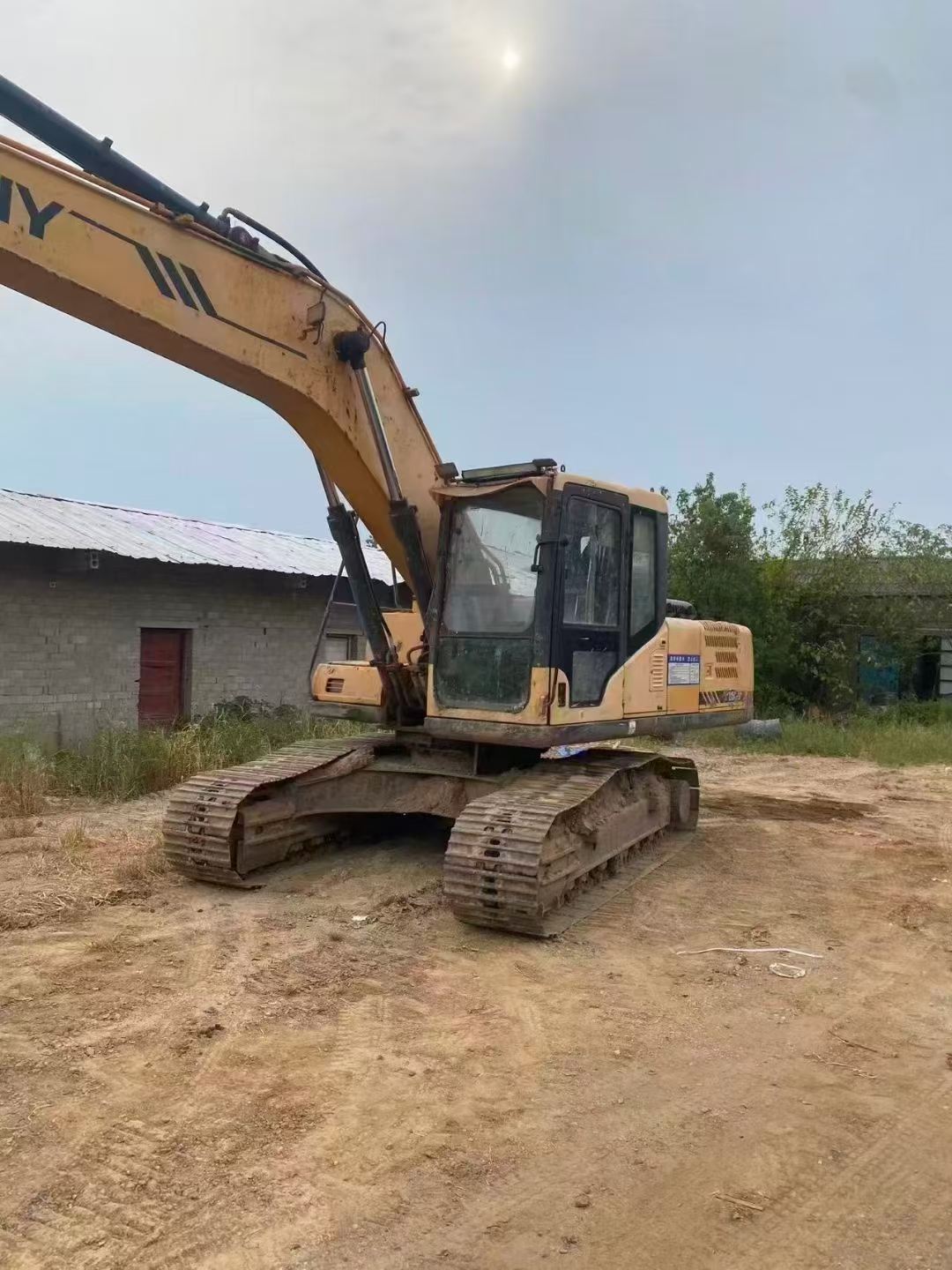

Buy Sany SY195C Used Excavator / 9

Product Description

This 2013 Sany SY195C hydraulic excavator from Hunan, China offers reliable performance for demanding earthmoving applications. With approximately 7,600 operating hours, this mid-size crawler excavator has been maintained through its working life and is ready for continued service in construction, demolition, or material handling operations.

Key specifications:

  • Operating weight class: approximately 19 tons
  • Bucket capacity: standard configuration for size class
  • Hydraulic system suited for general excavation work
  • Crawler undercarriage for stable operation on varied terrain
  • Note: This unit is not equipped with cab air conditioning

The SY195C represents Sany's commitment to practical excavator design for the Asian market. This machine is available for inspection at our Hunan location. Contact us for operational documentation, current condition assessment, and export assistance.

SpecificationsValue
No.1145846
Tonnage (tons)19
Working weight (kg)20900
Bucket capacity (m³)0.8~1.1(0.95)
powerTraditional power
manufacturerMade in China
bucketbackhoe
Engine type4M50
Rated power (kw/rpm)118/2000
Maximum torque (N.m)580/1600
Displacement (L)4.9
Ground specific pressure (Kpa)47.3
Rotation speed (rpm)11
Climbing ability (%)70% (35°)
Bucket digging force (kN)138
Rod digging force (kN)103
Travel speed (km/h)5.4/3.3
Fuel Tank (L)340
Hydraulic Tank (L)239
Engine Oil changes (L)22
Total transport length (mm)9680
Total transport width (mm)2800
Total transport height (mm)3440
Full cab height (mm)3075
Minimum ground clearance (mm)440
Minimum turning radius of front working device (mm)3730
Back end turning radius (mm)2900
Onboard width (mm)2875
Total track length (mm)4060
Track gauge (mm)2200
Track plate width (mm)600
Track ground length (mm)3260
Maximum height at minimum turning radius (mm)7680
Number of wheels (single side) (each)7
Number of track plates (single side) (PCS)45
Maximum digging radius (mm)10280
Maximum digging depth (mm)6600
Maximum excavation height (mm)9600
Maximum unloading height (mm)9600
Maximum vertical digging depth (mm)6255
see more

Overview

No.1145846

Brand Name:

Sany

Model Number:

SY195C

Year:

2013

Location:

Hunan China

Pub Date
