Product Description

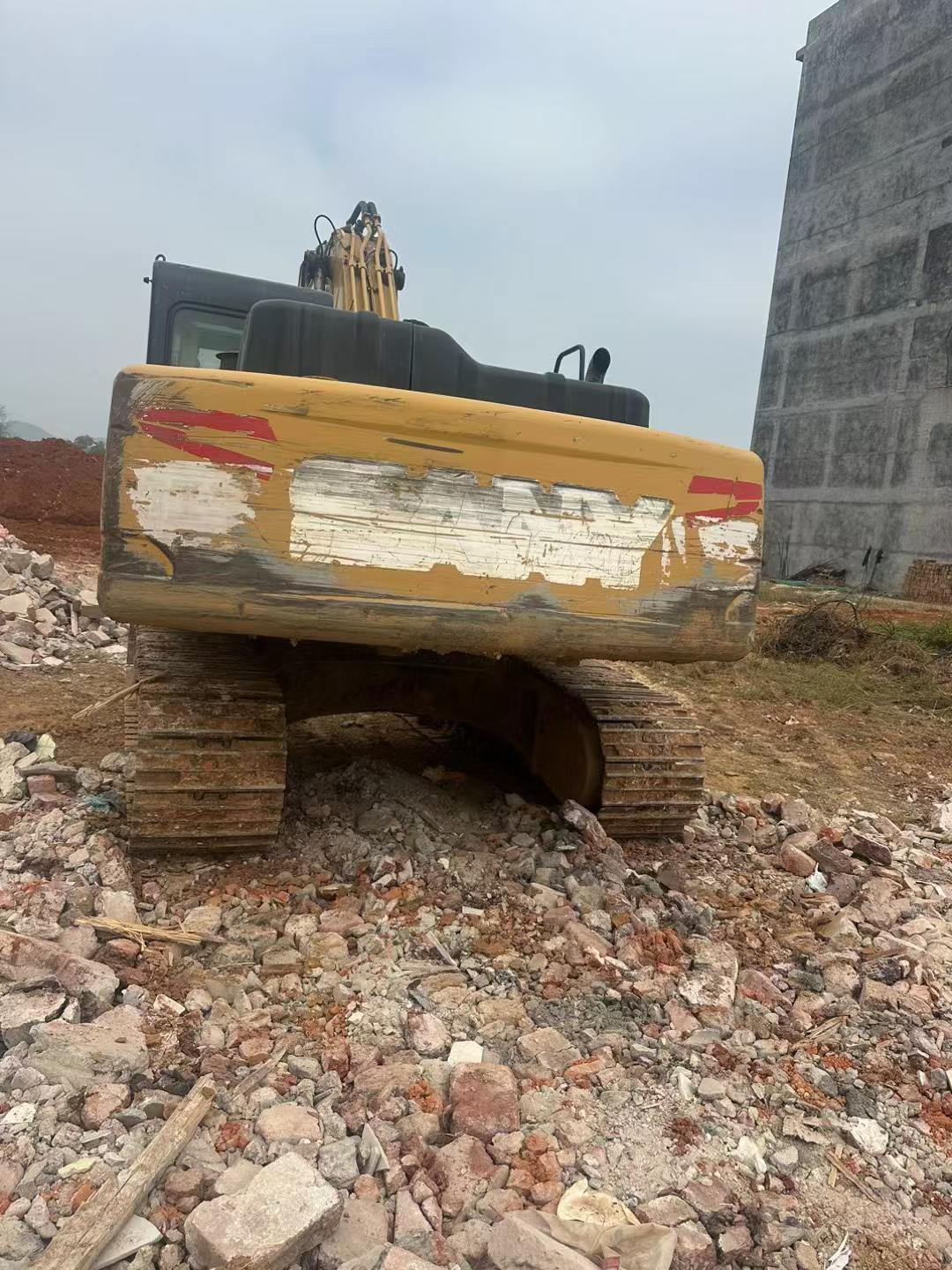

The 2018 Sany SY195C is a mid-size hydraulic crawler excavator from Sany's SY series, a model widely deployed across Chinese earthmoving, roadworks and utility projects. This unit is offered from stock in Hunan and comes with documentation.
- Year: 2018
- Brand and model: Sany SY195C
- Location: Hunan, China
- Paperwork: machine and service records supplied with the unit

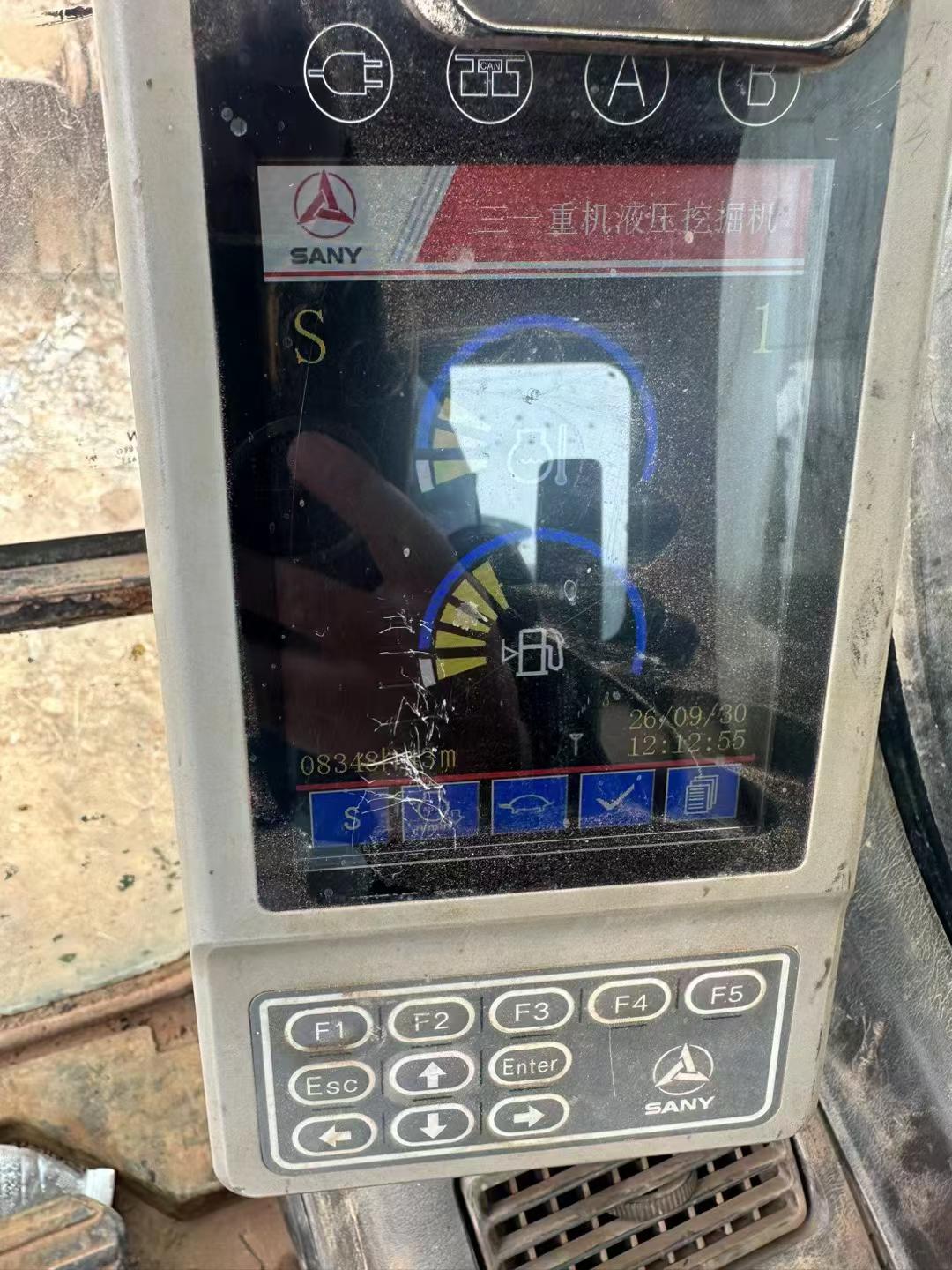

- Usage figure: just over 130,000 as stated in the source listing; unit and accuracy to be confirmed on inspection
This is a working machine, not a showpiece. Expect wear consistent with its year and recorded hours, and factor that into your pricing. The paperwork is the real selling point here: documented service history gives buyers a firmer basis for valuation and removes much of the guesswork that comes with used iron purchased sight-unseen.

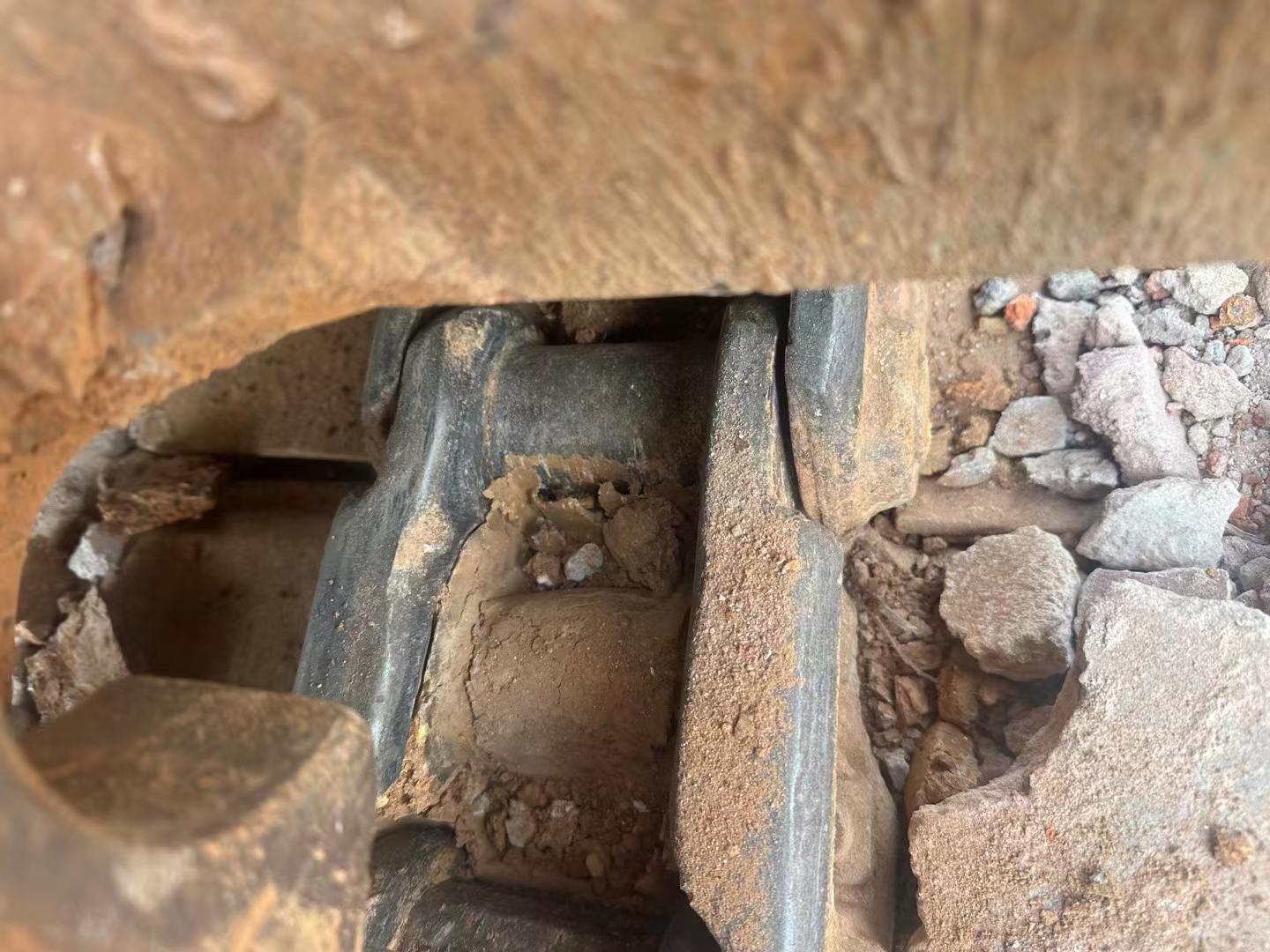

Third-party inspection, cold-start video and undercarriage photos can be arranged before purchase. Loading and export handling from Hunan can be coordinated with the seller. Specific technical enquiries are welcome and answered directly.
| Specifications | Value |
|---|---|
| No. | 1156233 |
| Tonnage (tons) | 19 |
| Working weight (kg) | 20900 |
| Bucket capacity (m³) | 0.8~1.1(0.95) |
| power | Traditional power |
| manufacturer | Made in China |
| bucket | backhoe |

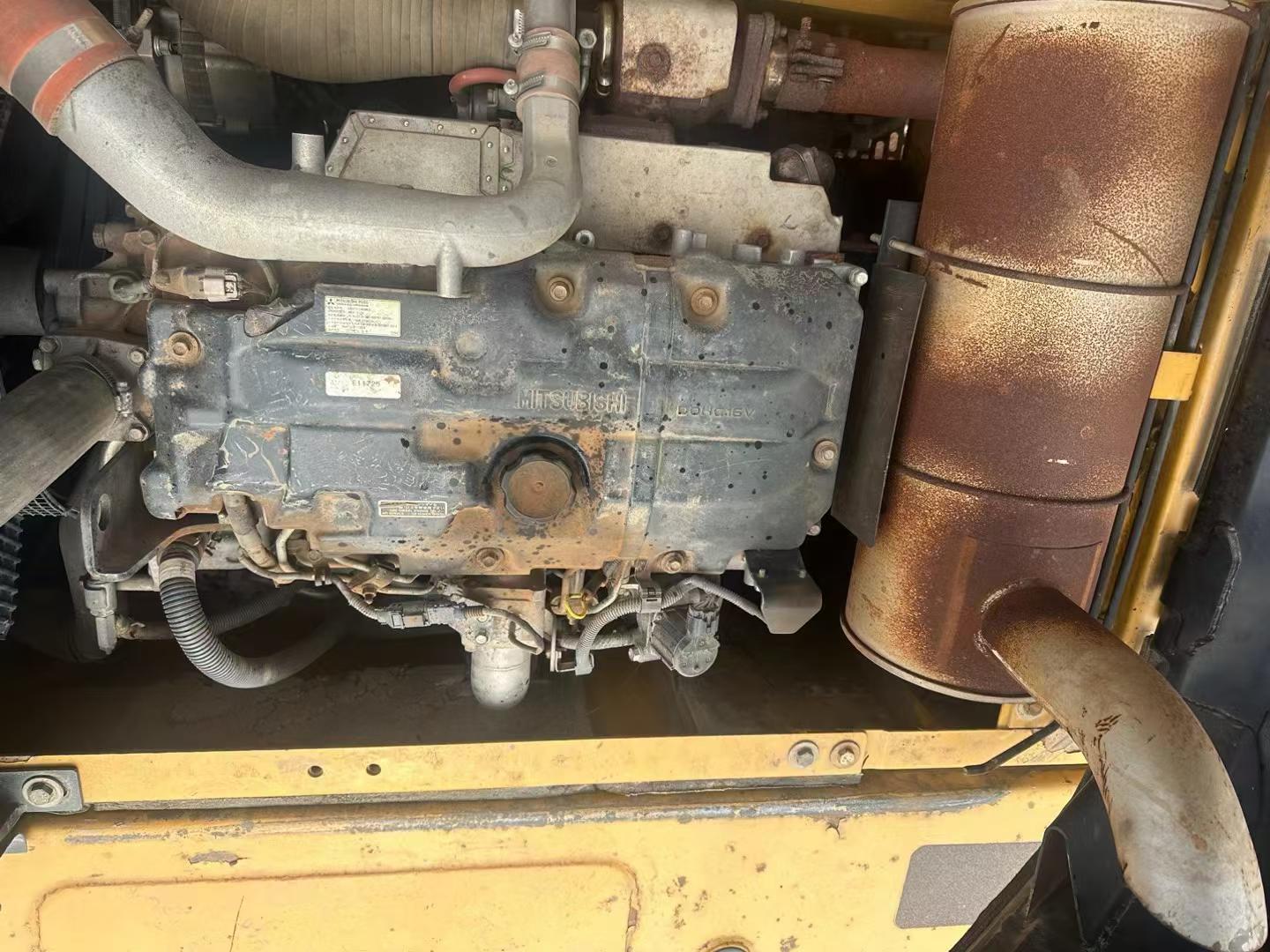

| Engine type | 4M50 |
| Rated power (kw/rpm) | 118/2000 |
| Maximum torque (N.m) | 580/1600 |
| Displacement (L) | 4.9 |
| Ground specific pressure (Kpa) | 47.3 |
| Rotation speed (rpm) | 11 |
| Climbing ability (%) | 70% (35°) |
| Bucket digging force (kN) | 138 |
| Rod digging force (kN) | 103 |
| Travel speed (km/h) | 5.4/3.3 |
| Fuel Tank (L) | 340 |
| Hydraulic Tank (L) | 239 |
| Engine Oil changes (L) | 22 |
| Total transport length (mm) | 9680 |
| Total transport width (mm) | 2800 |
| Total transport height (mm) | 3440 |
| Full cab height (mm) | 3075 |
| Minimum ground clearance (mm) | 440 |
| Minimum turning radius of front working device (mm) | 3730 |
| Back end turning radius (mm) | 2900 |
| Onboard width (mm) | 2875 |
| Total track length (mm) | 4060 |
| Track gauge (mm) | 2200 |
| Track plate width (mm) | 600 |
| Track ground length (mm) | 3260 |
| Maximum height at minimum turning radius (mm) | 7680 |
| Number of wheels (single side) (each) | 7 |
| Number of track plates (single side) (PCS) | 45 |
| Maximum digging radius (mm) | 10280 |
| Maximum digging depth (mm) | 6600 |
| Maximum excavation height (mm) | 9600 |
| Maximum unloading height (mm) | 9600 |
| Maximum vertical digging depth (mm) | 6255 |
