Product Description
This 2022 Sany SY195C excavator represents a well-maintained example of Sany's mid-sized crawler excavator line. With minimal operational hours since manufacture, this machine offers reliable performance for general excavation, trenching, and material handling applications. The SY195C features Sany's proven hydraulic system and operator-focused cab design, delivering productivity in construction and infrastructure projects.
Currently located in Shanghai, China, this unit is available for inspection and export coordination. The machine's recent manufacturing date means reduced wear on critical components and extended service life ahead.
- Year: 2022

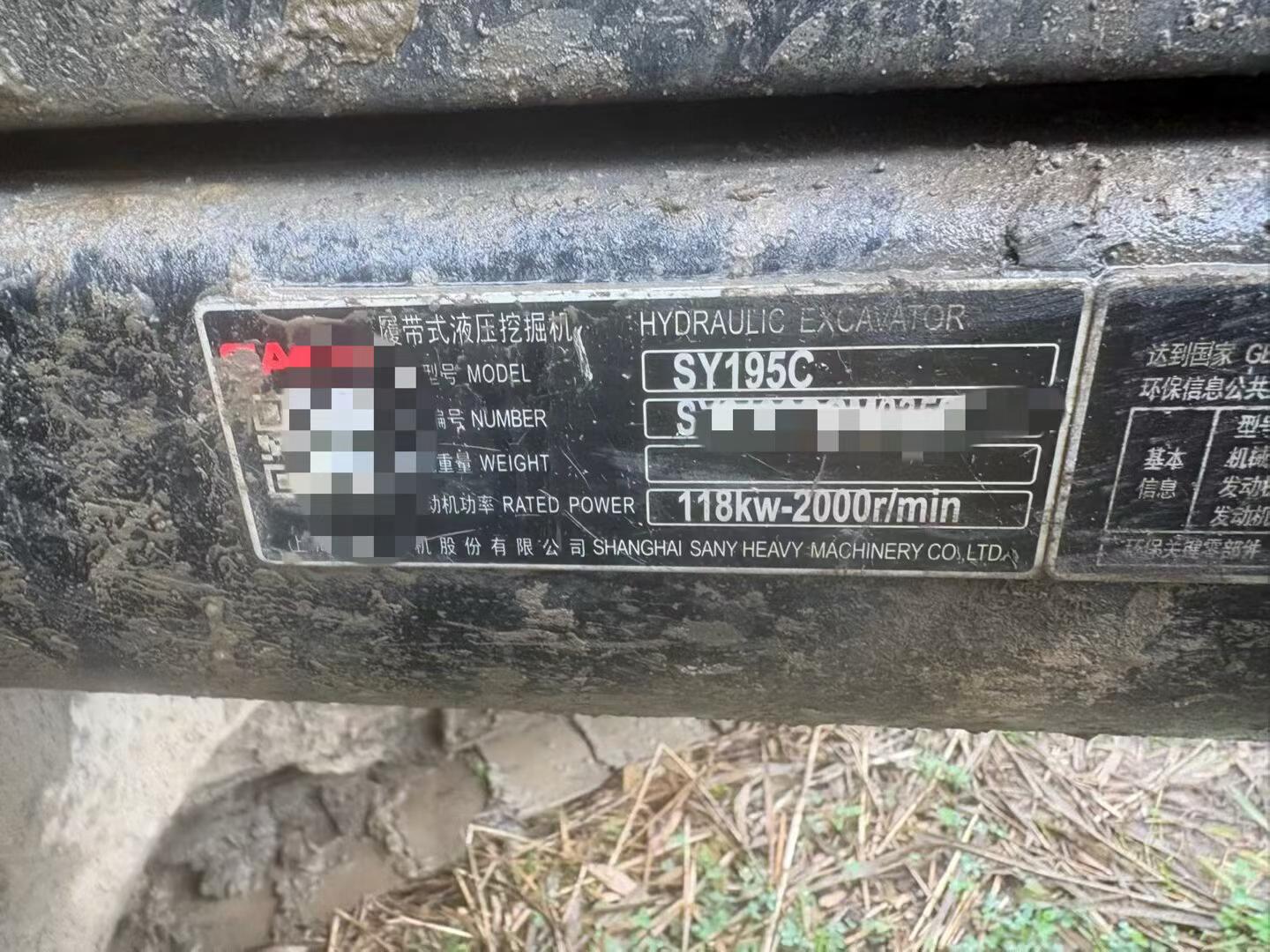

- Manufacturer: Sany Heavy Industry
- Model: SY195C medium excavator
- Location: Shanghai, China
- Condition: Well-maintained, low hours
Suitable for contractors seeking dependable excavation equipment with modern features and proven Chinese engineering. Contact us for detailed specifications, current hour meter reading, and shipping arrangements.
| Specifications | Value |
|---|---|
| No. | 1156102 |
| Tonnage (tons) | 19 |
| Working weight (kg) | 20900 |
| Bucket capacity (m³) | 0.8~1.1(0.95) |
| power | Traditional power |
| manufacturer | Made in China |
| bucket | backhoe |

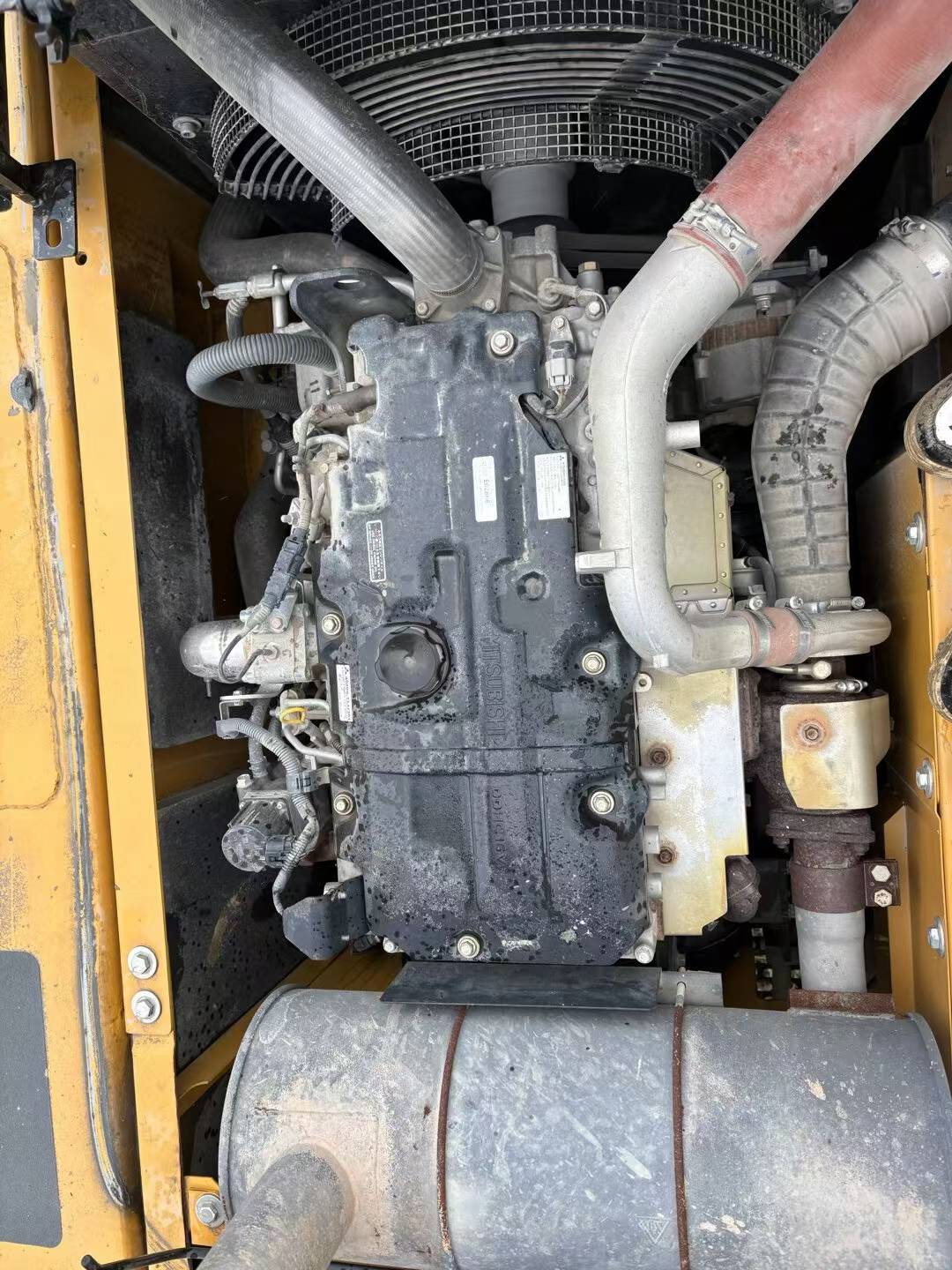

| Engine type | 4M50 |
| Rated power (kw/rpm) | 118/2000 |
| Maximum torque (N.m) | 580/1600 |
| Displacement (L) | 4.9 |
| Ground specific pressure (Kpa) | 47.3 |
| Rotation speed (rpm) | 11 |
| Climbing ability (%) | 70% (35°) |
| Bucket digging force (kN) | 138 |
| Rod digging force (kN) | 103 |
| Travel speed (km/h) | 5.4/3.3 |
| Fuel Tank (L) | 340 |
| Hydraulic Tank (L) | 239 |
| Engine Oil changes (L) | 22 |
| Total transport length (mm) | 9680 |
| Total transport width (mm) | 2800 |
| Total transport height (mm) | 3440 |
| Full cab height (mm) | 3075 |
| Minimum ground clearance (mm) | 440 |
| Minimum turning radius of front working device (mm) | 3730 |
| Back end turning radius (mm) | 2900 |
| Onboard width (mm) | 2875 |
| Total track length (mm) | 4060 |
| Track gauge (mm) | 2200 |
| Track plate width (mm) | 600 |
| Track ground length (mm) | 3260 |
| Maximum height at minimum turning radius (mm) | 7680 |
| Number of wheels (single side) (each) | 7 |
| Number of track plates (single side) (PCS) | 45 |
| Maximum digging radius (mm) | 10280 |
| Maximum digging depth (mm) | 6600 |
| Maximum excavation height (mm) | 9600 |
| Maximum unloading height (mm) | 9600 |
| Maximum vertical digging depth (mm) | 6255 |
