Product Description

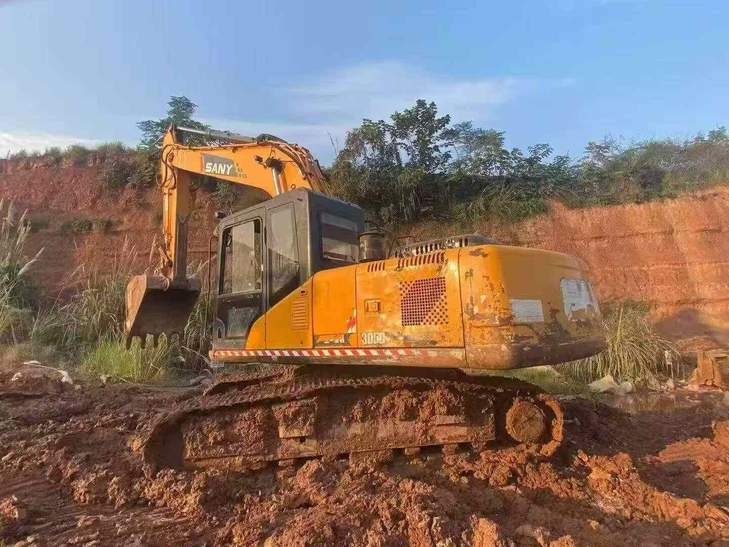

Discover the reliability and efficiency of the 2014 Sany SY195C-9, a top-tier excavator available for immediate purchase. Located in Sichuan, China, this machine is in exceptional condition and ready to be deployed on your next project. Priced at 99,000 RMB, it offers a cost-effective solution for construction and excavation needs without compromising on performance.
- Year: 2014
- Brand: Sany
- Model: SY195C-9
- Location: Sichuan, China
- Price: 99,000 RMB
| Specifications | Value |
|---|---|
| No. | 1073030 |
| Tonnage (tons) | 20 |
| Working weight (kg) | 20700 |
| Bucket capacity (m³) | 0.83 (optional 0.7~1.0) |
| Country of origin | Shanghai |
| power | Traditional power |
| manufacturer | Made in China |
| bucket | backhoe |
| Engine type | SANY D06S2 |
| Rated power (kw/rpm) | 114/2050 |
| Cooling mode | water-cooling |
| Number of cylinders (PCS) | 6-cylinder |
| Working form | Six-cylinder four-stroke turbocharged direct injection engine |
| Ground specific pressure (Kpa) | 47.3 |
| Rotation speed (rpm) | 11 |
| Climbing ability (%) | 70/35 ° |
| Bucket digging force (kN) | 135 |
| Rod digging force (kN) | 109 |
| Travel speed (km/h) | 5.4/3.3 |
| Total transport length (mm) | 9560 |
| Total transport width (mm) | 2800 |
| Total transport height (mm) | 2955 |
| Full cab height (mm) | 2990 |
| Minimum ground clearance (mm) | 440 |
| Minimum turning radius of front working device (mm) | 3755 |
| Back end turning radius (mm) | 2890 |
| Onboard width (mm) | 2710 |
| Total track length (mm) | 4060 |
| Track gauge (mm) | 2200 |
| Track plate width (mm) | 600 (800/700 optional) |
| Total track width (mm) | 2800 |
| Track ground length (mm) | 3260 |
| Maximum digging radius (mm) | 9740 |
| Maximum digging depth (mm) | 6410 |
| Maximum excavation height (mm) | 9410 |
| Maximum unloading height (mm) | 6490 |
| Maximum vertical digging depth (mm) | 5790 |
