2017 Sany SY195C-9

1/9
Buy Sany SY195C-9 Used Excavator / 1
Buy Sany SY195C-9 Used Excavator / 2
Buy Sany SY195C-9 Used Excavator / 3
Buy Sany SY195C-9 Used Excavator / 4
Buy Sany SY195C-9 Used Excavator / 5
Buy Sany SY195C-9 Used Excavator / 6
Buy Sany SY195C-9 Used Excavator / 7
Buy Sany SY195C-9 Used Excavator / 8
Buy Sany SY195C-9 Used Excavator / 9

Product Description

Available from stock in Hunan, China: a 2017 Sany SY195C-9 hydraulic excavator, brought in as a genuine earthmoving machine rather than a mixed-duty or converted unit. It runs the Kawasaki high-specification hydraulic package, and the major assemblies are untouched — no bolts turned, no components opened, no rebuild history behind it.

  • Year of manufacture: 2017; location: Hunan, China.

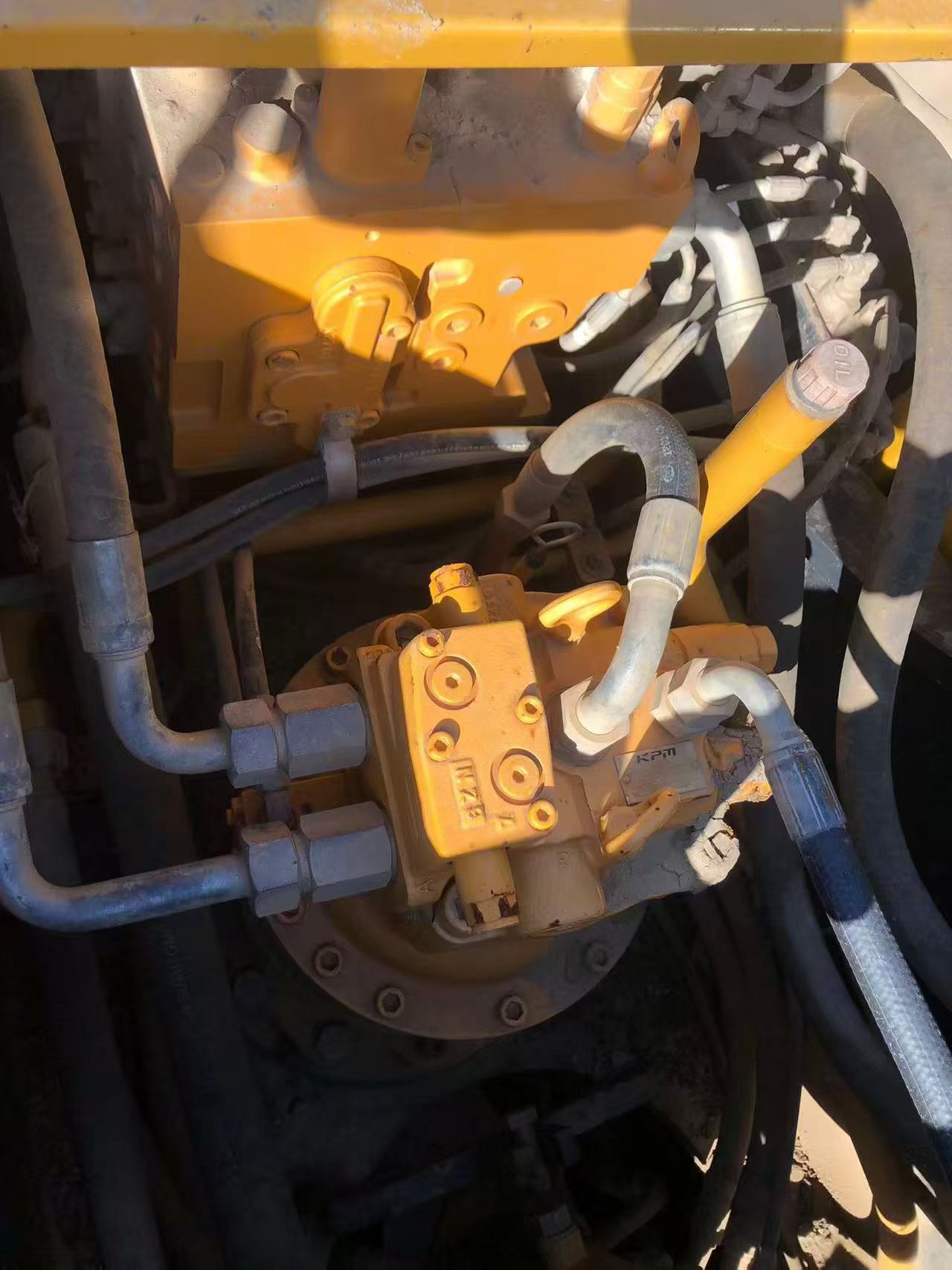

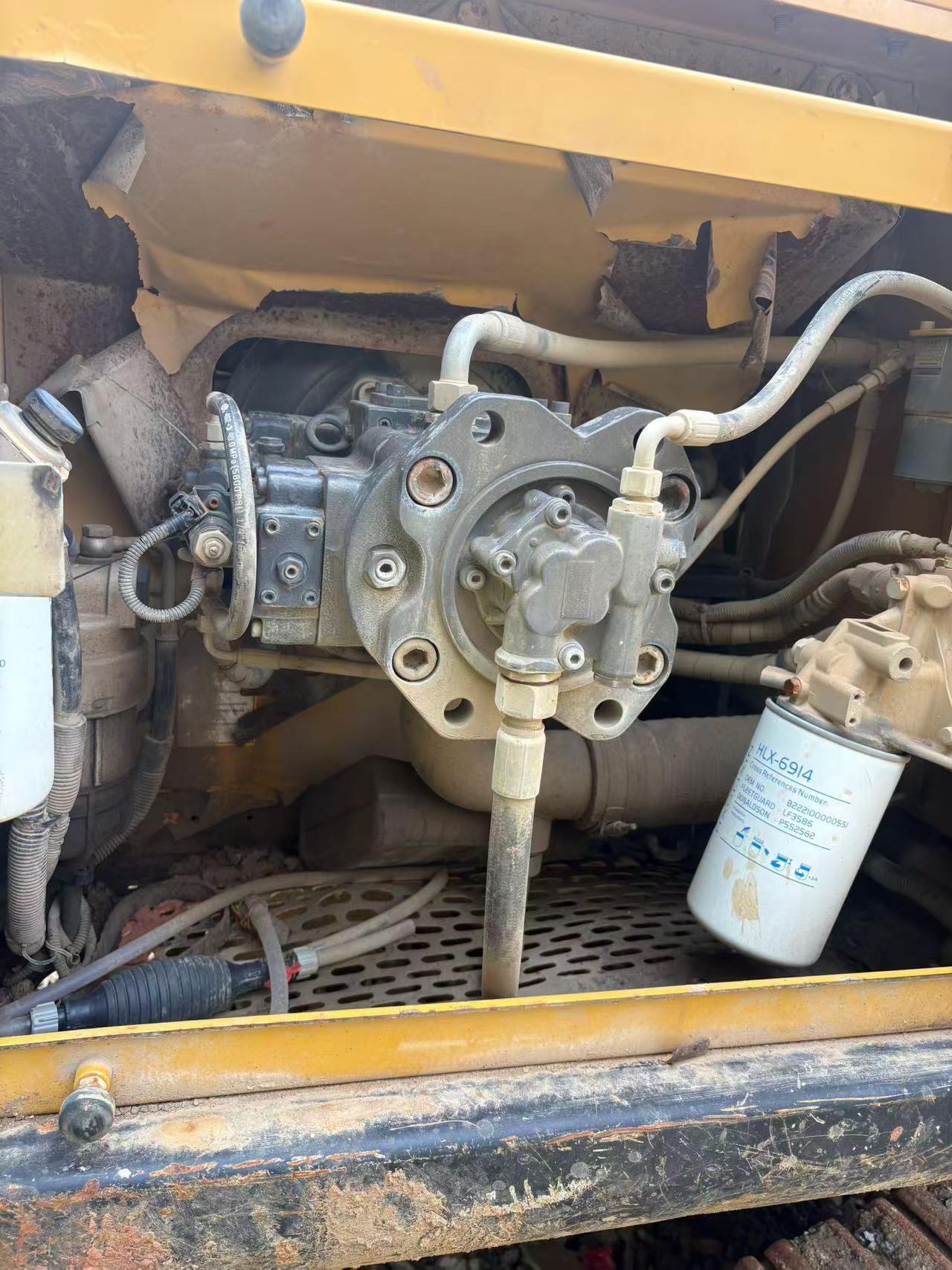

  • Hydraulic configuration: Kawasaki, with fast, sharp cycle response.
  • Condition: original throughout — unwashed, undetailed, no parts disassembled.
  • Suited to: buyers sourcing premium-grade used earthmoving equipment.

The unit is presented exactly as received, with original paint and original decals intact. Nothing has been cleaned up or dressed to conceal wear, so the condition you inspect is the condition it left work in. Additional photographs and a walkaround video are available on request, and inspection in Hunan can be arranged for serious buyers.

SpecificationsValue
No.1157493
Tonnage (tons)20
Working weight (kg)20700
Bucket capacity (m³)0.83 (optional 0.7~1.0)
Country of originShanghai
powerTraditional power
manufacturerMade in China
bucketbackhoe

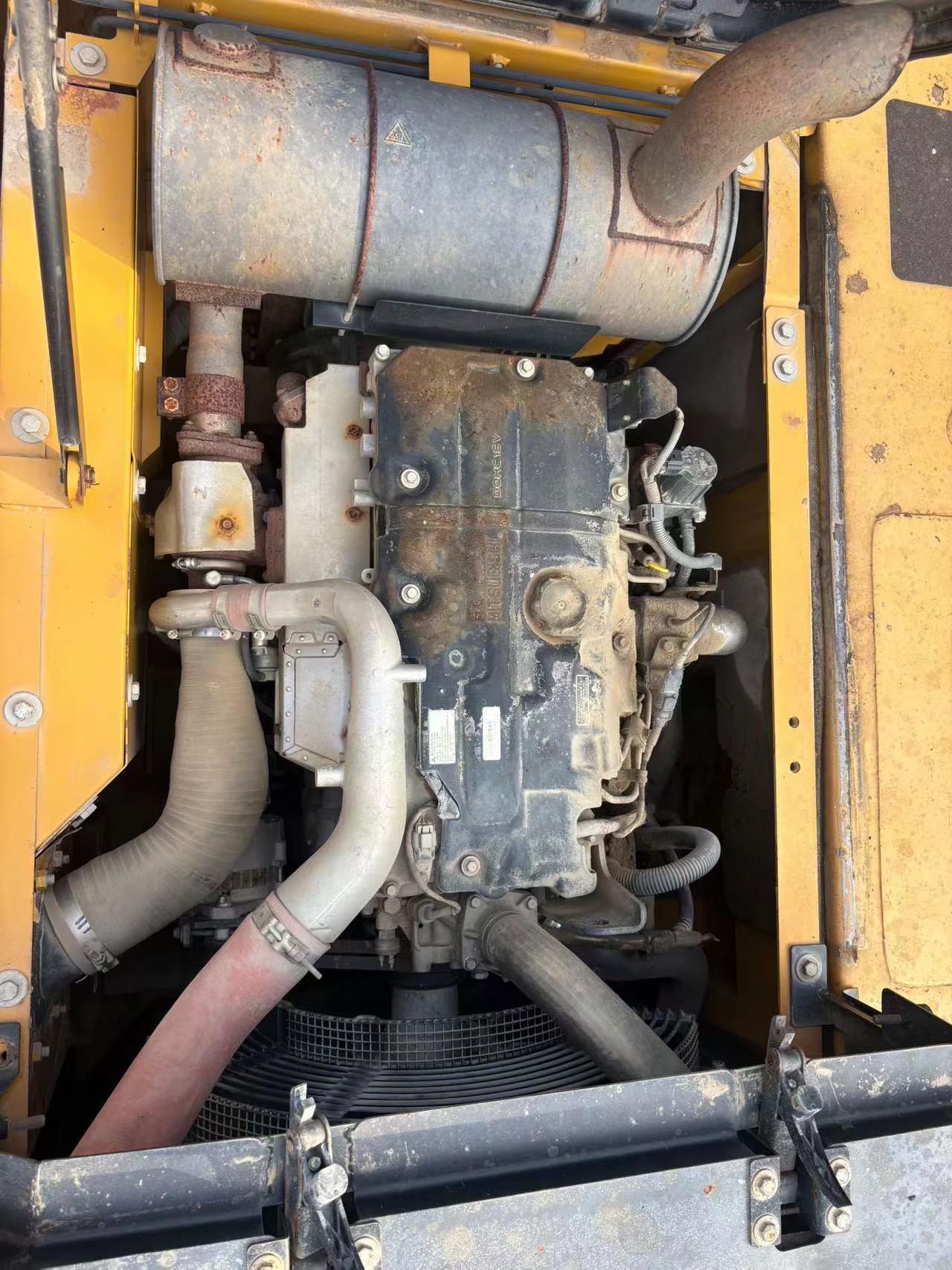

Engine typeSANY D06S2
Rated power (kw/rpm)114/2050
Cooling modewater-cooling
Number of cylinders (PCS)6-cylinder
Working formSix-cylinder four-stroke turbocharged direct injection engine
Ground specific pressure (Kpa)47.3
Rotation speed (rpm)11
Climbing ability (%)70/35 °
Bucket digging force (kN)135
Rod digging force (kN)109
Travel speed (km/h)5.4/3.3
Total transport length (mm)9560
Total transport width (mm)2800
Total transport height (mm)2955
Full cab height (mm)2990
Minimum ground clearance (mm)440
Minimum turning radius of front working device (mm)3755
Back end turning radius (mm)2890
Onboard width (mm)2710
Total track length (mm)4060
Track gauge (mm)2200
Track plate width (mm)600 (800/700 optional)
Total track width (mm)2800
Track ground length (mm)3260
Maximum digging radius (mm)9740
Maximum digging depth (mm)6410
Maximum excavation height (mm)9410
Maximum unloading height (mm)6490
Maximum vertical digging depth (mm)5790
