2018 Sany SY195C-9

1/9
Buy Sany SY195C-9 Used Excavator / 1
Buy Sany SY195C-9 Used Excavator / 2
Buy Sany SY195C-9 Used Excavator / 3
Buy Sany SY195C-9 Used Excavator / 4
Buy Sany SY195C-9 Used Excavator / 5
Buy Sany SY195C-9 Used Excavator / 6
Buy Sany SY195C-9 Used Excavator / 7
Buy Sany SY195C-9 Used Excavator / 8
Buy Sany SY195C-9 Used Excavator / 9

Product Description

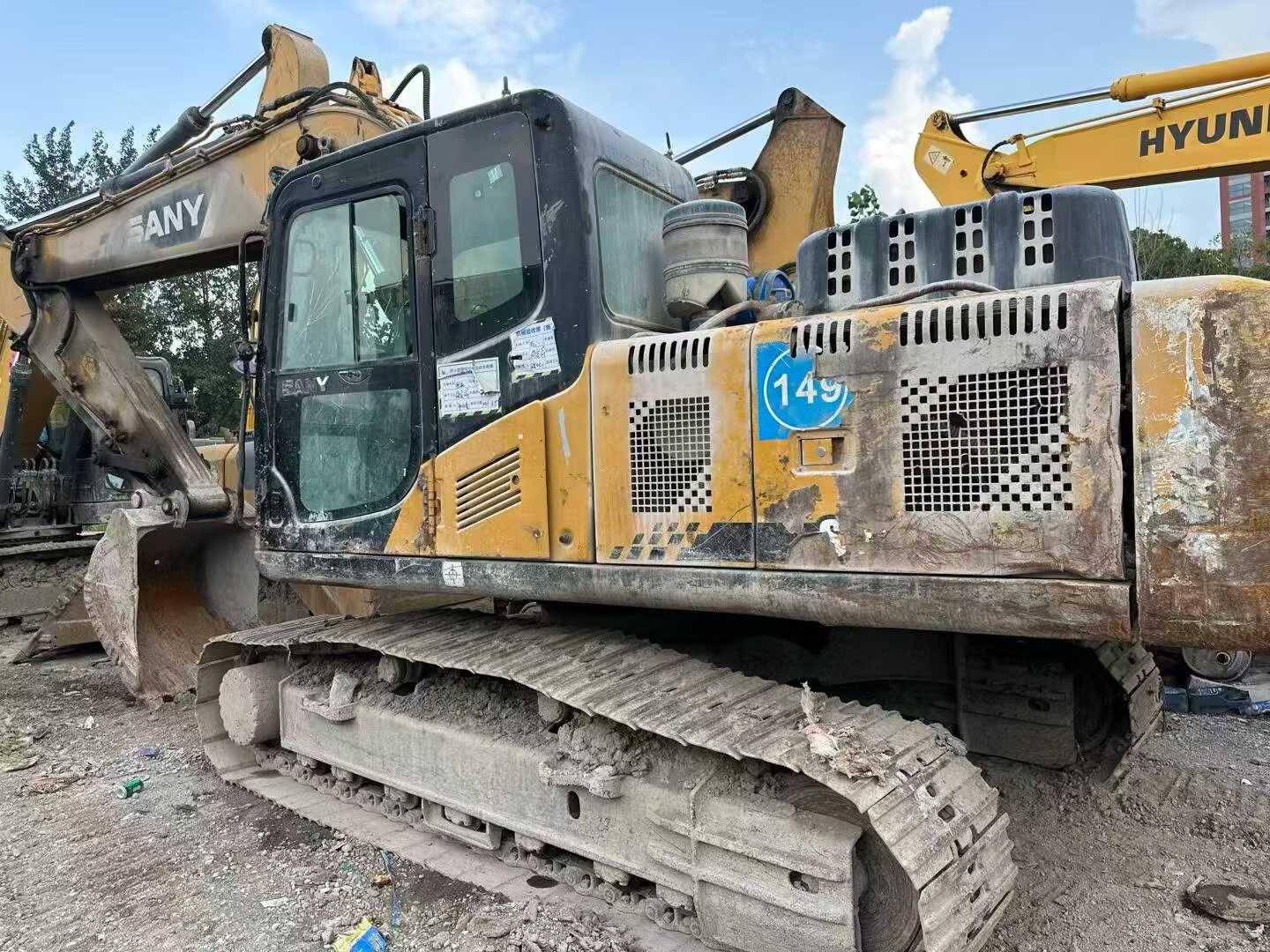

This 2018 Sany SY195C-9 crawler excavator represents a reliable mid-size solution for demanding construction and earthmoving applications. Manufactured by one of China's leading heavy equipment producers, this machine combines proven hydraulic technology with operational efficiency. Currently located in Zhejiang, China, the unit has been maintained under single ownership since its original purchase in 2018.

The SY195C-9 features Sany's 9-series design improvements, offering enhanced fuel economy and operator comfort. With its robust undercarriage and well-balanced performance, this excavator is suitable for site development, trenching, and general excavation work.

  • Year of Manufacture: 2018
  • Model: Sany SY195C-9
  • Machine Type: Crawler Excavator
  • Current Location: Zhejiang Province, China
  • Condition: Used, operational

Available for immediate inspection and purchase. Contact us for detailed technical specifications and export arrangements to your destination.

SpecificationsValue
No.1125183
Tonnage (tons)20
Working weight (kg)20700
Bucket capacity (m³)0.83 (optional 0.7~1.0)
Country of originShanghai
powerTraditional power
manufacturerMade in China
bucketbackhoe

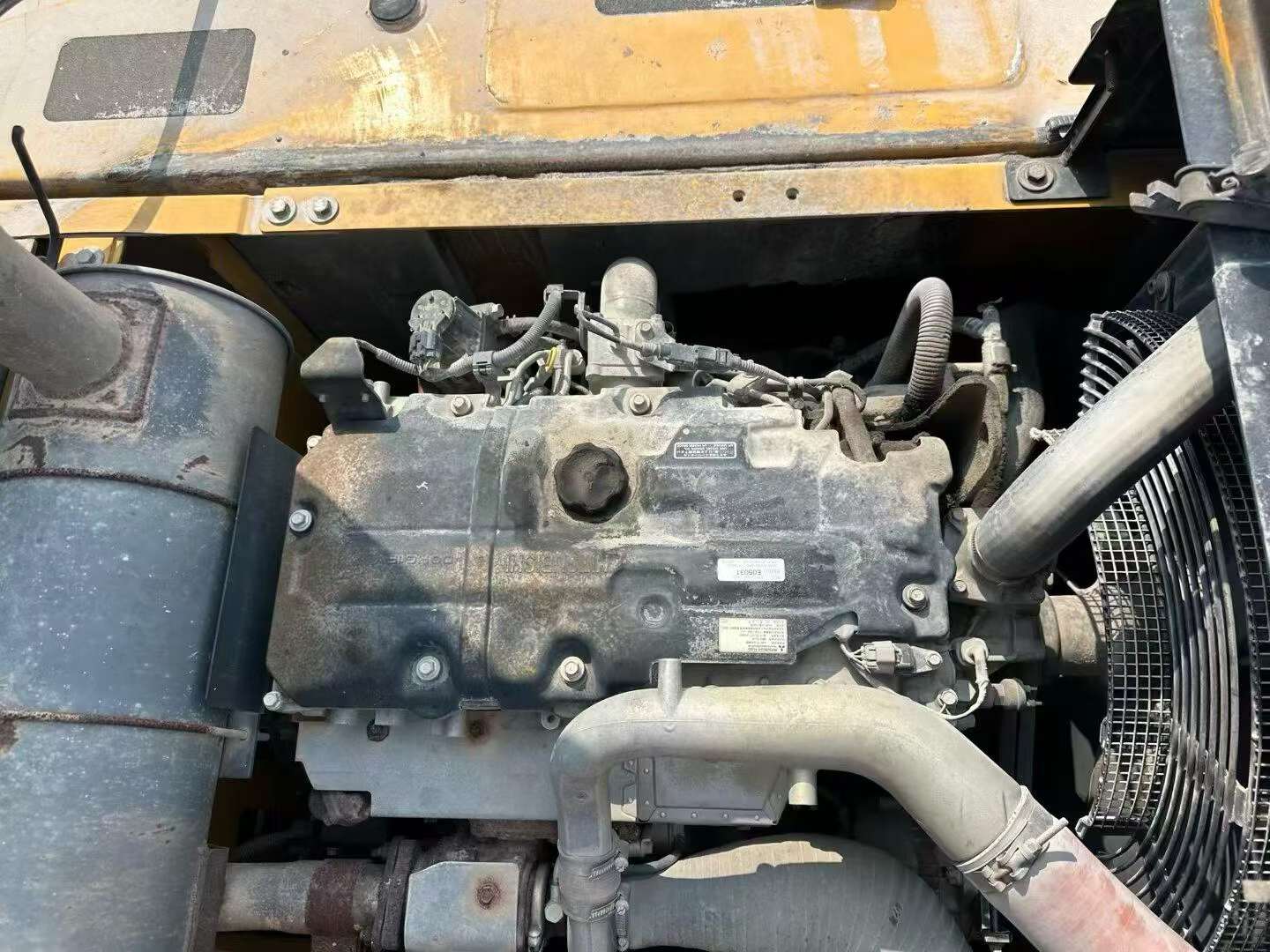

Engine typeSANY D06S2
Rated power (kw/rpm)114/2050
Cooling modewater-cooling
Number of cylinders (PCS)6-cylinder
Working formSix-cylinder four-stroke turbocharged direct injection engine
Ground specific pressure (Kpa)47.3
Rotation speed (rpm)11
Climbing ability (%)70/35 °
Bucket digging force (kN)135
Rod digging force (kN)109
Travel speed (km/h)5.4/3.3
Total transport length (mm)9560
Total transport width (mm)2800
Total transport height (mm)2955
Full cab height (mm)2990
Minimum ground clearance (mm)440
Minimum turning radius of front working device (mm)3755
Back end turning radius (mm)2890
Onboard width (mm)2710
Total track length (mm)4060
Track gauge (mm)2200
Track plate width (mm)600 (800/700 optional)
Total track width (mm)2800
Track ground length (mm)3260
Maximum digging radius (mm)9740
Maximum digging depth (mm)6410
Maximum excavation height (mm)9410
Maximum unloading height (mm)6490
Maximum vertical digging depth (mm)5790
