Product Description

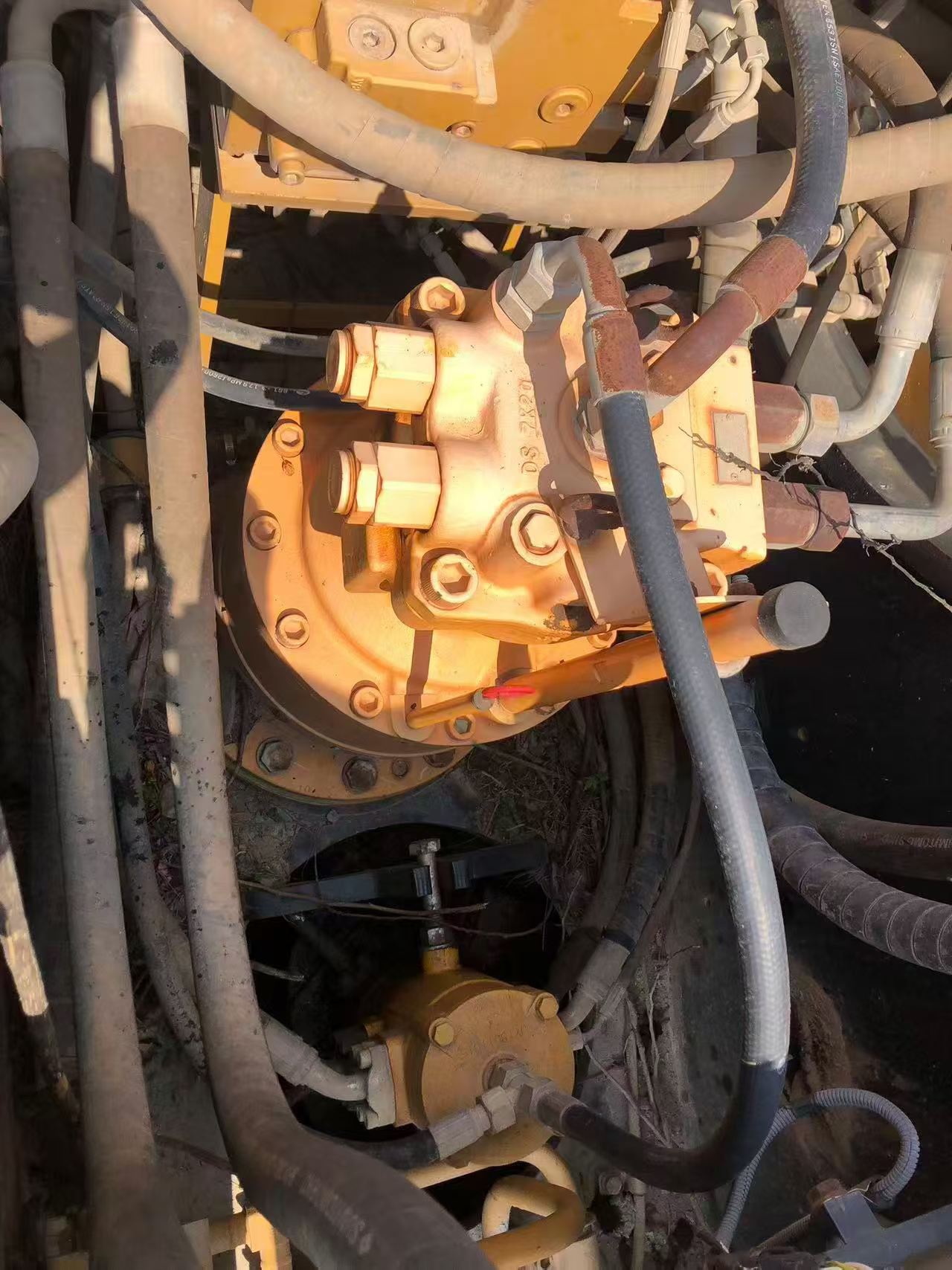

Discover the 2018 Sany SY195C-9, a premium excavator currently available in Hunan, China. This machine, equipped with high-quality Kawasaki components, has maintained its original condition, with no major parts having been altered, ensuring robust and reliable performance. Ideal for demanding construction and excavation tasks, it is known for its fuel efficiency, making it a cost-effective choice for your projects. Detailed photos and videos are available upon request to provide a comprehensive view of the equipment's condition and capabilities.
- Year: 2018
- Brand: Sany
- Model: SY195C-9
- Location: Hunan, China

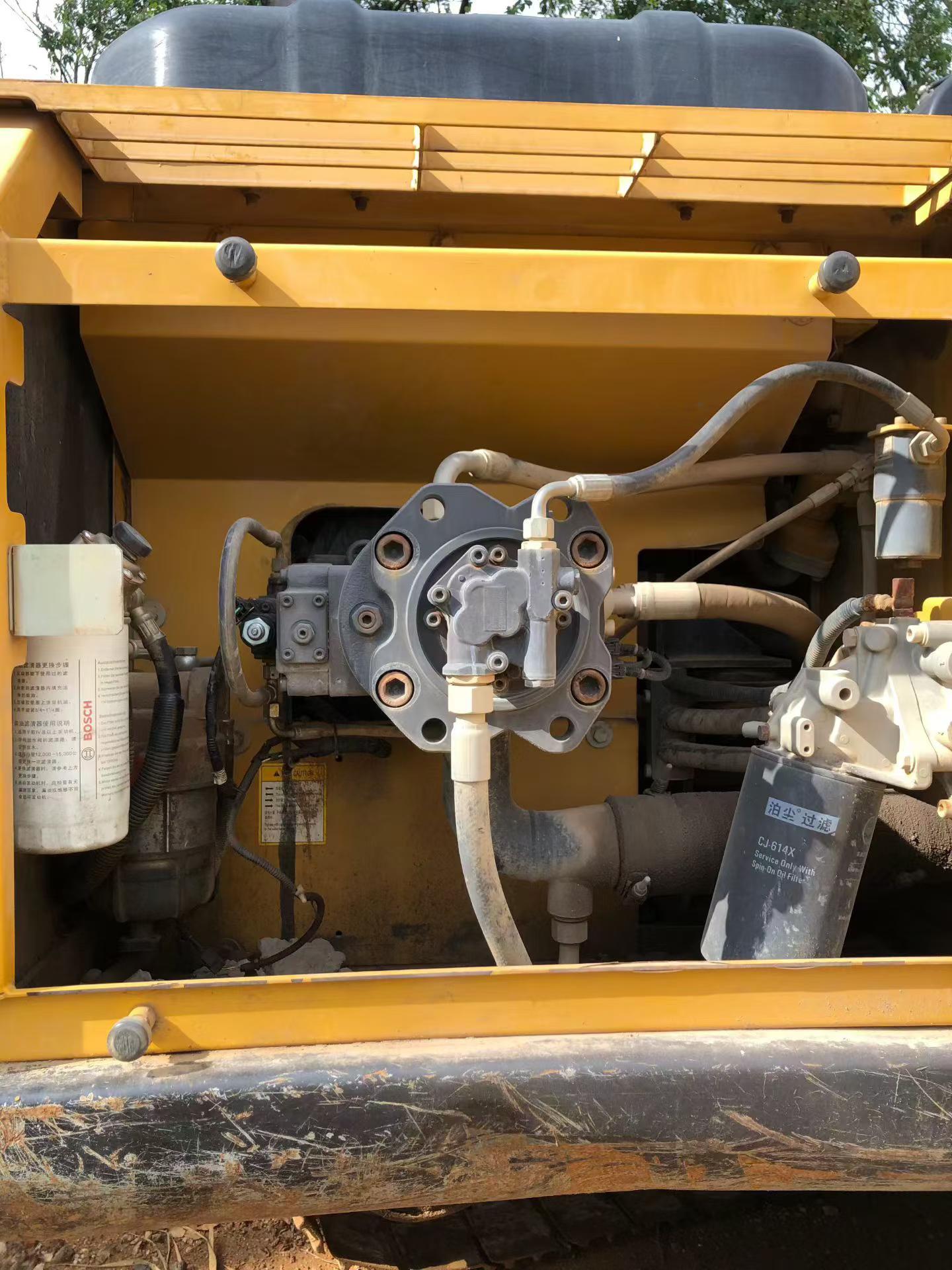

- High-performance Kawasaki configuration
- Original condition, no major alterations
- Fuel-efficient operation
| Specifications | Value |
|---|---|
| No. | 1131650 |
| Tonnage (tons) | 20 |
| Working weight (kg) | 20700 |
| Bucket capacity (m³) | 0.83 (optional 0.7~1.0) |
| Country of origin | Shanghai |
| power | Traditional power |
| manufacturer | Made in China |
| bucket | backhoe |

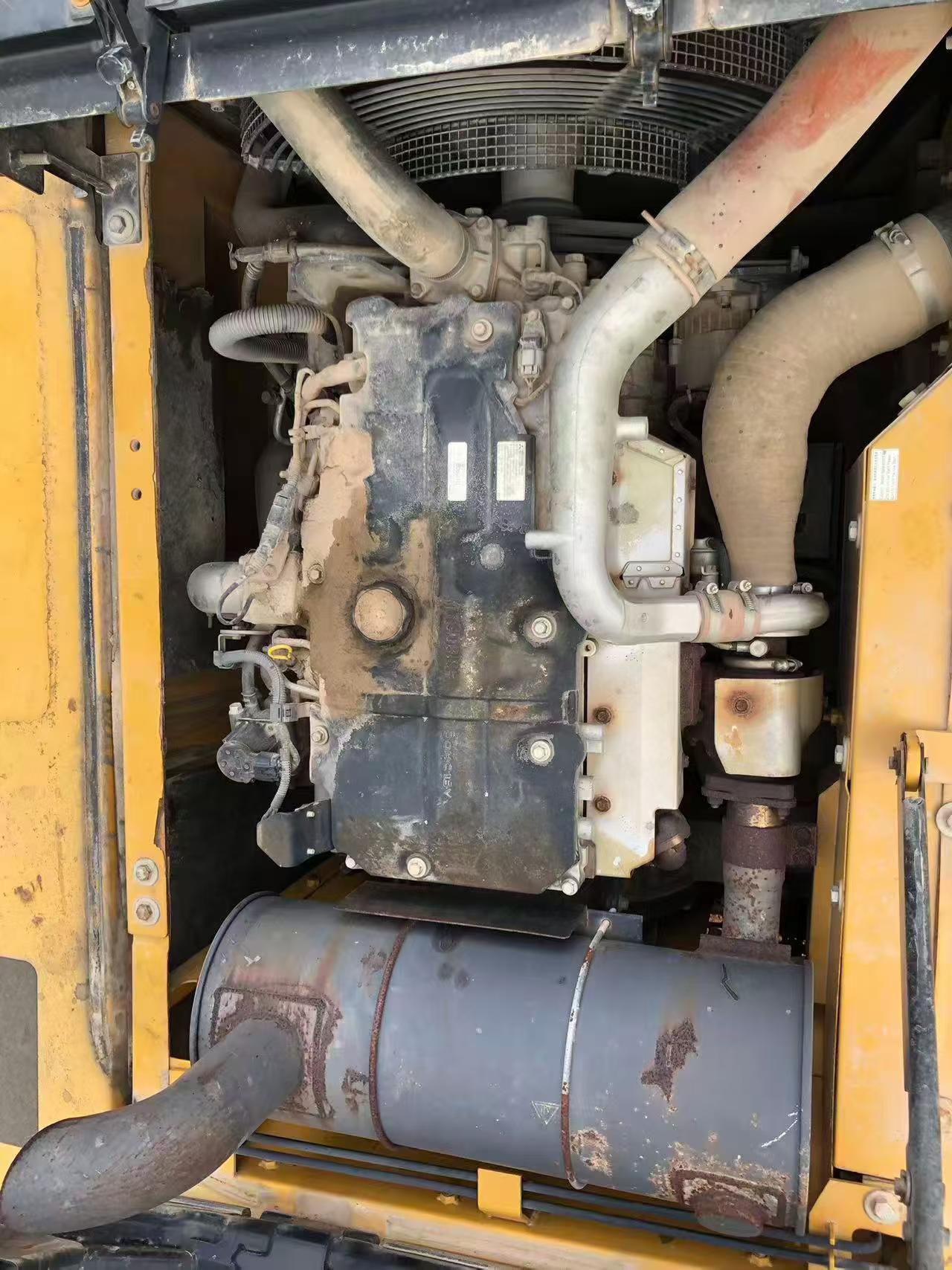

| Engine type | SANY D06S2 |
| Rated power (kw/rpm) | 114/2050 |
| Cooling mode | water-cooling |
| Number of cylinders (PCS) | 6-cylinder |
| Working form | Six-cylinder four-stroke turbocharged direct injection engine |
| Ground specific pressure (Kpa) | 47.3 |
| Rotation speed (rpm) | 11 |
| Climbing ability (%) | 70/35 ° |
| Bucket digging force (kN) | 135 |
| Rod digging force (kN) | 109 |
| Travel speed (km/h) | 5.4/3.3 |
| Total transport length (mm) | 9560 |
| Total transport width (mm) | 2800 |
| Total transport height (mm) | 2955 |
| Full cab height (mm) | 2990 |
| Minimum ground clearance (mm) | 440 |
| Minimum turning radius of front working device (mm) | 3755 |
| Back end turning radius (mm) | 2890 |
| Onboard width (mm) | 2710 |
| Total track length (mm) | 4060 |
| Track gauge (mm) | 2200 |
| Track plate width (mm) | 600 (800/700 optional) |
| Total track width (mm) | 2800 |
| Track ground length (mm) | 3260 |
| Maximum digging radius (mm) | 9740 |
| Maximum digging depth (mm) | 6410 |
| Maximum excavation height (mm) | 9410 |
| Maximum unloading height (mm) | 6490 |
| Maximum vertical digging depth (mm) | 5790 |
