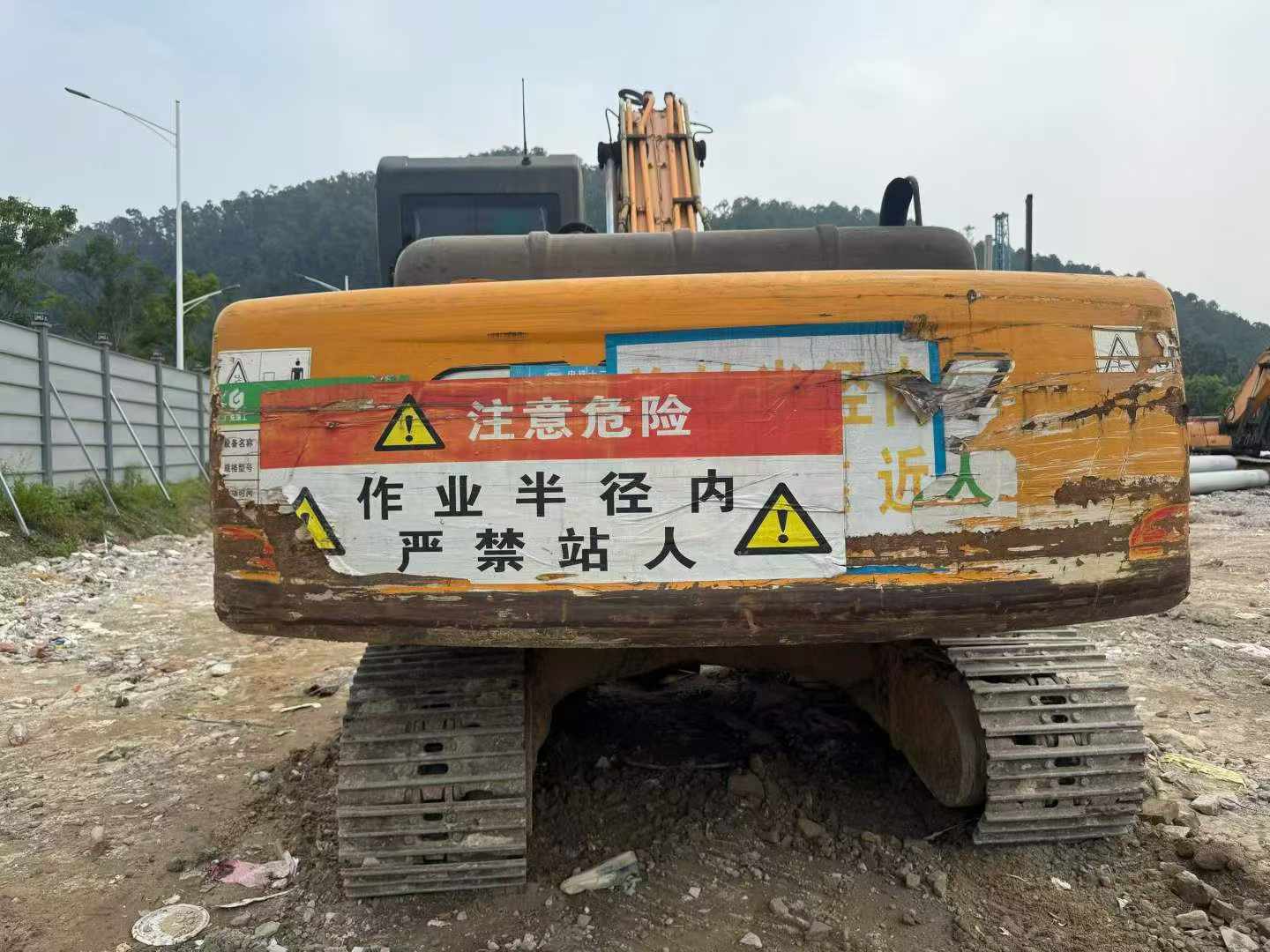

Buy Sany SY195C-9 Used Excavator / 3

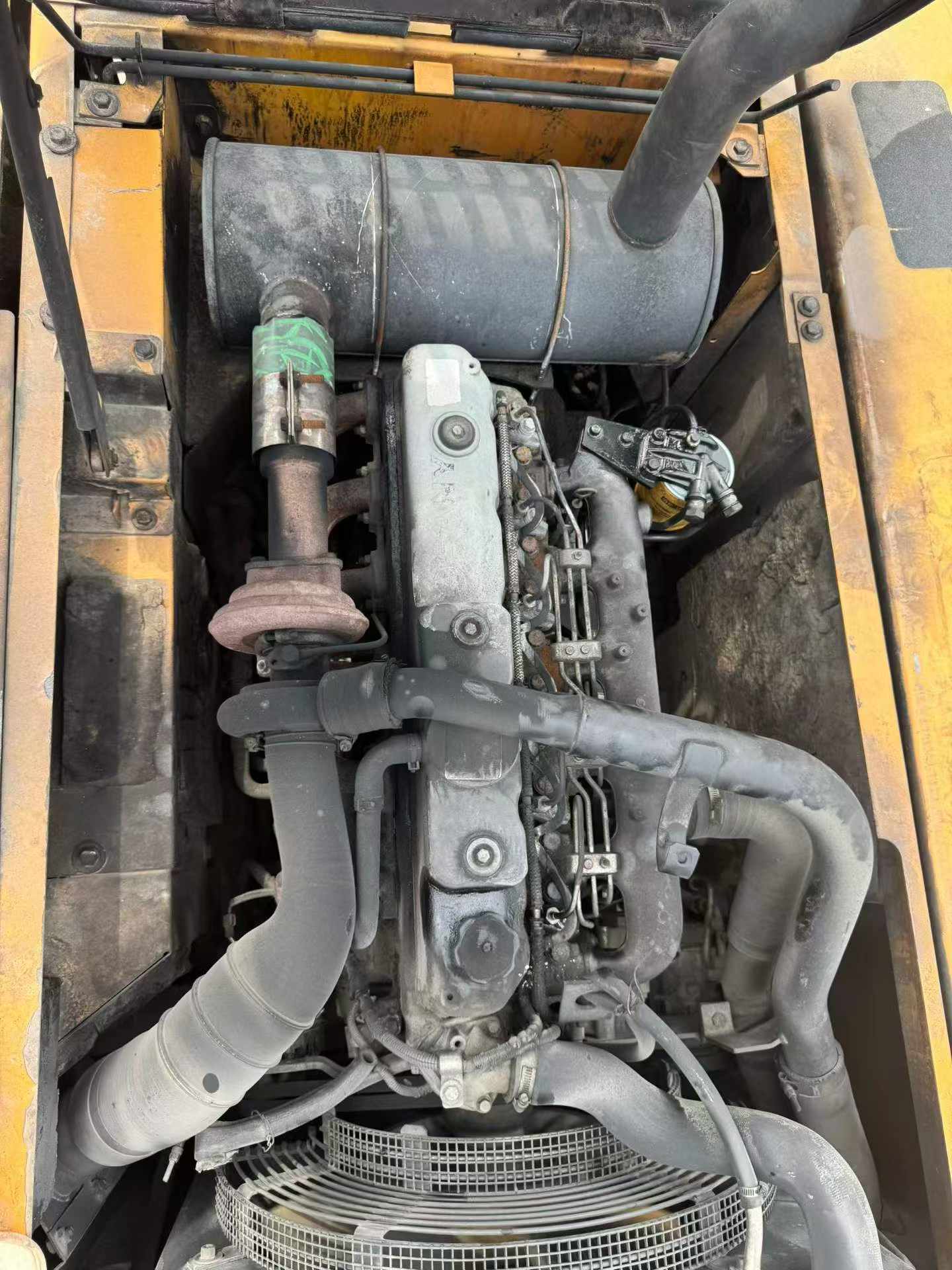

Buy Sany SY195C-9 Used Excavator / 4

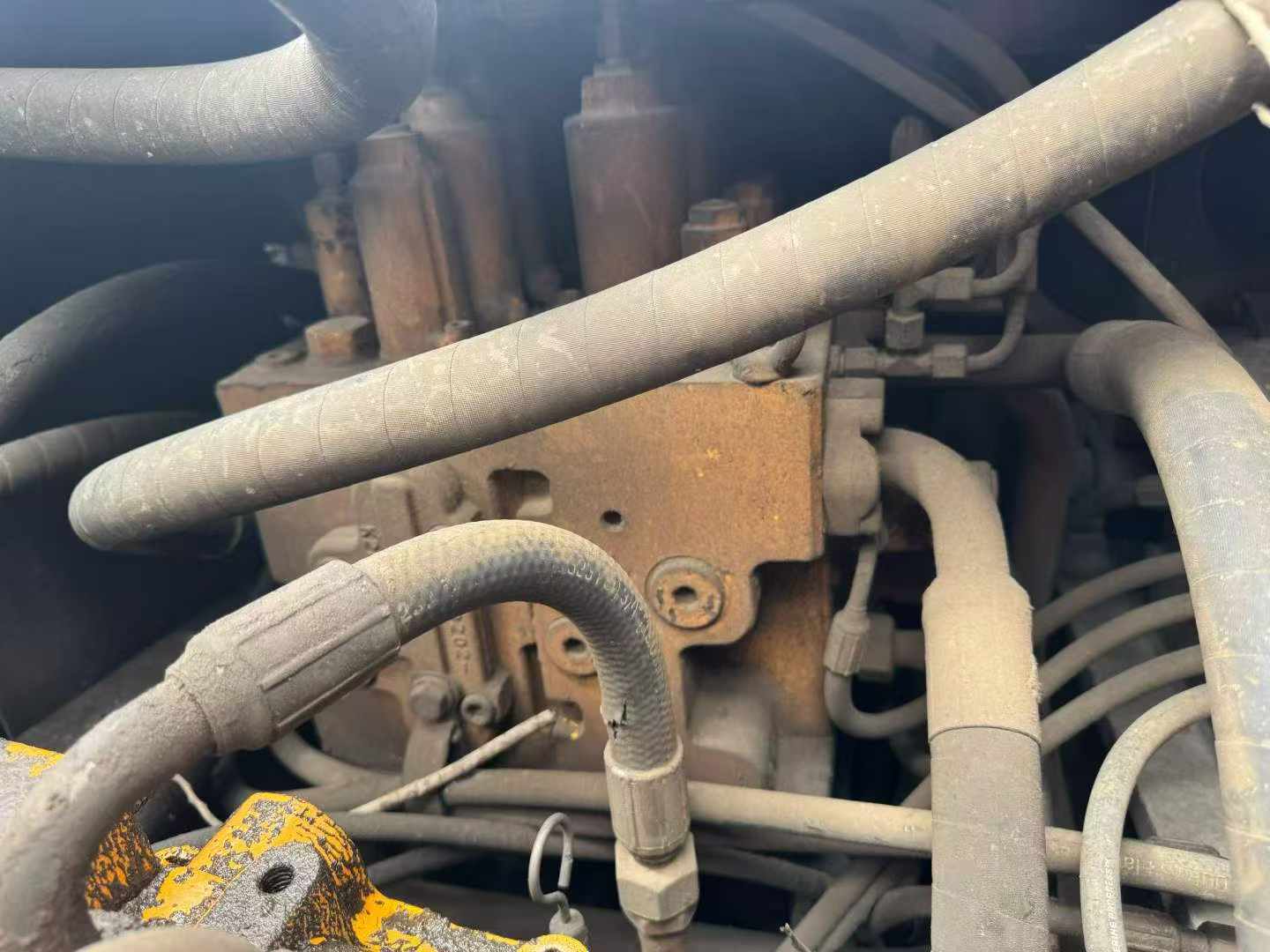

Buy Sany SY195C-9 Used Excavator / 5

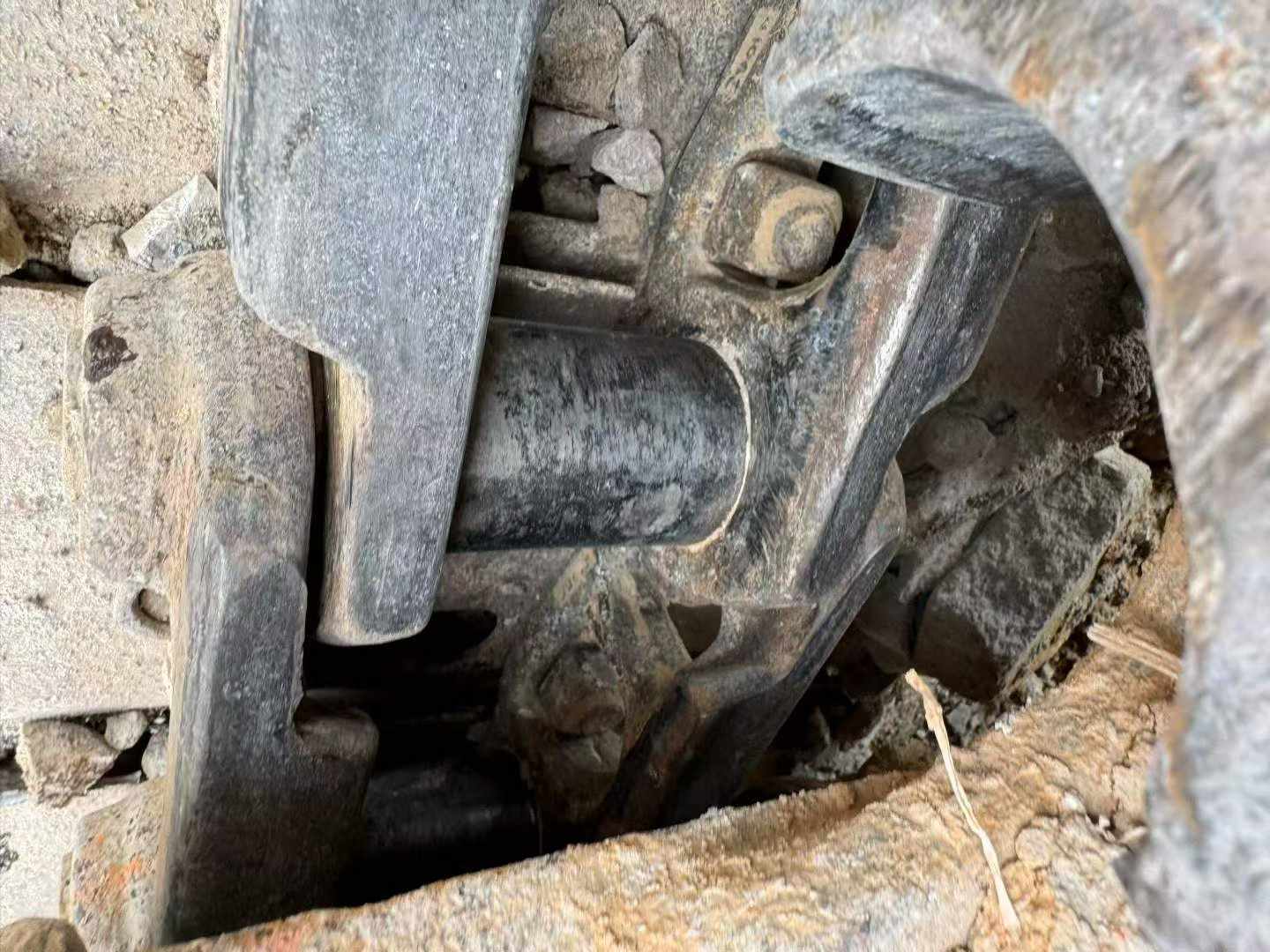

Buy Sany SY195C-9 Used Excavator / 6

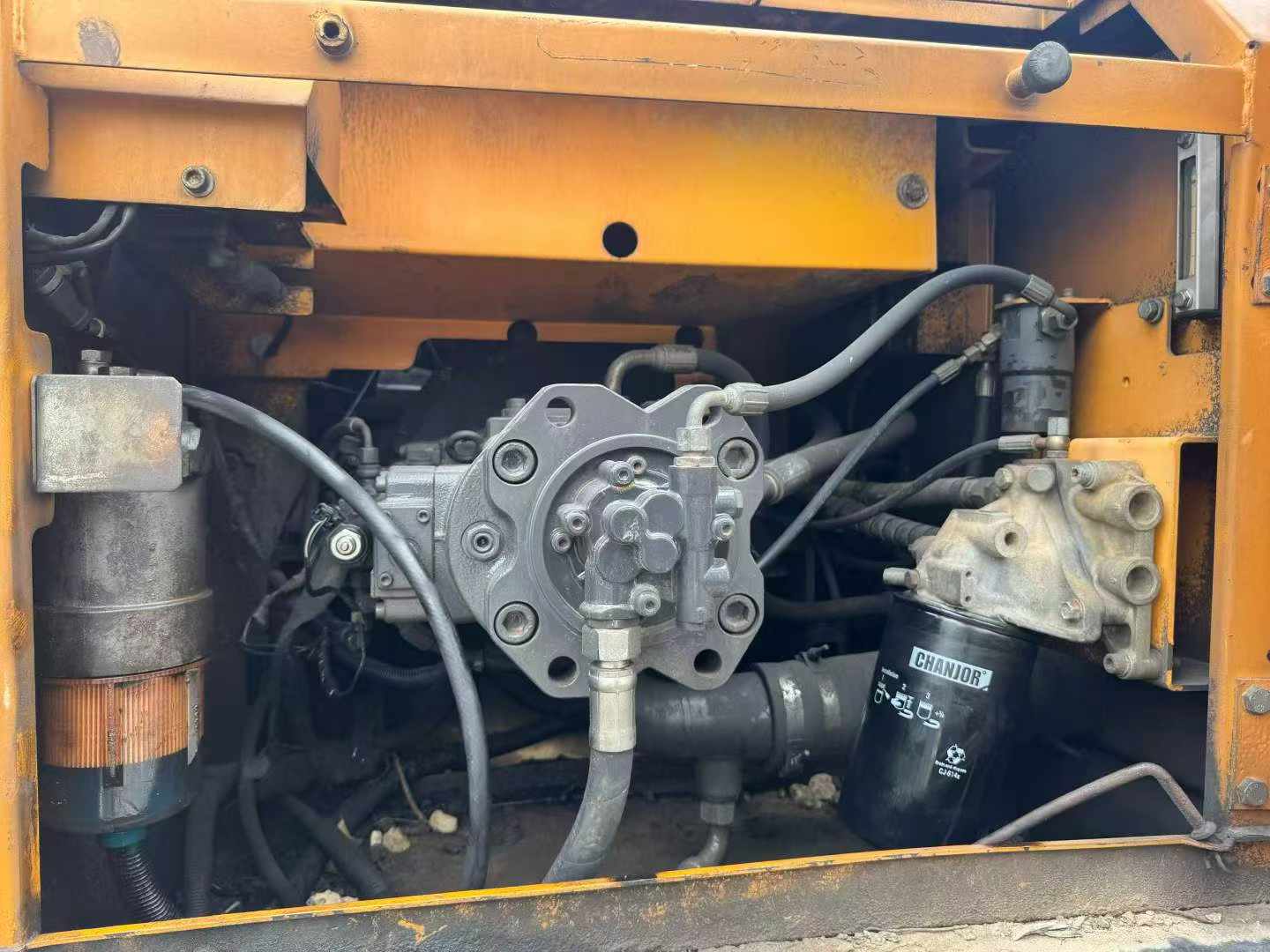

Buy Sany SY195C-9 Used Excavator / 7

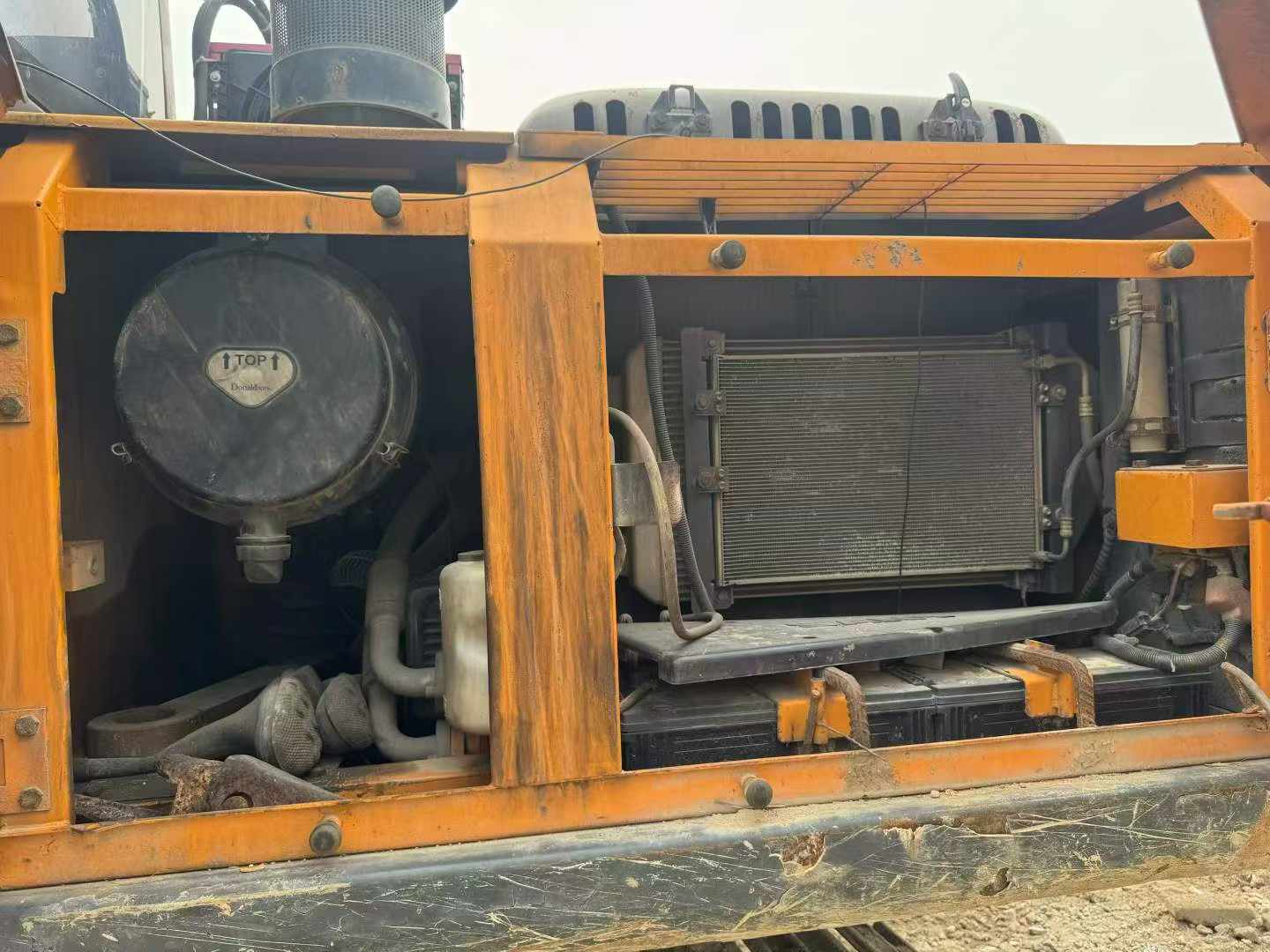

Buy Sany SY195C-9 Used Excavator / 8

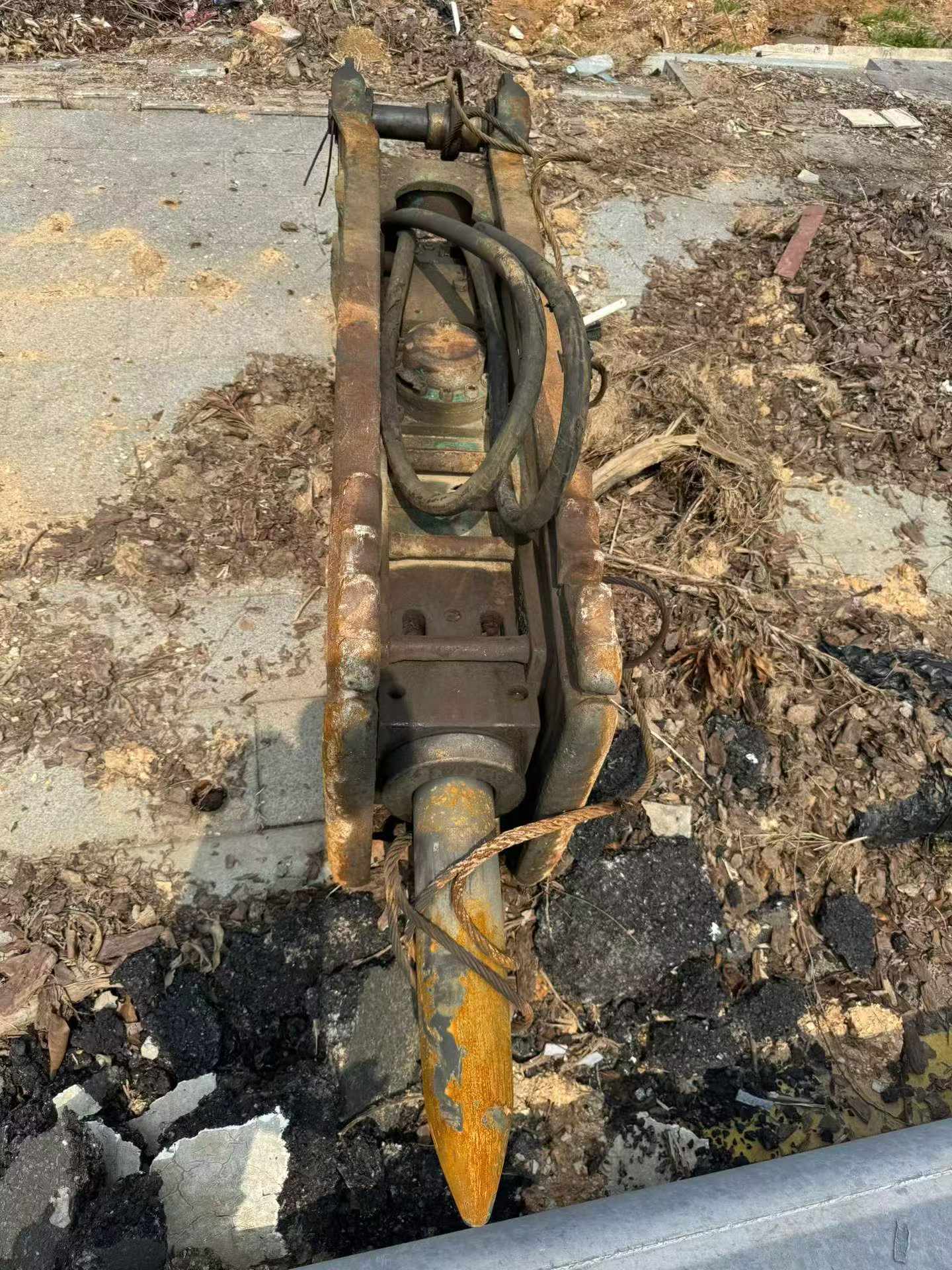

Buy Sany SY195C-9 Used Excavator / 9

Product Description

This 2020 Sany SY195C-9 excavator represents proven reliability in the mid-size excavator segment. Sourced from Guangdong, China, this machine features the robust direct injection engine characteristic of Sany's 9-series platform, delivering consistent performance for demanding construction and demolition applications.

Key highlights:

  • Factory-equipped hydraulic breaker attachment for versatile demolition work
  • Direct injection diesel engine for improved fuel efficiency
  • Field-tested on active construction sites
  • Operating weight class suitable for urban and infrastructure projects
  • Sany's established parts and service network support

The SY195C-9 offers contractors a cost-effective solution with the hydraulic breaker package already integrated. This configuration is ready for immediate deployment in demolition, trenching, and general excavation work. Available for inspection in Guangdong province.

SpecificationsValue
No.1149247
Tonnage (tons)20
Working weight (kg)20700
Bucket capacity (m³)0.83 (optional 0.7~1.0)
Country of originShanghai
powerTraditional power
manufacturerMade in China
bucketbackhoe
Engine typeSANY D06S2
Rated power (kw/rpm)114/2050
Cooling modewater-cooling
Number of cylinders (PCS)6-cylinder
Working formSix-cylinder four-stroke turbocharged direct injection engine
Ground specific pressure (Kpa)47.3
Rotation speed (rpm)11
Climbing ability (%)70/35 °
Bucket digging force (kN)135
Rod digging force (kN)109
Travel speed (km/h)5.4/3.3
Total transport length (mm)9560
Total transport width (mm)2800
Total transport height (mm)2955
Full cab height (mm)2990
Minimum ground clearance (mm)440
Minimum turning radius of front working device (mm)3755
Back end turning radius (mm)2890
Onboard width (mm)2710
Total track length (mm)4060
Track gauge (mm)2200
Track plate width (mm)600 (800/700 optional)
Total track width (mm)2800
Track ground length (mm)3260
Maximum digging radius (mm)9740
Maximum digging depth (mm)6410
Maximum excavation height (mm)9410
Maximum unloading height (mm)6490
Maximum vertical digging depth (mm)5790
see more

Overview

No.1149247

Brand Name:

Sany

Model Number:

SY195C-9

Year:

2020

Location:

Guangdong China

Pub Date:
