Product Description

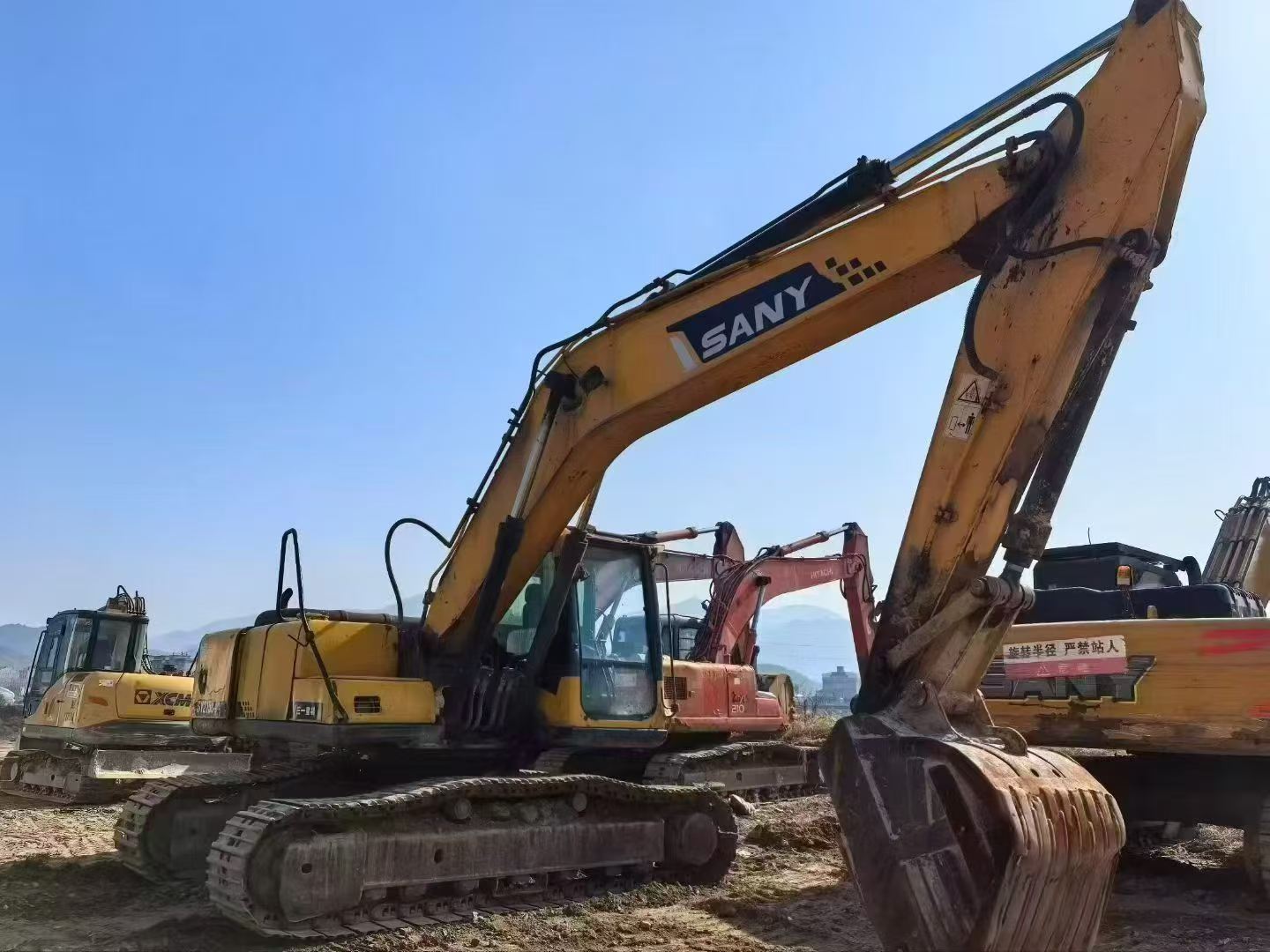

Expand your operational capacity with this 2012 Sany SY205C excavator, a proven 20-ton workhorse engineered for demanding construction and earthmoving applications. Powered by a robust 118kW engine delivering 138kN bucket digging force and 109kN arm digging force, this machine tackles heavy excavation tasks with consistent reliability. Its 10,280mm maximum digging radius and 6,600mm maximum digging depth provide the reach and versatility busy contractors need when primary equipment is deployed elsewhere.
Key Specifications:
- Operating weight: 21,500kg with 0.9-1.1m³ bucket capacity
- Powerful digging performance: 138kN bucket force, 109kN arm force
- Efficient mobility: 5.4km/h travel speed, 2,900mm tail swing radius
- Excellent stability: 47.3kPa ground pressure, 70% grading ability
- Compact transport dimensions: 9,680mm length × 2,980mm width
- Currently located in Hunan, China—ready for global shipping
Perfect as a backup unit or fleet expansion piece, this SY205C minimizes downtime risks while maintaining productivity across multiple job sites. Contact Fair Trade Machinery today for detailed inspection reports and competitive export pricing.<
| Specifications | Value |
|---|---|
| No. | 1025025 |
| Tonnage (tons) | 20 |
| Working weight (kg) | 21500 |
| Bucket capacity (m³) | 0.9~1.1(1.0) |
| power | Traditional power |
| manufacturer | Made in China |
| bucket | backhoe |
| Rated power (kw/rpm) | 118/2000 |
| Ground specific pressure (Kpa) | 47.3 |
| Rotation speed (rpm) | 11 |
| Climbing ability (%) | 70% / 35 ° |
| Bucket digging force (kN) | 138 |
| Rod digging force (kN) | 109 |
| Travel speed (km/h) | 5.4/3.3 |
| Total transport length (mm) | 9680 |
| Total transport width (mm) | 2980 |
| Total transport height (mm) | 3440 |
| Full cab height (mm) | 3075 |
| Minimum ground clearance (mm) | 440 |
| Minimum turning radius of front working device (mm) | 3730 |
| Back end turning radius (mm) | 2900 |
| Onboard width (mm) | 2875 |
| Total track length (mm) | 4160 |
| Track gauge (mm) | 2380 |
| Track plate width (mm) | 600 |
| Track ground length (mm) | 3360 |
| Maximum height at minimum turning radius (mm) | 7680 |
| Maximum digging radius (mm) | 10280 |
| Maximum digging depth (mm) | 6600 |
| Maximum excavation height (mm) | 9600 |
| Maximum unloading height (mm) | 6730 |
