Product Description

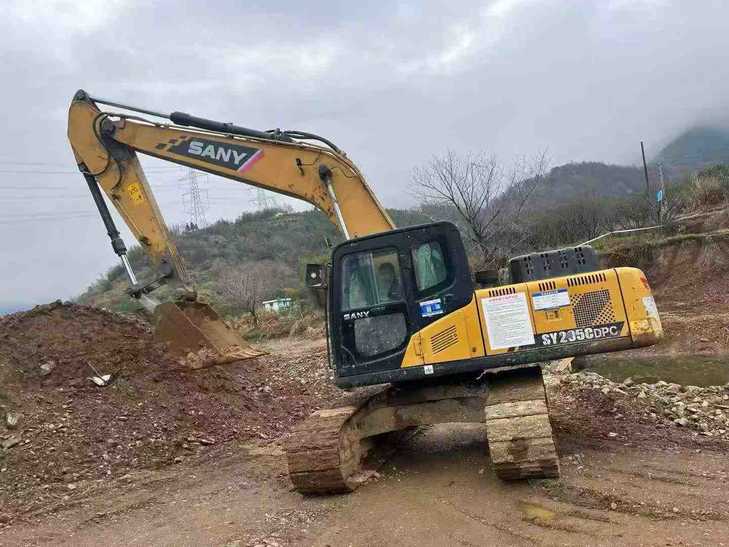

Proven in the field since 2016, this Sany SY205C excavator delivers reliable 20-ton performance backed by years of operational history. With 118kW of rated power and a robust 21,500kg working weight, this machine has demonstrated the durability that keeps projects moving forward. The 0.9-1.1m³ bucket capacity and 138kN digging force handle demanding excavation work, while the 10,280mm maximum digging radius provides extensive reach for varied applications.
Built for longevity, key specifications include:
- Maximum digging depth: 6,600mm for deep foundation work
- Travel speed: 5.4km/h for efficient site mobility
- Climbing ability: 70% gradient capability on challenging terrain
- Ground clearance: 440mm for obstacle navigation
- Rotation speed: 11rpm for productive cycle times
Currently located in Zhejiang, this workhorse excavator represents proven Chinese manufacturing quality. Its track record speaks to the engineering standards that make Sany equipment a dependable choice for contractors requiring consistent performance without compromise.
| Specifications | Value |
|---|---|
| No. | 1020952 |
| Tonnage (tons) | 20 |
| Working weight (kg) | 21500 |
| Bucket capacity (m³) | 0.9~1.1(1.0) |
| power | Traditional power |
| manufacturer | Made in China |
| bucket | backhoe |
| Rated power (kw/rpm) | 118/2000 |
| Ground specific pressure (Kpa) | 47.3 |
| Rotation speed (rpm) | 11 |
| Climbing ability (%) | 70% / 35 ° |
| Bucket digging force (kN) | 138 |
| Rod digging force (kN) | 109 |
| Travel speed (km/h) | 5.4/3.3 |
| Total transport length (mm) | 9680 |
| Total transport width (mm) | 2980 |
| Total transport height (mm) | 3440 |
| Full cab height (mm) | 3075 |
| Minimum ground clearance (mm) | 440 |
| Minimum turning radius of front working device (mm) | 3730 |
| Back end turning radius (mm) | 2900 |
| Onboard width (mm) | 2875 |
| Total track length (mm) | 4160 |
| Track gauge (mm) | 2380 |
| Track plate width (mm) | 600 |
| Track ground length (mm) | 3360 |
| Maximum height at minimum turning radius (mm) | 7680 |
| Maximum digging radius (mm) | 10280 |
| Maximum digging depth (mm) | 6600 |
| Maximum excavation height (mm) | 9600 |
| Maximum unloading height (mm) | 6730 |
