Product Description

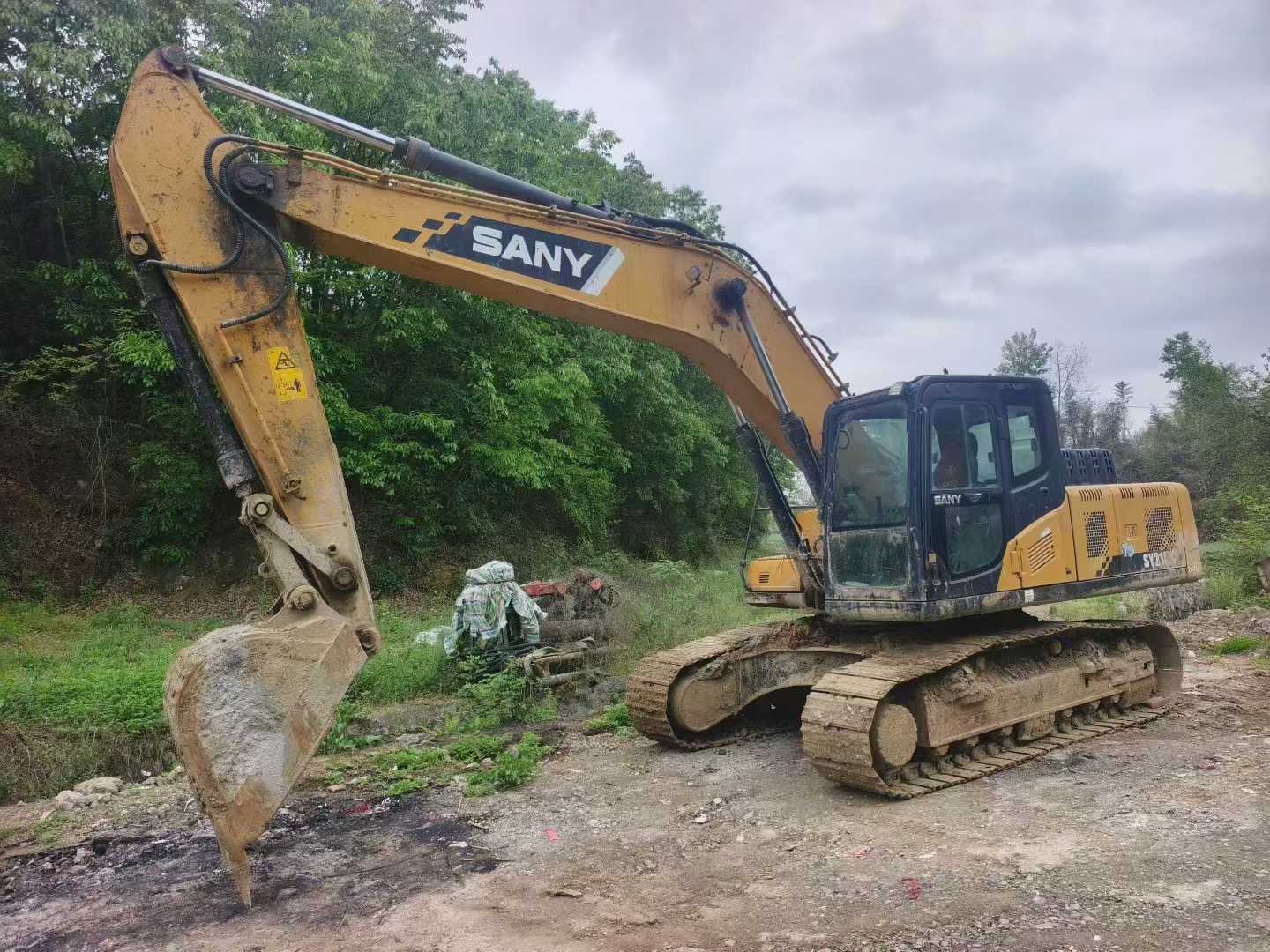

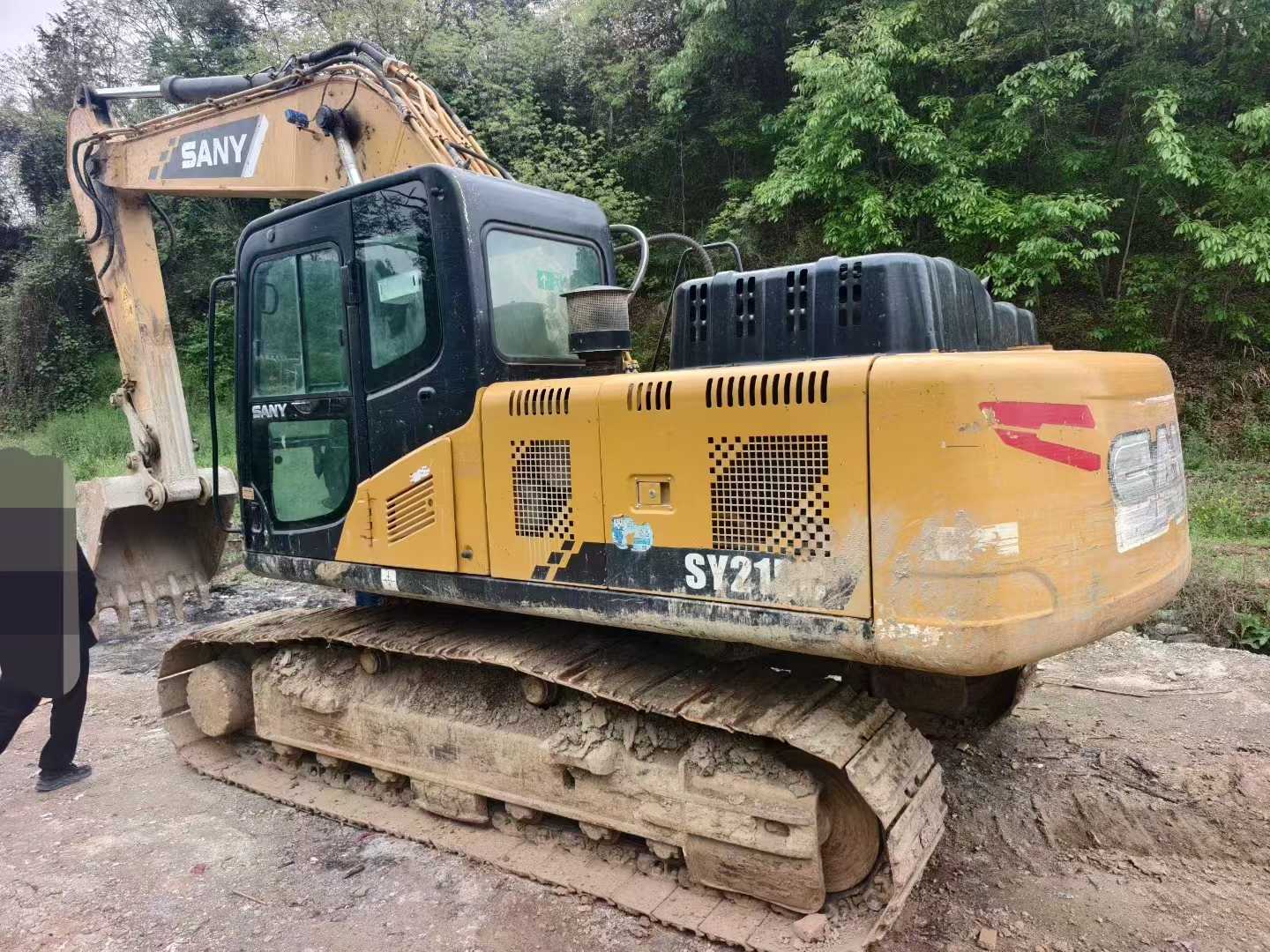

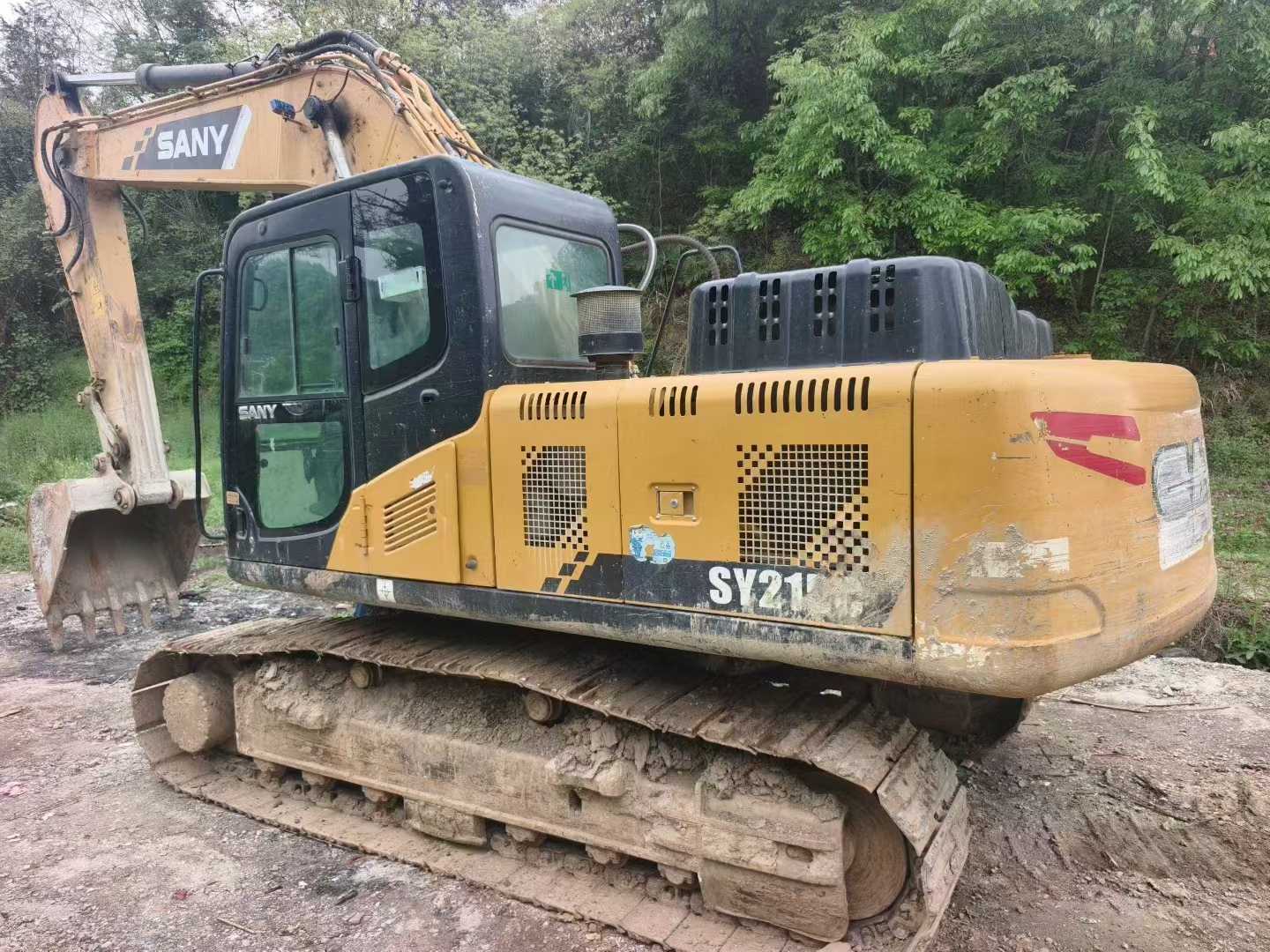

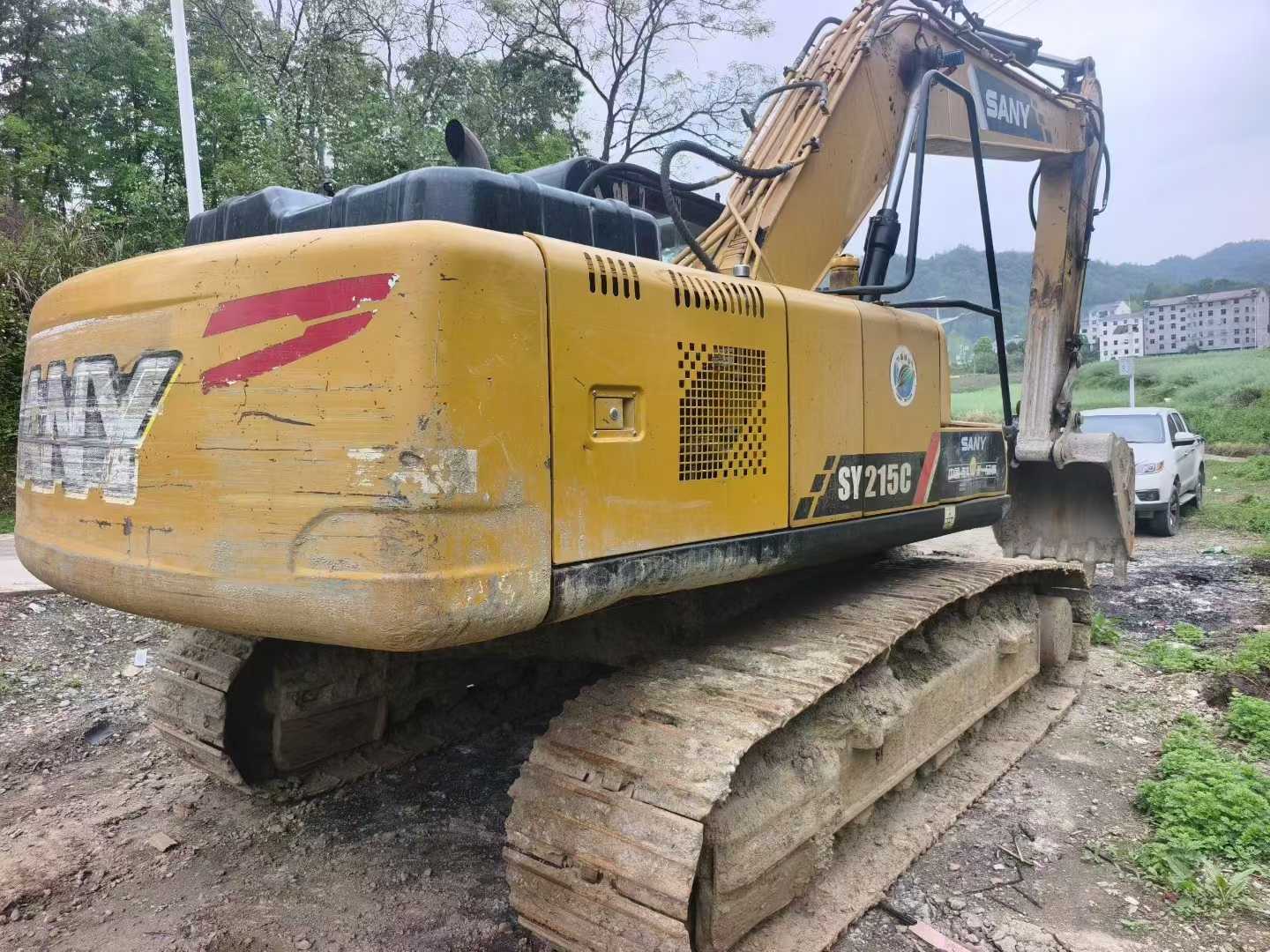

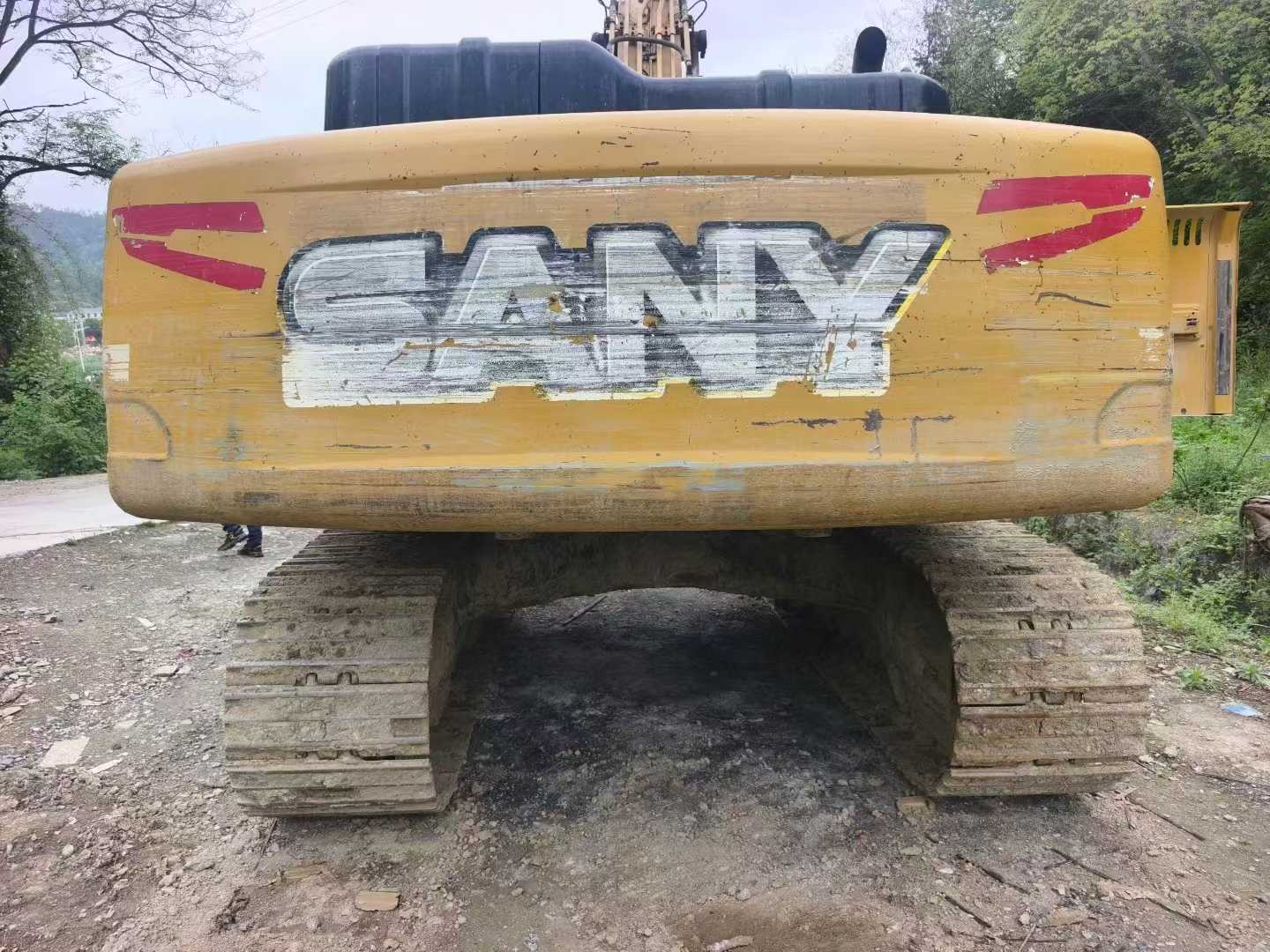

With a 20-ton working weight and a bucket capacity of 0.9 to 1.1 cubic meters, the Sany SY205C excavator from 2019 is a reliable choice for demanding construction projects. Made in China, this model offers robust performance with a rated power of 118 kW at 2000 rpm. Its climbing ability of 70% or 35° ensures it can handle steep terrains, while the 5.4 km/h travel speed provides efficient movement on site.
- Parts availability: Sany's global network ensures easy access to replacement parts, reducing downtime.
- Resale value: Known for retaining its value, the SY205C is a solid investment for long-term use.
- Bucket digging force: 138 kN, ensuring powerful and efficient excavation.
- Total transport dimensions: 9680 mm (length) x 2980 mm (width) x 3440 mm (height), making it suitable for various job sites.
| Specifications | Value |
|---|---|
| No. | 1056918 |
| Tonnage (tons) | 20 |
| Working weight (kg) | 21500 |
| Bucket capacity (m³) | 0.9~1.1(1.0) |
| power | Traditional power |
| manufacturer | Made in China |
| bucket | backhoe |
| Rated power (kw/rpm) | 118/2000 |
| Ground specific pressure (Kpa) | 47.3 |
| Rotation speed (rpm) | 11 |
| Climbing ability (%) | 70% / 35 ° |
| Bucket digging force (kN) | 138 |
| Rod digging force (kN) | 109 |
| Travel speed (km/h) | 5.4/3.3 |
| Total transport length (mm) | 9680 |
| Total transport width (mm) | 2980 |
| Total transport height (mm) | 3440 |
| Full cab height (mm) | 3075 |
| Minimum ground clearance (mm) | 440 |
| Minimum turning radius of front working device (mm) | 3730 |
| Back end turning radius (mm) | 2900 |
| Onboard width (mm) | 2875 |
| Total track length (mm) | 4160 |
| Track gauge (mm) | 2380 |
| Track plate width (mm) | 600 |
| Track ground length (mm) | 3360 |
| Maximum height at minimum turning radius (mm) | 7680 |
| Maximum digging radius (mm) | 10280 |
| Maximum digging depth (mm) | 6600 |
| Maximum excavation height (mm) | 9600 |
| Maximum unloading height (mm) | 6730 |
