Product Description

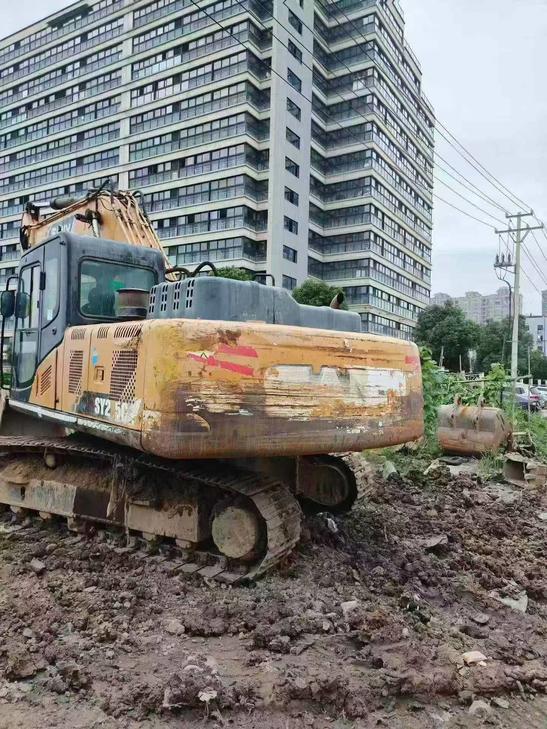

This 2019 Sany SY205C excavator offers proven performance for construction and earthmoving operations. Currently located in Zhejiang, China, this machine represents solid value in the 20-ton class excavator segment. The SY205C is known for its reliable hydraulic system and fuel-efficient engine, making it suitable for a range of applications including site preparation, trenching, and material handling.
- Year of Manufacture: 2019
- Model: Sany SY205C
- Location: Zhejiang, China
- Documentation: Photos and video available upon request
This unit is ready for inspection. The Sany SY205C series has established itself as a dependable workhorse in markets worldwide, offering operators straightforward controls and accessible maintenance points. Contact us to arrange a viewing or to discuss shipping options to your location.
| Specifications | Value |
|---|---|
| No. | 1145420 |
| Tonnage (tons) | 20 |
| Working weight (kg) | 21500 |
| Bucket capacity (m³) | 0.9~1.1(1.0) |
| power | Traditional power |
| manufacturer | Made in China |
| bucket | backhoe |
| Rated power (kw/rpm) | 118/2000 |
| Ground specific pressure (Kpa) | 47.3 |
| Rotation speed (rpm) | 11 |
| Climbing ability (%) | 70% / 35 ° |
| Bucket digging force (kN) | 138 |
| Rod digging force (kN) | 109 |
| Travel speed (km/h) | 5.4/3.3 |
| Total transport length (mm) | 9680 |
| Total transport width (mm) | 2980 |
| Total transport height (mm) | 3440 |
| Full cab height (mm) | 3075 |
| Minimum ground clearance (mm) | 440 |
| Minimum turning radius of front working device (mm) | 3730 |
| Back end turning radius (mm) | 2900 |
| Onboard width (mm) | 2875 |
| Total track length (mm) | 4160 |
| Track gauge (mm) | 2380 |
| Track plate width (mm) | 600 |
| Track ground length (mm) | 3360 |
| Maximum height at minimum turning radius (mm) | 7680 |
| Maximum digging radius (mm) | 10280 |
| Maximum digging depth (mm) | 6600 |
| Maximum excavation height (mm) | 9600 |
| Maximum unloading height (mm) | 6730 |
