Product Description

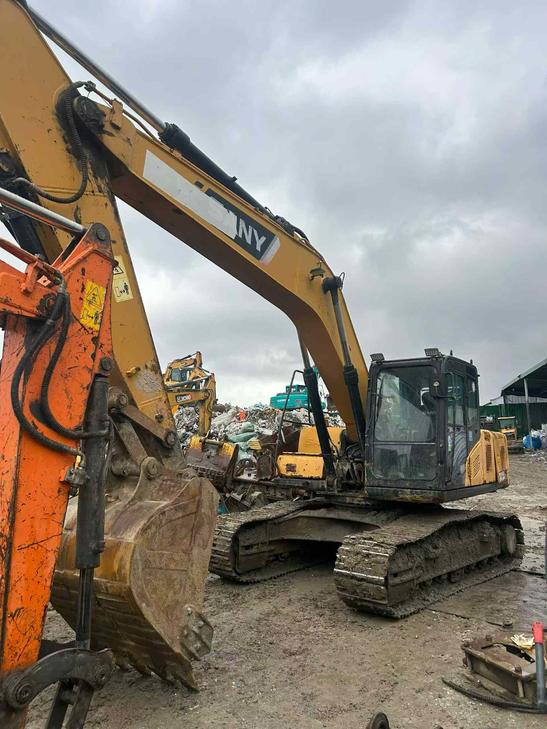

Available now in Shanghai, this 2020 Sany SY205C excavator eliminates factory wait times and delivers immediate productivity to your jobsite. Built for 20-ton performance with a robust 118kW engine, this machine combines proven reliability with fast deployment logistics. Skip the months-long lead times—this unit is inspection-ready and positioned for rapid delivery across Asia-Pacific markets.
- Operating Weight: 21,500 kg with 0.9-1.1 m³ bucket capacity
- Power Output: 118 kW at 2,000 rpm for consistent digging force
- Reach & Depth: 10,280 mm max digging radius, 6,600 mm depth
- Mobility: 70% grading ability, 5.4 km/h travel speed
- Digging Force: 138 kN bucket force, 109 kN stick force
- Transport Dimensions: 9,680 × 2,980 × 3,440 mm
Manufactured in China with Sany's quality standards, this backhoe-configured excavator is ready for infrastructure, demolition, or earthmoving applications. Secure your equipment today and avoid production delays—contact Fair Trade Machinery for immediate availability and shipping solutions from Shanghai.
| Specifications | Value |
|---|---|
| No. | 1021807 |
| Tonnage (tons) | 20 |
| Working weight (kg) | 21500 |
| Bucket capacity (m³) | 0.9~1.1(1.0) |
| power | Traditional power |
| manufacturer | Made in China |
| bucket | backhoe |
| Rated power (kw/rpm) | 118/2000 |
| Ground specific pressure (Kpa) | 47.3 |
| Rotation speed (rpm) | 11 |
| Climbing ability (%) | 70% / 35 ° |
| Bucket digging force (kN) | 138 |
| Rod digging force (kN) | 109 |
| Travel speed (km/h) | 5.4/3.3 |
| Total transport length (mm) | 9680 |
| Total transport width (mm) | 2980 |
| Total transport height (mm) | 3440 |
| Full cab height (mm) | 3075 |
| Minimum ground clearance (mm) | 440 |
| Minimum turning radius of front working device (mm) | 3730 |
| Back end turning radius (mm) | 2900 |
| Onboard width (mm) | 2875 |
| Total track length (mm) | 4160 |
| Track gauge (mm) | 2380 |
| Track plate width (mm) | 600 |
| Track ground length (mm) | 3360 |
| Maximum height at minimum turning radius (mm) | 7680 |
| Maximum digging radius (mm) | 10280 |
| Maximum digging depth (mm) | 6600 |
| Maximum excavation height (mm) | 9600 |
| Maximum unloading height (mm) | 6730 |
