Product Description

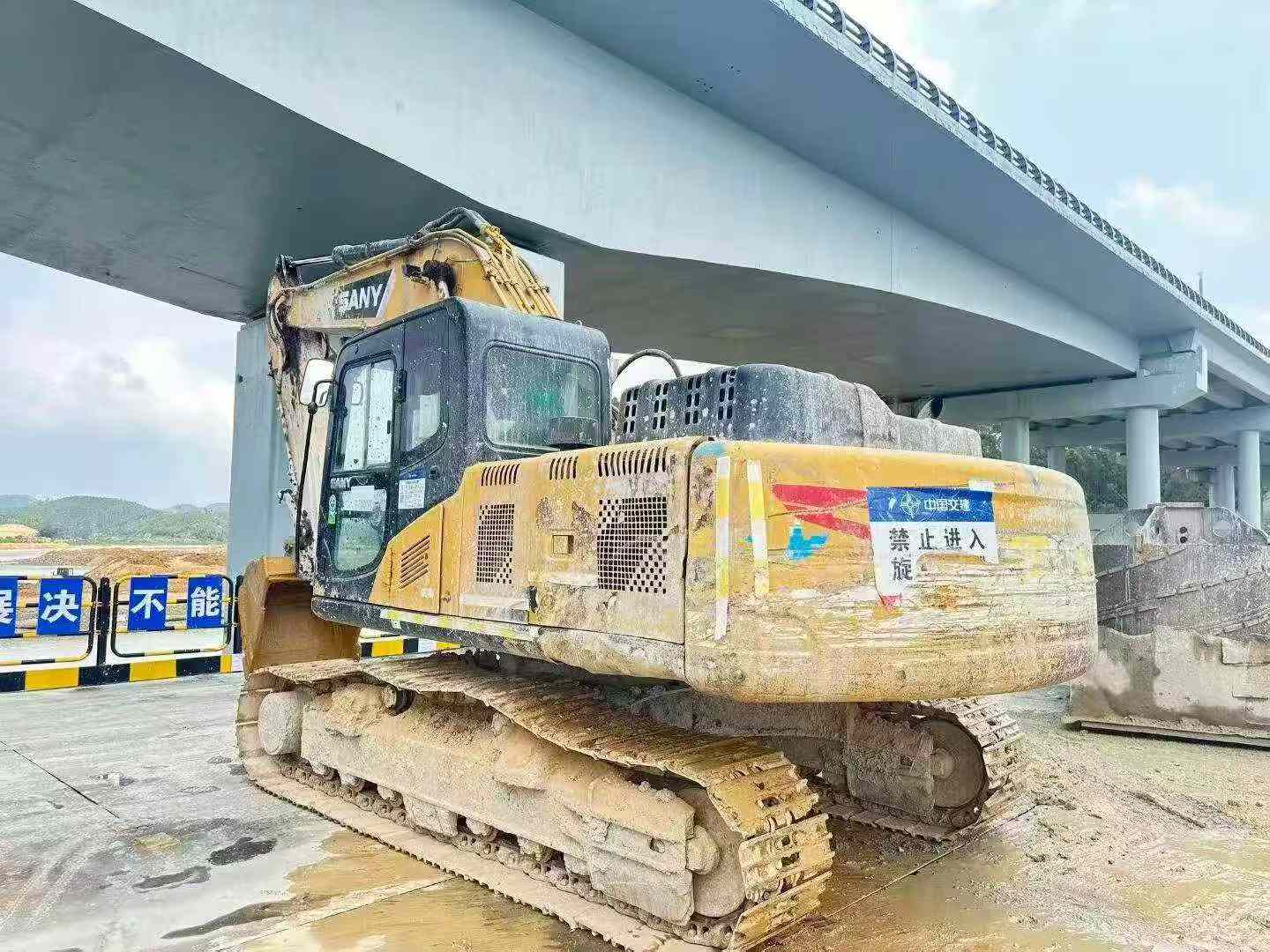

This 2020 Sany SY205C excavator offers reliable performance for construction and earthmoving applications. Located in Sichuan, China, this mid-size crawler excavator comes from Sany's proven SY-C series, known for balanced power and fuel efficiency in its class.
The SY205C features a robust undercarriage designed for stability on varied terrain, along with a spacious operator cabin that enhances visibility and comfort during extended shifts. Its hydraulic system delivers consistent digging force and smooth operation across multiple job site conditions.
Key highlights include:
- 2020 model year with documented service history
- Standard bucket and boom configuration
- Suitable for excavation, trenching, and material handling
- Currently located in Sichuan, China
- Competitive pricing for immediate deployment
This unit represents a cost-effective solution for contractors seeking dependable equipment with established OEM support throughout the region.
| Specifications | Value |
|---|---|
| No. | 1142119 |
| Tonnage (tons) | 20 |
| Working weight (kg) | 21500 |
| Bucket capacity (m³) | 0.9~1.1(1.0) |
| power | Traditional power |
| manufacturer | Made in China |
| bucket | backhoe |
| Rated power (kw/rpm) | 118/2000 |
| Ground specific pressure (Kpa) | 47.3 |
| Rotation speed (rpm) | 11 |
| Climbing ability (%) | 70% / 35 ° |
| Bucket digging force (kN) | 138 |
| Rod digging force (kN) | 109 |
| Travel speed (km/h) | 5.4/3.3 |
| Total transport length (mm) | 9680 |
| Total transport width (mm) | 2980 |
| Total transport height (mm) | 3440 |
| Full cab height (mm) | 3075 |
| Minimum ground clearance (mm) | 440 |
| Minimum turning radius of front working device (mm) | 3730 |
| Back end turning radius (mm) | 2900 |
| Onboard width (mm) | 2875 |
| Total track length (mm) | 4160 |
| Track gauge (mm) | 2380 |
| Track plate width (mm) | 600 |
| Track ground length (mm) | 3360 |
| Maximum height at minimum turning radius (mm) | 7680 |
| Maximum digging radius (mm) | 10280 |
| Maximum digging depth (mm) | 6600 |
| Maximum excavation height (mm) | 9600 |
| Maximum unloading height (mm) | 6730 |
