Product Description

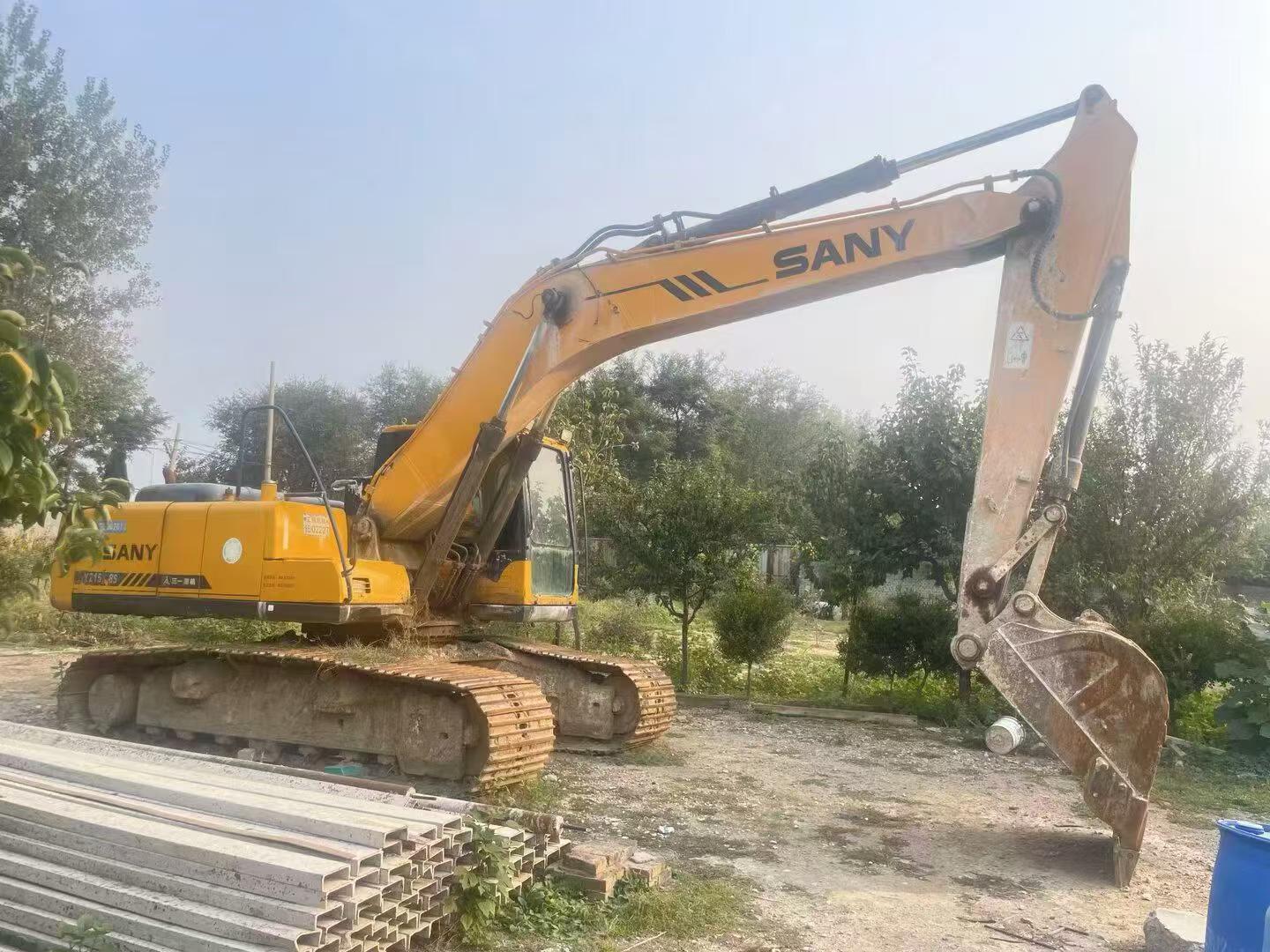

This 2020 Sany SY205C excavator represents a solid mid-sized solution for contractors and earthmoving operations. With approximately 20-ton operating weight, this model delivers reliable performance across construction, demolition, and material handling applications. Currently located in Shandong, China, this machine offers proven Chinese engineering at competitive value.
The SY205C features Sany's focus on operator comfort and serviceability. Key attributes include:
- Hydraulic system designed for precise control and fuel efficiency
- Spacious cab with ergonomic controls
- Durable undercarriage suited for varied terrain
- Accessible maintenance points for reduced downtime
- Established parts availability through Sany's distribution network
Ideal for general excavation, trenching, and site development work, this used excavator provides cost-effective productivity for operations seeking dependable equipment with manageable ownership costs.
| Specifications | Value |
|---|---|
| No. | 1163122 |
| Tonnage (tons) | 20 |
| Working weight (kg) | 21500 |
| Bucket capacity (m³) | 0.9~1.1(1.0) |
| power | Traditional power |
| manufacturer | Made in China |
| bucket | backhoe |
| Rated power (kw/rpm) | 118/2000 |
| Ground specific pressure (Kpa) | 47.3 |
| Rotation speed (rpm) | 11 |
| Climbing ability (%) | 70% / 35 ° |
| Bucket digging force (kN) | 138 |
| Rod digging force (kN) | 109 |
| Travel speed (km/h) | 5.4/3.3 |
| Total transport length (mm) | 9680 |
| Total transport width (mm) | 2980 |
| Total transport height (mm) | 3440 |
| Full cab height (mm) | 3075 |
| Minimum ground clearance (mm) | 440 |
| Minimum turning radius of front working device (mm) | 3730 |
| Back end turning radius (mm) | 2900 |
| Onboard width (mm) | 2875 |
| Total track length (mm) | 4160 |
| Track gauge (mm) | 2380 |
| Track plate width (mm) | 600 |
| Track ground length (mm) | 3360 |
| Maximum height at minimum turning radius (mm) | 7680 |
| Maximum digging radius (mm) | 10280 |
| Maximum digging depth (mm) | 6600 |
| Maximum excavation height (mm) | 9600 |
| Maximum unloading height (mm) | 6730 |
