Product Description

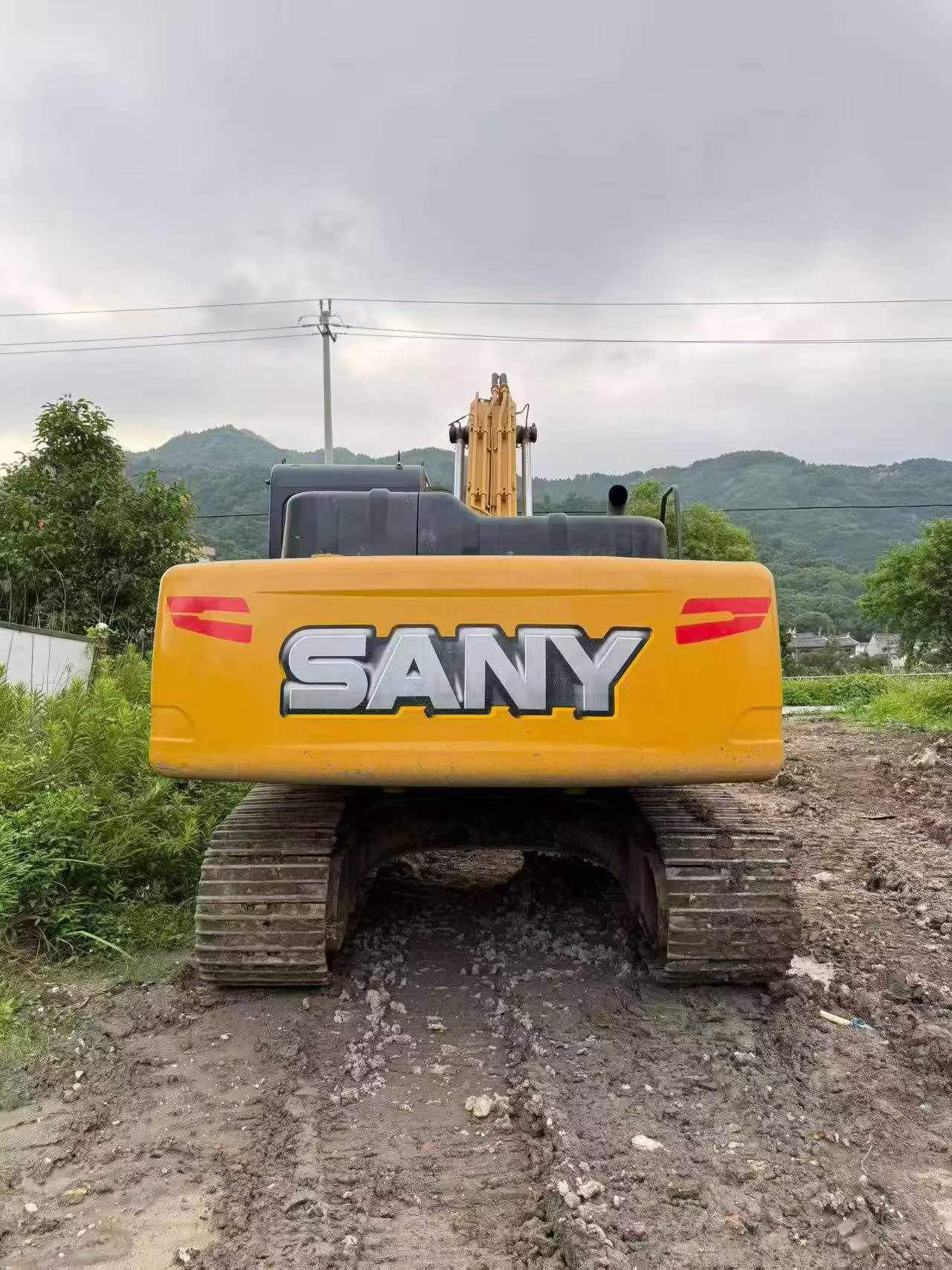

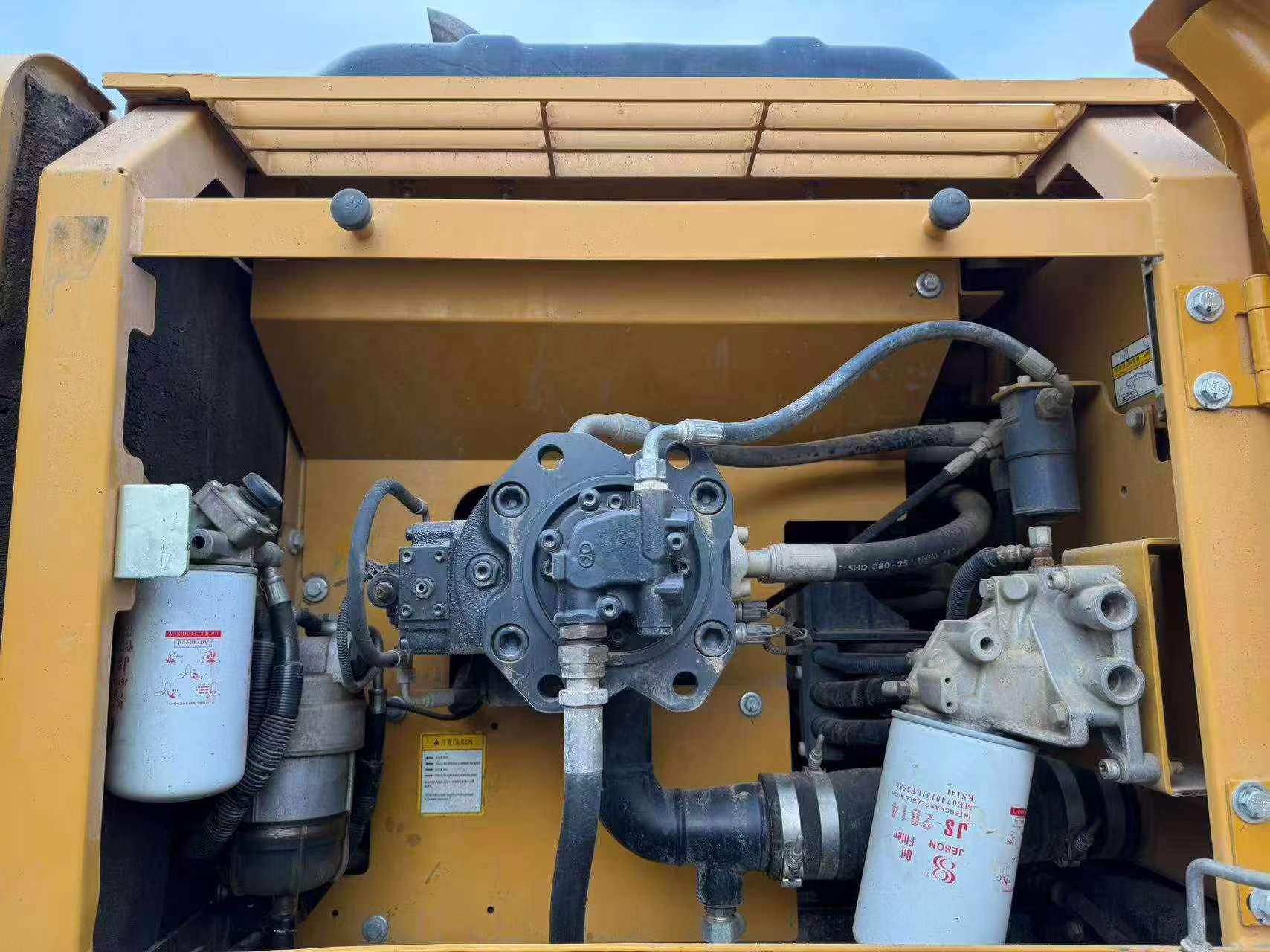

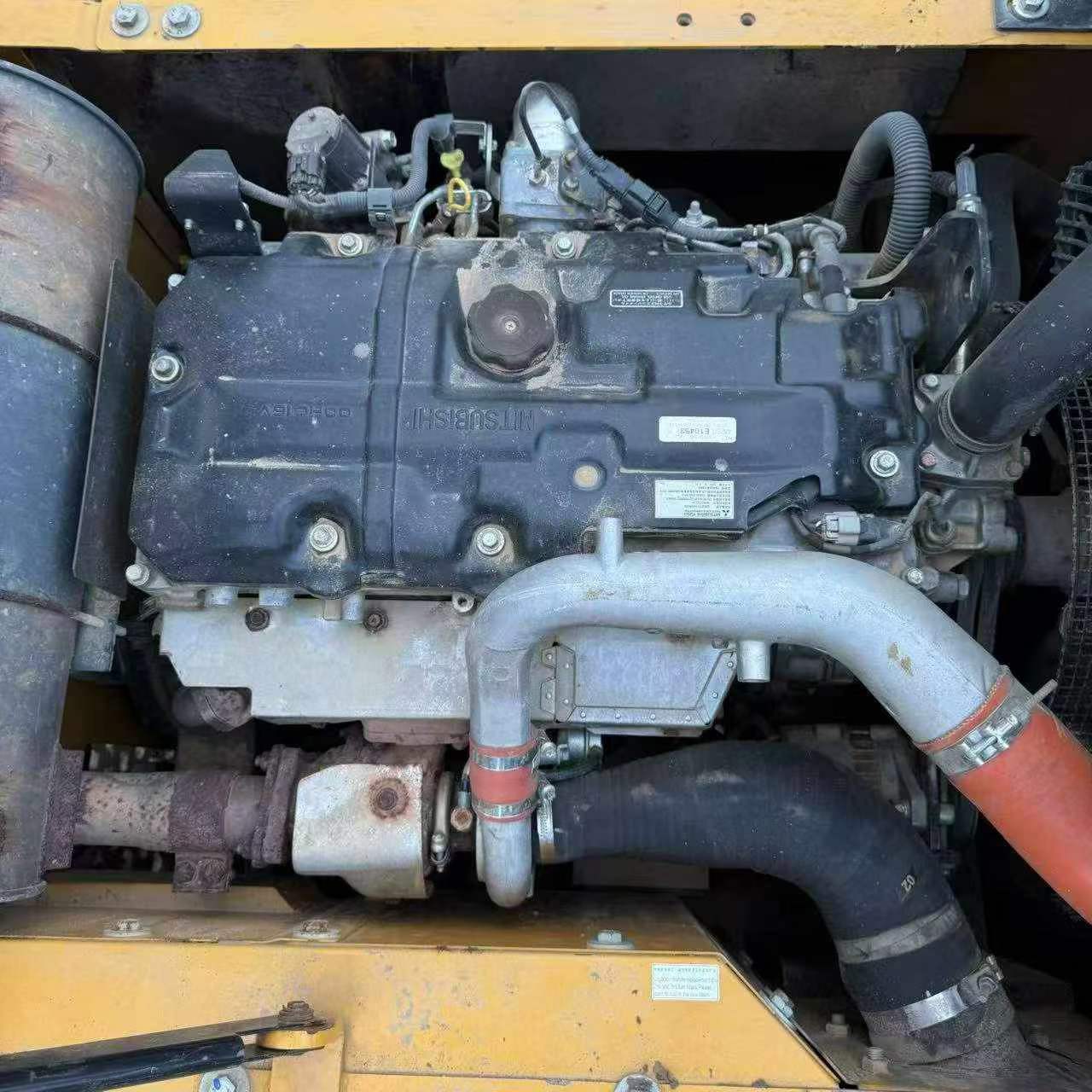

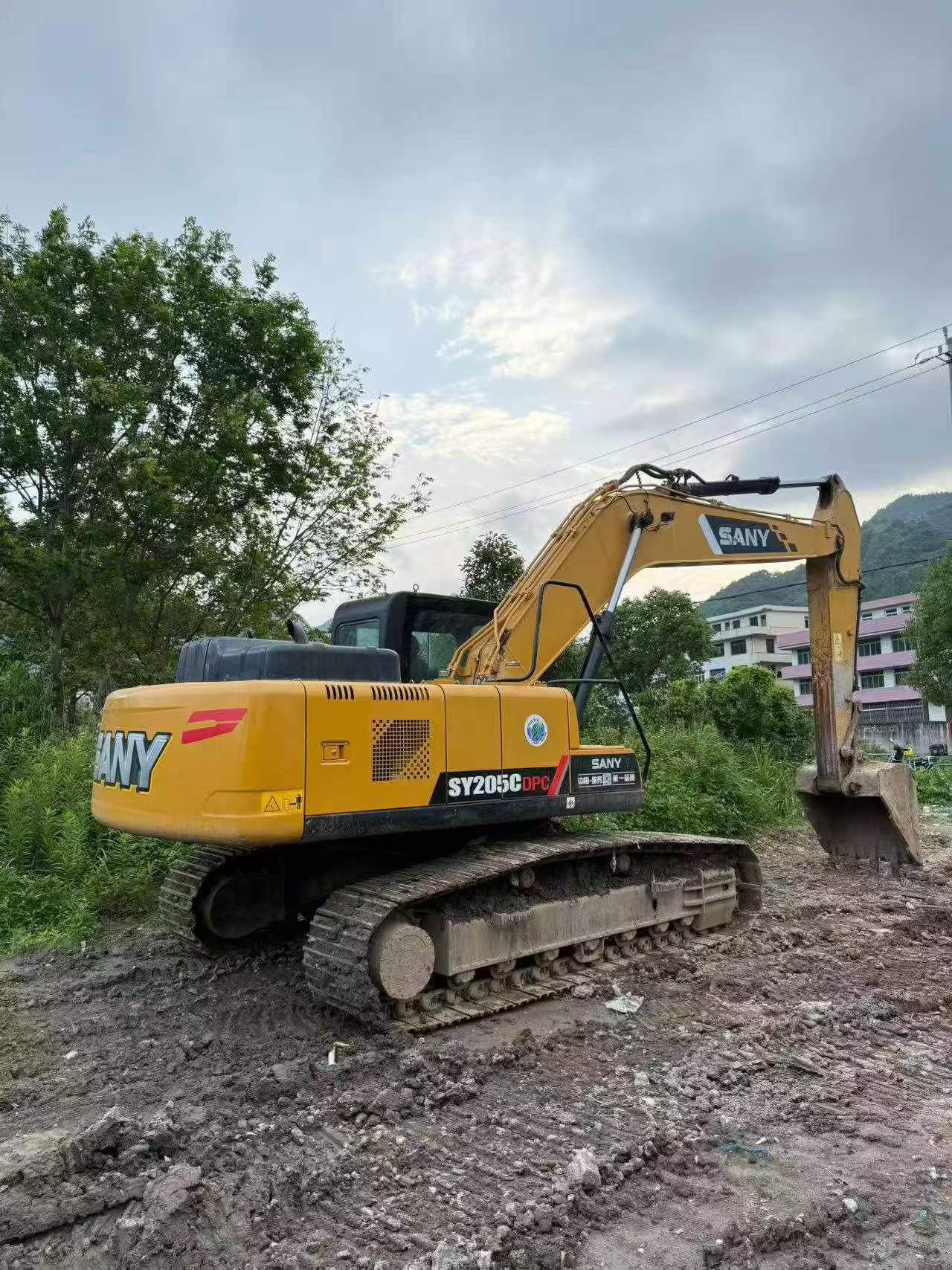

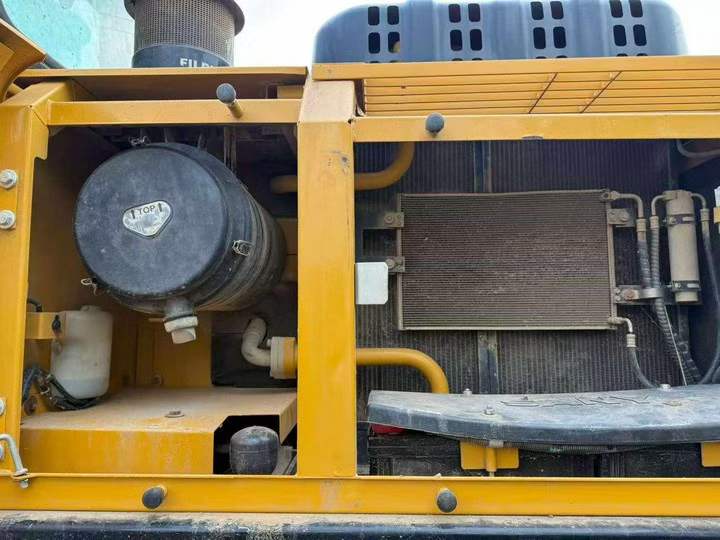

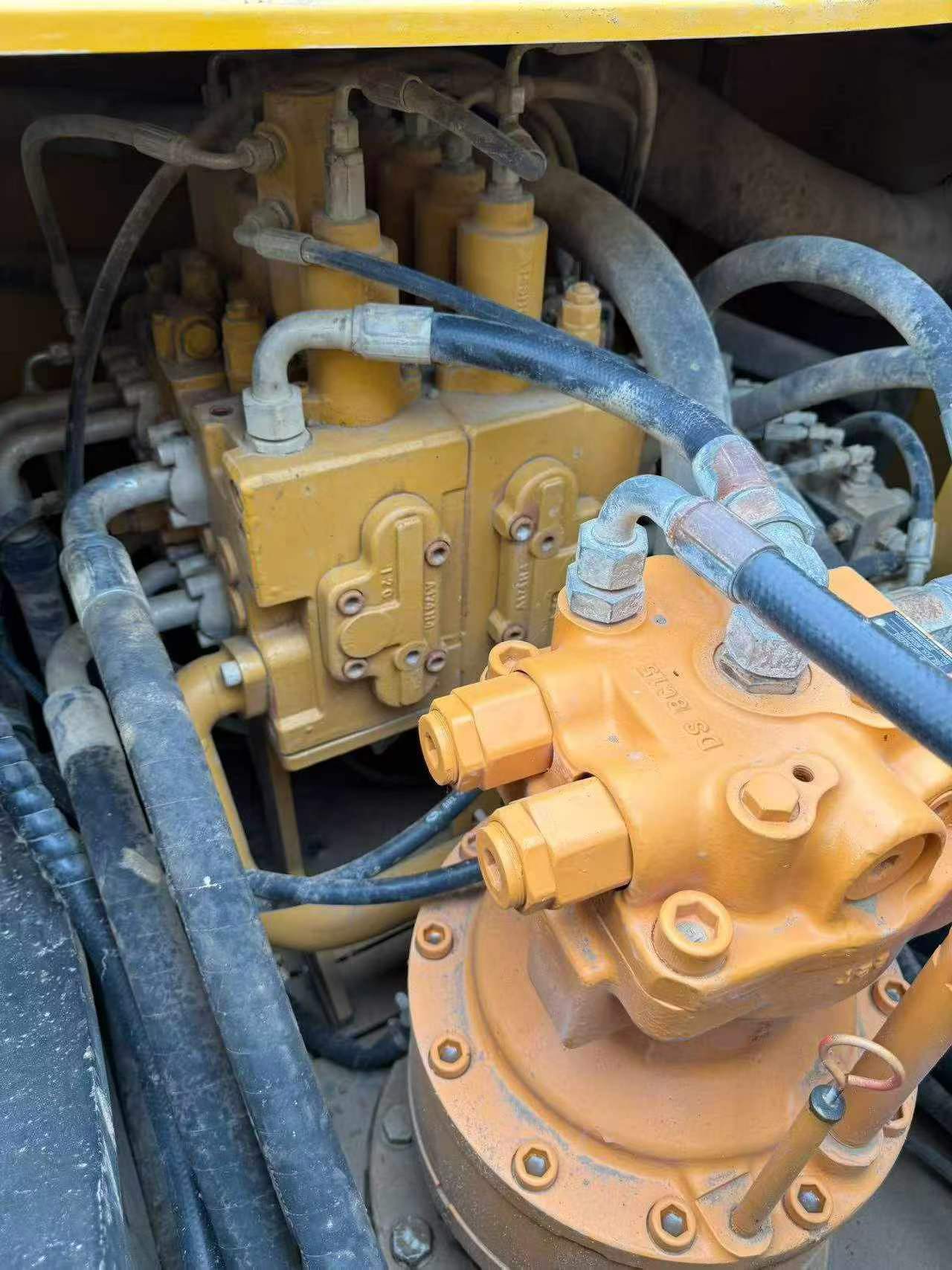

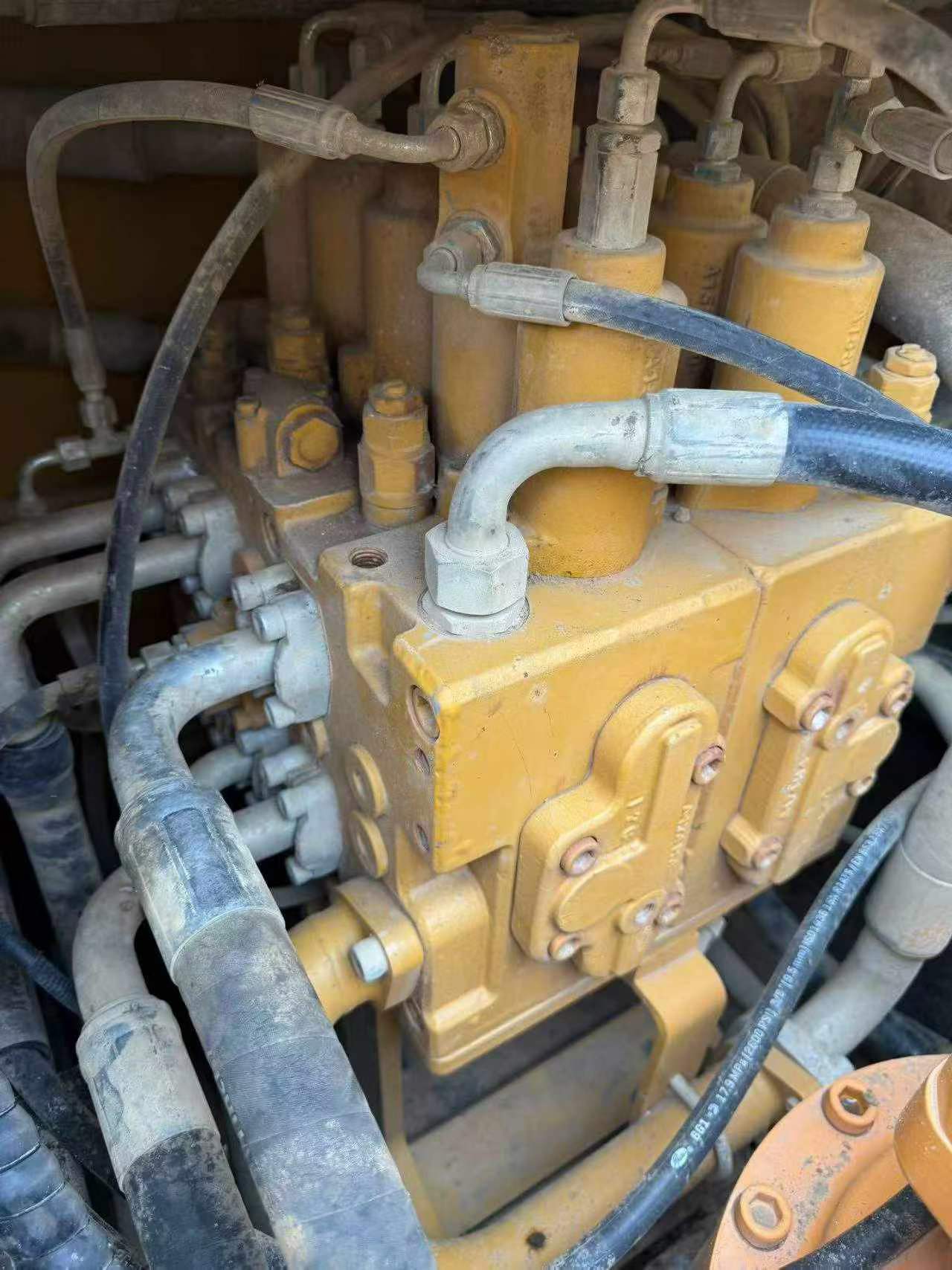

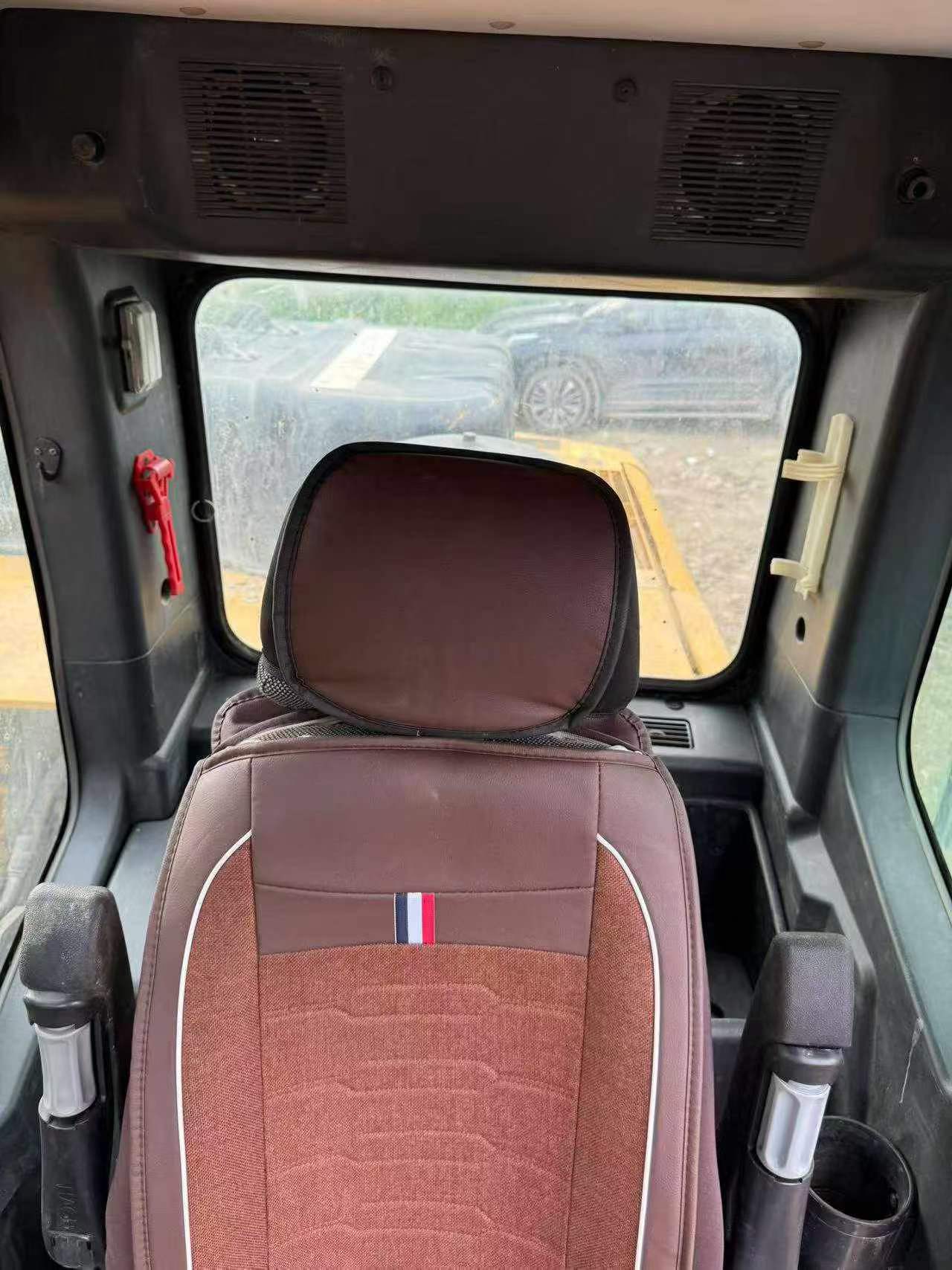

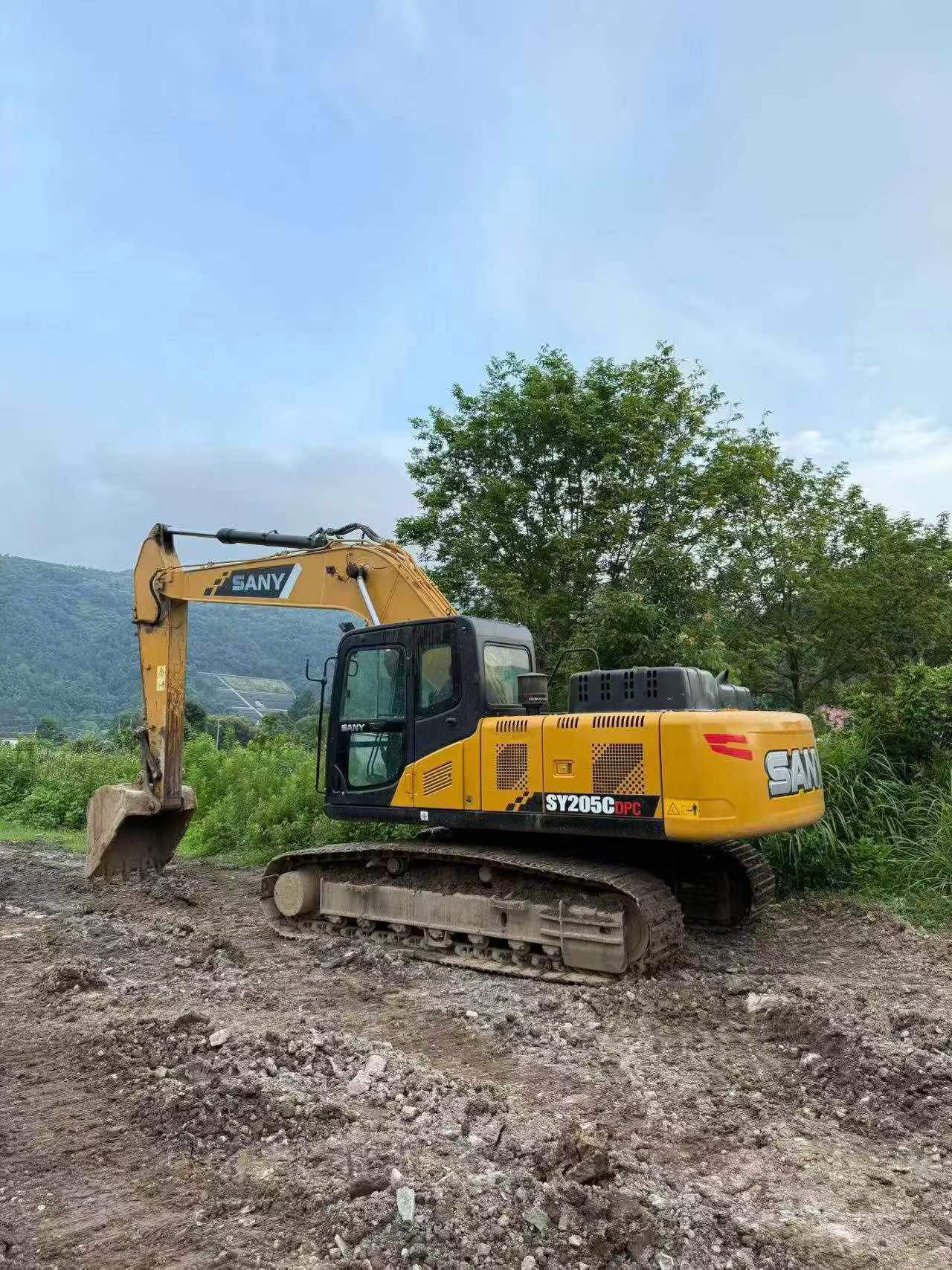

Discover the reliability and efficiency of the 2020 Sany SY205C, a robust excavator designed for demanding construction and excavation tasks. Located in Zhejiang, China, this machine is ready to enhance your project's productivity with its powerful performance and durable design. Ideal for medium to large-scale operations, the SY205C features a well-maintained engine and hydraulic system, ensuring optimal operation and minimal downtime. This model is known for its operator comfort and ease of maintenance, making it a preferred choice for professionals in the industry.
- Year: 2020
- Brand: Sany
- Model: SY205C
- Location: Zhejiang, China
| Specifications | Value |
|---|---|
| No. | 1165577 |
| Tonnage (tons) | 20 |
| Working weight (kg) | 21500 |
| Bucket capacity (m³) | 0.9~1.1(1.0) |
| power | Traditional power |
| manufacturer | Made in China |
| bucket | backhoe |
| Rated power (kw/rpm) | 118/2000 |
| Ground specific pressure (Kpa) | 47.3 |
| Rotation speed (rpm) | 11 |
| Climbing ability (%) | 70% / 35 ° |
| Bucket digging force (kN) | 138 |
| Rod digging force (kN) | 109 |
| Travel speed (km/h) | 5.4/3.3 |
| Total transport length (mm) | 9680 |
| Total transport width (mm) | 2980 |
| Total transport height (mm) | 3440 |
| Full cab height (mm) | 3075 |
| Minimum ground clearance (mm) | 440 |
| Minimum turning radius of front working device (mm) | 3730 |
| Back end turning radius (mm) | 2900 |
| Onboard width (mm) | 2875 |
| Total track length (mm) | 4160 |
| Track gauge (mm) | 2380 |
| Track plate width (mm) | 600 |
| Track ground length (mm) | 3360 |
| Maximum height at minimum turning radius (mm) | 7680 |
| Maximum digging radius (mm) | 10280 |
| Maximum digging depth (mm) | 6600 |
| Maximum excavation height (mm) | 9600 |
| Maximum unloading height (mm) | 6730 |
