Product Description

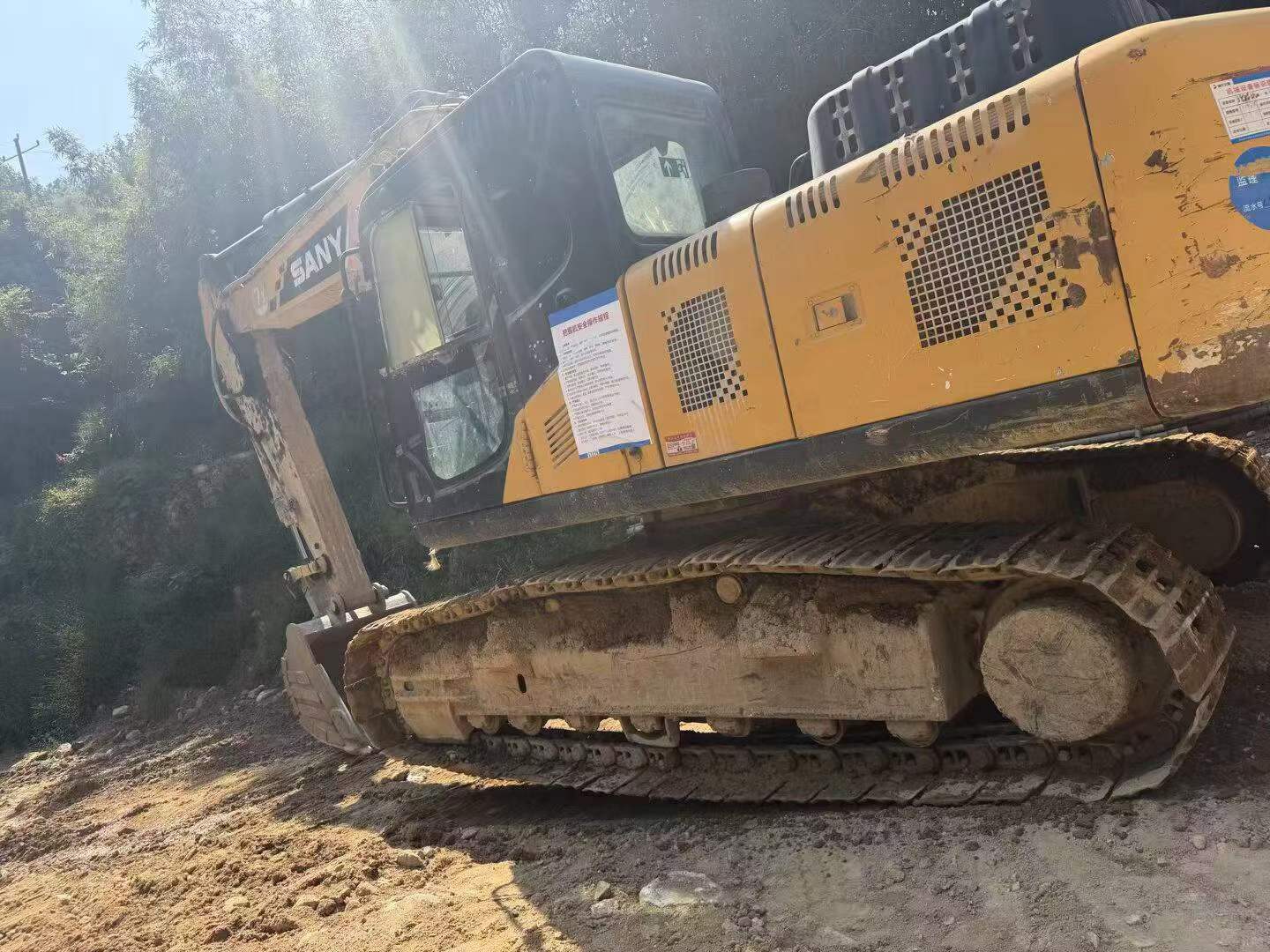

This 2020 Sany SY205C excavator offers reliable performance for construction and earthmoving operations. With approximately 140,000 RMB worth of operational history, this mid-size crawler excavator comes from Sany's proven C-series platform, designed for the Chinese market with enhanced durability features.
Key highlights include:
- 20-ton operating weight class suitable for medium-duty applications

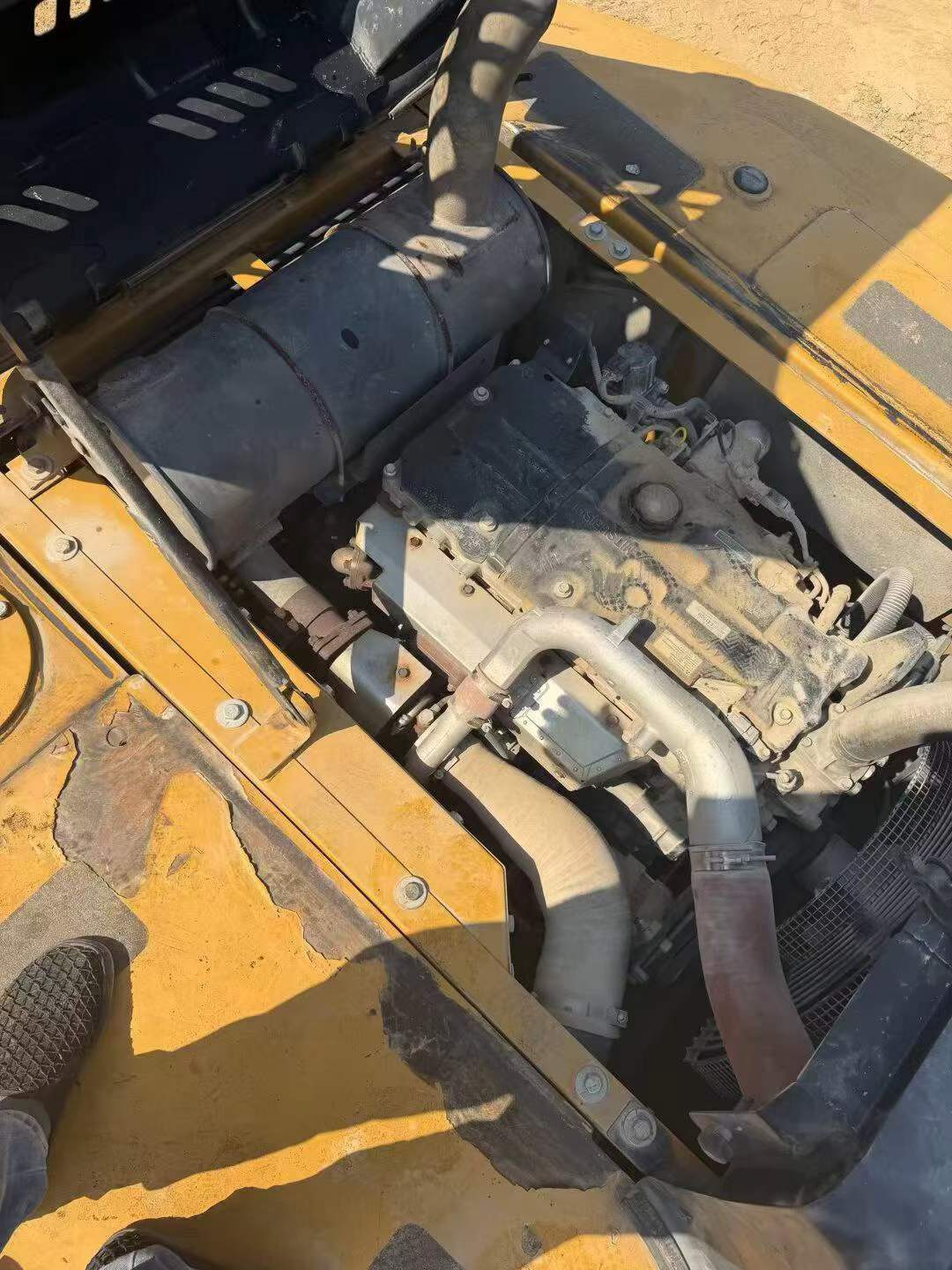

- Fuel-efficient engine meeting current emission standards

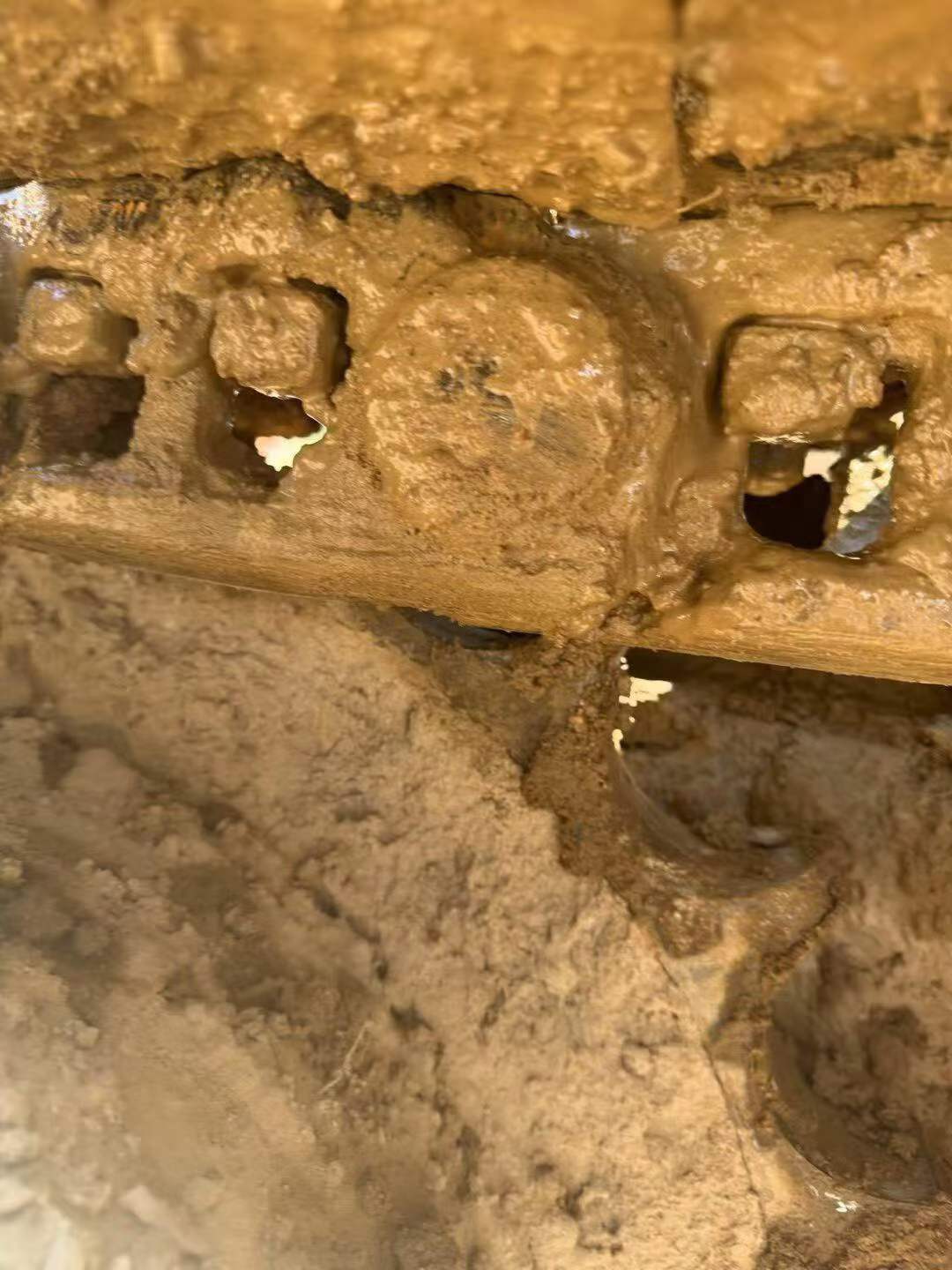

- Robust undercarriage designed for extended service life
- Spacious operator cabin with ergonomic controls
- Currently located in Zhejiang Province, China
The SY205C represents Sany's commitment to building cost-effective equipment with strong hydraulic performance. This unit is ready for immediate deployment in excavation, trenching, and material handling projects. Ideal for contractors seeking dependable used equipment backed by Sany's established service network throughout Asia.
| Specifications | Value |
|---|---|
| No. | 1173276 |
| Tonnage (tons) | 20 |
| Working weight (kg) | 21500 |
| Bucket capacity (m³) | 0.9~1.1(1.0) |
| power | Traditional power |
| manufacturer | Made in China |
| bucket | backhoe |
| Rated power (kw/rpm) | 118/2000 |
| Ground specific pressure (Kpa) | 47.3 |
| Rotation speed (rpm) | 11 |
| Climbing ability (%) | 70% / 35 ° |
| Bucket digging force (kN) | 138 |
| Rod digging force (kN) | 109 |
| Travel speed (km/h) | 5.4/3.3 |
| Total transport length (mm) | 9680 |
| Total transport width (mm) | 2980 |
| Total transport height (mm) | 3440 |
| Full cab height (mm) | 3075 |
| Minimum ground clearance (mm) | 440 |
| Minimum turning radius of front working device (mm) | 3730 |
| Back end turning radius (mm) | 2900 |
| Onboard width (mm) | 2875 |
| Total track length (mm) | 4160 |
| Track gauge (mm) | 2380 |
| Track plate width (mm) | 600 |
| Track ground length (mm) | 3360 |
| Maximum height at minimum turning radius (mm) | 7680 |
| Maximum digging radius (mm) | 10280 |
| Maximum digging depth (mm) | 6600 |
| Maximum excavation height (mm) | 9600 |
| Maximum unloading height (mm) | 6730 |
