Product Description

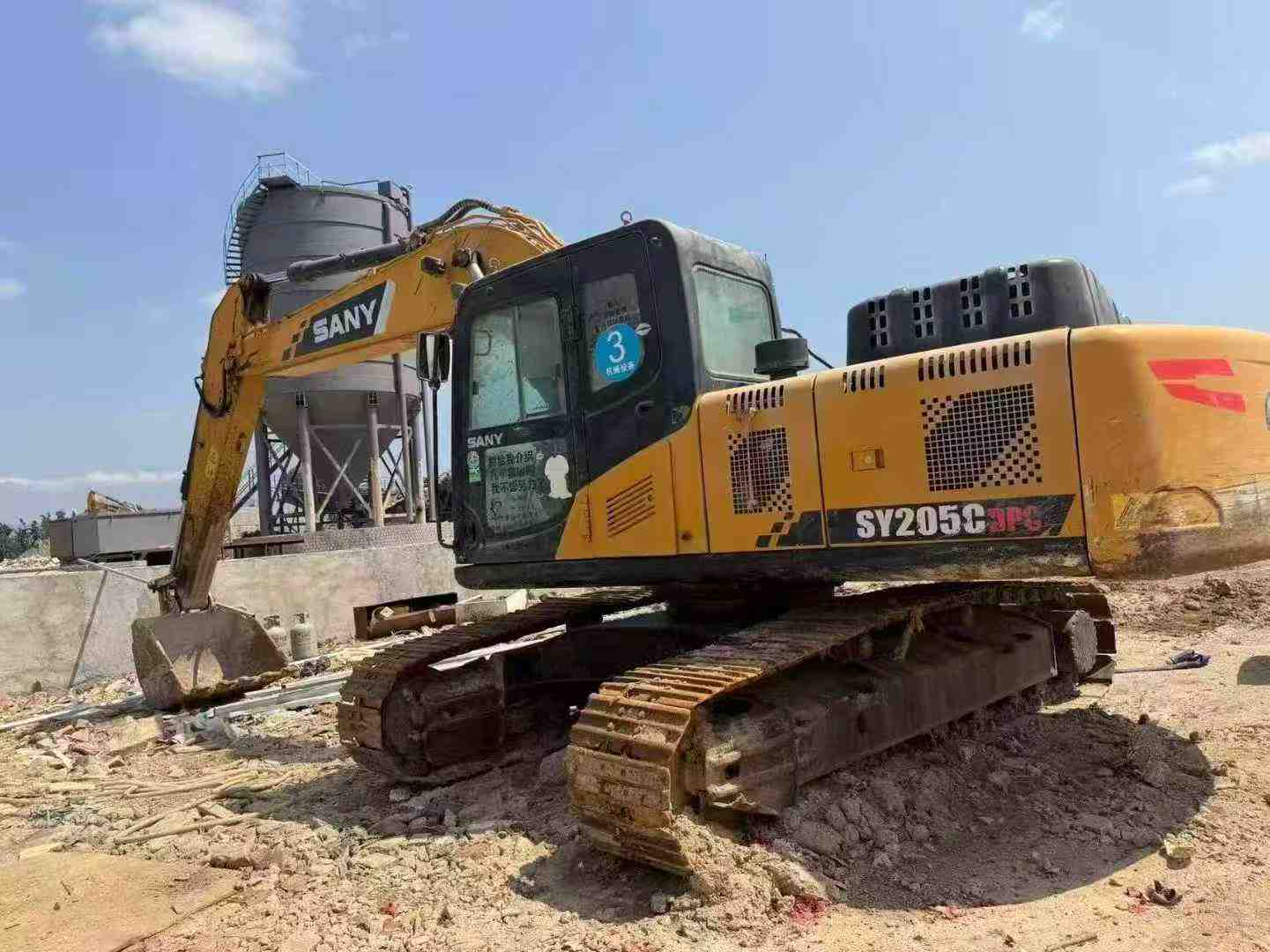

Ready to deploy from 广东惠州, this 2021 Sany SY205C excavator eliminates factory wait times and accelerates your project timeline. Powered by a robust 118kW engine at 2000rpm, this 20-ton workhorse delivers 138kN bucket digging force and 109kN arm digging force for demanding earthmoving operations. With a maximum digging reach of 10,280mm and depth capacity of 6,600mm, it handles large-scale excavation with precision and efficiency.
- Immediate Availability: Skip lead times—shipping directly from Guangdong
- Proven Performance: 21,500kg operating weight, 0.9-1.1m³ bucket capacity
- Operational Range: 10,280mm max reach, 9,600mm max digging height
- Mobility: 5.4km/h travel speed, 70% grading ability, 2,900mm tail swing radius
- Compact Transport: 9,680mm length × 2,980mm width for standard logistics
Manufactured in China with traditional hydraulic power systems, this machine combines reliability with competitive pricing. Available now for fast deployment to construction sites, quarries, and infrastructure projects across global markets. Secure your equipment today and maintain momentum on
| Specifications | Value |
|---|---|
| No. | 1015301 |
| Tonnage (tons) | 20 |
| Working weight (kg) | 21500 |
| Bucket capacity (m³) | 0.9~1.1(1.0) |
| power | Traditional power |
| manufacturer | Made in China |
| bucket | backhoe |
| Rated power (kw/rpm) | 118/2000 |
| Ground specific pressure (Kpa) | 47.3 |
| Rotation speed (rpm) | 11 |
| Climbing ability (%) | 70% / 35 ° |
| Bucket digging force (kN) | 138 |
| Rod digging force (kN) | 109 |
| Travel speed (km/h) | 5.4/3.3 |
| Total transport length (mm) | 9680 |
| Total transport width (mm) | 2980 |
| Total transport height (mm) | 3440 |
| Full cab height (mm) | 3075 |
| Minimum ground clearance (mm) | 440 |
| Minimum turning radius of front working device (mm) | 3730 |
| Back end turning radius (mm) | 2900 |
| Onboard width (mm) | 2875 |
| Total track length (mm) | 4160 |
| Track gauge (mm) | 2380 |
| Track plate width (mm) | 600 |
| Track ground length (mm) | 3360 |
| Maximum height at minimum turning radius (mm) | 7680 |
| Maximum digging radius (mm) | 10280 |
| Maximum digging depth (mm) | 6600 |
| Maximum excavation height (mm) | 9600 |
| Maximum unloading height (mm) | 6730 |
