Product Description

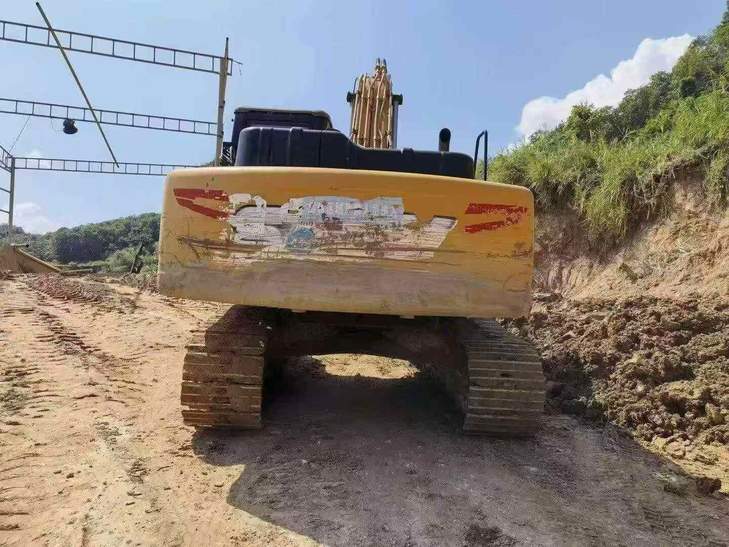

This 2021 Sany SY205C excavator offers reliable performance for mid-size earthmoving operations. Manufactured by one of China's leading construction equipment brands, this 20-ton class machine combines proven hydraulic technology with fuel-efficient power delivery. Currently located in Sichuan, China, the unit has been maintained under standard operating conditions and is ready for immediate deployment in mining, infrastructure, or general contracting applications.
- Year of Manufacture: 2021
- Model: Sany SY205C
- Operating Weight Class: Approximately 20 tons
- Location: Sichuan Province, China
- Condition: Used, operational
- Application: Excavation, trenching, material handling
The SY205C is well-suited for contractors seeking dependable equipment with established parts availability throughout Asia. Inspection and shipping arrangements can be coordinated to major ports.
| Specifications | Value |
|---|---|
| No. | 1170065 |
| Tonnage (tons) | 20 |
| Working weight (kg) | 21500 |
| Bucket capacity (m³) | 0.9~1.1(1.0) |
| power | Traditional power |
| manufacturer | Made in China |
| bucket | backhoe |
| Rated power (kw/rpm) | 118/2000 |
| Ground specific pressure (Kpa) | 47.3 |
| Rotation speed (rpm) | 11 |
| Climbing ability (%) | 70% / 35 ° |
| Bucket digging force (kN) | 138 |
| Rod digging force (kN) | 109 |
| Travel speed (km/h) | 5.4/3.3 |
| Total transport length (mm) | 9680 |
| Total transport width (mm) | 2980 |
| Total transport height (mm) | 3440 |
| Full cab height (mm) | 3075 |
| Minimum ground clearance (mm) | 440 |
| Minimum turning radius of front working device (mm) | 3730 |
| Back end turning radius (mm) | 2900 |
| Onboard width (mm) | 2875 |
| Total track length (mm) | 4160 |
| Track gauge (mm) | 2380 |
| Track plate width (mm) | 600 |
| Track ground length (mm) | 3360 |
| Maximum height at minimum turning radius (mm) | 7680 |
| Maximum digging radius (mm) | 10280 |
| Maximum digging depth (mm) | 6600 |
| Maximum excavation height (mm) | 9600 |
| Maximum unloading height (mm) | 6730 |
