Product Description

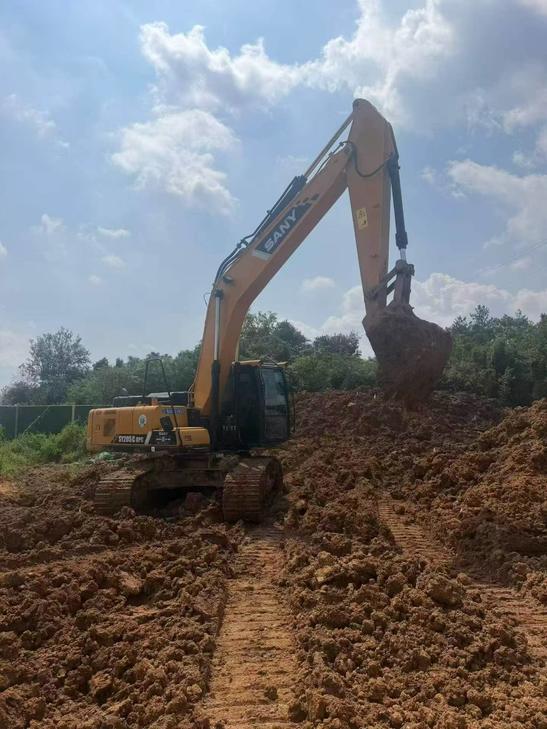

This 2022 Sany SY205C excavator represents a reliable choice for contractors seeking proven mid-size performance. Located in Zhejiang, China, this machine comes with verified hours and documentation matching the actual unit. The SY205C is engineered for versatility across site development, utility work, and general excavation applications.
Key attributes include:
- Operating weight approximately 20 tons
- Hydraulic system designed for responsive digging and lifting cycles
- Cab-forward design for improved operator sightlines
- Standard bucket and arm configuration suitable for multiple attachments
- Low-hour unit with minimal wear from recent manufacture date
Sany's SY205C series is recognized for straightforward maintenance access and parts availability across international markets. This unit offers an opportunity to acquire late-model capacity without new equipment premiums. Suitable for buyers requiring immediate deployment in earthmoving or infrastructure projects.
| Specifications | Value |
|---|---|
| No. | 1142220 |
| Tonnage (tons) | 20 |
| Working weight (kg) | 21500 |
| Bucket capacity (m³) | 0.9~1.1(1.0) |
| power | Traditional power |
| manufacturer | Made in China |
| bucket | backhoe |
| Rated power (kw/rpm) | 118/2000 |
| Ground specific pressure (Kpa) | 47.3 |
| Rotation speed (rpm) | 11 |
| Climbing ability (%) | 70% / 35 ° |
| Bucket digging force (kN) | 138 |
| Rod digging force (kN) | 109 |
| Travel speed (km/h) | 5.4/3.3 |
| Total transport length (mm) | 9680 |
| Total transport width (mm) | 2980 |
| Total transport height (mm) | 3440 |
| Full cab height (mm) | 3075 |
| Minimum ground clearance (mm) | 440 |
| Minimum turning radius of front working device (mm) | 3730 |
| Back end turning radius (mm) | 2900 |
| Onboard width (mm) | 2875 |
| Total track length (mm) | 4160 |
| Track gauge (mm) | 2380 |
| Track plate width (mm) | 600 |
| Track ground length (mm) | 3360 |
| Maximum height at minimum turning radius (mm) | 7680 |
| Maximum digging radius (mm) | 10280 |
| Maximum digging depth (mm) | 6600 |
| Maximum excavation height (mm) | 9600 |
| Maximum unloading height (mm) | 6730 |
