Product Description
Available from our yard in Zhejiang, China: a 2022 Sany SY205C hydraulic excavator. A 20-tonne-class machine, it is a practical choice for general earthmoving, trenching, utility work and site preparation, and it remains in clean, fully operational condition.
- Year: 2022
- Brand: Sany
- Model: SY205C
- Class: 20-tonne hydraulic excavator
- Location: Zhejiang, China
- Configuration: standard boom and arm with digging bucket
- Condition: used, working machine

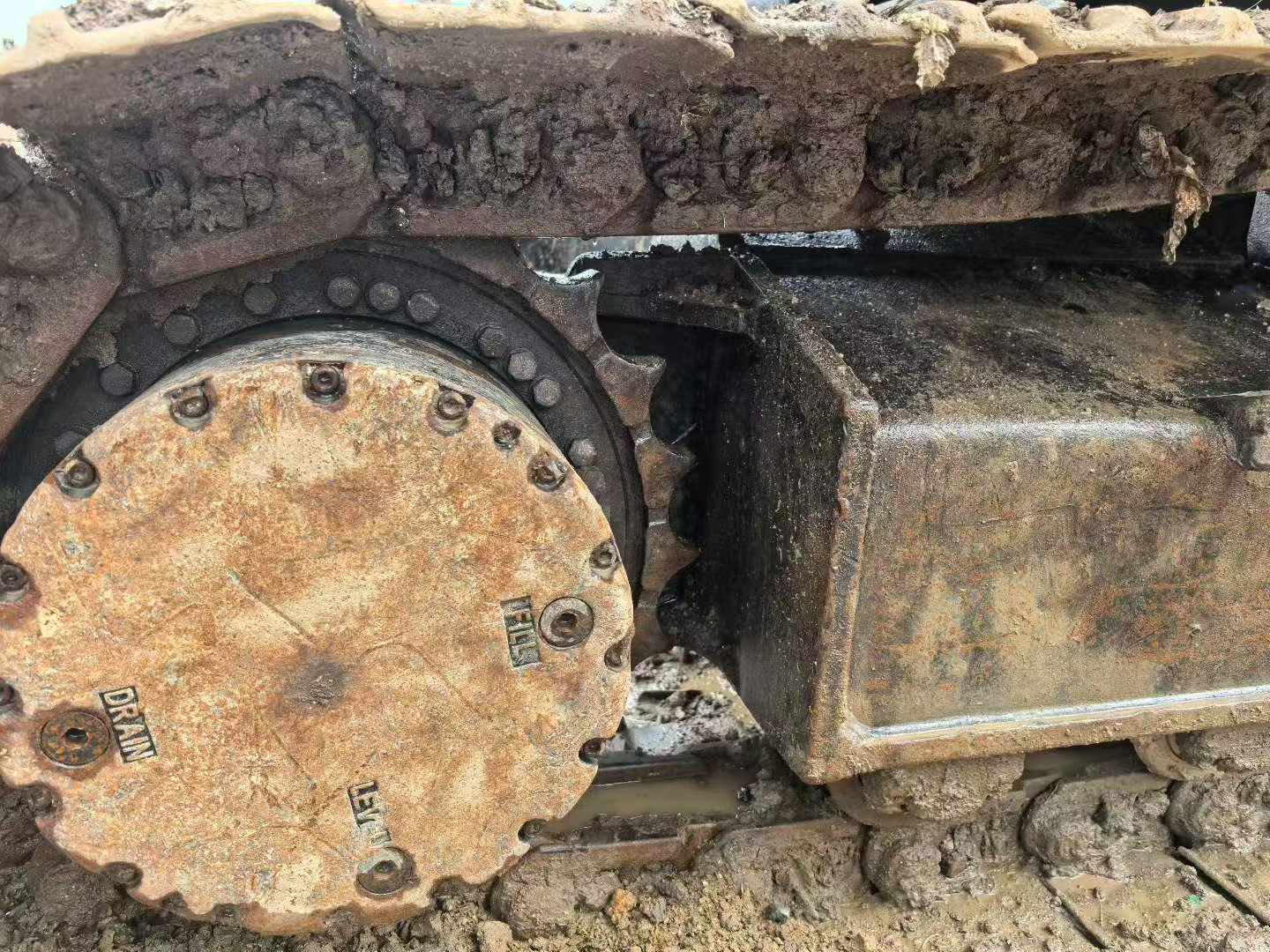

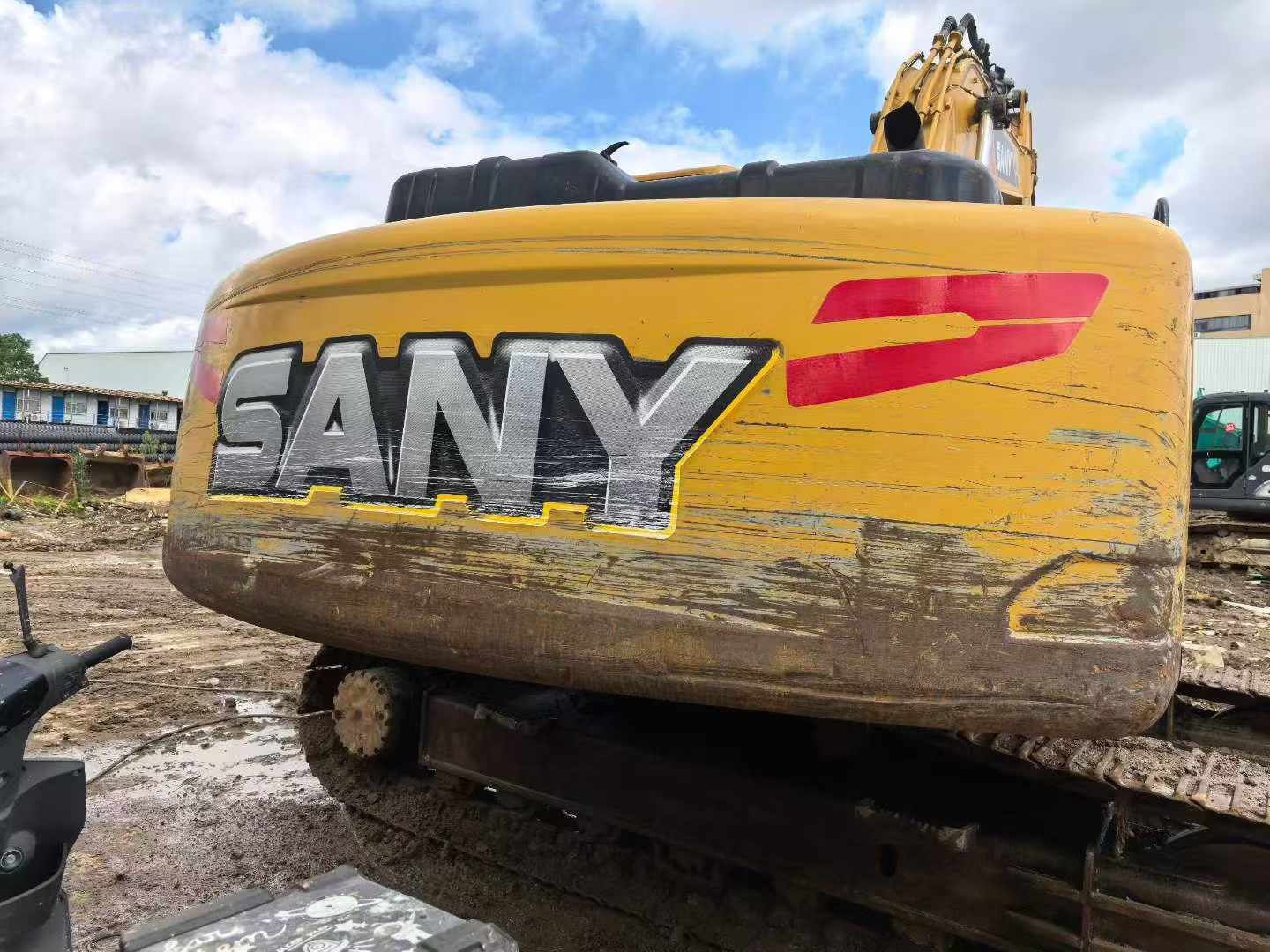

The undercarriage, pins and bushings show wear consistent with normal service use. The machine starts readily, tracks straight and cycles smoothly through all functions. Body panels are straight and paint is largely original, which suggests it has not been through a major rebuild.
Inspection at our Zhejiang yard is welcome, and we can supply additional photographs, a walkaround video and recorded machine hours on request. We assist with export documentation and can arrange loading and shipment to your destination port. Please contact our sales team for current pricing, availability and a condition report.
| Specifications | Value |
|---|---|
| No. | 1156162 |
| Tonnage (tons) | 20 |
| Working weight (kg) | 21500 |
| Bucket capacity (m³) | 0.9~1.1(1.0) |
| power | Traditional power |
| manufacturer | Made in China |
| bucket | backhoe |
| Rated power (kw/rpm) | 118/2000 |
| Ground specific pressure (Kpa) | 47.3 |
| Rotation speed (rpm) | 11 |
| Climbing ability (%) | 70% / 35 ° |
| Bucket digging force (kN) | 138 |
| Rod digging force (kN) | 109 |
| Travel speed (km/h) | 5.4/3.3 |
| Total transport length (mm) | 9680 |
| Total transport width (mm) | 2980 |
| Total transport height (mm) | 3440 |
| Full cab height (mm) | 3075 |
| Minimum ground clearance (mm) | 440 |
| Minimum turning radius of front working device (mm) | 3730 |
| Back end turning radius (mm) | 2900 |
| Onboard width (mm) | 2875 |
| Total track length (mm) | 4160 |
| Track gauge (mm) | 2380 |
| Track plate width (mm) | 600 |
| Track ground length (mm) | 3360 |
| Maximum height at minimum turning radius (mm) | 7680 |
| Maximum digging radius (mm) | 10280 |
| Maximum digging depth (mm) | 6600 |
| Maximum excavation height (mm) | 9600 |
| Maximum unloading height (mm) | 6730 |
