Product Description

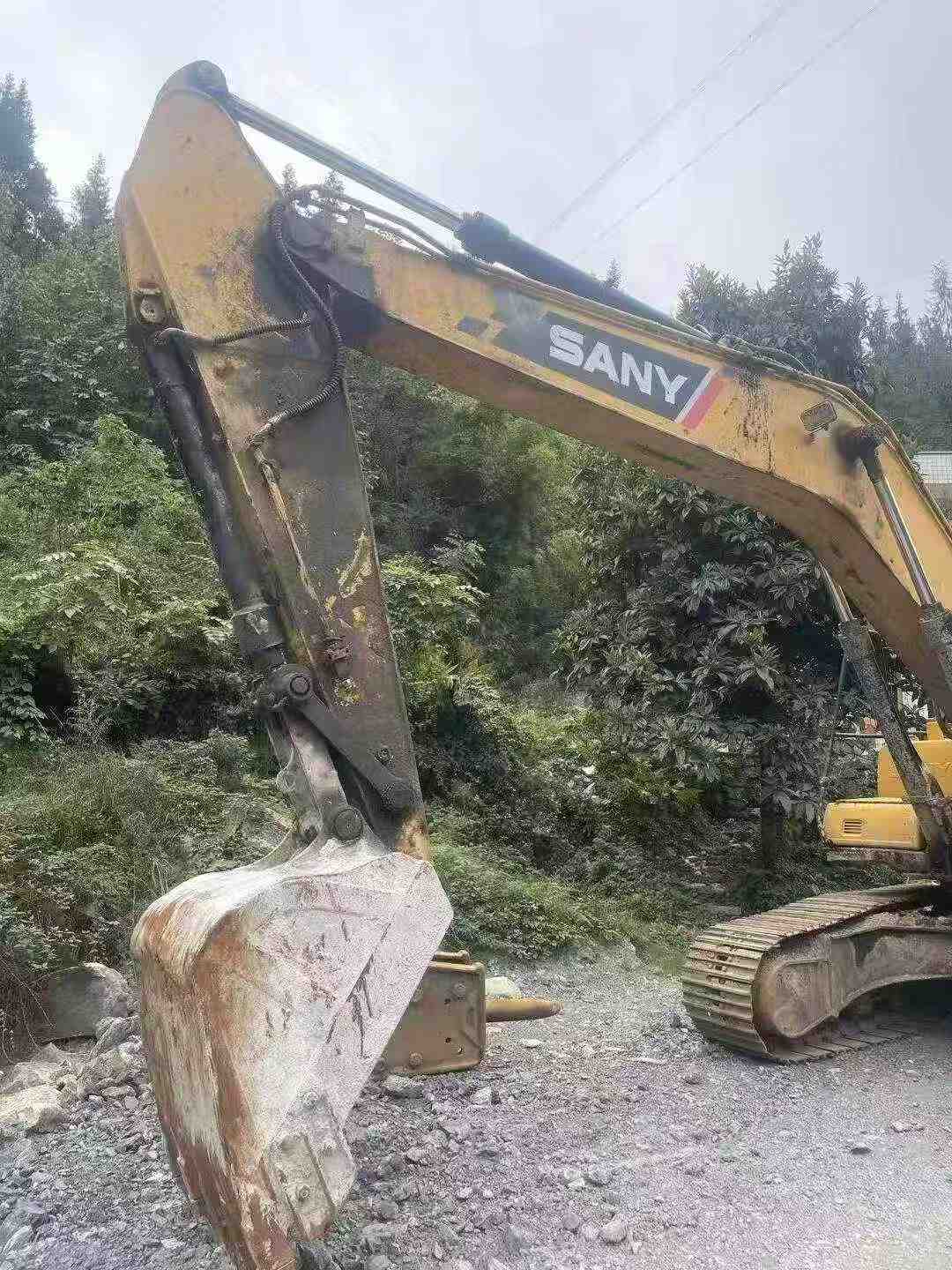

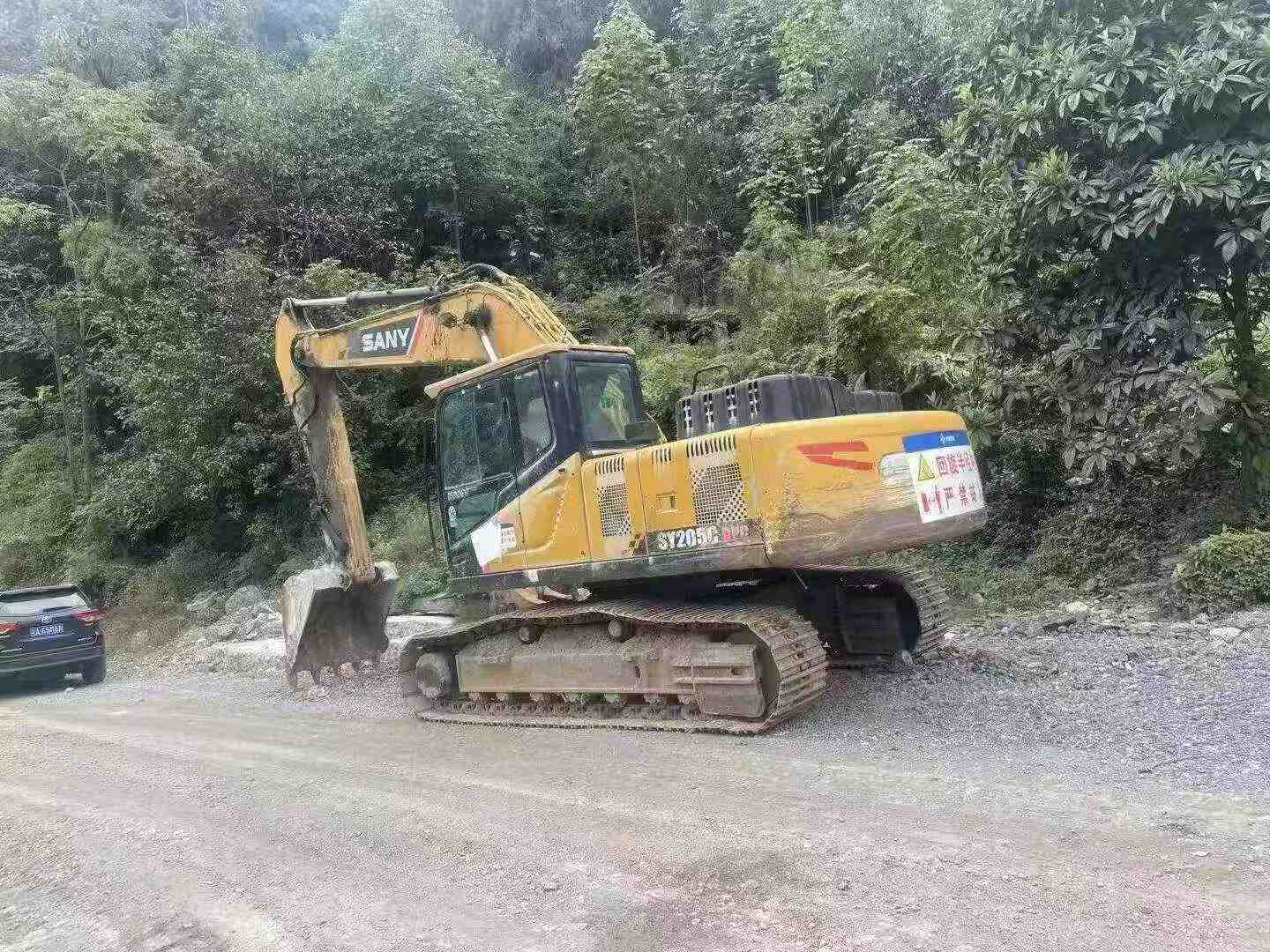

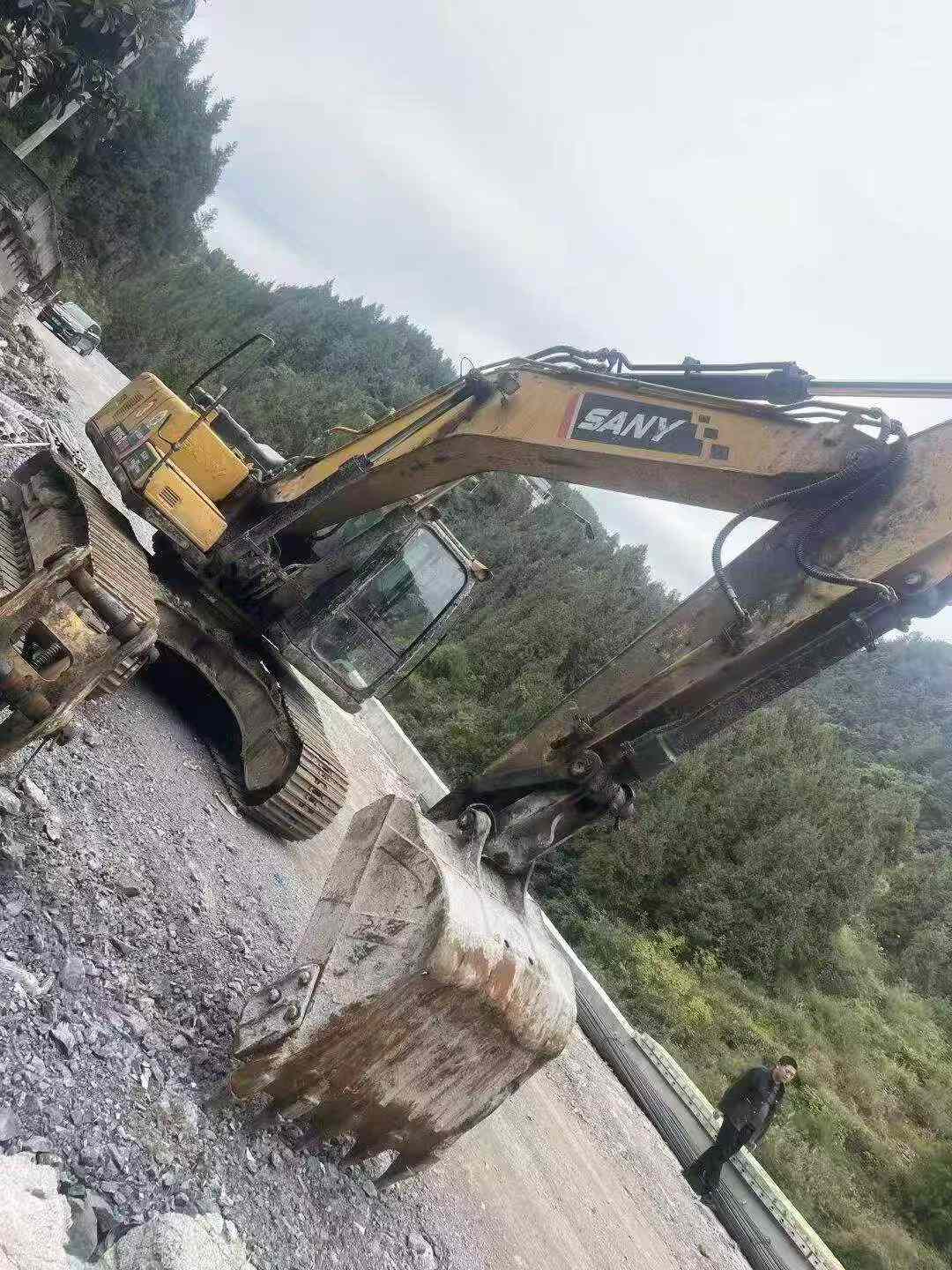

This 2022 Sany SY205C excavator offers reliable performance for mid-sized construction and earthmoving operations. Manufactured by Sany Heavy Industry, a leading Chinese equipment producer, this 20-ton class machine combines proven hydraulic technology with fuel-efficient operation. Located in Sichuan, China, the unit is available for immediate inspection and export coordination.
- Year of Manufacture: 2022
- Model: SY205C
- Operating Weight Class: ~20 tons
- Current Location: Sichuan Province, China
- Condition: Used, operational
The SY205C features Sany's signature build quality with accessible service points and straightforward maintenance requirements. Suitable for excavation, trenching, loading, and material handling across infrastructure, mining, and heavy civil projects. Documentation and shipping assistance available upon request.
| Specifications | Value |
|---|---|
| No. | 1172547 |
| Tonnage (tons) | 20 |
| Working weight (kg) | 21500 |
| Bucket capacity (m³) | 0.9~1.1(1.0) |
| power | Traditional power |
| manufacturer | Made in China |
| bucket | backhoe |
| Rated power (kw/rpm) | 118/2000 |
| Ground specific pressure (Kpa) | 47.3 |
| Rotation speed (rpm) | 11 |
| Climbing ability (%) | 70% / 35 ° |
| Bucket digging force (kN) | 138 |
| Rod digging force (kN) | 109 |
| Travel speed (km/h) | 5.4/3.3 |
| Total transport length (mm) | 9680 |
| Total transport width (mm) | 2980 |
| Total transport height (mm) | 3440 |
| Full cab height (mm) | 3075 |
| Minimum ground clearance (mm) | 440 |
| Minimum turning radius of front working device (mm) | 3730 |
| Back end turning radius (mm) | 2900 |
| Onboard width (mm) | 2875 |
| Total track length (mm) | 4160 |
| Track gauge (mm) | 2380 |
| Track plate width (mm) | 600 |
| Track ground length (mm) | 3360 |
| Maximum height at minimum turning radius (mm) | 7680 |
| Maximum digging radius (mm) | 10280 |
| Maximum digging depth (mm) | 6600 |
| Maximum excavation height (mm) | 9600 |
| Maximum unloading height (mm) | 6730 |
