HOME>>Sany>>Sany SY205C

2024 Sany SY205C

1/6

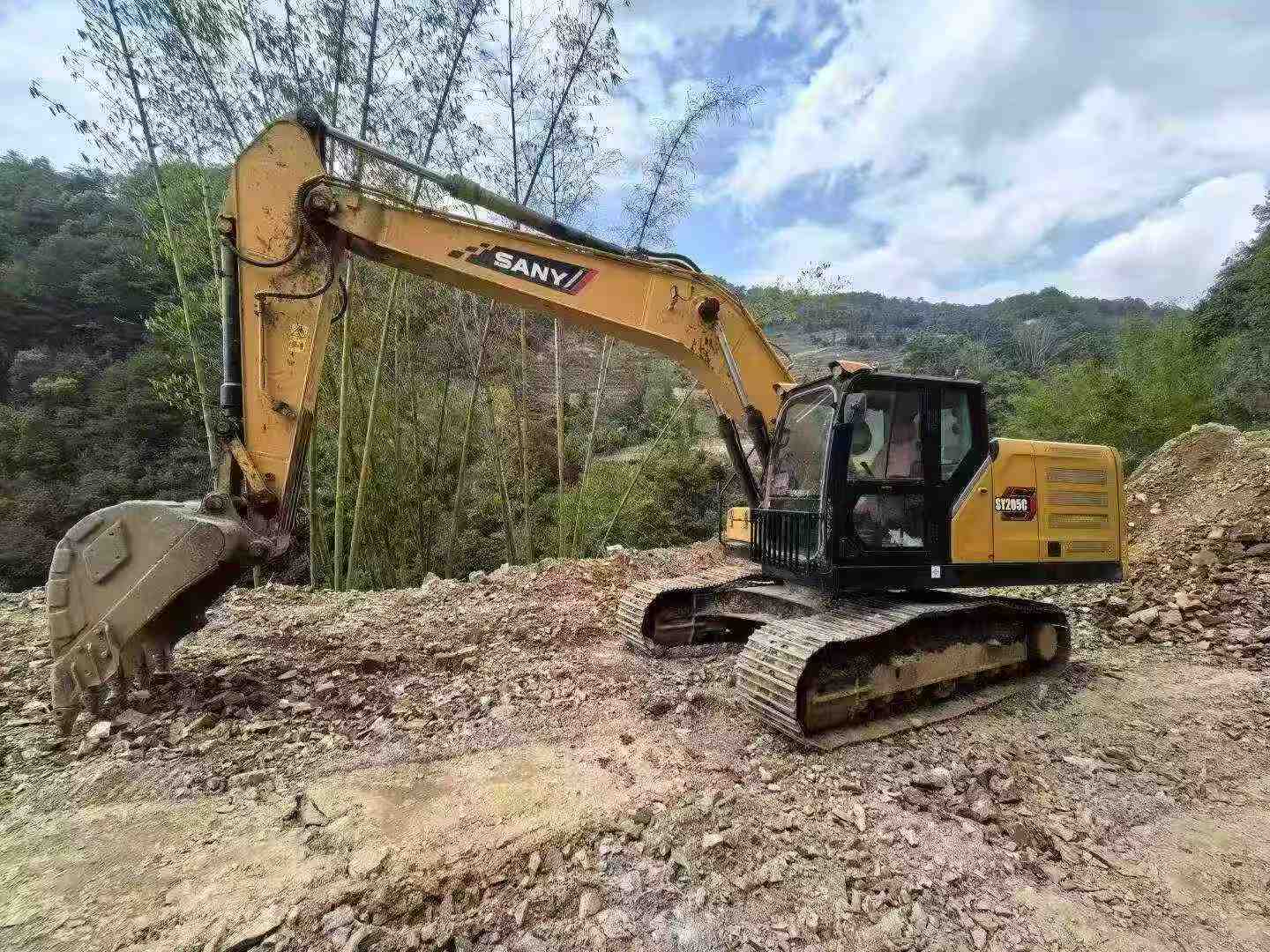

Buy Sany SY205C Used Excavator / 1

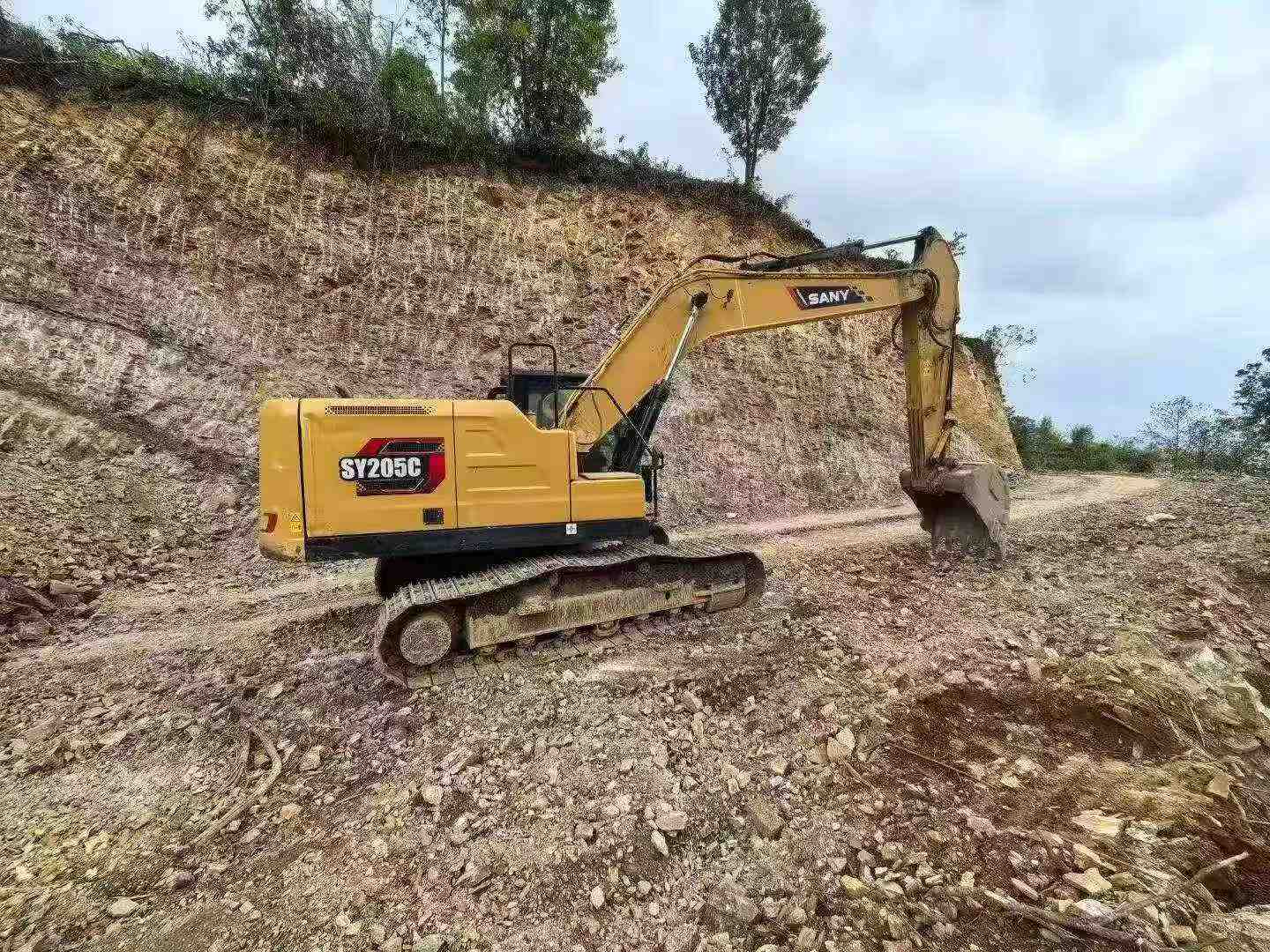

Buy Sany SY205C Used Excavator / 2

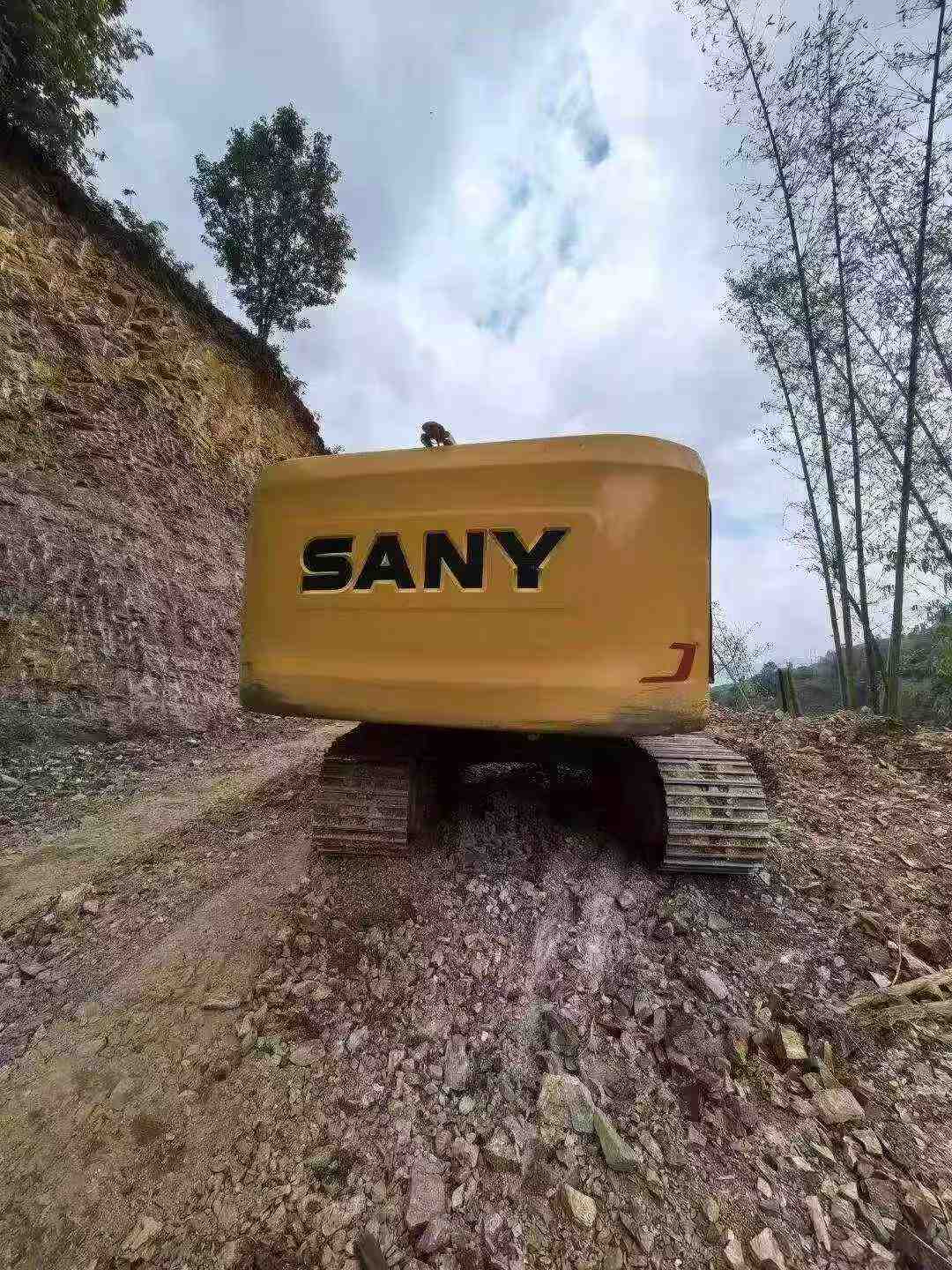

Buy Sany SY205C Used Excavator / 3

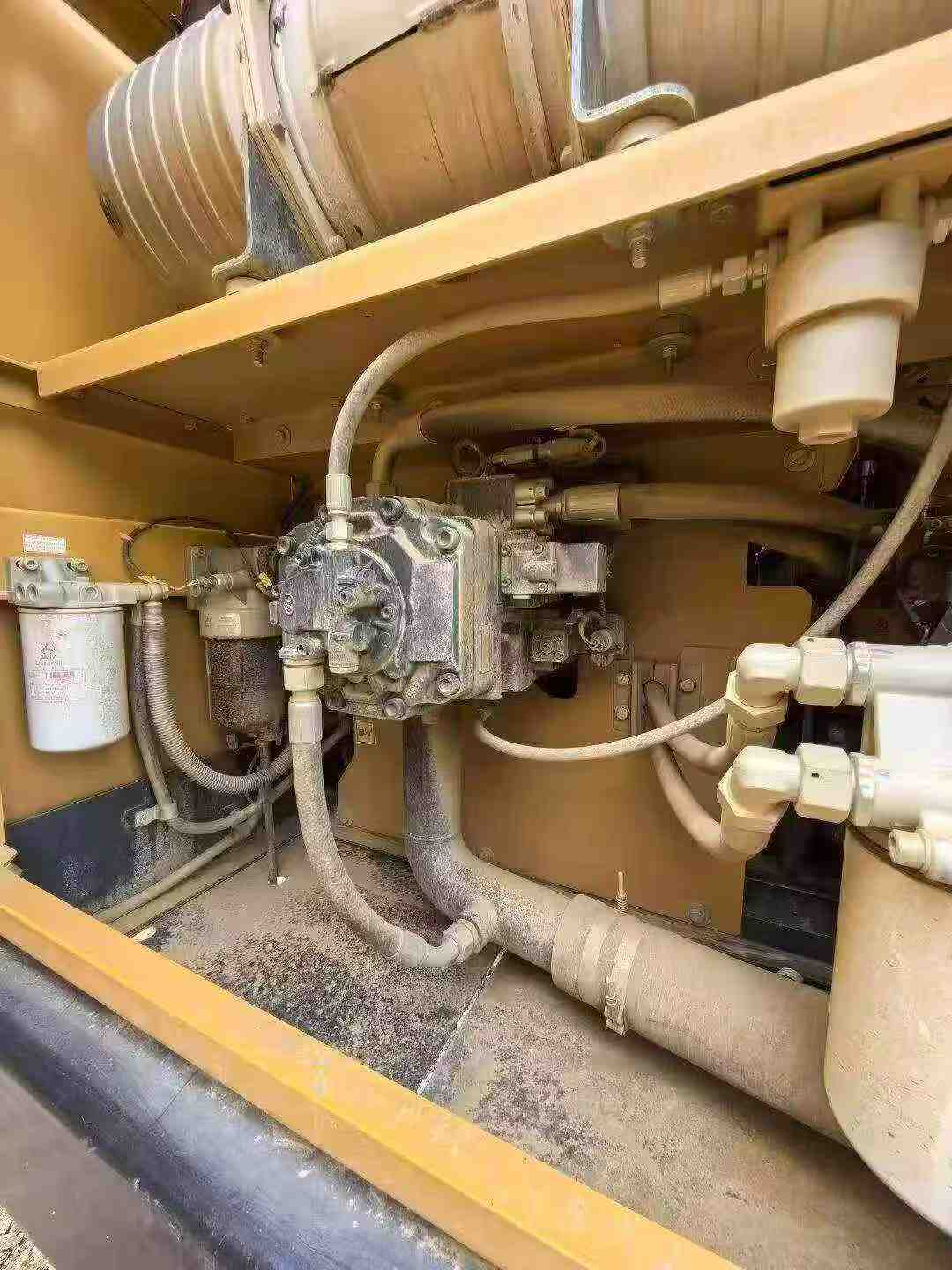

Buy Sany SY205C Used Excavator / 4

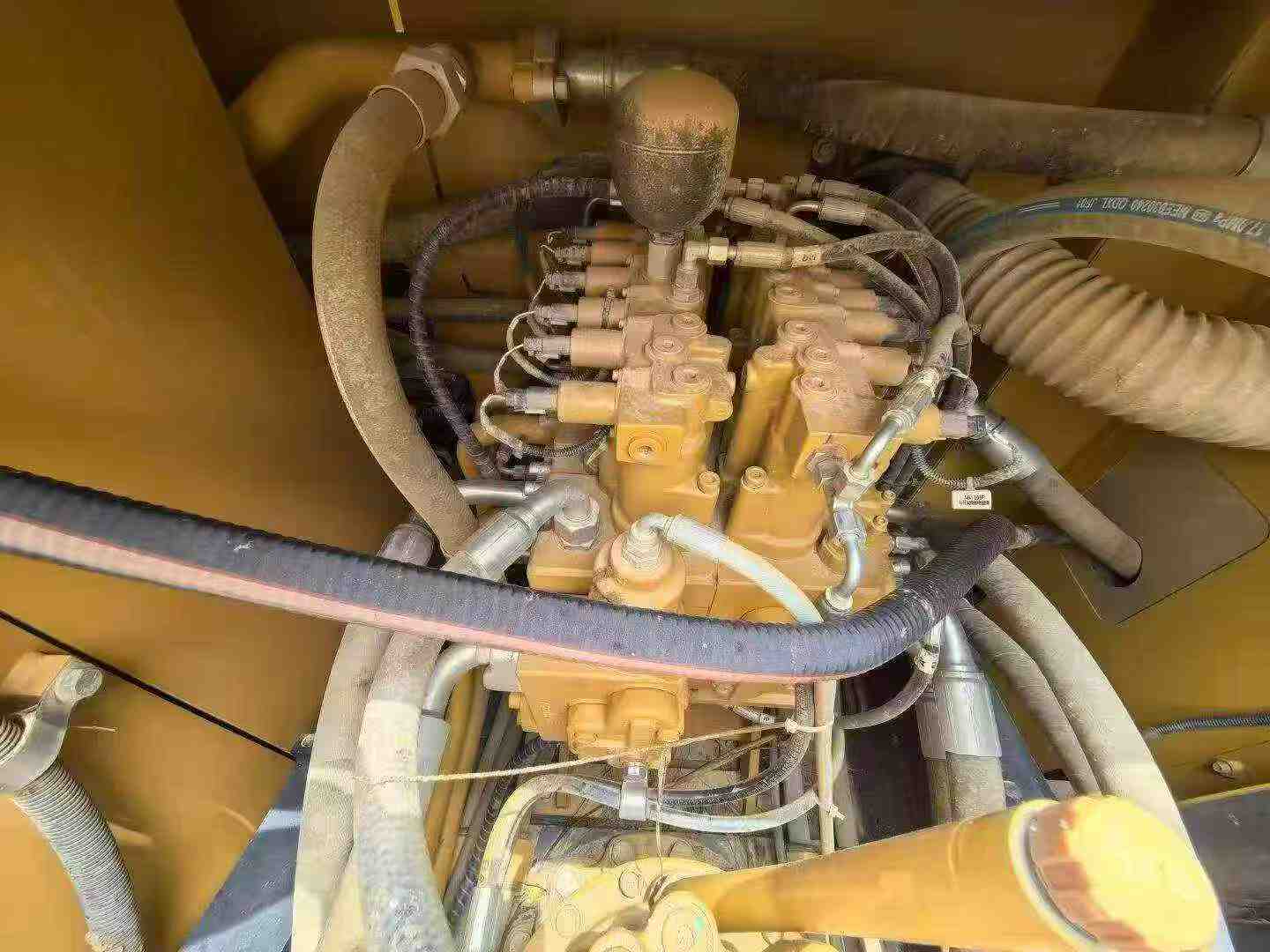

Buy Sany SY205C Used Excavator / 5

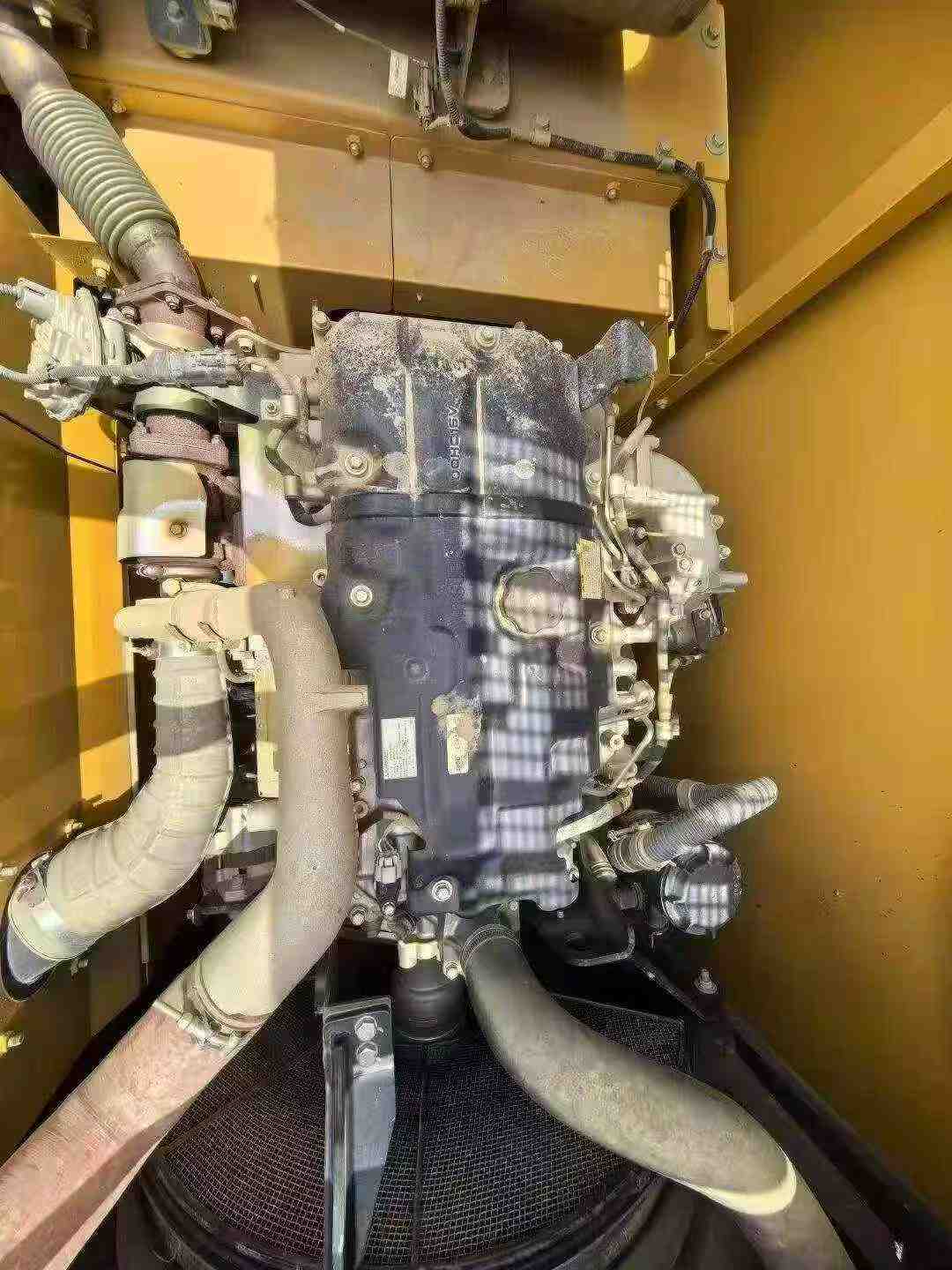

Buy Sany SY205C Used Excavator / 6

Product Description

This 2024 Sany SY205C excavator represents excellent value in the mid-size crawler excavator segment. Manufactured by Sany Heavy Industry, one of China's leading construction equipment producers, this 20-ton class machine delivers reliable performance for earthmoving, trenching, and general construction applications. Located in Sichuan, China, this recent-year model offers buyers access to current technology at a competitive price point of 250,000 RMB.

  • Year of Manufacture: 2024
  • Operating Weight: Approximately 20 tonnes
  • Hydraulic excavator with crawler undercarriage
  • Suitable for construction, infrastructure, and mining projects
  • Well-maintained unit from Sichuan province
  • Ready for inspection and export documentation

The SY205C combines Sany's proven hydraulic systems with fuel-efficient operation, making it an economical choice for contractors seeking dependable equipment. Contact us for detailed specifications, inspection arrangements, and international shipping options.

SpecificationsValue
No.1172246
Tonnage (tons)20
Working weight (kg)21500
Bucket capacity (m³)0.9~1.1(1.0)
powerTraditional power
manufacturerMade in China
bucketbackhoe
Rated power (kw/rpm)118/2000
Ground specific pressure (Kpa)47.3
Rotation speed (rpm)11
Climbing ability (%)70% / 35 °
Bucket digging force (kN)138
Rod digging force (kN)109
Travel speed (km/h)5.4/3.3
Total transport length (mm)9680
Total transport width (mm)2980
Total transport height (mm)3440
Full cab height (mm)3075
Minimum ground clearance (mm)440
Minimum turning radius of front working device (mm)3730
Back end turning radius (mm)2900
Onboard width (mm)2875
Total track length (mm)4160
Track gauge (mm)2380
Track plate width (mm)600
Track ground length (mm)3360
Maximum height at minimum turning radius (mm)7680
Maximum digging radius (mm)10280
Maximum digging depth (mm)6600
Maximum excavation height (mm)9600
Maximum unloading height (mm)6730
see more

Overview

No.1172246

Brand Name:

Sany

Model Number:

SY205C

Year:

2024

Location:

Sichuan China

Pub Date:
