Product Description

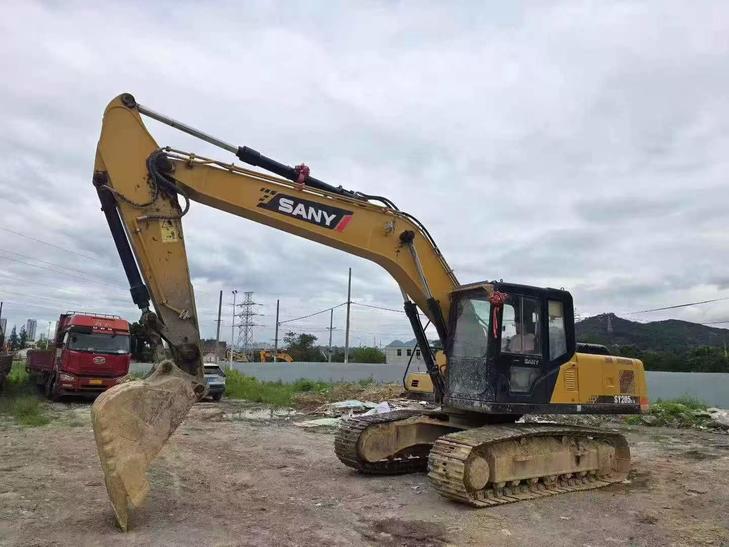

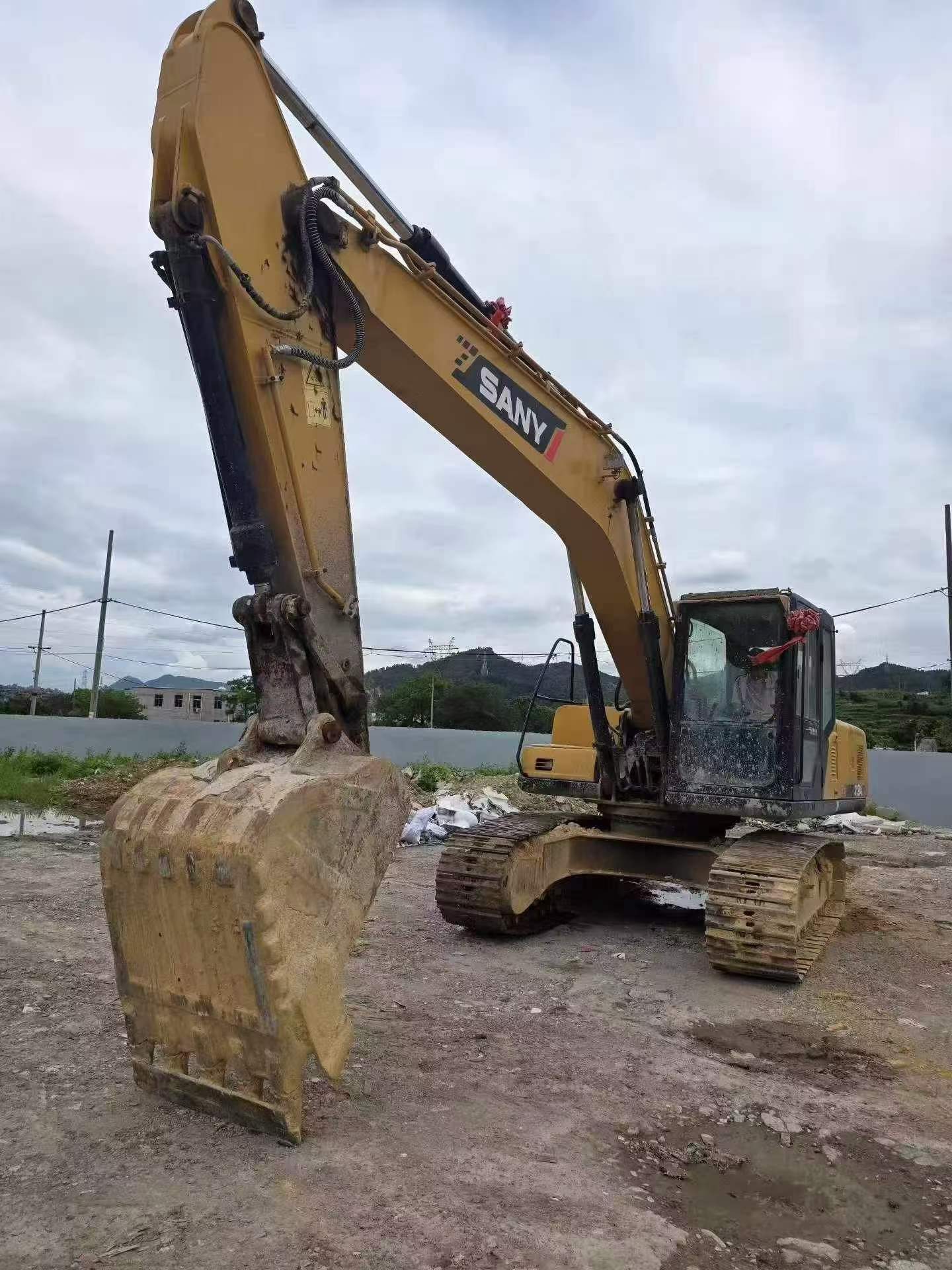

Discover the reliability and robust performance of the 2015 Sany SY205C-8, a premium choice for demanding construction projects. This excavator, located in Zhejiang, China, is equipped with one of the last batches of the direct injection Mitsubishi engine, renowned for its efficiency and durability. Ideal for earthmoving tasks, this machine boasts a near-perfect undercarriage, rated at 99% new, ensuring stability and longevity on the job site. All electrical components are fully functional, guaranteeing a seamless operation experience. This well-maintained unit is ready to meet your project's needs with minimal downtime and maximum productivity.
- Year: 2015
- Brand: Sany
- Model: SY205C-8
- Engine: Direct Injection Mitsubishi
- Location: Zhejiang, China

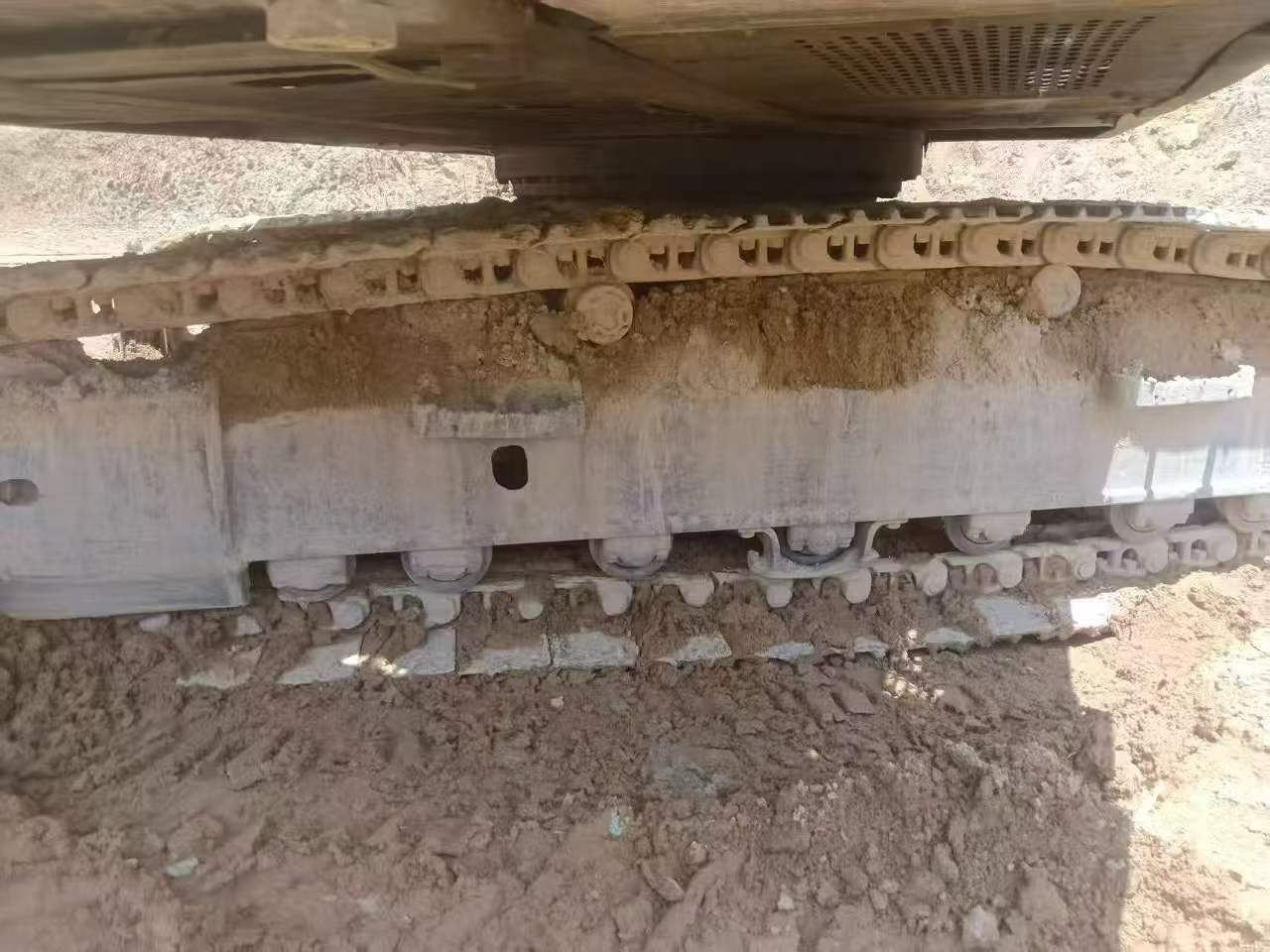

- Condition: Excellent, with all electrical systems operational and an almost new undercarriage
| Specifications | Value |
|---|---|
| No. | 1130434 |
| Tonnage (tons) | 20 |
| Working weight (kg) | 20300 |
| Bucket capacity (m³) | 0.83 |
| Country of origin | Kunshan in Jiangsu Province |
| power | Traditional power |
| manufacturer | Made in China |
| bucket | backhoe |

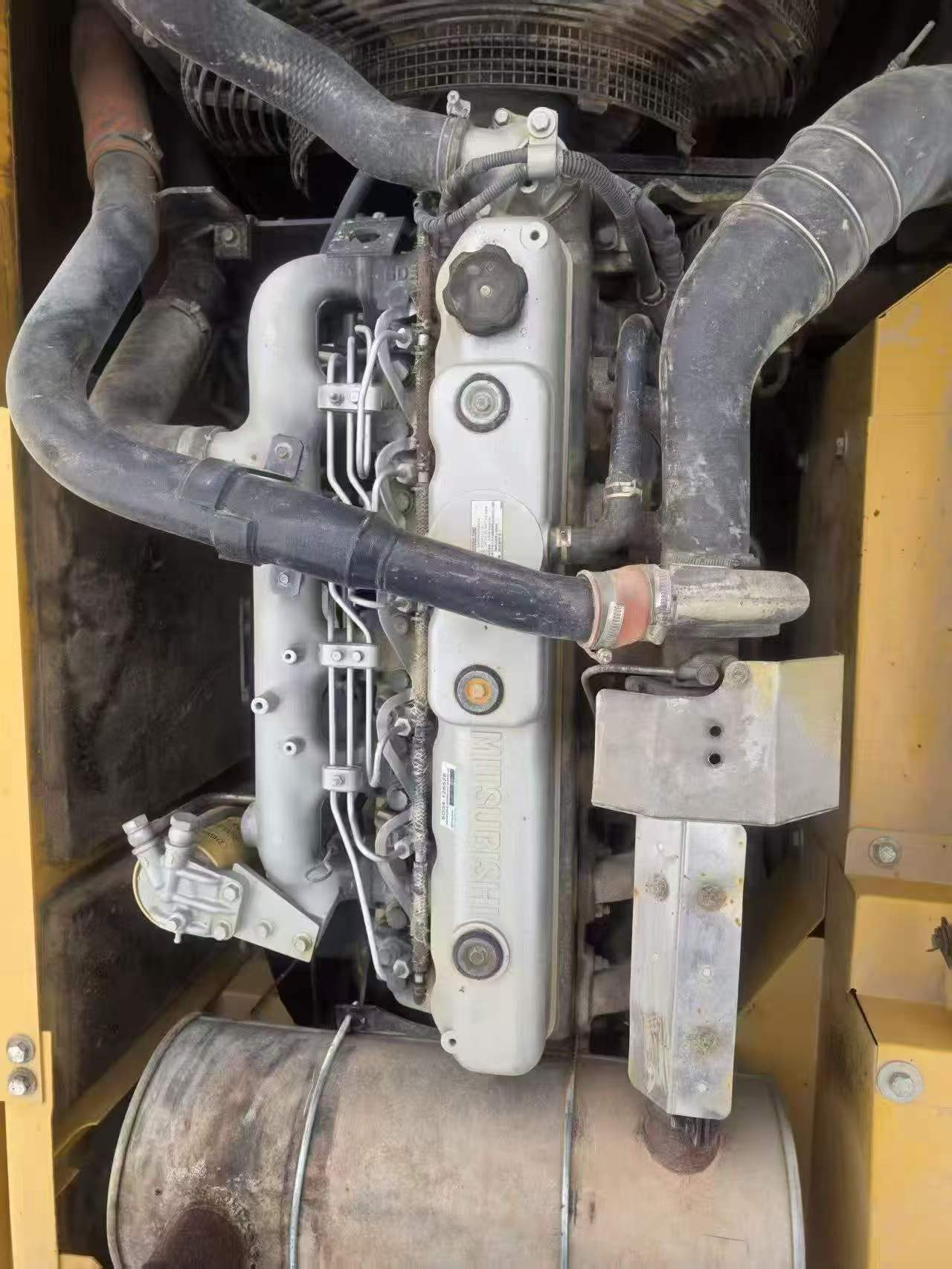

| Engine type | Mitsubishi 6D34TL-20 |
| Rated power (kw/rpm) | 114/2050 |
| Cooling mode | water-cooling |
| Ground specific pressure (Kpa) | 44.8 |
| Rotation speed (rpm) | 12.5 |
| Climbing ability (%) | 70/35 ° |
| Bucket digging force (kN) | 138 |
| Travel speed (km/h) | 3.2/5.5 |
| Main overflow set pressure (Mpa) | 34.3 |

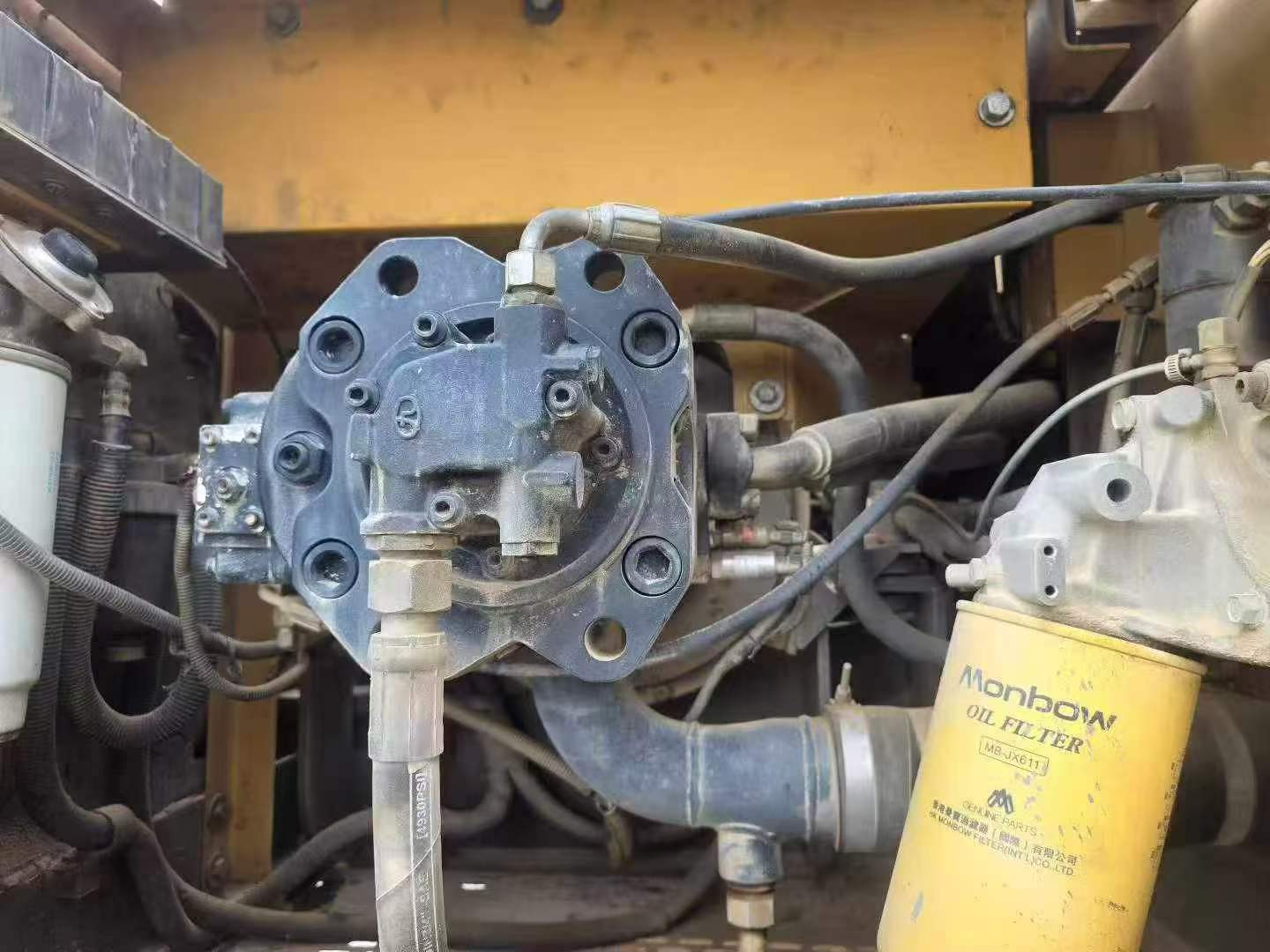

| Maximum flow of main pump (l/min) | 2 x 210 |
| Traveling Hydraulic Circuit (Mpa) | 34.3 |
| Rotary Hydraulic Circuit (Mpa) | 25.5 |
| Control Hydraulic Circuit (Mpa) | 3.9 |
| Hydraulic crushing pipeline is standard | no |
| Total transport length (mm) | 9397 |
| Total transport width (mm) | 2800 |
| Total transport height (mm) | 2956 |
| Full cab height (mm) | 2930 |
| Minimum ground clearance (mm) | 440 |
| Back end turning radius (mm) | 2750 |
| Total track length (mm) | 4064 |
| Track gauge (mm) | 2200 |
| Track plate width (mm) | 600 |
| Total track width (mm) | 2800 |
| Track ground length (mm) | 3260 |
| Maximum digging radius (mm) | 9885 |
| Maximum digging depth (mm) | 6630 |
| Maximum excavation height (mm) | 9305 |
| Maximum unloading height (mm) | 6475 |
| Maximum vertical digging depth (mm) | 5980 |
| Bulldozer lift or depth (mm) | There is no |
