Product Description

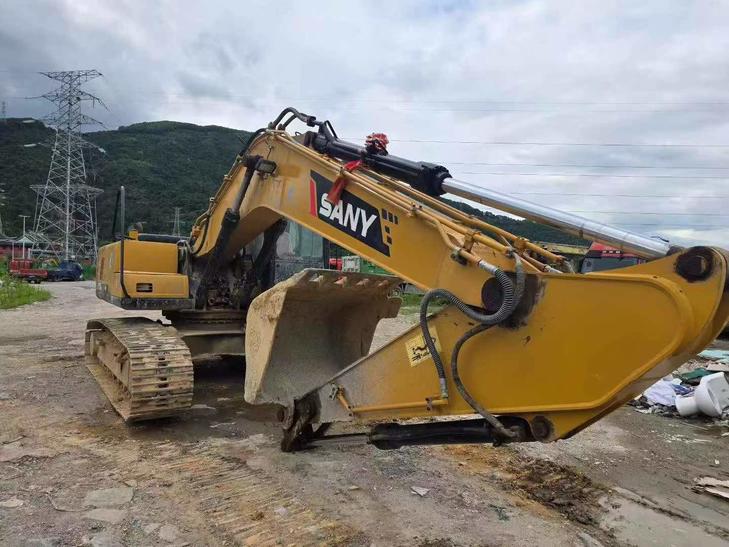

Discover the reliability and performance of the 2015 Sany SY205C-8 excavator, available in Zhejiang, China. This machine is equipped with one of the last batches of direct injection Mitsubishi engines, ensuring robust and efficient operation. Ideal for earthmoving tasks, this model is a proven workhorse in the construction industry. The electrical systems are fully functional, providing peace of mind on the job site. The undercarriage is in near-perfect condition, rated at 99 new, making it a standout choice for your fleet. Don't miss the opportunity to own this high-quality, well-maintained excavator.
- Year: 2015
- Brand: Sany
- Model: SY205C-8
- Location: Zhejiang, China
- Engine: Direct injection Mitsubishi
- Condition: Excellent, with all electrical components operational and an almost new undercarriage
| Specifications | Value |
|---|---|
| No. | 1131055 |
| Tonnage (tons) | 20 |
| Working weight (kg) | 20300 |
| Bucket capacity (m³) | 0.83 |
| Country of origin | Kunshan in Jiangsu Province |
| power | Traditional power |
| manufacturer | Made in China |
| bucket | backhoe |
| Engine type | Mitsubishi 6D34TL-20 |
| Rated power (kw/rpm) | 114/2050 |
| Cooling mode | water-cooling |
| Ground specific pressure (Kpa) | 44.8 |
| Rotation speed (rpm) | 12.5 |
| Climbing ability (%) | 70/35 ° |
| Bucket digging force (kN) | 138 |
| Travel speed (km/h) | 3.2/5.5 |
| Main overflow set pressure (Mpa) | 34.3 |
| Maximum flow of main pump (l/min) | 2 x 210 |
| Traveling Hydraulic Circuit (Mpa) | 34.3 |
| Rotary Hydraulic Circuit (Mpa) | 25.5 |
| Control Hydraulic Circuit (Mpa) | 3.9 |
| Hydraulic crushing pipeline is standard | no |
| Total transport length (mm) | 9397 |
| Total transport width (mm) | 2800 |
| Total transport height (mm) | 2956 |
| Full cab height (mm) | 2930 |
| Minimum ground clearance (mm) | 440 |
| Back end turning radius (mm) | 2750 |
| Total track length (mm) | 4064 |
| Track gauge (mm) | 2200 |
| Track plate width (mm) | 600 |
| Total track width (mm) | 2800 |
| Track ground length (mm) | 3260 |
| Maximum digging radius (mm) | 9885 |
| Maximum digging depth (mm) | 6630 |
| Maximum excavation height (mm) | 9305 |
| Maximum unloading height (mm) | 6475 |
| Maximum vertical digging depth (mm) | 5980 |
| Bulldozer lift or depth (mm) | There is no |
