Product Description

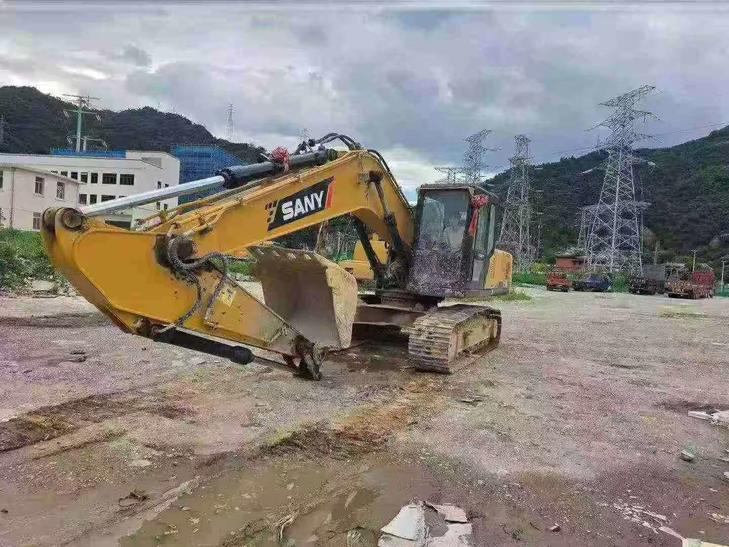

Discover the 2015 Sany SY205C-8, a robust and reliable excavator currently available in Zhejiang, China. This machine is equipped with one of the last batches of the highly efficient direct-injection Mitsubishi engine, making it a powerhouse for any construction or excavation project. Designed for durability and performance, this model has proven to be an excellent choice for earthmoving tasks. All electrical systems are fully functional, ensuring smooth operation and minimal downtime. The undercarriage is in near-mint condition, rated 99 new, which guarantees stability and longevity on the job site. Ideal for businesses looking for a sturdy and dependable piece of equipment, this Sany excavator is ready to meet your heavy machinery needs.
- Year: 2015
- Brand: Sany
- Model: SY205C-8
- Location: Zhejiang, China
- Engine: Direct-injection Mitsubishi
- Condition: Excellent, with all electrical systems operational and undercarriage nearly new
| Specifications | Value |
|---|---|
| No. | 1135255 |
| Tonnage (tons) | 20 |
| Working weight (kg) | 20300 |
| Bucket capacity (m³) | 0.83 |
| Country of origin | Kunshan in Jiangsu Province |
| power | Traditional power |
| manufacturer | Made in China |
| bucket | backhoe |
| Engine type | Mitsubishi 6D34TL-20 |
| Rated power (kw/rpm) | 114/2050 |
| Cooling mode | water-cooling |
| Ground specific pressure (Kpa) | 44.8 |
| Rotation speed (rpm) | 12.5 |
| Climbing ability (%) | 70/35 ° |
| Bucket digging force (kN) | 138 |
| Travel speed (km/h) | 3.2/5.5 |
| Main overflow set pressure (Mpa) | 34.3 |
| Maximum flow of main pump (l/min) | 2 x 210 |
| Traveling Hydraulic Circuit (Mpa) | 34.3 |
| Rotary Hydraulic Circuit (Mpa) | 25.5 |
| Control Hydraulic Circuit (Mpa) | 3.9 |
| Hydraulic crushing pipeline is standard | no |
| Total transport length (mm) | 9397 |
| Total transport width (mm) | 2800 |
| Total transport height (mm) | 2956 |
| Full cab height (mm) | 2930 |
| Minimum ground clearance (mm) | 440 |
| Back end turning radius (mm) | 2750 |
| Total track length (mm) | 4064 |
| Track gauge (mm) | 2200 |
| Track plate width (mm) | 600 |
| Total track width (mm) | 2800 |
| Track ground length (mm) | 3260 |
| Maximum digging radius (mm) | 9885 |
| Maximum digging depth (mm) | 6630 |
| Maximum excavation height (mm) | 9305 |
| Maximum unloading height (mm) | 6475 |
| Maximum vertical digging depth (mm) | 5980 |
| Bulldozer lift or depth (mm) | There is no |
