Product Description

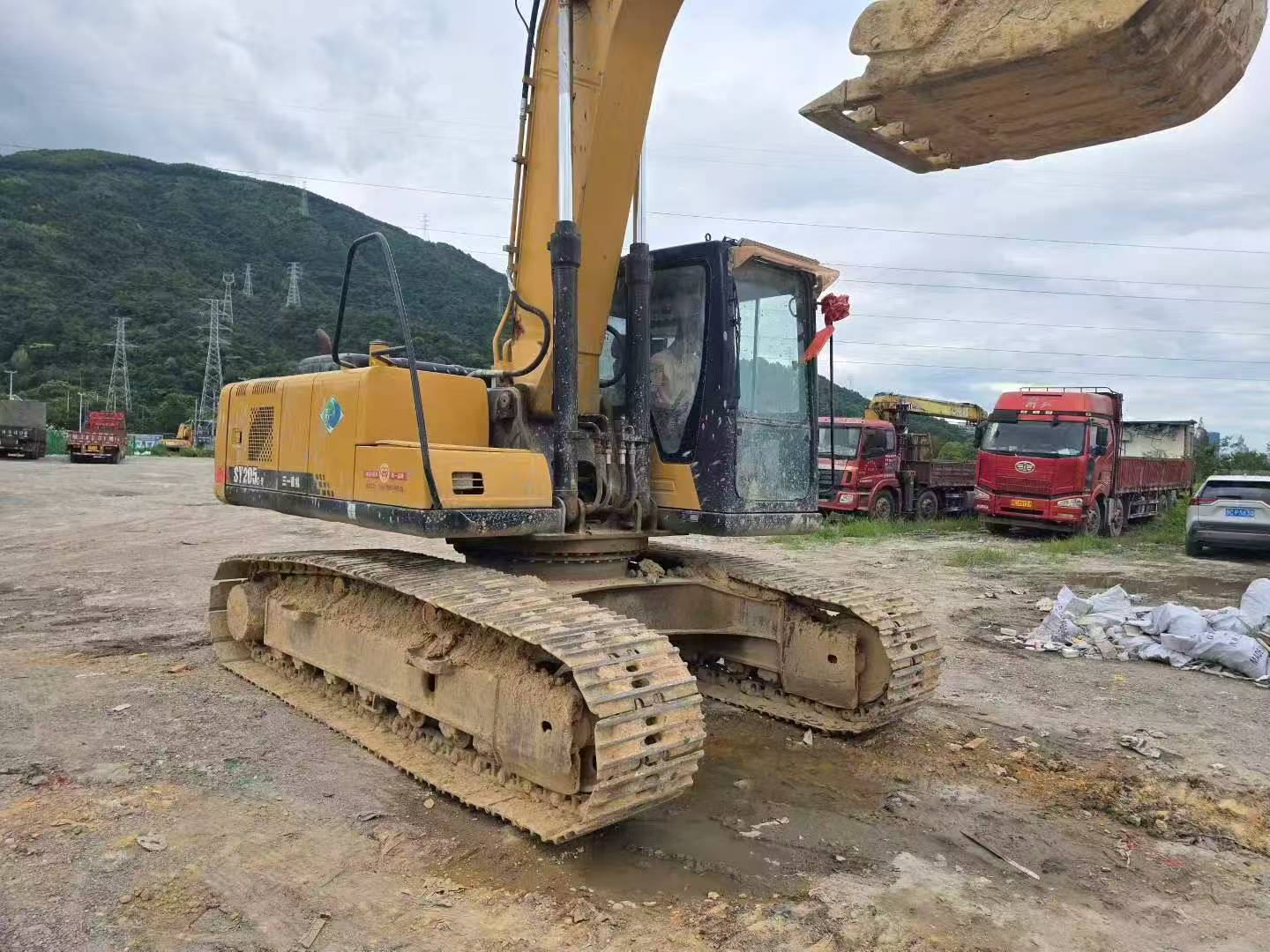

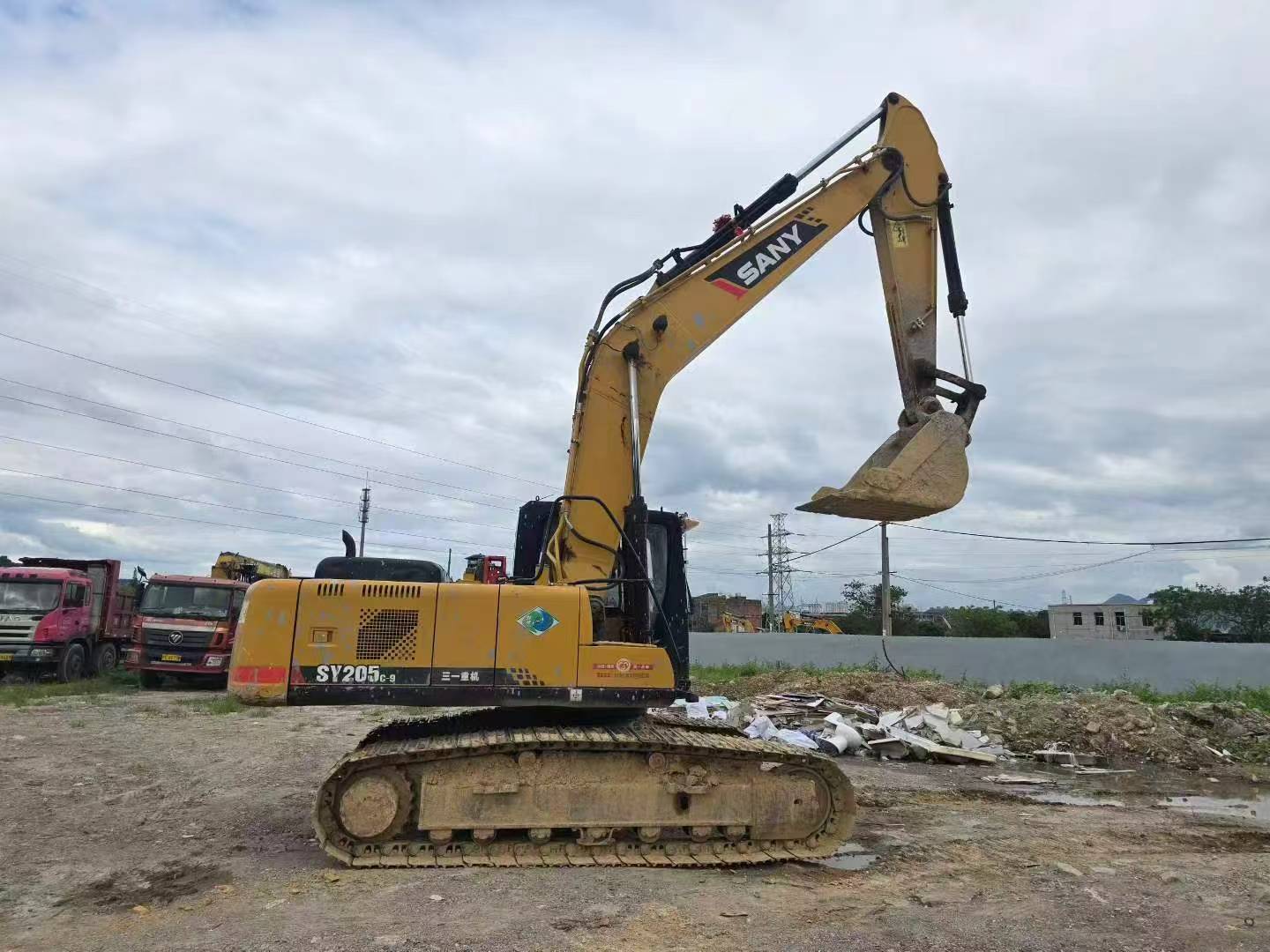

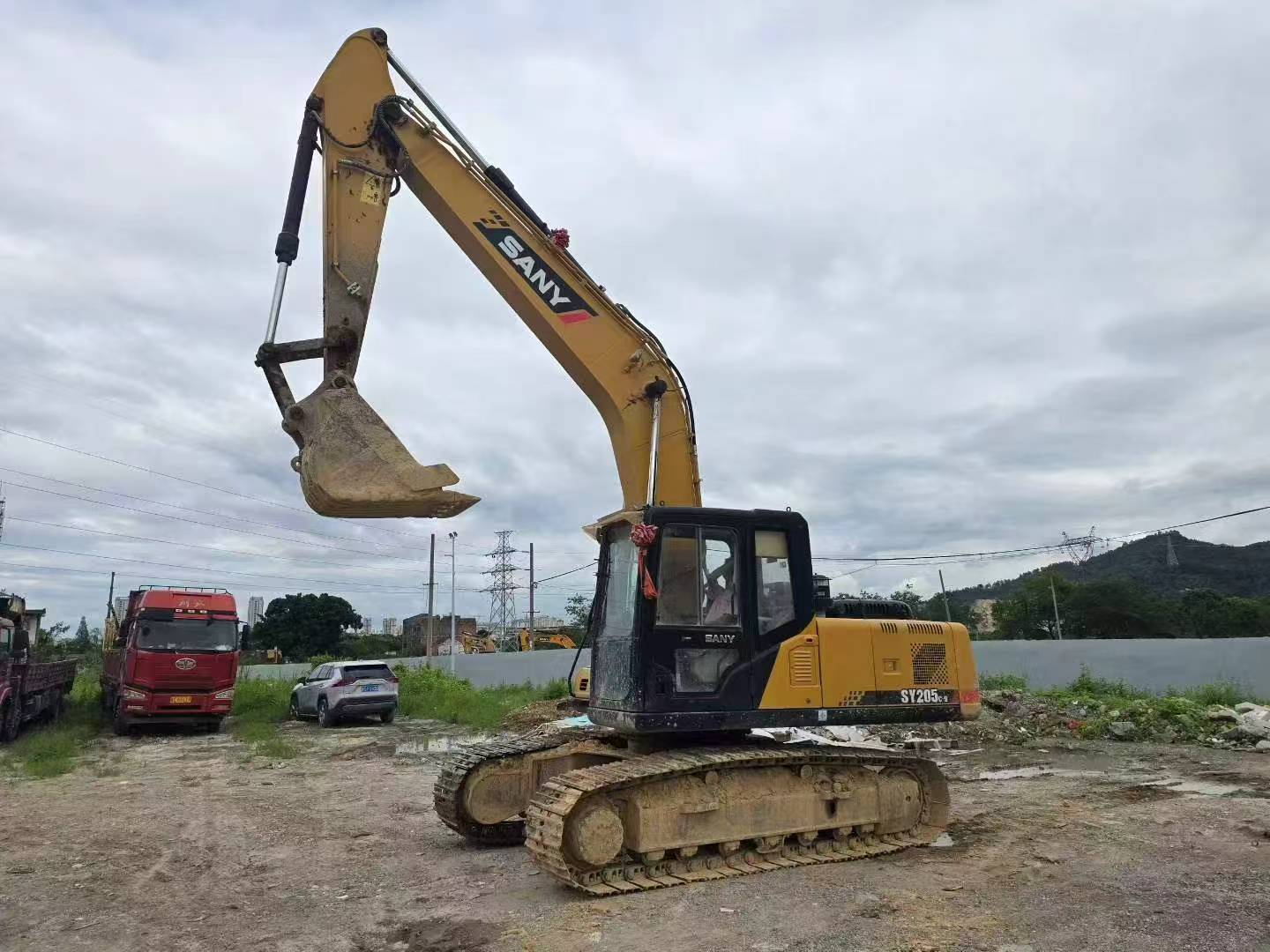

This 2015 Sany SY205C-8 hydraulic excavator represents excellent value in the mid-size crawler excavator segment. Located in Zhejiang, China, this machine features the final generation direct-injection Mitsubishi engine known for fuel efficiency and reliable power delivery. With approximately 20-ton operating weight, the SY205C-8 offers versatile performance for earthmoving, excavation, and site development applications.
Key highlights include:

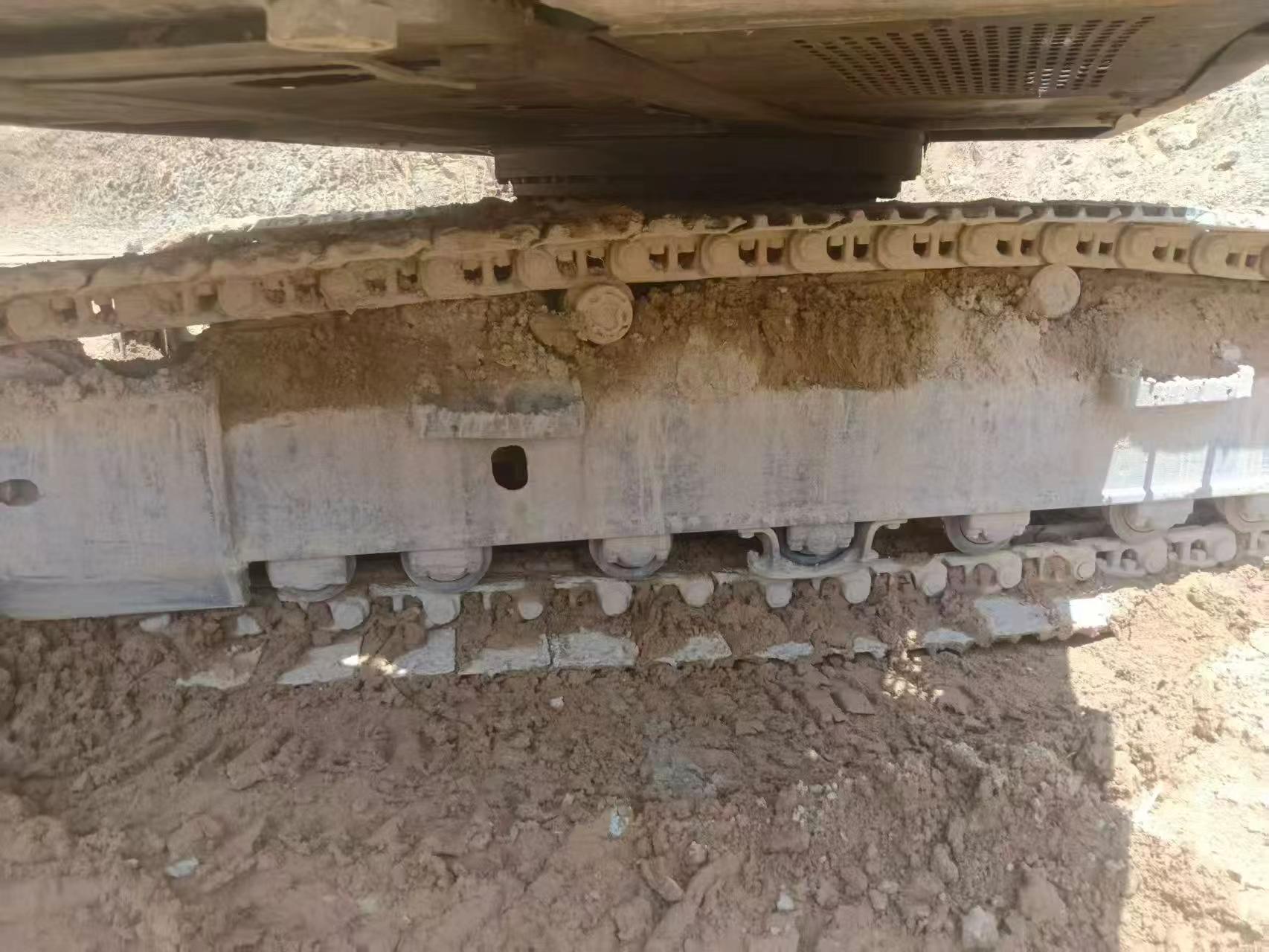

- Well-maintained undercarriage in excellent condition
- All electrical systems fully operational
- Extensive earthwork service history
- Final series Mitsubishi diesel engine

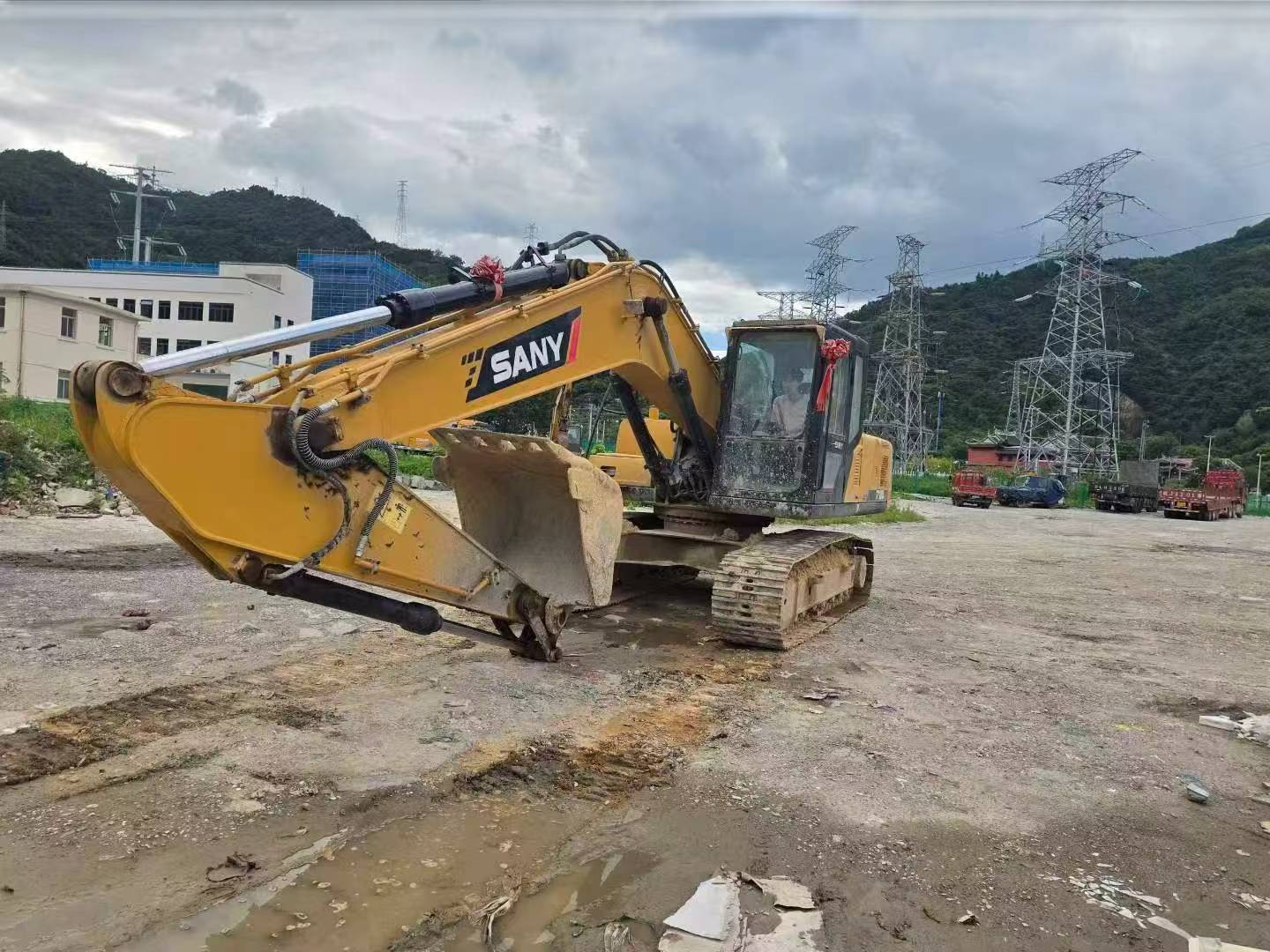

- Standard boom and arm configuration
The machine has been primarily used for earthmoving operations and shows consistent maintenance throughout its service life. All hydraulic functions, controls, and electrical components are confirmed operational. Available for immediate inspection in Zhejiang province.
| Specifications | Value |
|---|---|
| No. | 1139135 |
| Tonnage (tons) | 20 |
| Working weight (kg) | 20300 |
| Bucket capacity (m³) | 0.83 |
| Country of origin | Kunshan in Jiangsu Province |
| power | Traditional power |
| manufacturer | Made in China |
| bucket | backhoe |

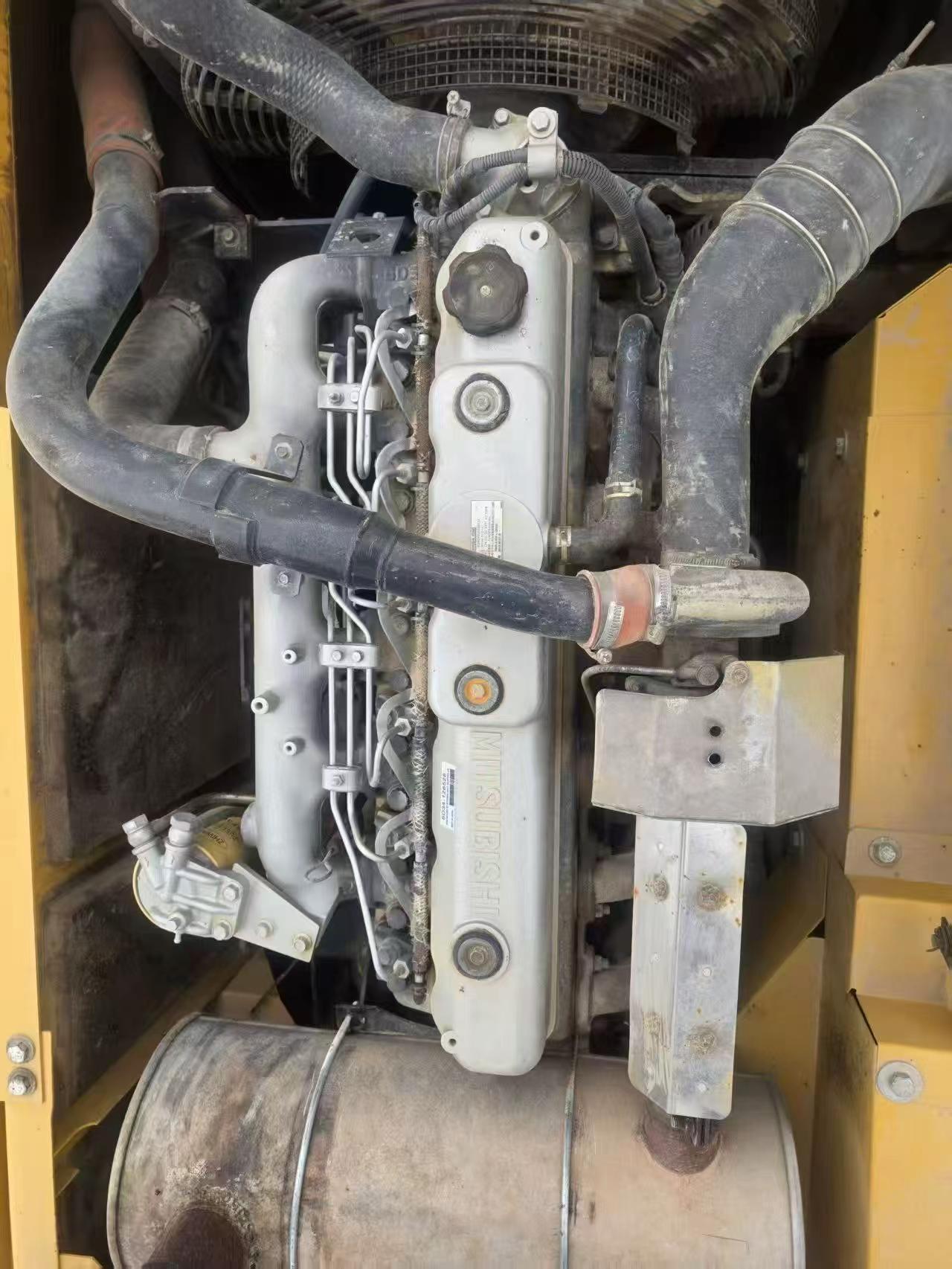

| Engine type | Mitsubishi 6D34TL-20 |
| Rated power (kw/rpm) | 114/2050 |

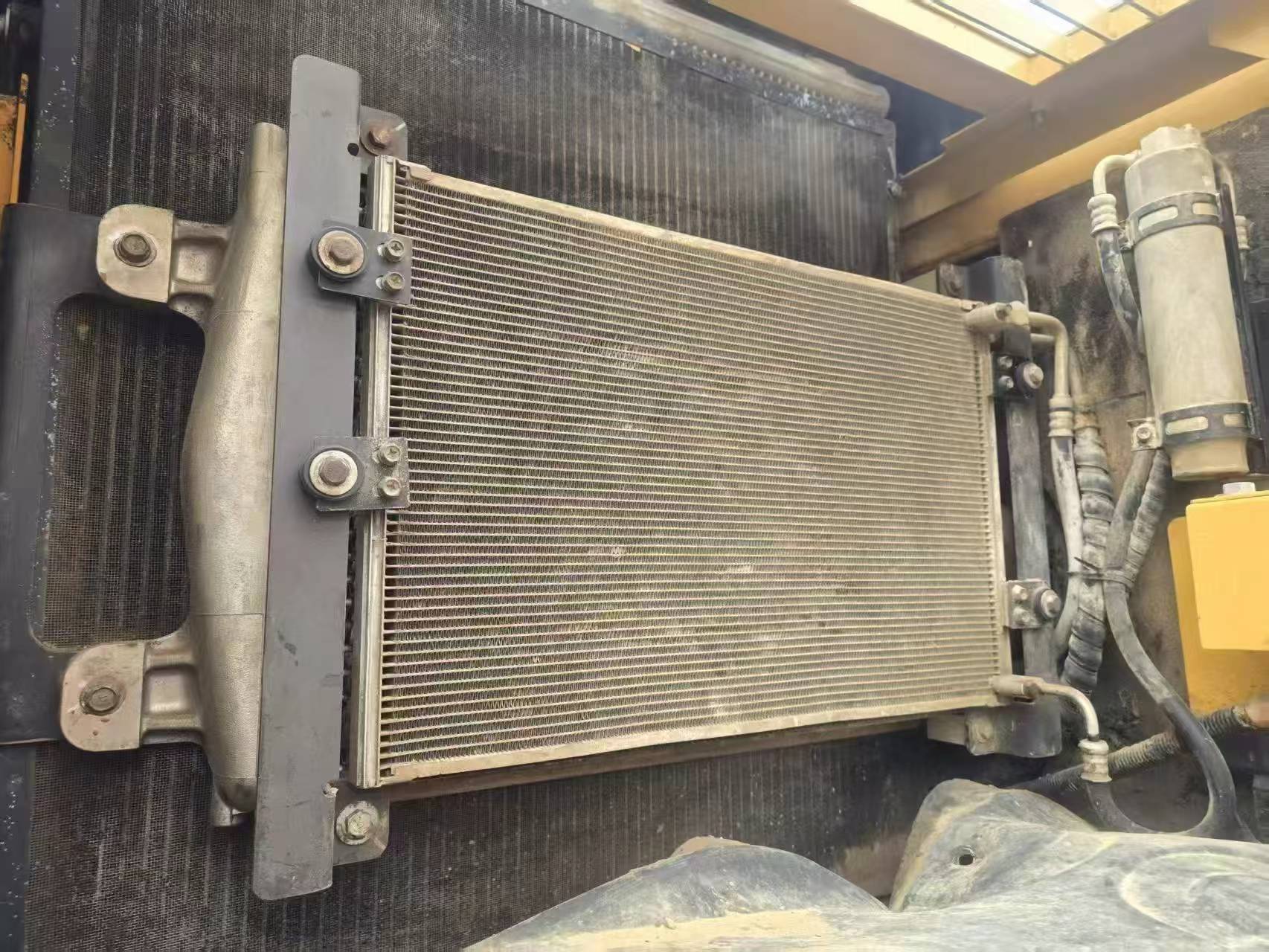

| Cooling mode | water-cooling |
| Ground specific pressure (Kpa) | 44.8 |
| Rotation speed (rpm) | 12.5 |
| Climbing ability (%) | 70/35 ° |
| Bucket digging force (kN) | 138 |
| Travel speed (km/h) | 3.2/5.5 |
| Main overflow set pressure (Mpa) | 34.3 |
| Maximum flow of main pump (l/min) | 2 x 210 |
| Traveling Hydraulic Circuit (Mpa) | 34.3 |

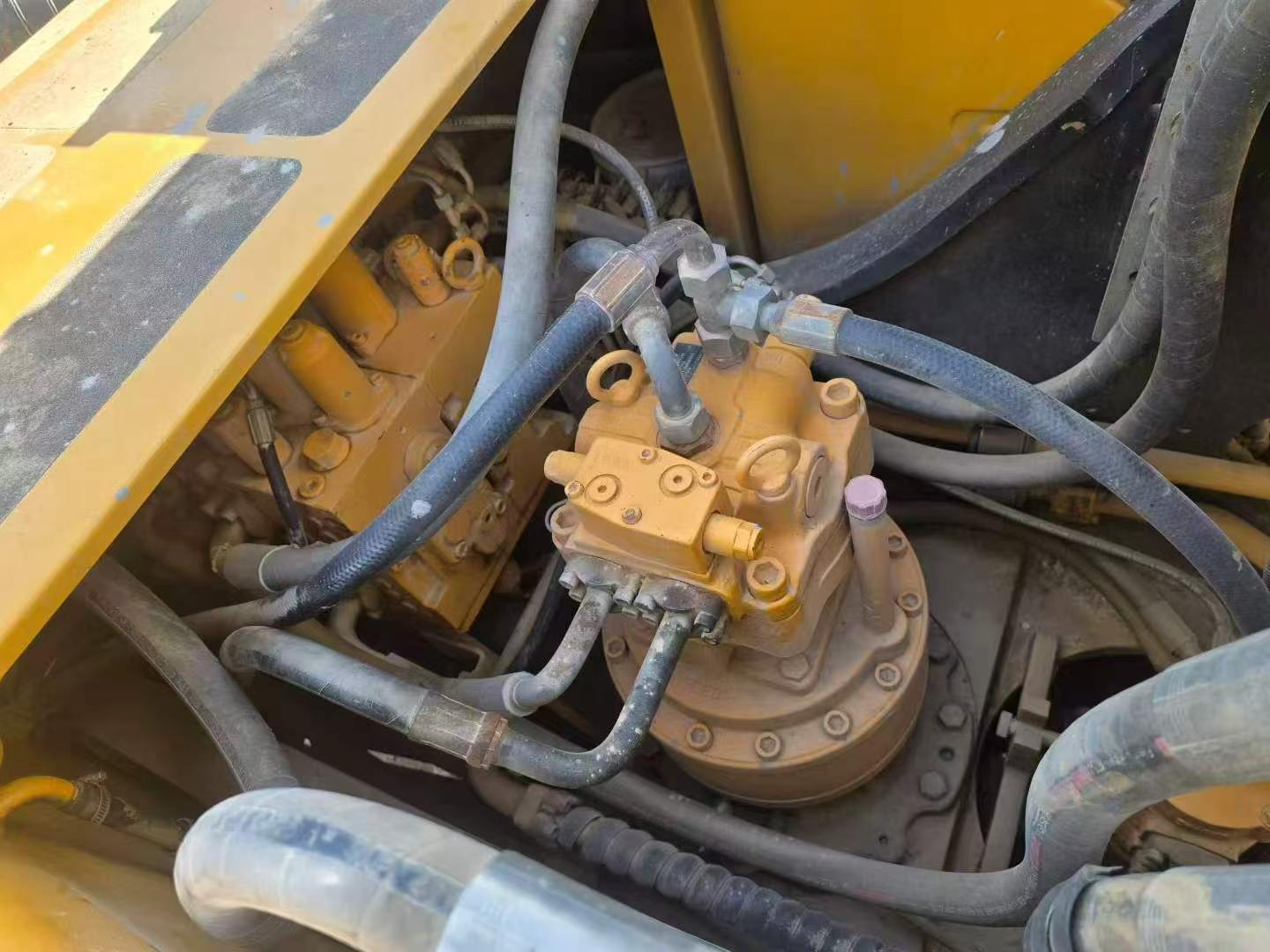

| Rotary Hydraulic Circuit (Mpa) | 25.5 |
| Control Hydraulic Circuit (Mpa) | 3.9 |
| Hydraulic crushing pipeline is standard | no |
| Total transport length (mm) | 9397 |
| Total transport width (mm) | 2800 |
| Total transport height (mm) | 2956 |
| Full cab height (mm) | 2930 |
| Minimum ground clearance (mm) | 440 |
| Back end turning radius (mm) | 2750 |
| Total track length (mm) | 4064 |
| Track gauge (mm) | 2200 |
| Track plate width (mm) | 600 |
| Total track width (mm) | 2800 |
| Track ground length (mm) | 3260 |
| Maximum digging radius (mm) | 9885 |
| Maximum digging depth (mm) | 6630 |
| Maximum excavation height (mm) | 9305 |
| Maximum unloading height (mm) | 6475 |
| Maximum vertical digging depth (mm) | 5980 |
| Bulldozer lift or depth (mm) | There is no |
