2020 Sany SY205C-8

1/9
Buy Sany SY205C-8 Used Excavator / 1
Buy Sany SY205C-8 Used Excavator / 2
Buy Sany SY205C-8 Used Excavator / 3
Buy Sany SY205C-8 Used Excavator / 4
Buy Sany SY205C-8 Used Excavator / 5
Buy Sany SY205C-8 Used Excavator / 6
Buy Sany SY205C-8 Used Excavator / 7
Buy Sany SY205C-8 Used Excavator / 8
Buy Sany SY205C-8 Used Excavator / 9

Product Description

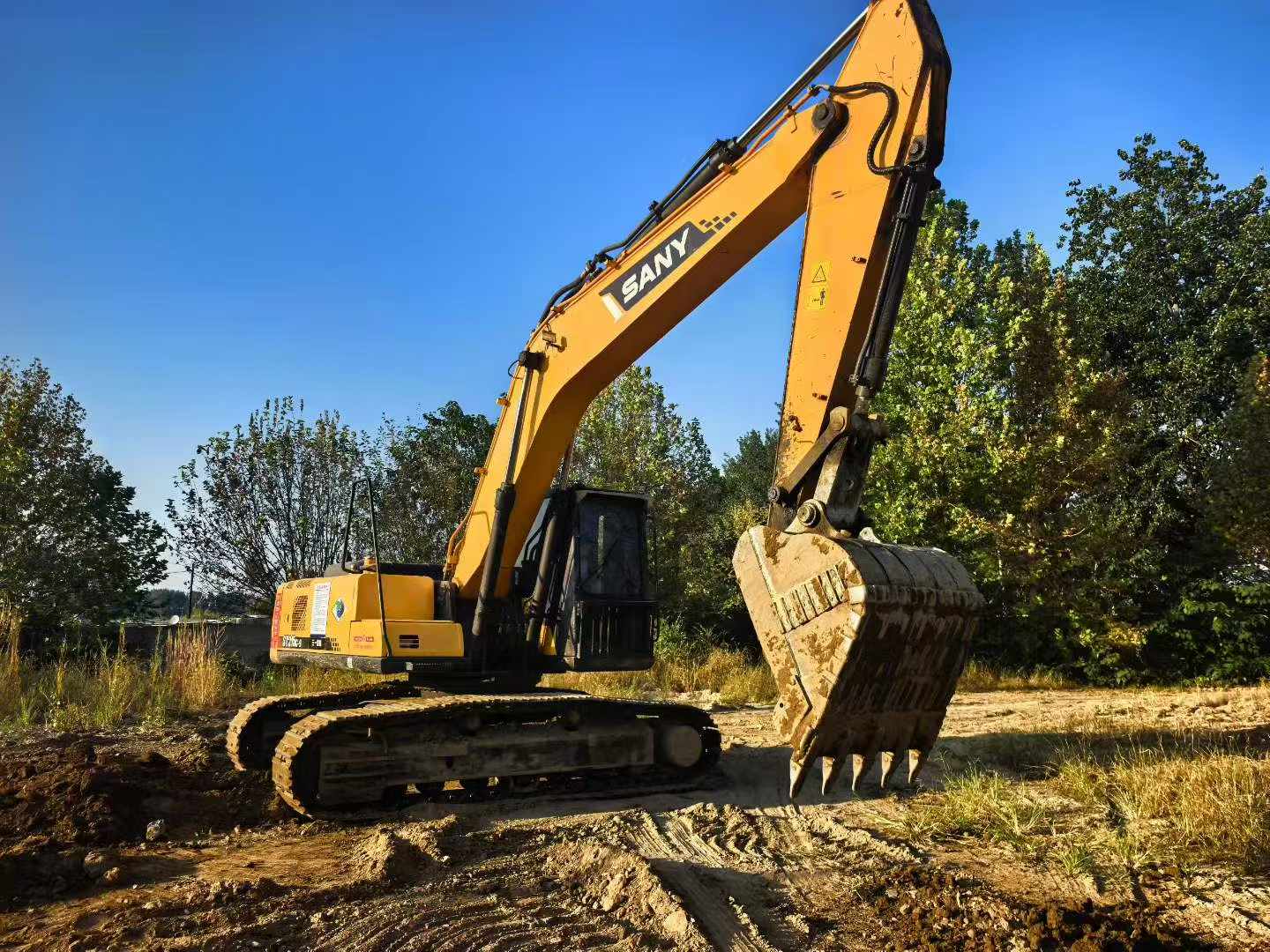

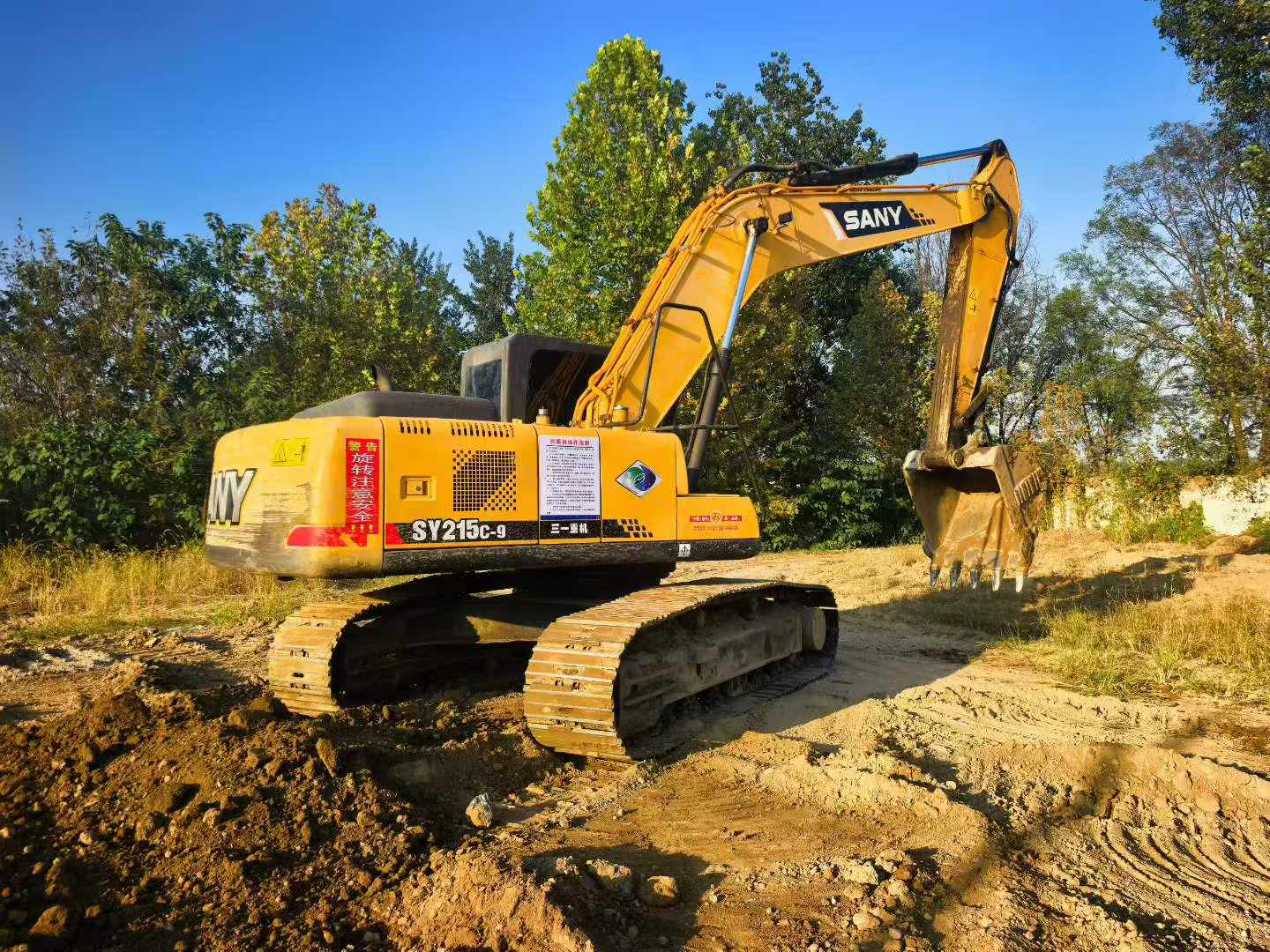

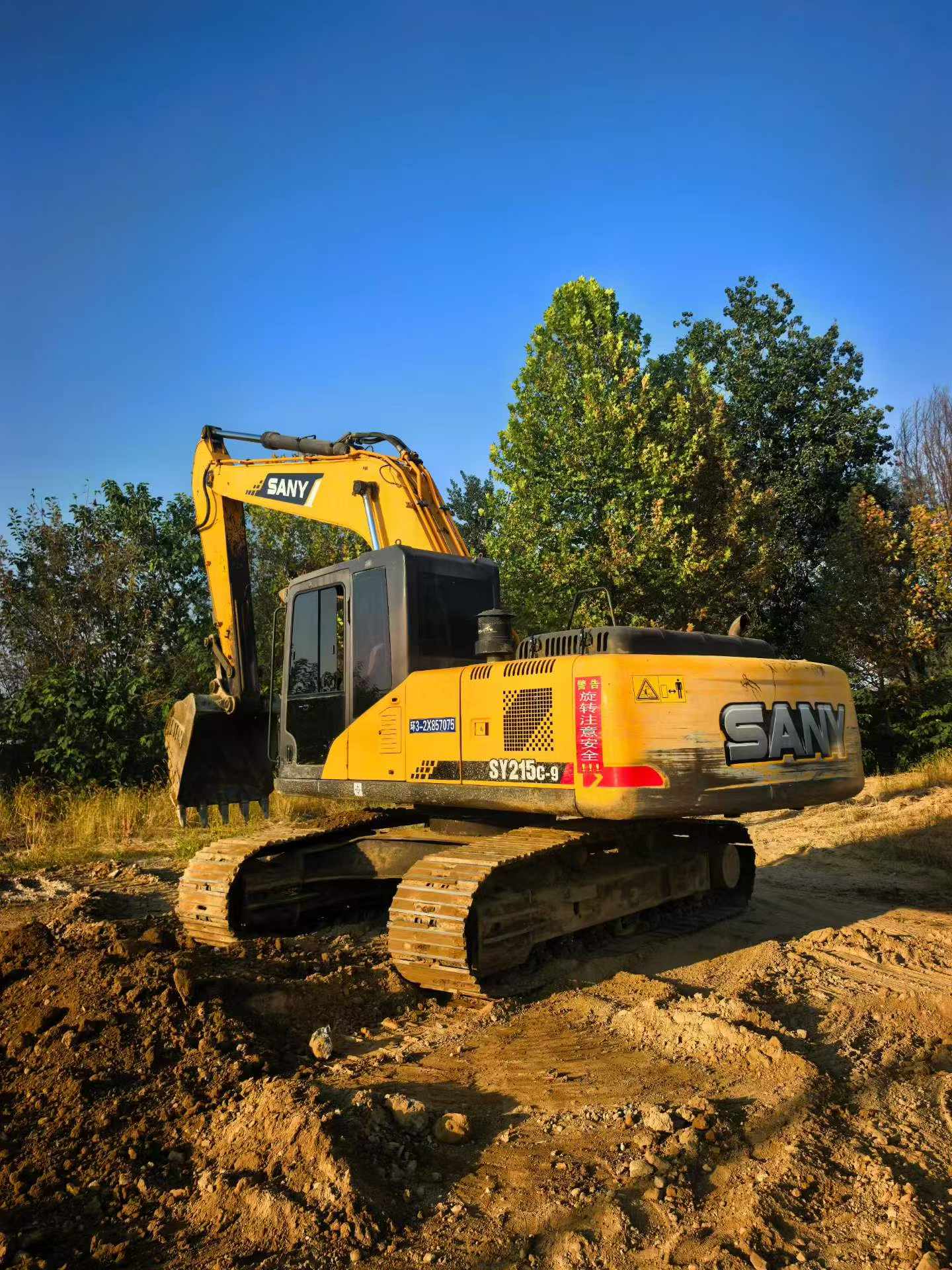

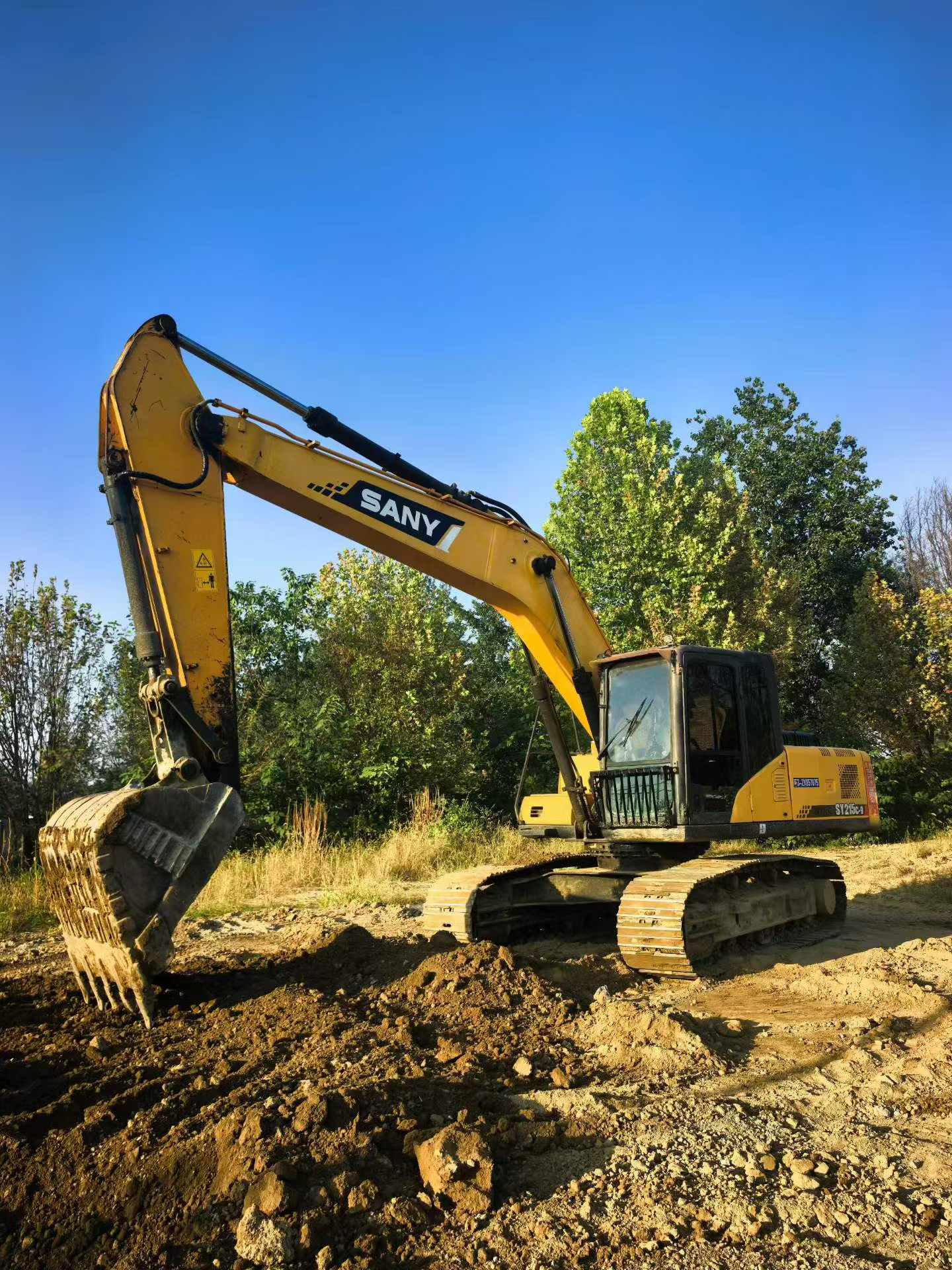

This 2020 Sany SY205C-8 excavator represents exceptional value in the used equipment market. Currently located in Hebei, China, this 20-ton class machine has been maintained in outstanding original condition with verified operational performance.

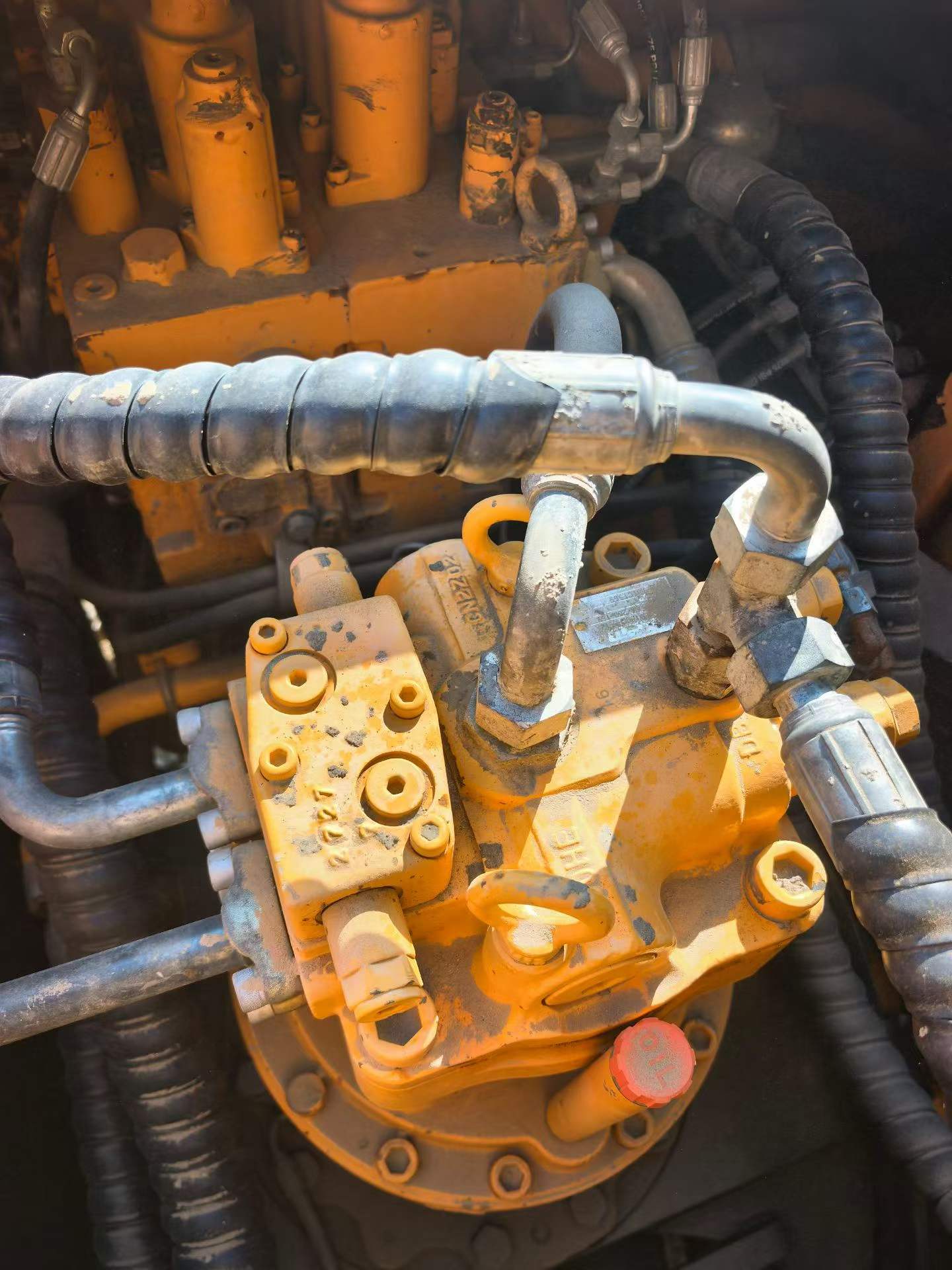

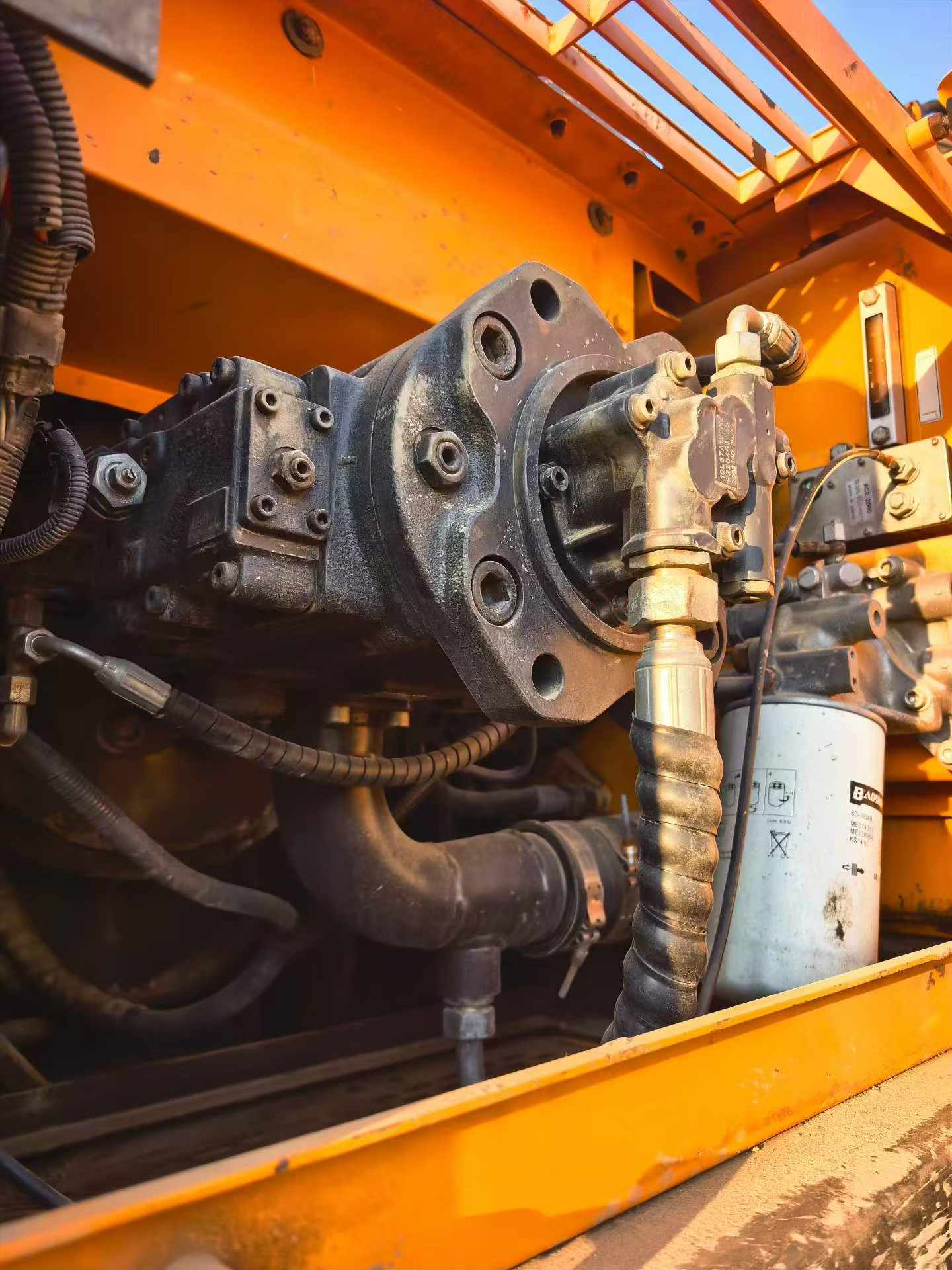

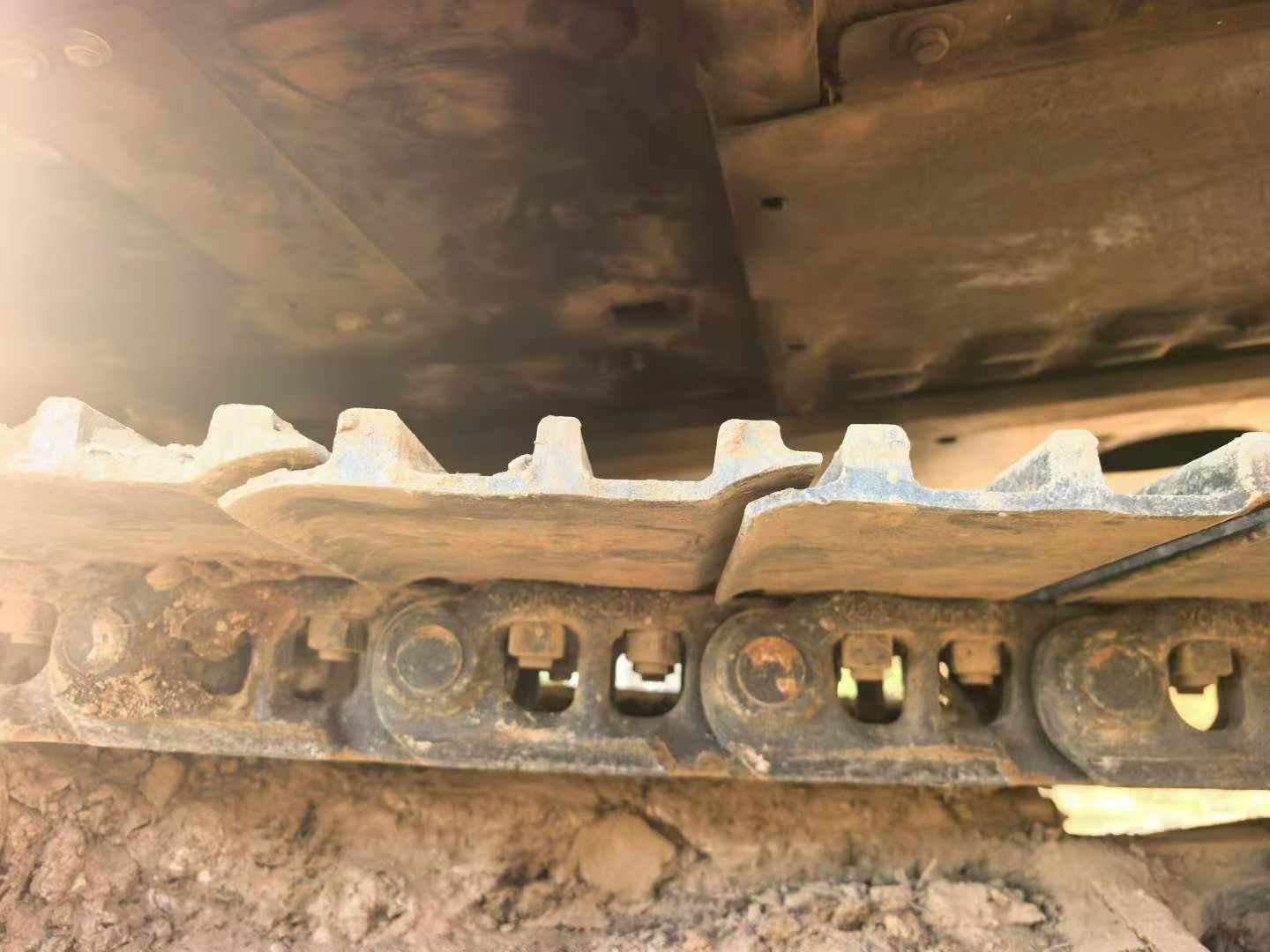

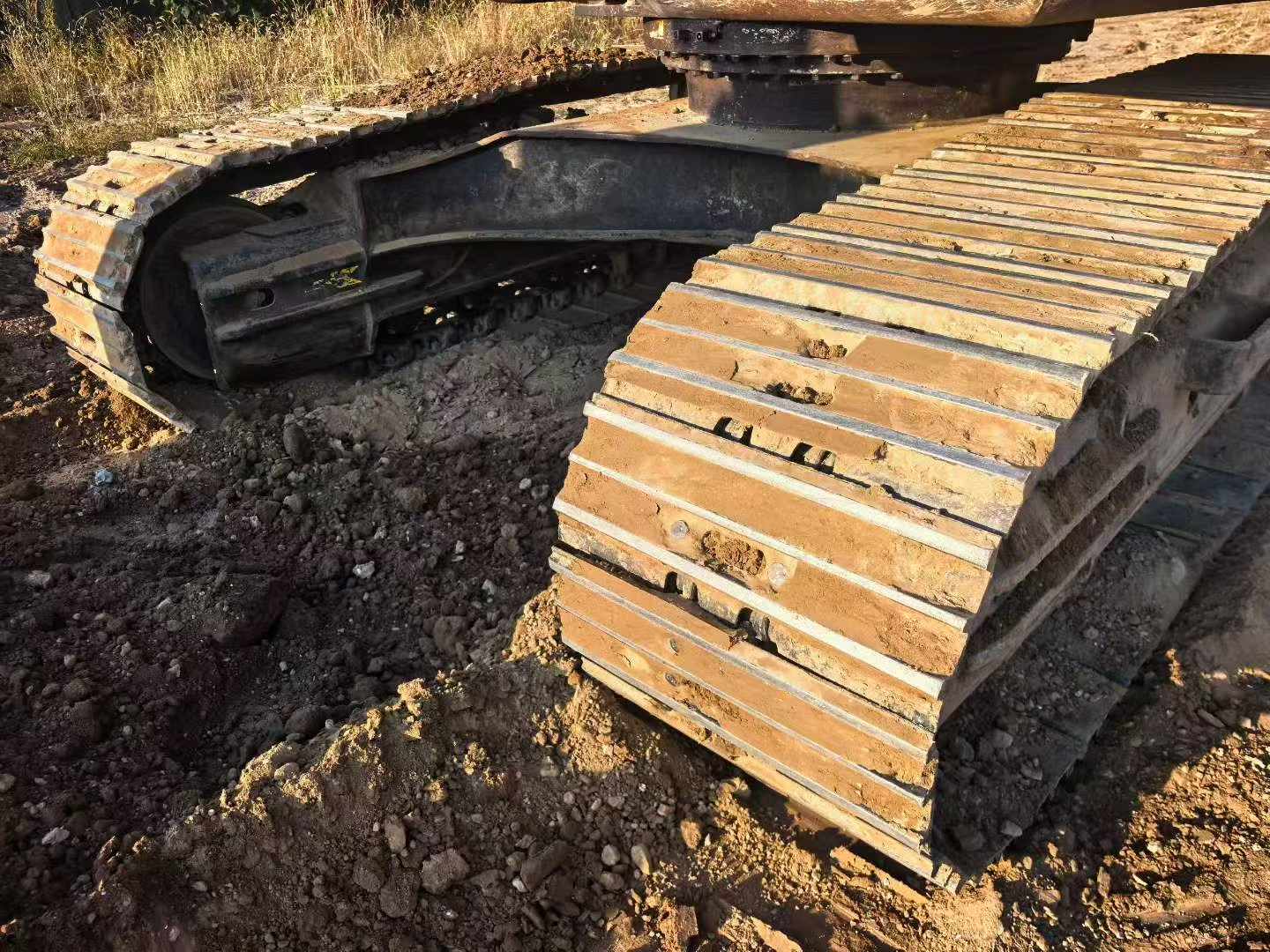

The hydraulic system delivers robust speed and responsiveness, while major components show no oil leakage—a testament to proper maintenance practices. The undercarriage features freshly painted new track shoes, ensuring extended service life for the next operator.

  • Dedicated earthmoving application—no hammer attachment history
  • All-original configuration with documented service records
  • Fast hydraulic cycle times for improved productivity
  • Clean major components with no leaks
  • New track shoes with protective coating

This machine is ready for immediate deployment in excavation, grading, and general earthmoving operations. Detailed photos and operational videos available upon request.

SpecificationsValue
No.1144861
Tonnage (tons)20
Working weight (kg)20300
Bucket capacity (m³)0.83
Country of originKunshan in Jiangsu Province
powerTraditional power
manufacturerMade in China
bucketbackhoe

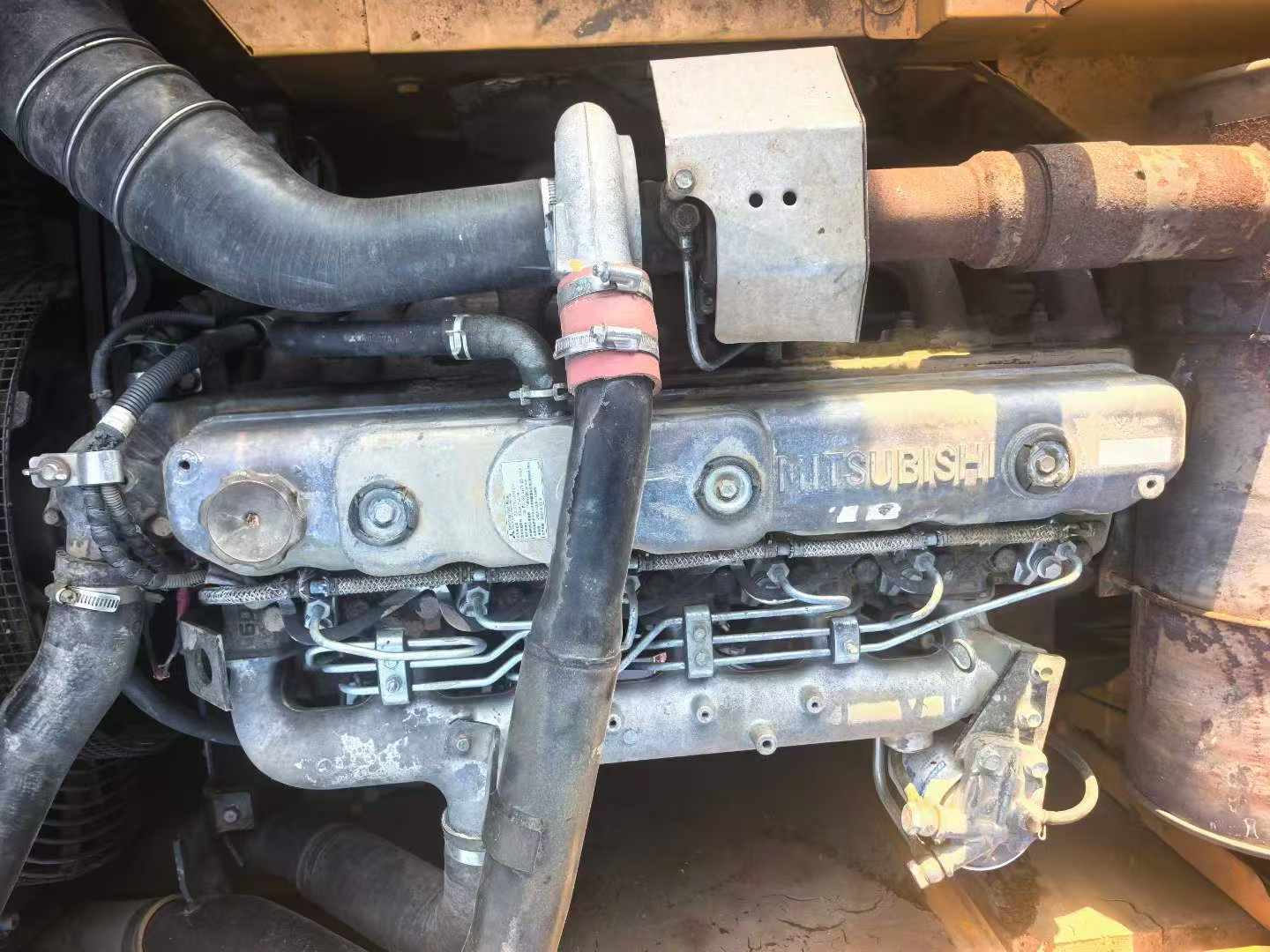

Engine typeMitsubishi 6D34TL-20
Rated power (kw/rpm)114/2050
Cooling modewater-cooling
Ground specific pressure (Kpa)44.8
Rotation speed (rpm)12.5
Climbing ability (%)70/35 °
Bucket digging force (kN)138
Travel speed (km/h)3.2/5.5
Main overflow set pressure (Mpa)34.3
Maximum flow of main pump (l/min)2 x 210
Traveling Hydraulic Circuit (Mpa)34.3
Rotary Hydraulic Circuit (Mpa)25.5
Control Hydraulic Circuit (Mpa)3.9
Hydraulic crushing pipeline is standardno
Total transport length (mm)9397
Total transport width (mm)2800
Total transport height (mm)2956
Full cab height (mm)2930
Minimum ground clearance (mm)440
Back end turning radius (mm)2750
Total track length (mm)4064
Track gauge (mm)2200
Track plate width (mm)600
Total track width (mm)2800
Track ground length (mm)3260
Maximum digging radius (mm)9885
Maximum digging depth (mm)6630
Maximum excavation height (mm)9305
Maximum unloading height (mm)6475
Maximum vertical digging depth (mm)5980
Bulldozer lift or depth (mm)There is no
see more

Overview

No.1144861

Brand Name:

Sany

Model Number:

SY205C-8

Year:

2020

Location:

Hebei China
